1/4inch 6.35mm Mono + switch Socket Jack Female Connector Isolated Panel Mount

$1.50

Categories: , Tags: ,

Description

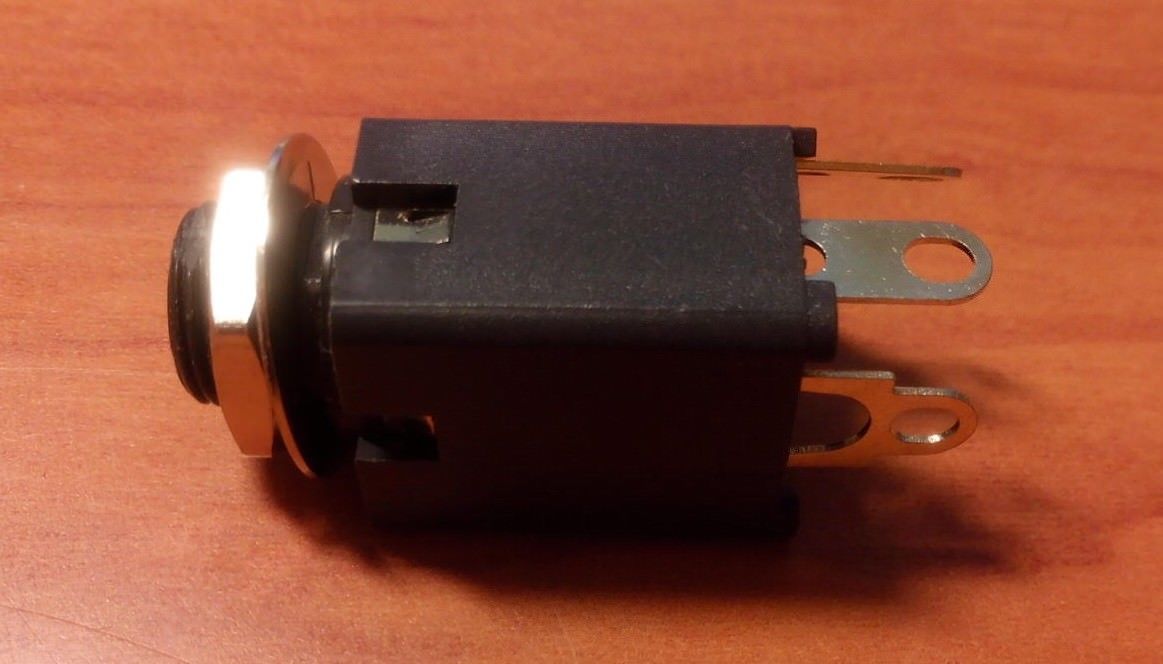

1pcs 1/4inch 6.35mm Mono + switch Socket Jack Female Connector Isolated Panel Mount

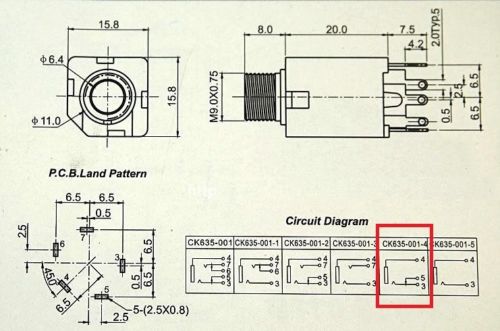

JACK, 1/4″, MONO, CLOSED CIRCUIT MONO, PC MOUNT, Switchcraft® STYLE, ISOLATED NYLON BUSHING
High quality Easy to install nickel plated Isolated Panel Mount Connector
3P With internal switch
Pin 1 = GND
Pin 2 = Signal
Pin 3 = Switch to Pin 2
Hole Size: 9mm Diameter
For Speaker Microphone Etc.
Isolated body for audio ground isolation
