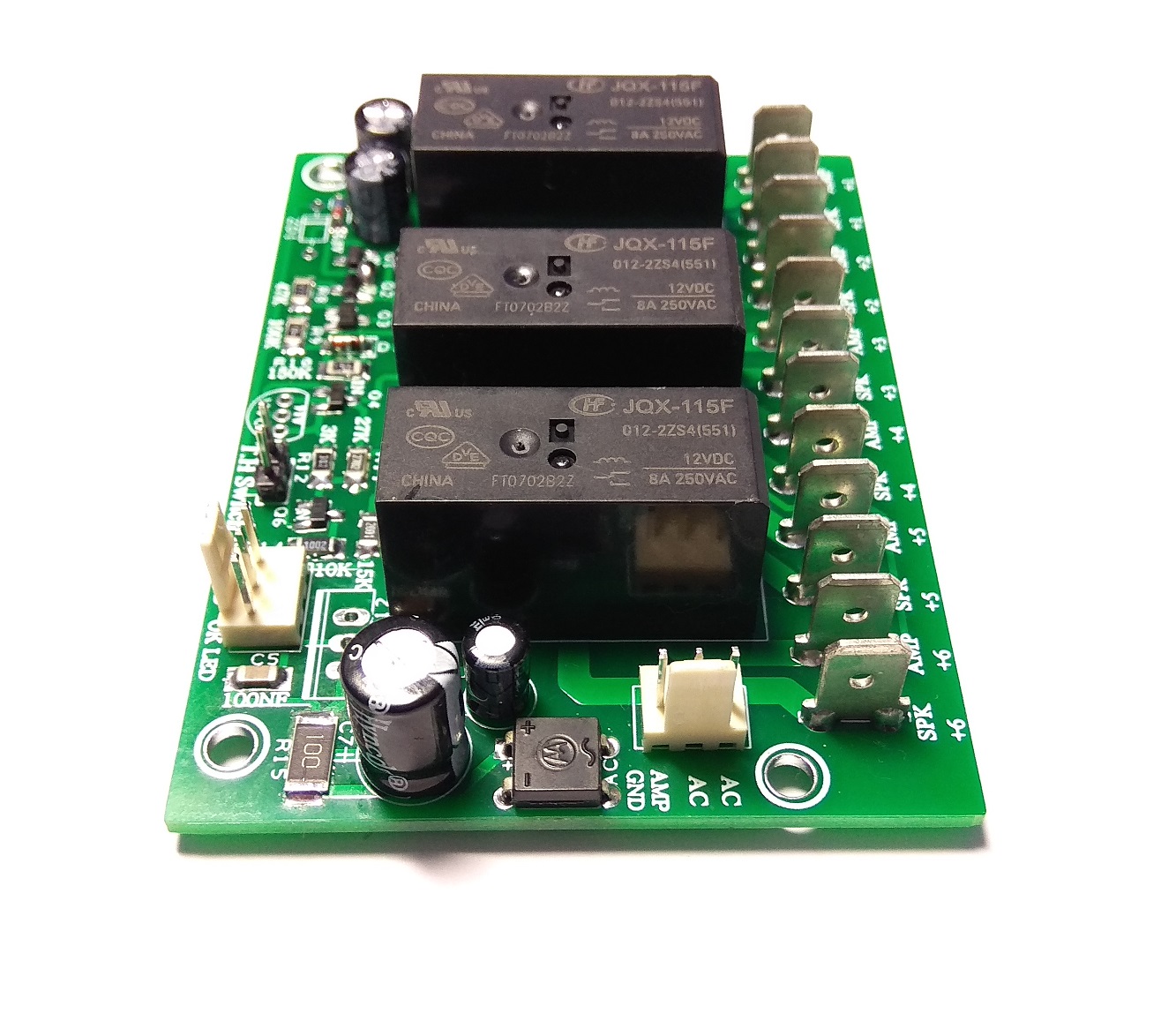

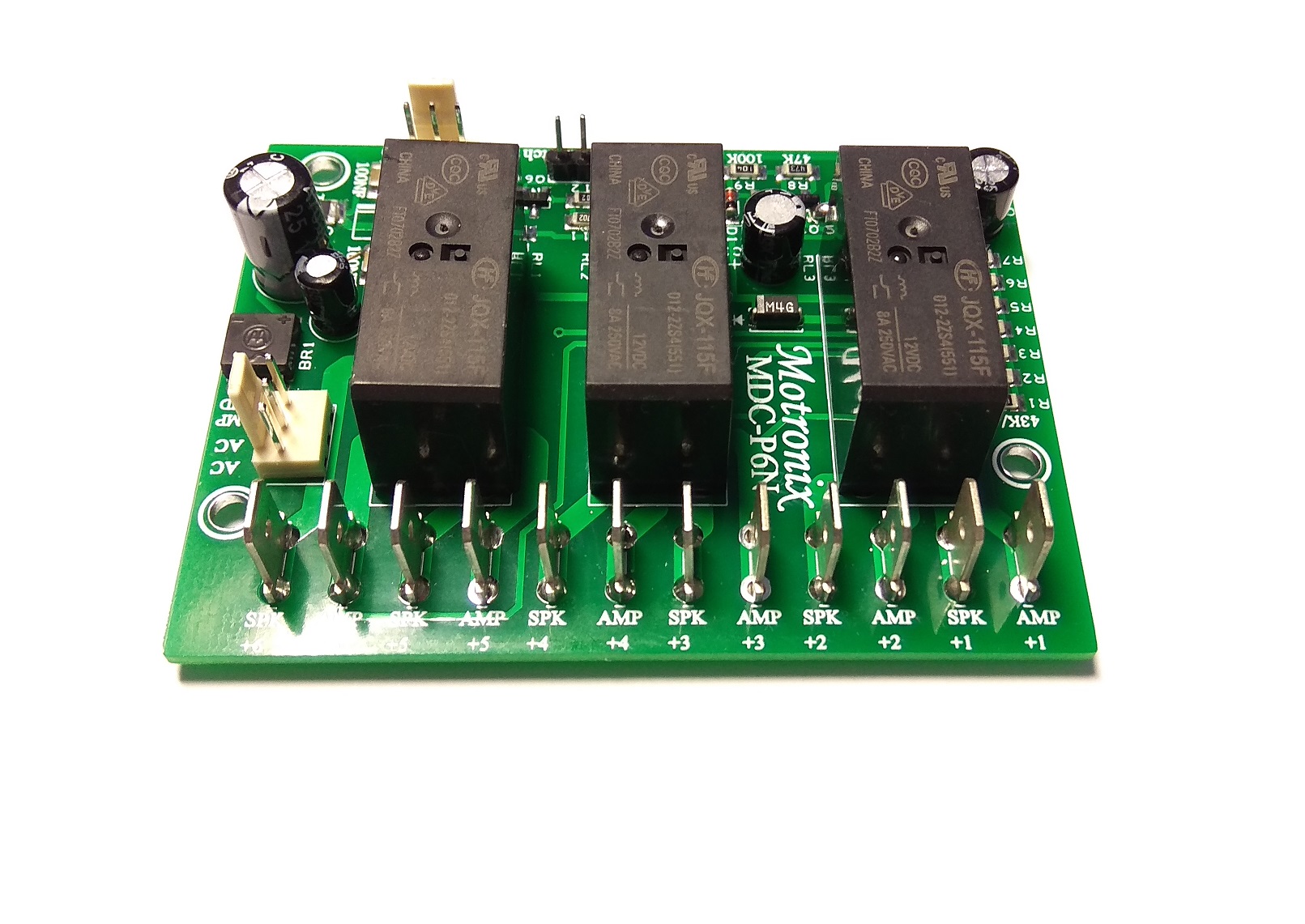

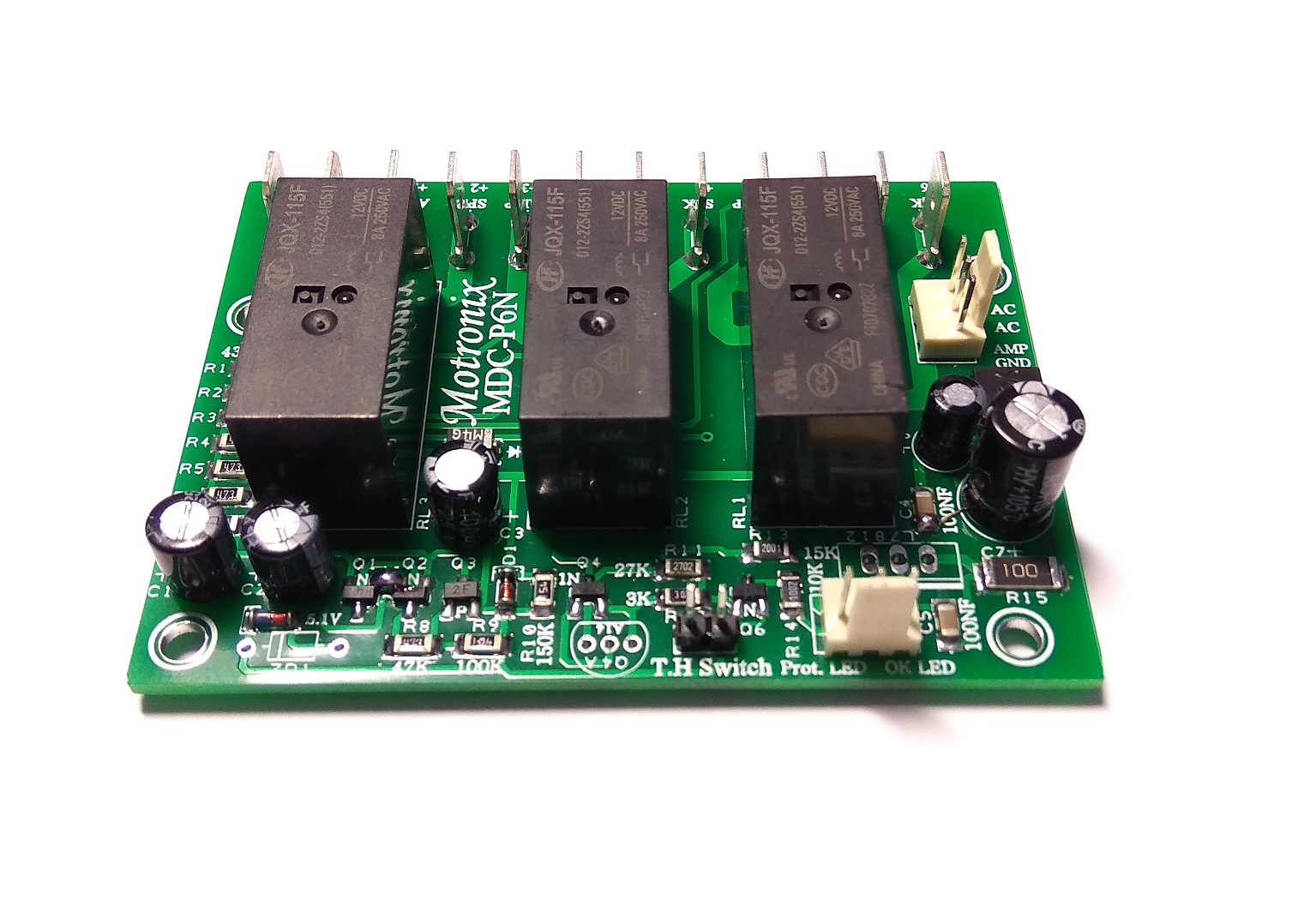

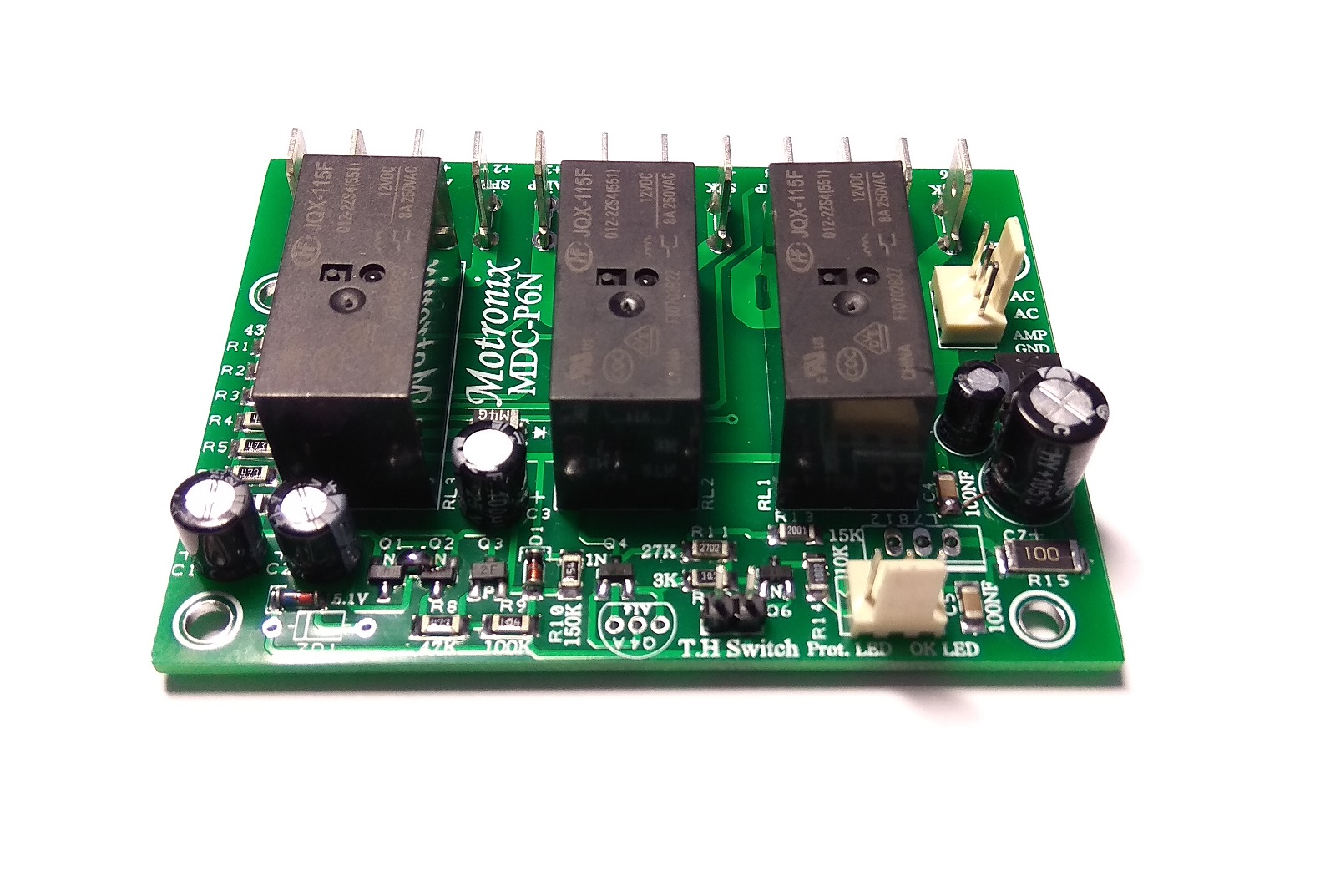

MDC-P6N 6 CH Turn On Delay & DC Speaker Protection with Thermal Switch Input

Availability:

10 in stock (can be backordered)

Description

MDC-P6N
6 CH Turn On Delay & DC Speaker Protection with
Optional Thermal Switch Input
               Working Voltage: 10-12Vac
For multi 6 CH Amplifiers
Assembled Board
 High quality and reliability FR4 1.6MM
High quality components
Turn on delay to prevent turn on click and noise
Very quick turn off

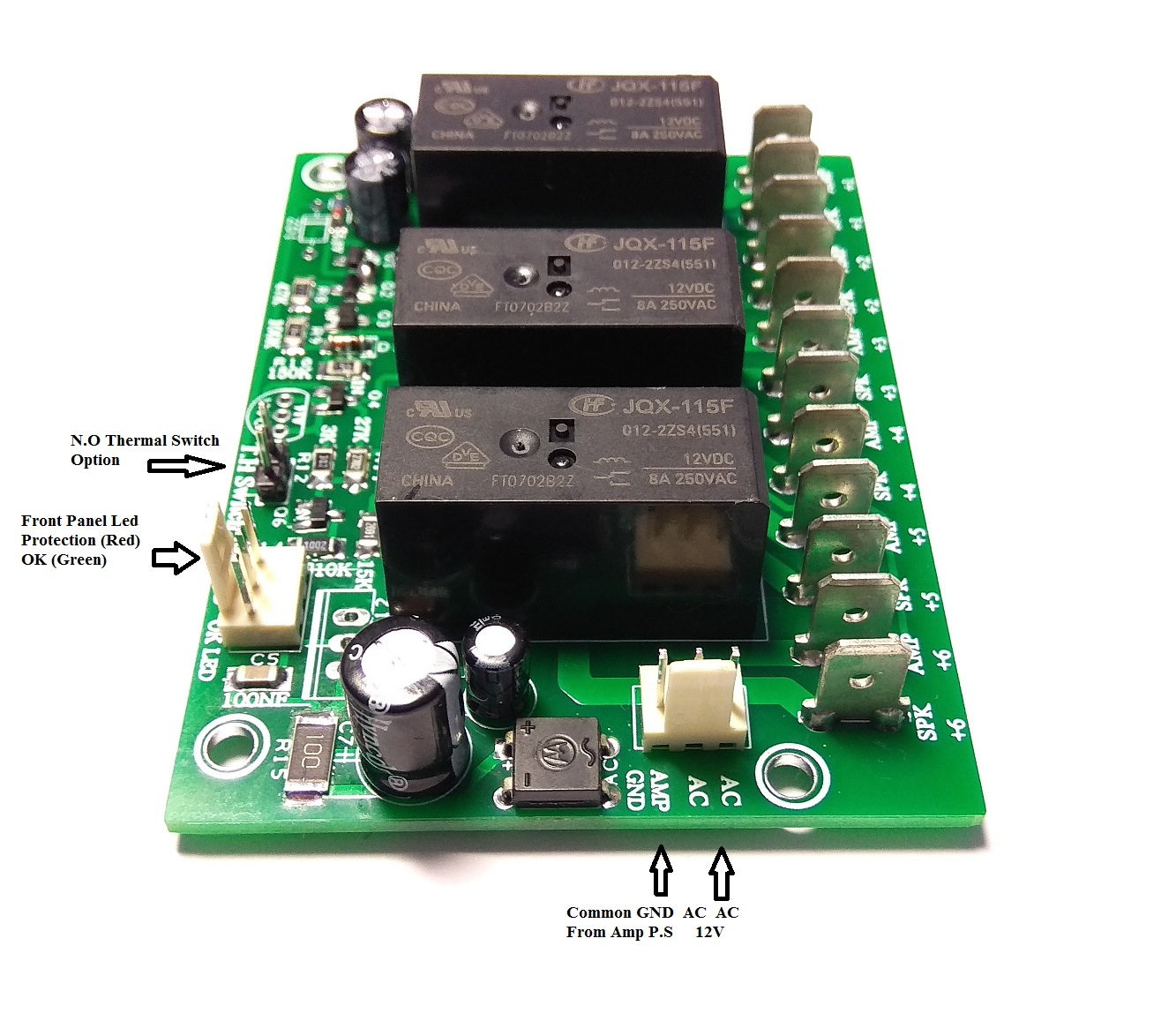

On board N.O Thermal switch input connector (Thermal switch not supplied)
On board connector to Power on LED & Protection/Thermal LED
This item is only PCB with components Assembled
Working Voltage : 10-12Vac
Current consumption: 120ma
MAX. Each CH. current rate: 5A/250V
PCB Size: 80mm*60mm double-sided HAL,FR4 1.6MM
Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier
