Description

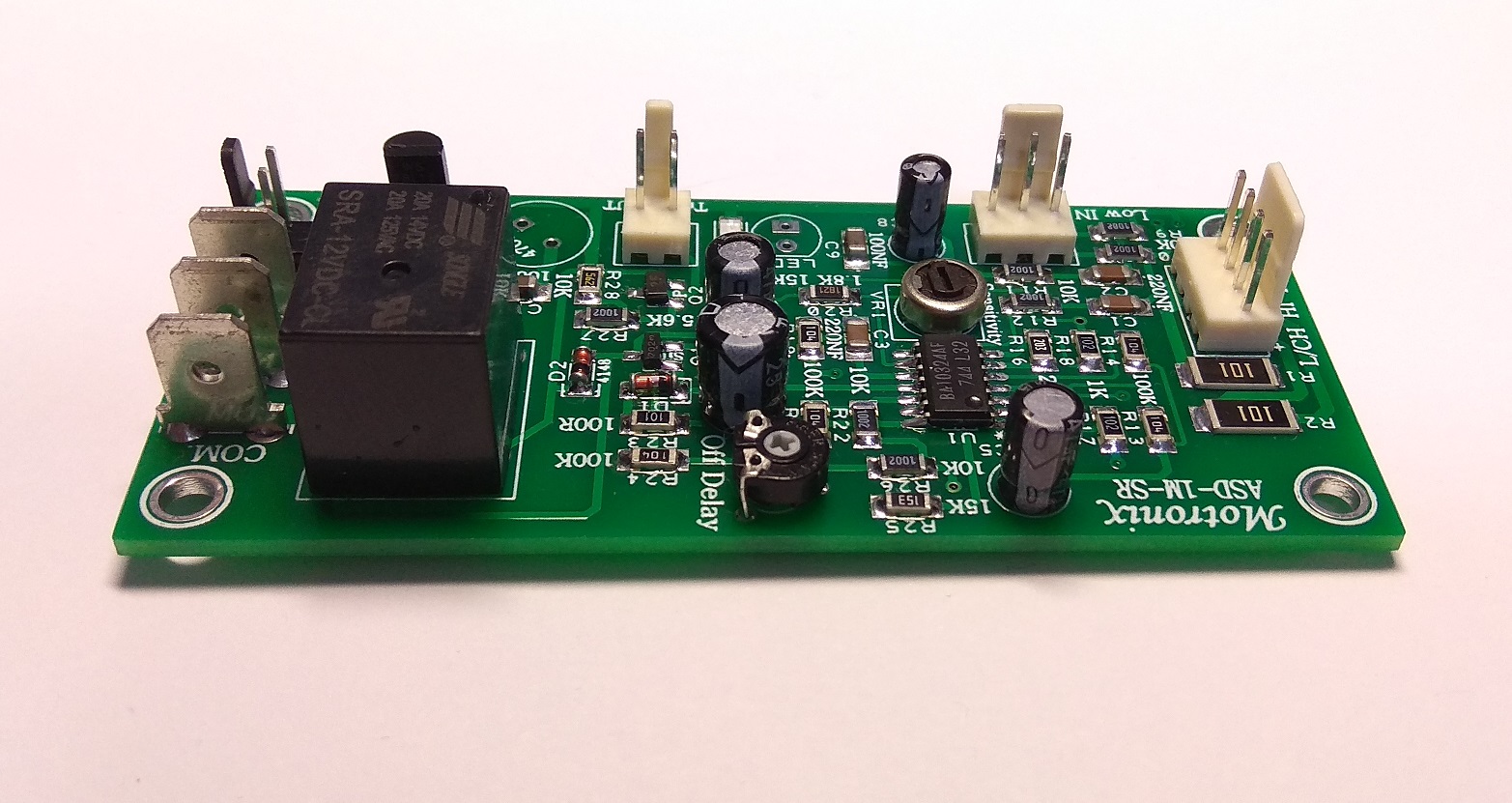

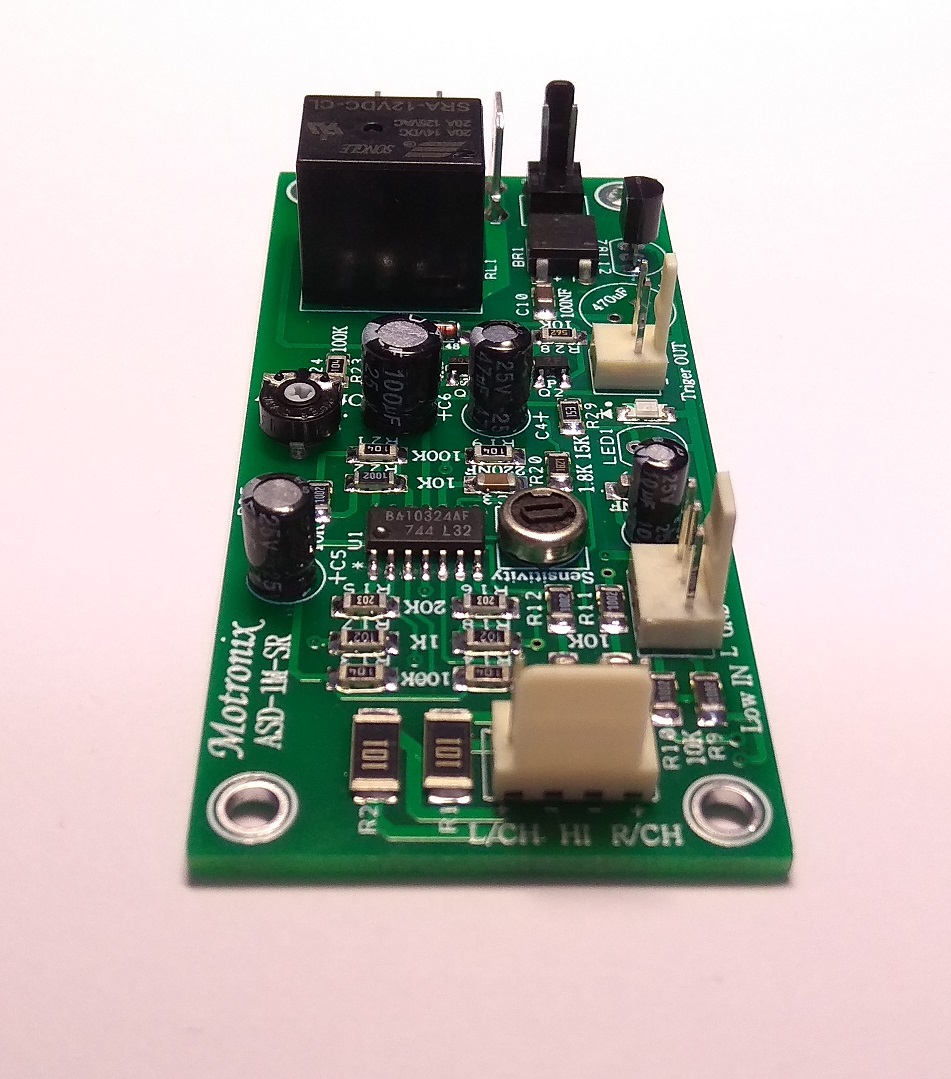

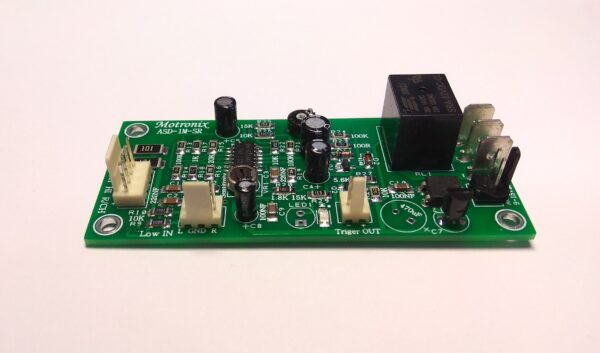

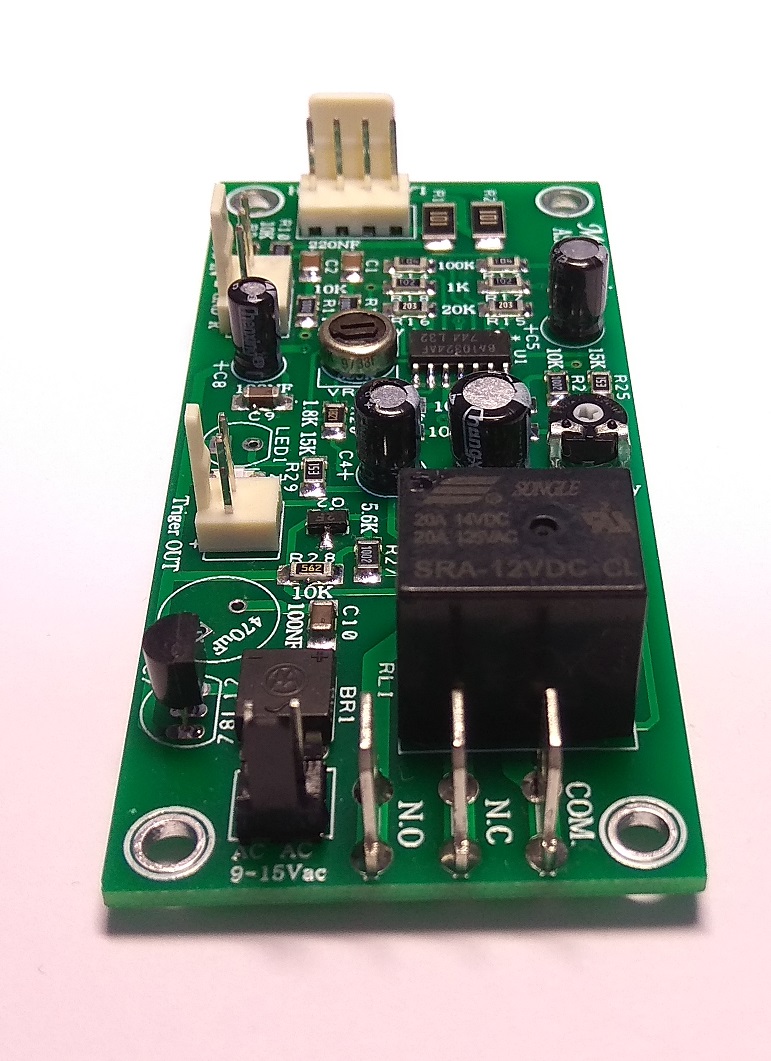

ASD-1M-SR
Audio Signal Detecting Auto Power On/Off
with 12V Trigger out For DIY

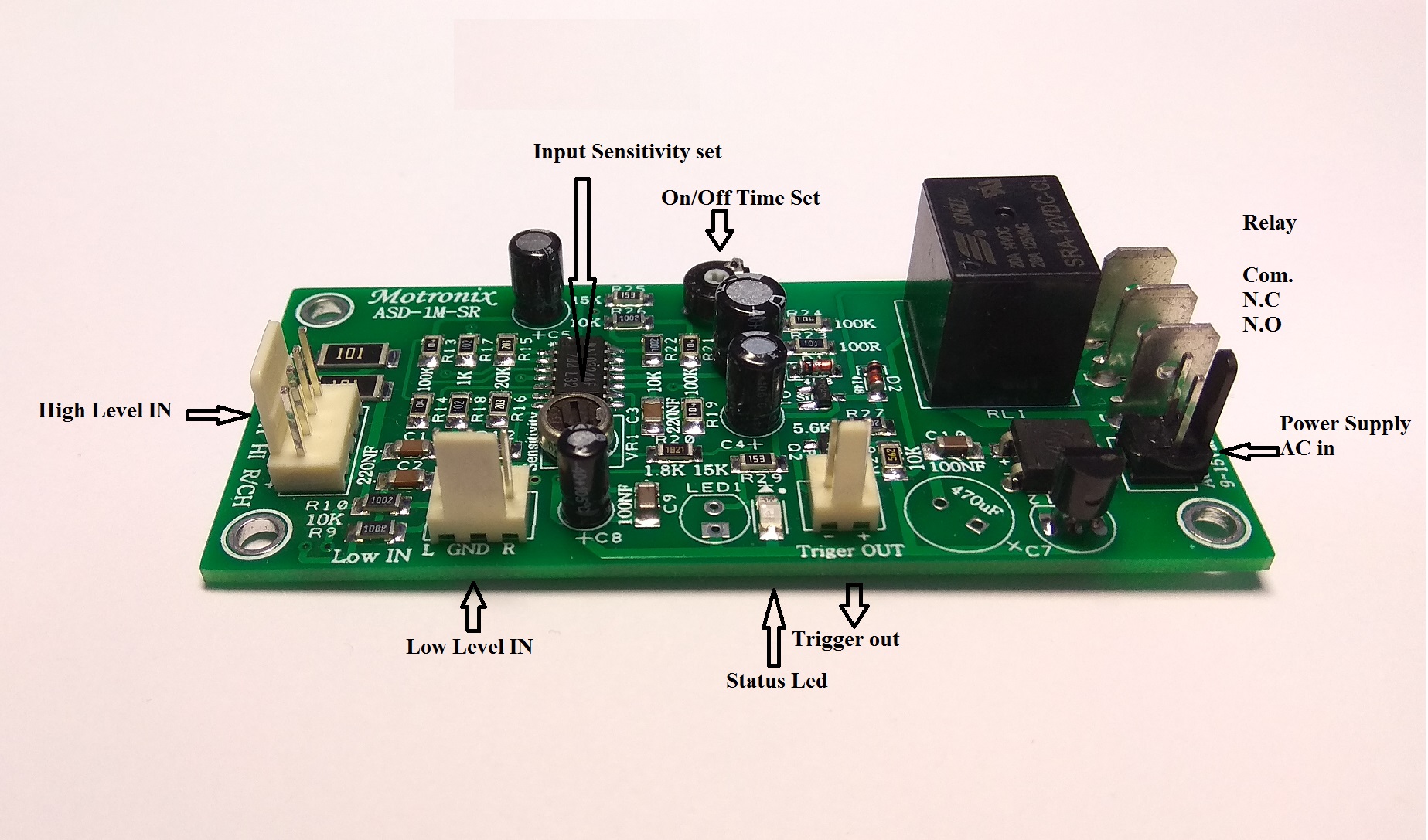

Features:
On Board 2 Input Option: Low Level (Aux Pre-Out etc.)
High Level (From Amplifier speaker)
On Board Signal Sensitivity Calibration
On Board Time Delay Calibration
On Board active status on/off Led
On Board 12Vdc 50mA max. Trigger Out (5Vdc 10mA @ 5V Version)
On Board 8A Relay with Open contact (N.O or N.C)
Molex female connectors and pins supplied
Power Supply:
12V Version = 9-15Vac
5V Version = 6-9Vac
Trigger Out: 12Vdc or 5Vdc 10mA max.
Time Delay:
12V Version 5Sec. – 8Min. (approximately)
5v Version 5Sec. – 3Min. (approximately)
PCB Size: 84mm*38mm Green double-sided HAL,FR4 1.6MM
