Description

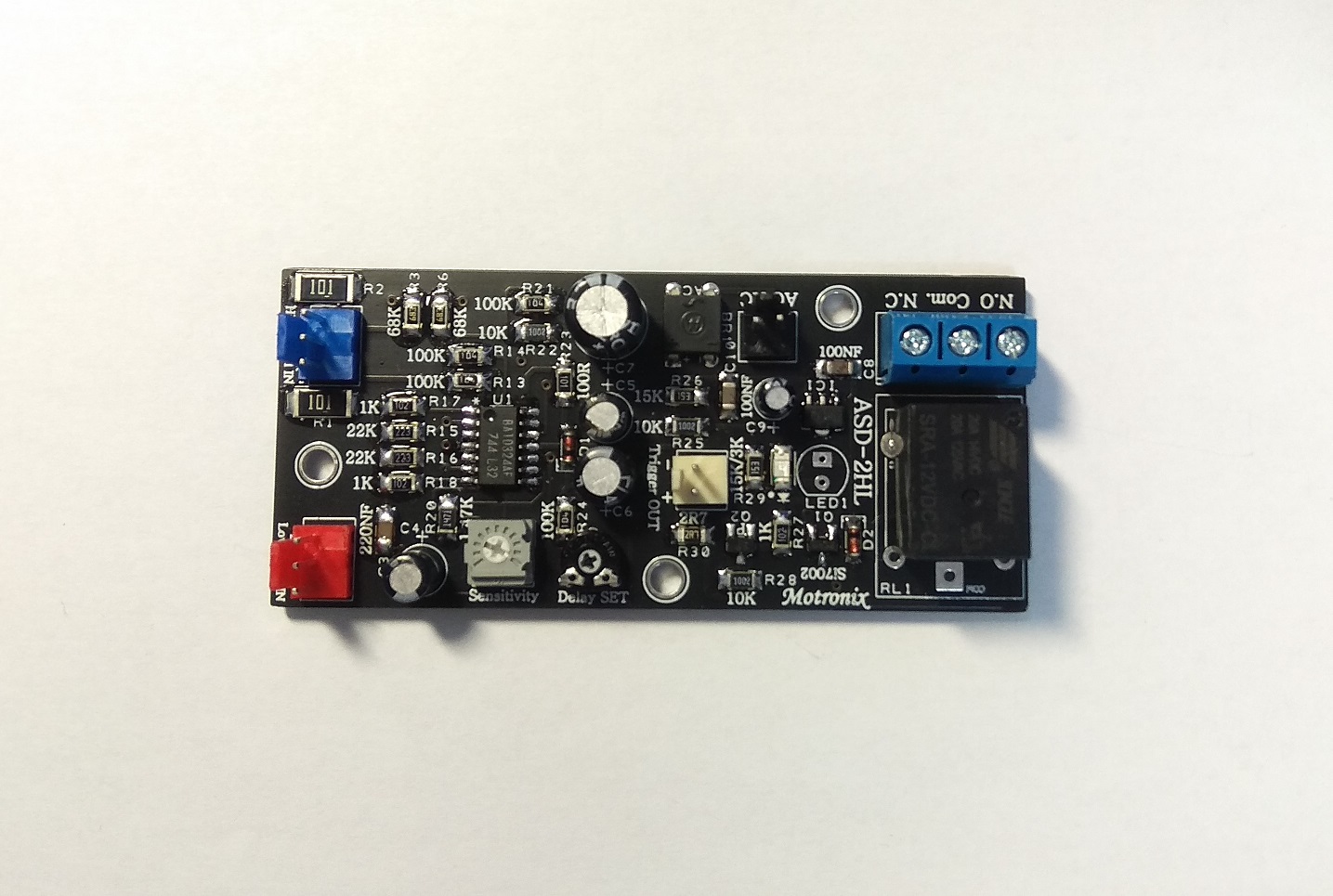

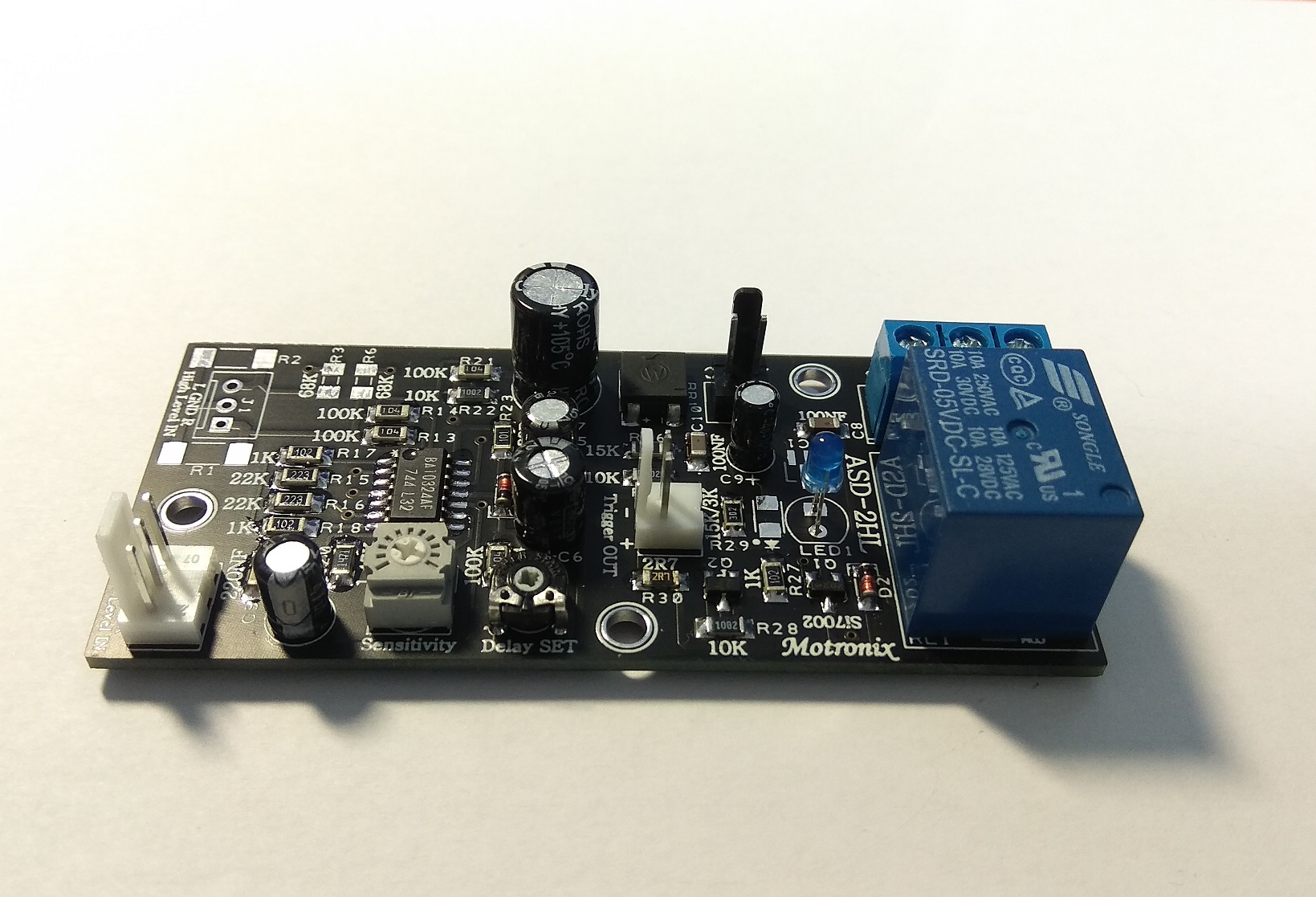

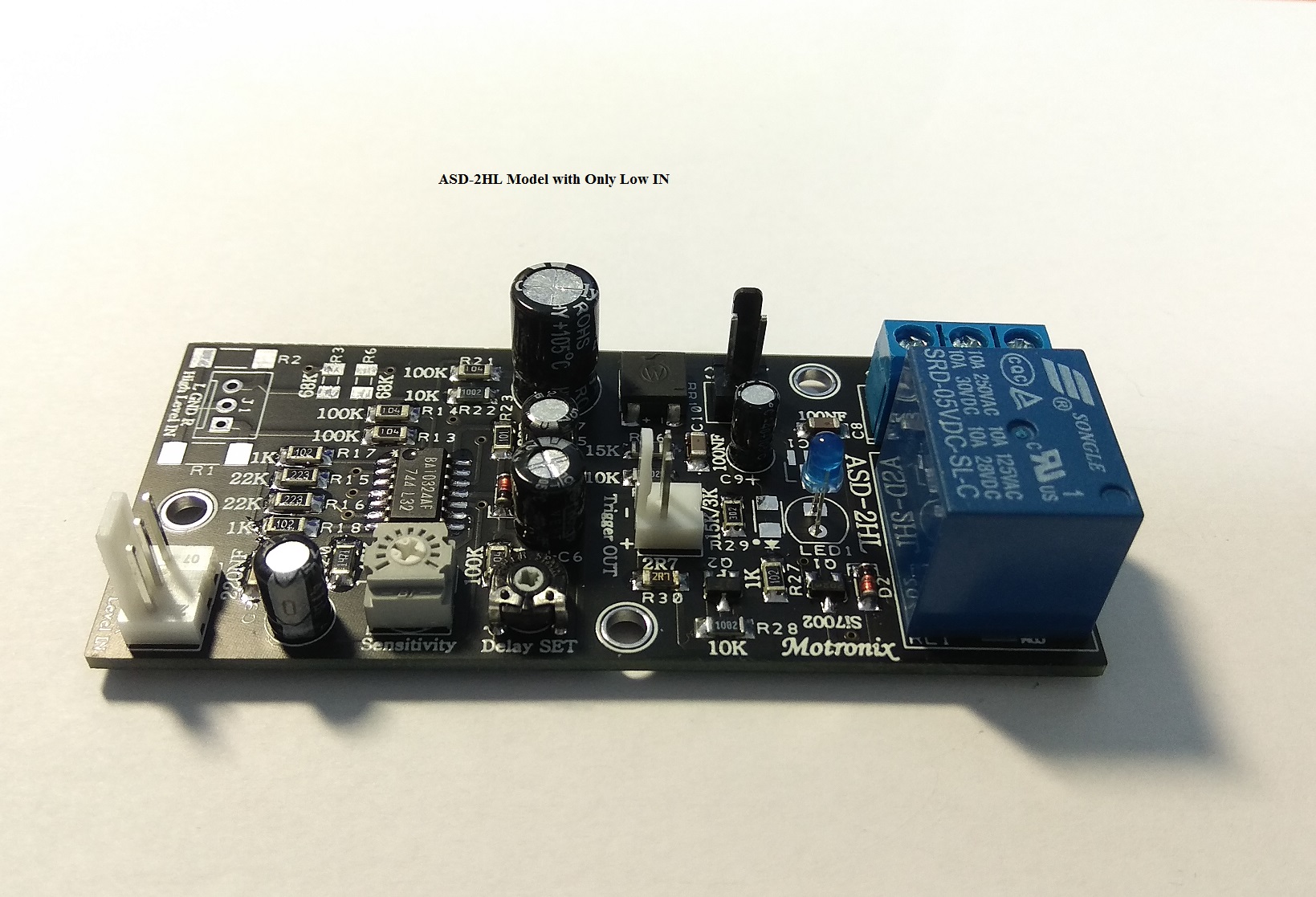

ASD-2HL
Audio Signal Detecting Auto Power On/Off
with 12V or 5V Trigger out For DIY

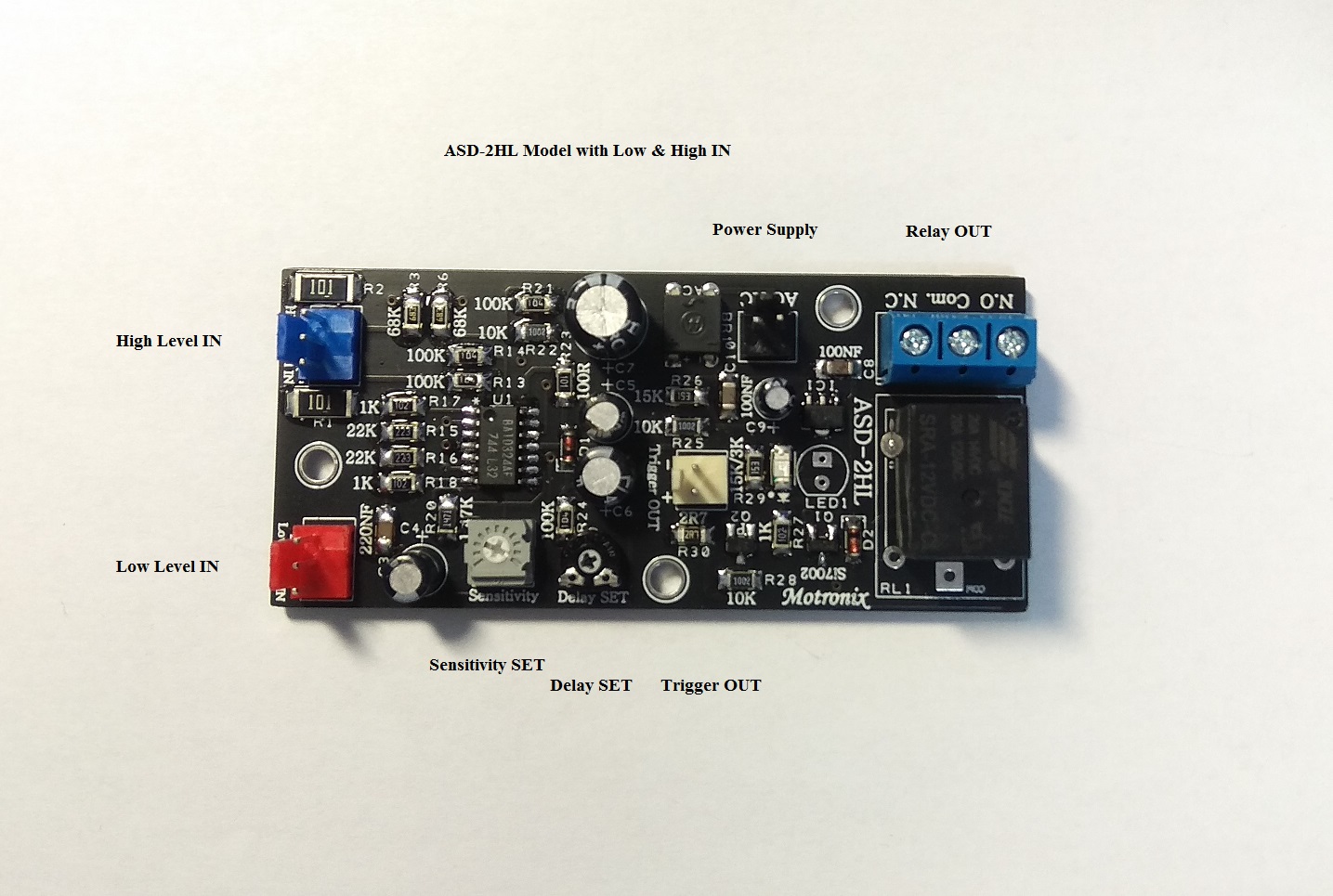

ASD-2HL is SMT Parts with Low and High Level Signal IN
Features:
Model ASD-2HL Available in 2 version:
1.Working Voltage 10-12Vac & Trigger Out 12Vdc
2.Working Voltage 5-9Vac & Trigger Out 5Vdc
Signal Sensitivity Calibration Included
Time Active on Delay Calibration Included
On PCB Power On Led
On PCB 8A Relay with Open contact (N.O or N.C)
Power Supply:
12V Version: 10-15Vac
5V Version: 5-9Vac
Trigger Out:
ASD-2HL 12V: 12Vdc 50mA max.
ASD-2HL 5V: 5Vdc 10mA max
Signal Sensitivity: (Low level input)
At min. 240mV -10db
At max. 5mV -45db
Factory Sensitivity set to 16mV -34db
Time Delay:
ASD-2HL 5V 10Sec. – 3Min. (approximately)
PCB Size:

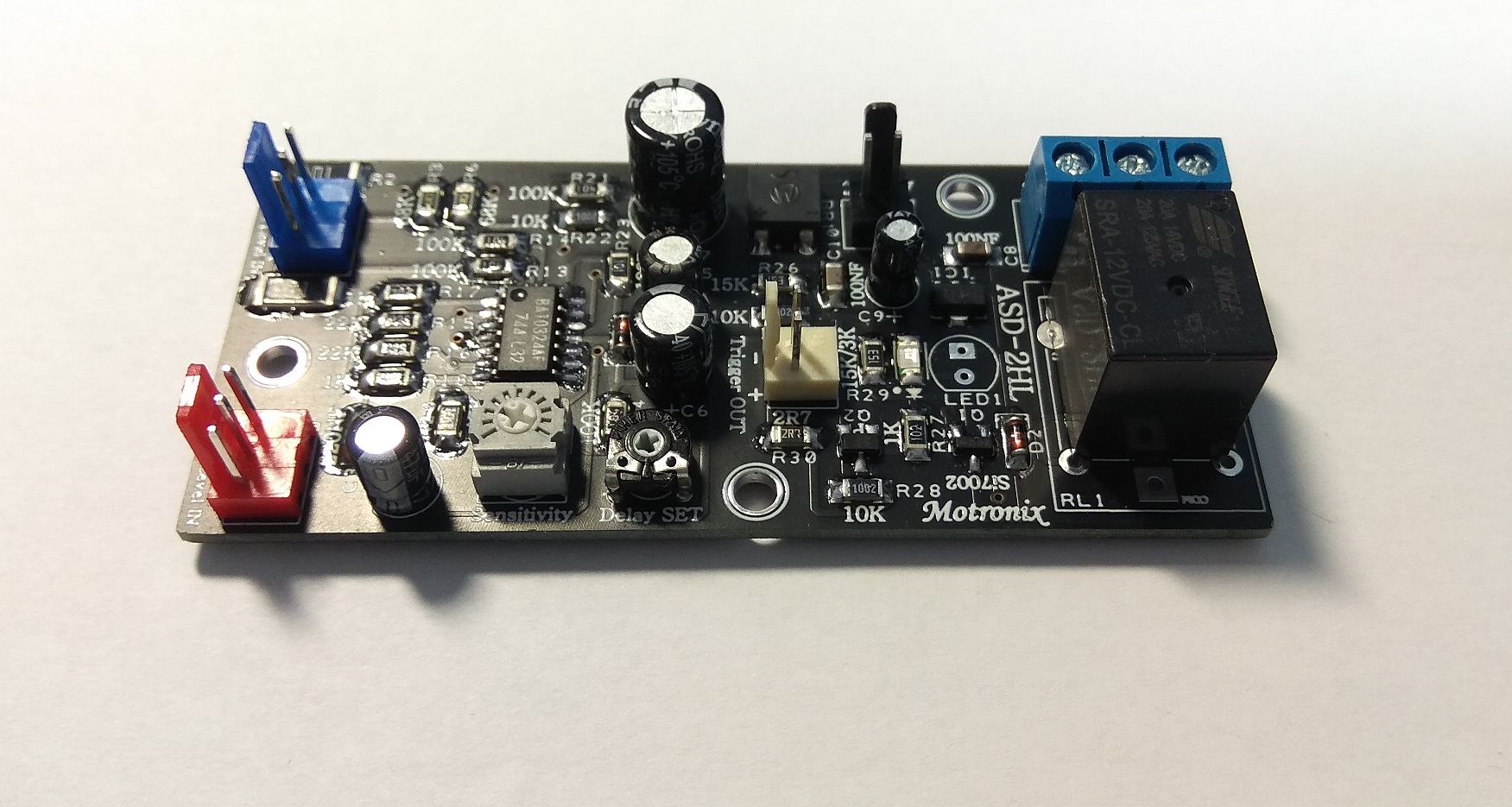

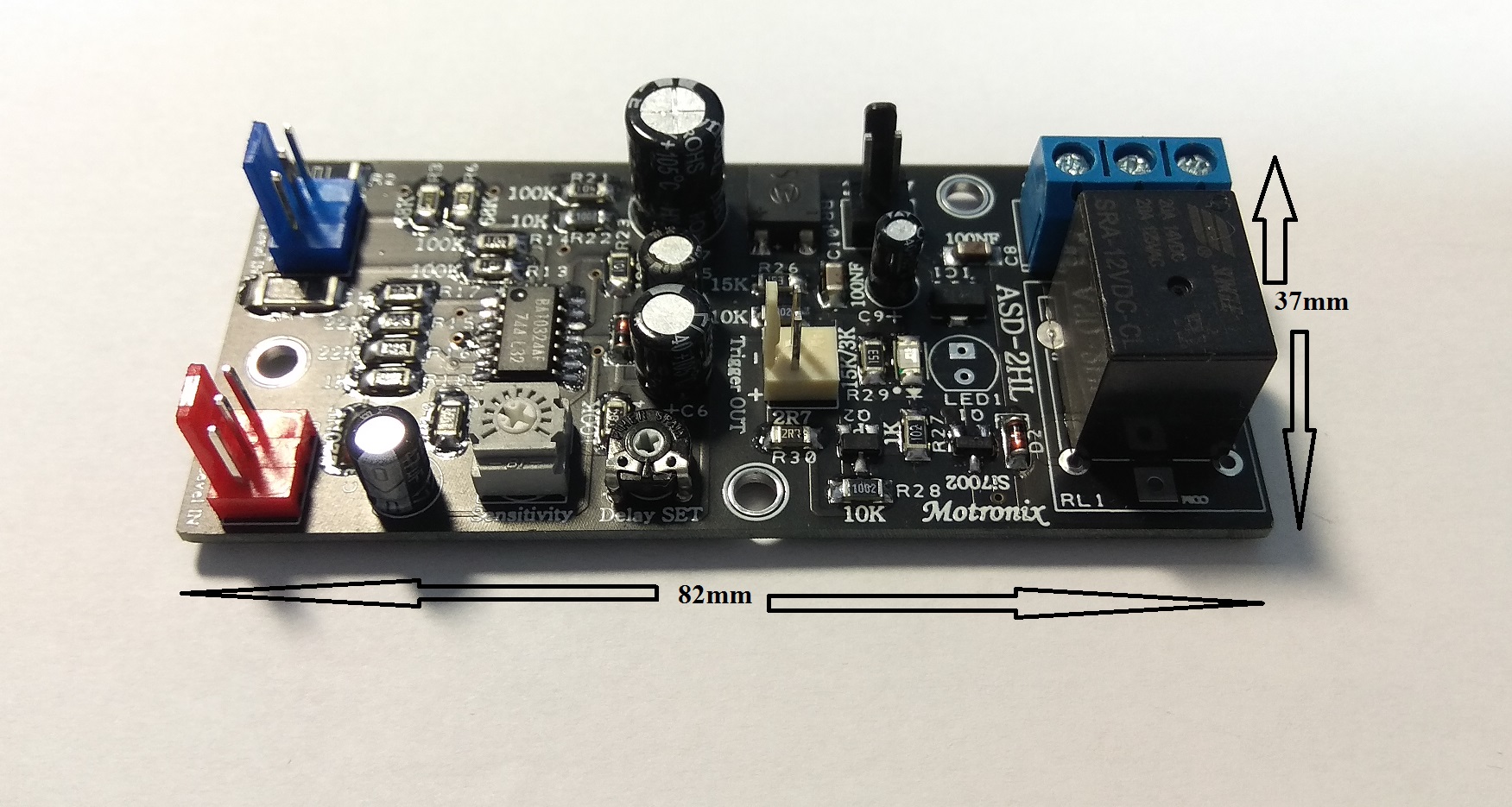

ASD-2HL: 82mm*37mm double-sided HAL,FR4 1.6MM
