Description
ASD-2K
Audio Signal Detecting Auto Power On/Off
with 12V Trigger out For DIY
Available in two versions

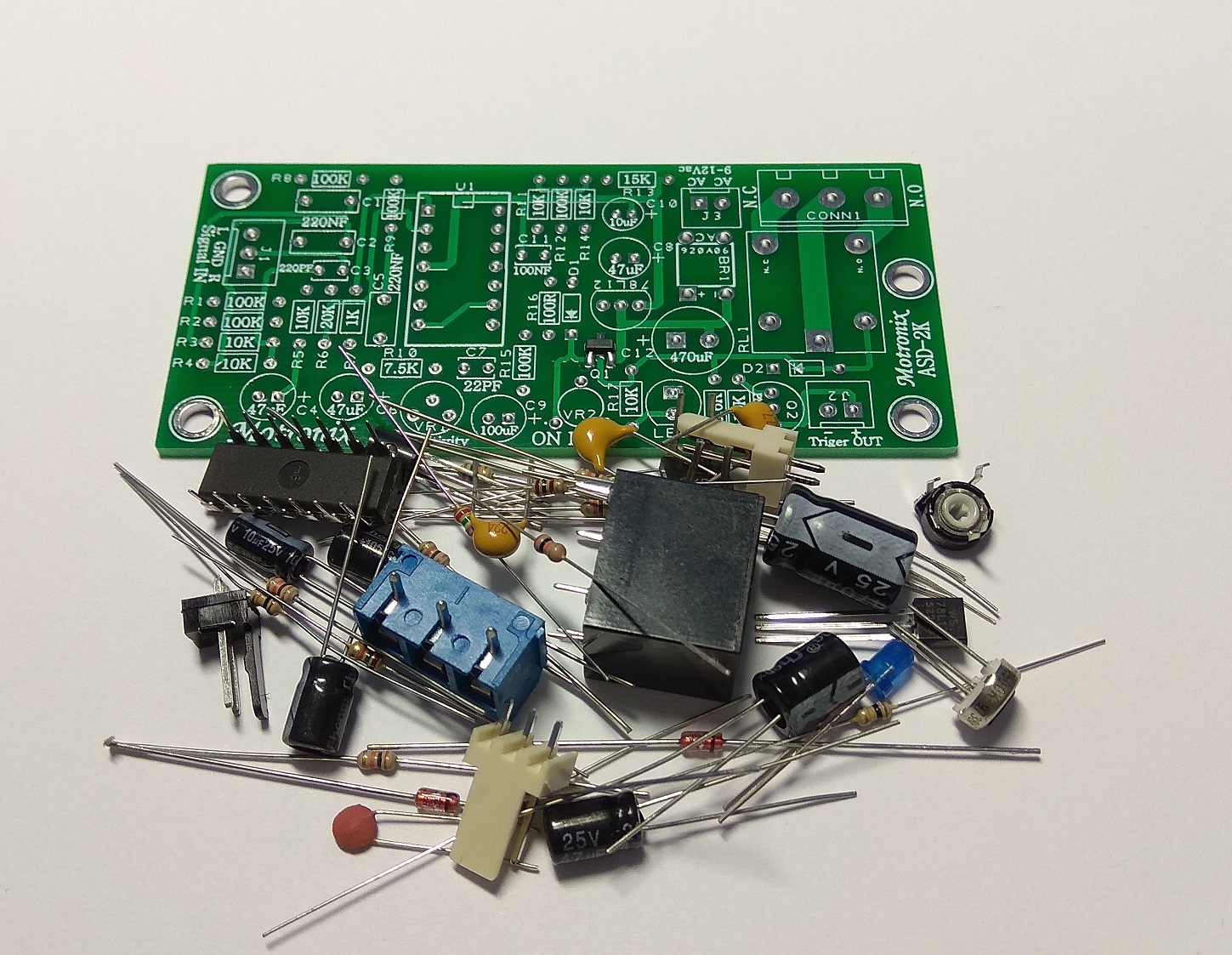

DIY KIT: You need to place all parts and solder it (Very Easy)
or

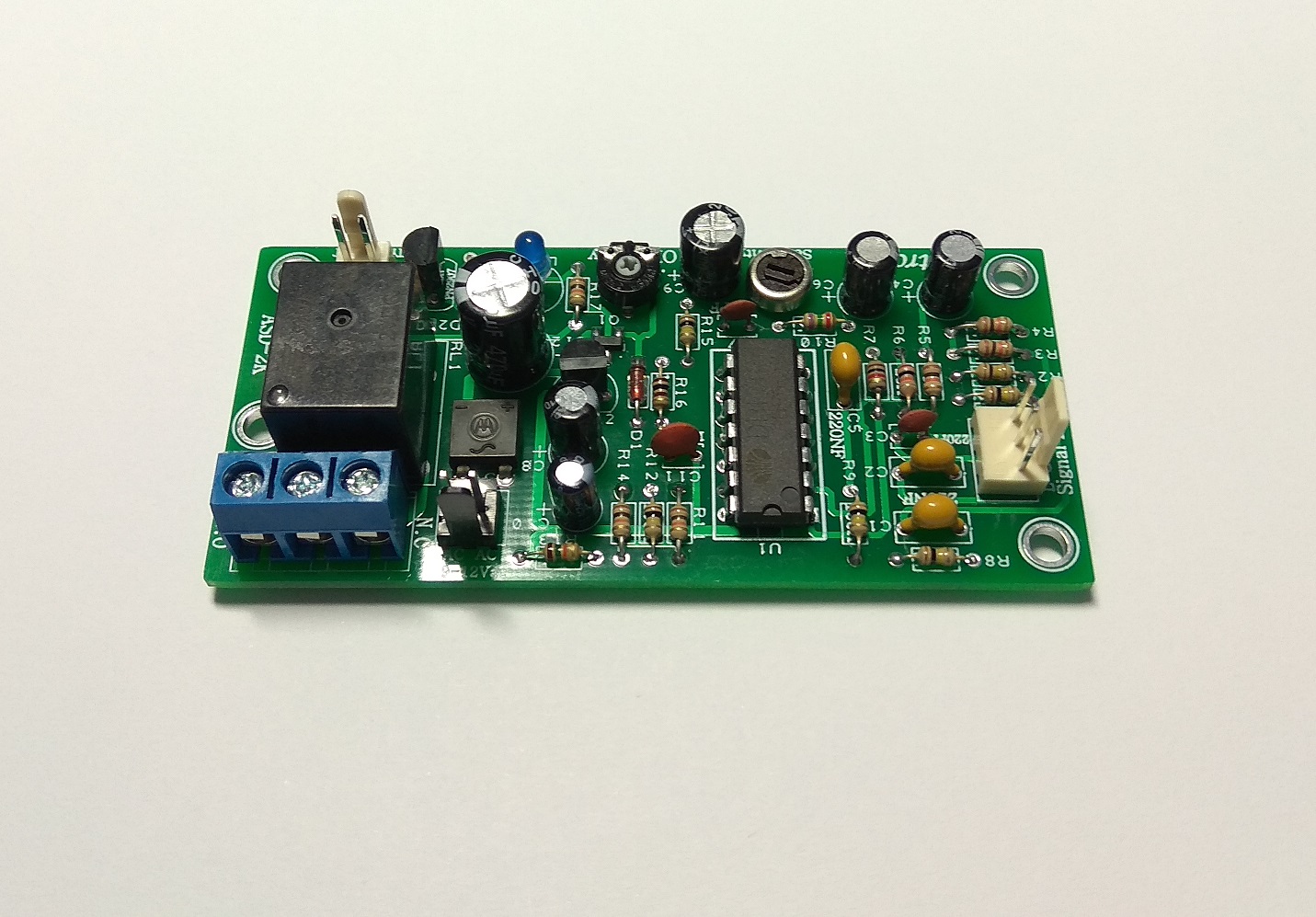

Assembled Board

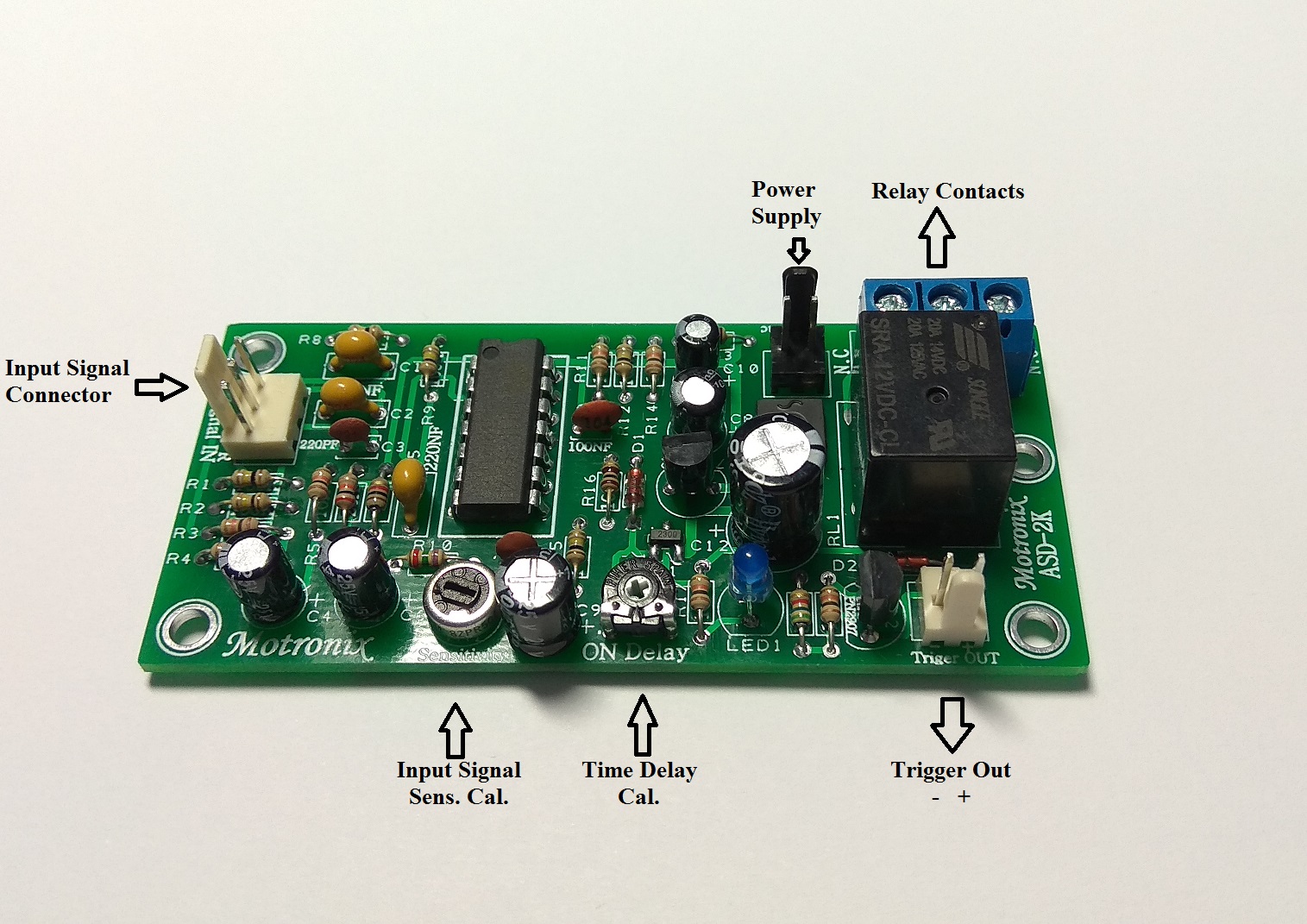

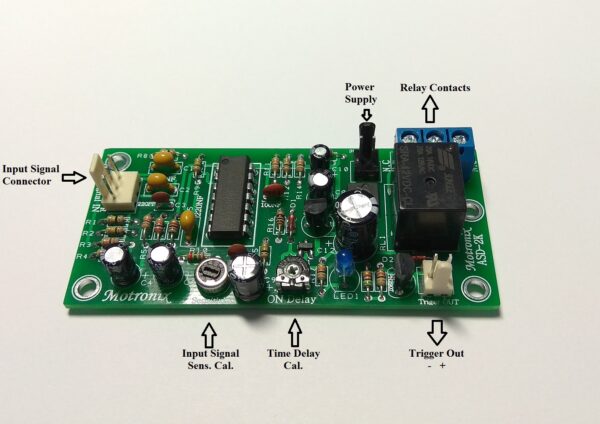

Features:
Model ASD-2K Active from Low Level Only (Aux Pre-Out etc.)
On Board Signal Sensitivity Calibration
On Board Time Active on Delay Calibration
On Board Power On Led
On Board 12Vdc 50mA max. Trigger Out
On Board 8A Relay with Open contact (N.O or N.C)
Power Supply: 9-15Vac
Signal Sensitivity: (Low level input)
At min. 240mV -10db
At max. 5mV -45db
Factory Sensitivity set to 16mV -34db
