ASD-2M SMD Audio Signal Detecting Auto Power On/Off with Trigger out

Availability:

5 in stock

Description

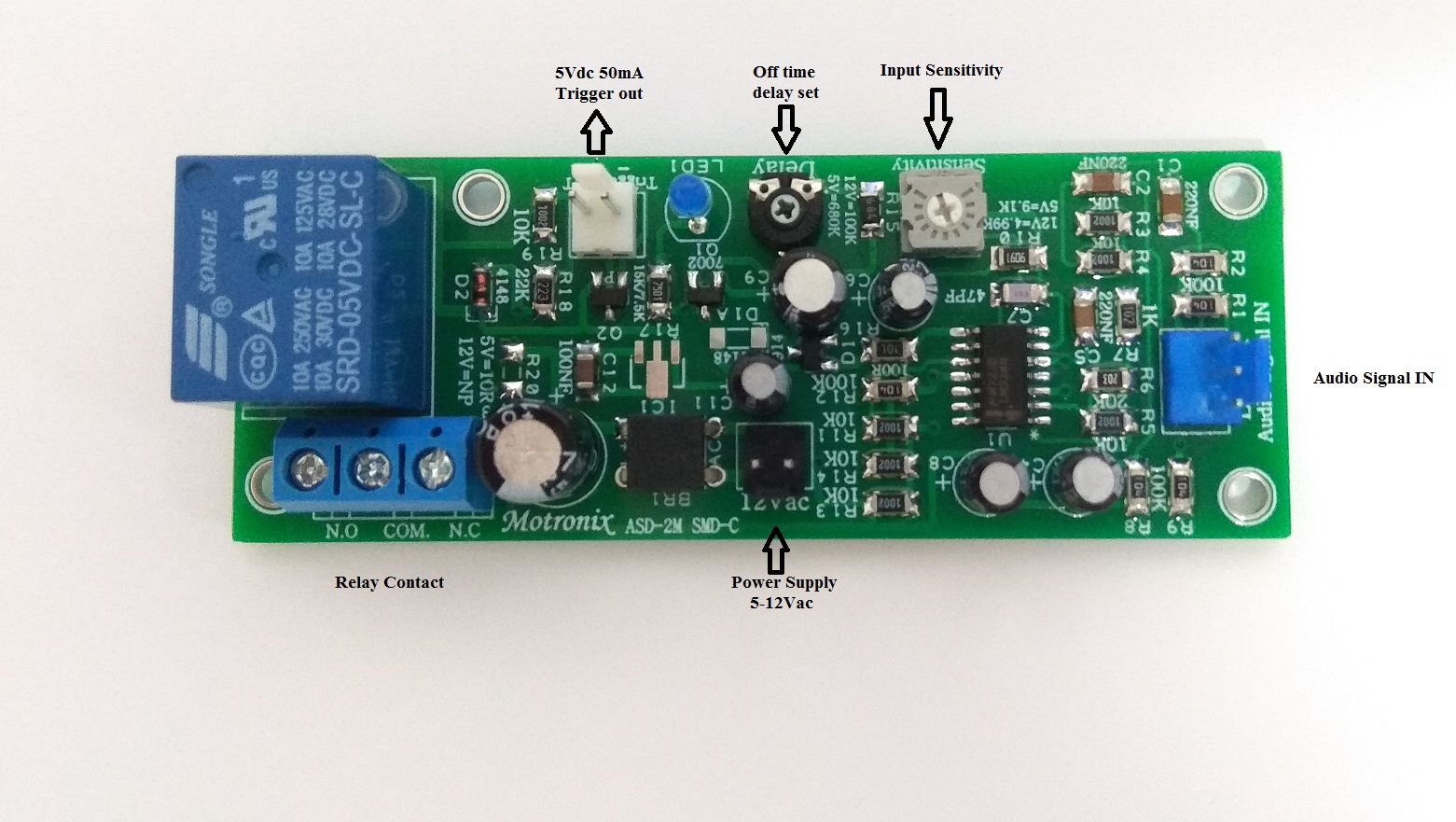

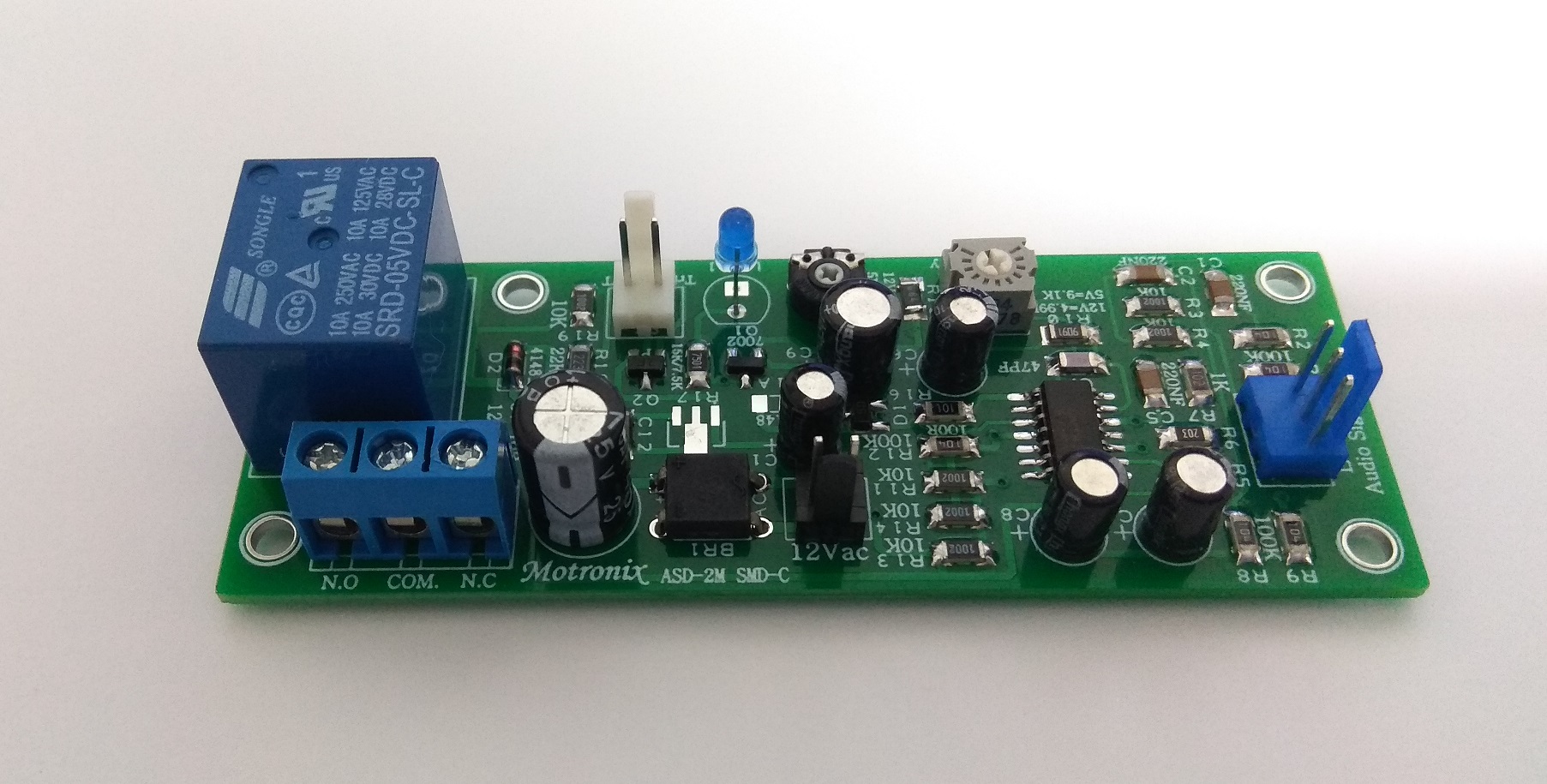

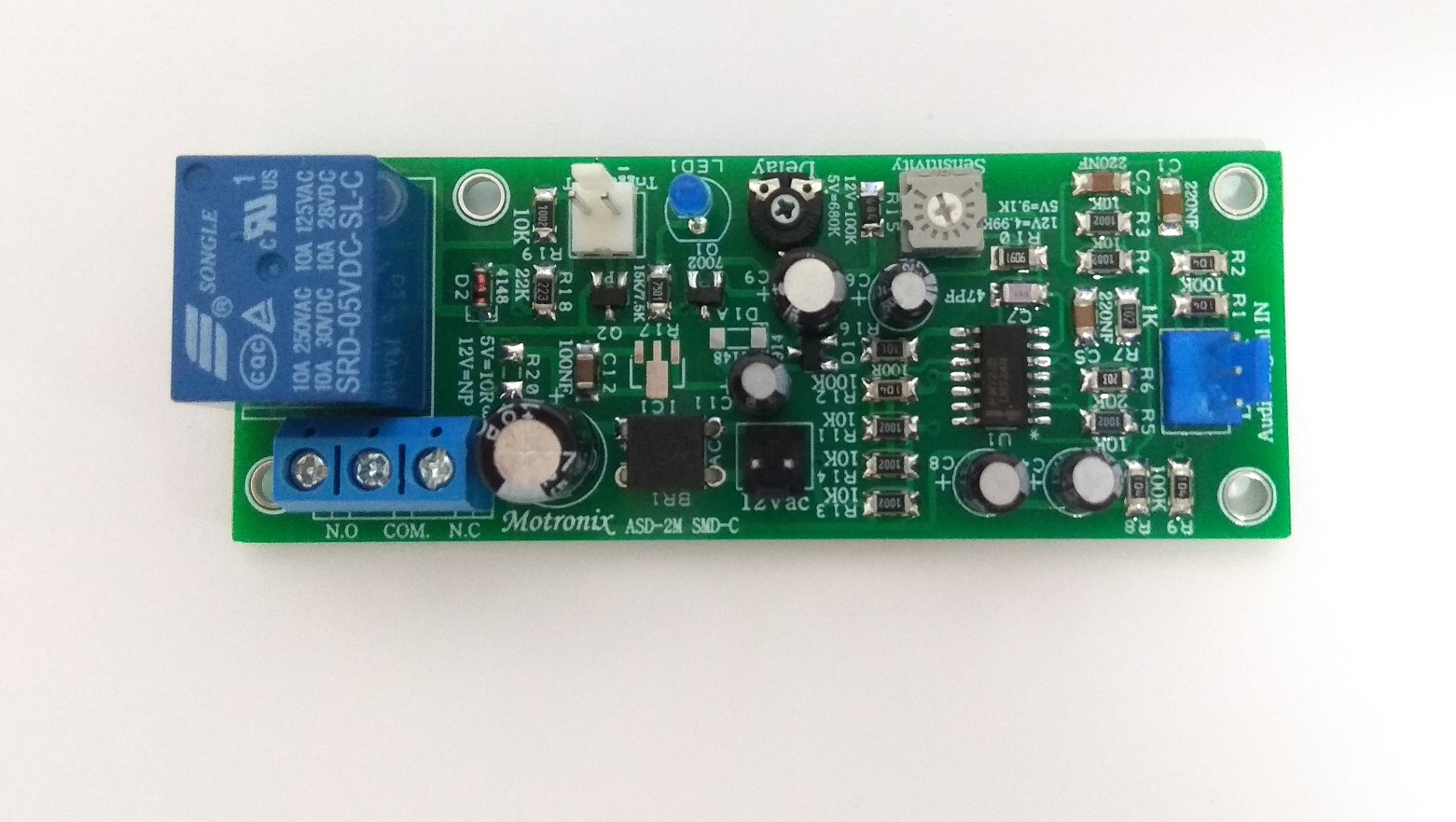

ASD-2M SMD
Audio Signal Detecting Auto Power On/Off
Features:
Active from Low Level Signal (Aux Pre-Out etc.)
 Signal Sensitivity Calibration -45db to -10db
Variable Time Delay (Active on) 30Sec. – 3Min. (approximately)
Power On/Active Led
8A Relay with Open contact (N.O or N.C)
Power Supply: 10-15Vac (small 2VA transformer)
Factory Sensitivity set to 16mV -34db
Trigger Out: 12Vdc 10mA max.
PCB Size:
ASD-2M SMD: 89mm*33mm Green double-sided HAL,FR4 1.6MM
