Description
ASD-851A or ASD-851B
Audio Signal Detecting Auto Power On/Off
For Amplifiers with on/off Logic control High=5V Low=0V
For use with Class D ICEpower amplifier module (pin12 at P103)
No sound turn off time: 30sec. (can be set to different time delay by request)

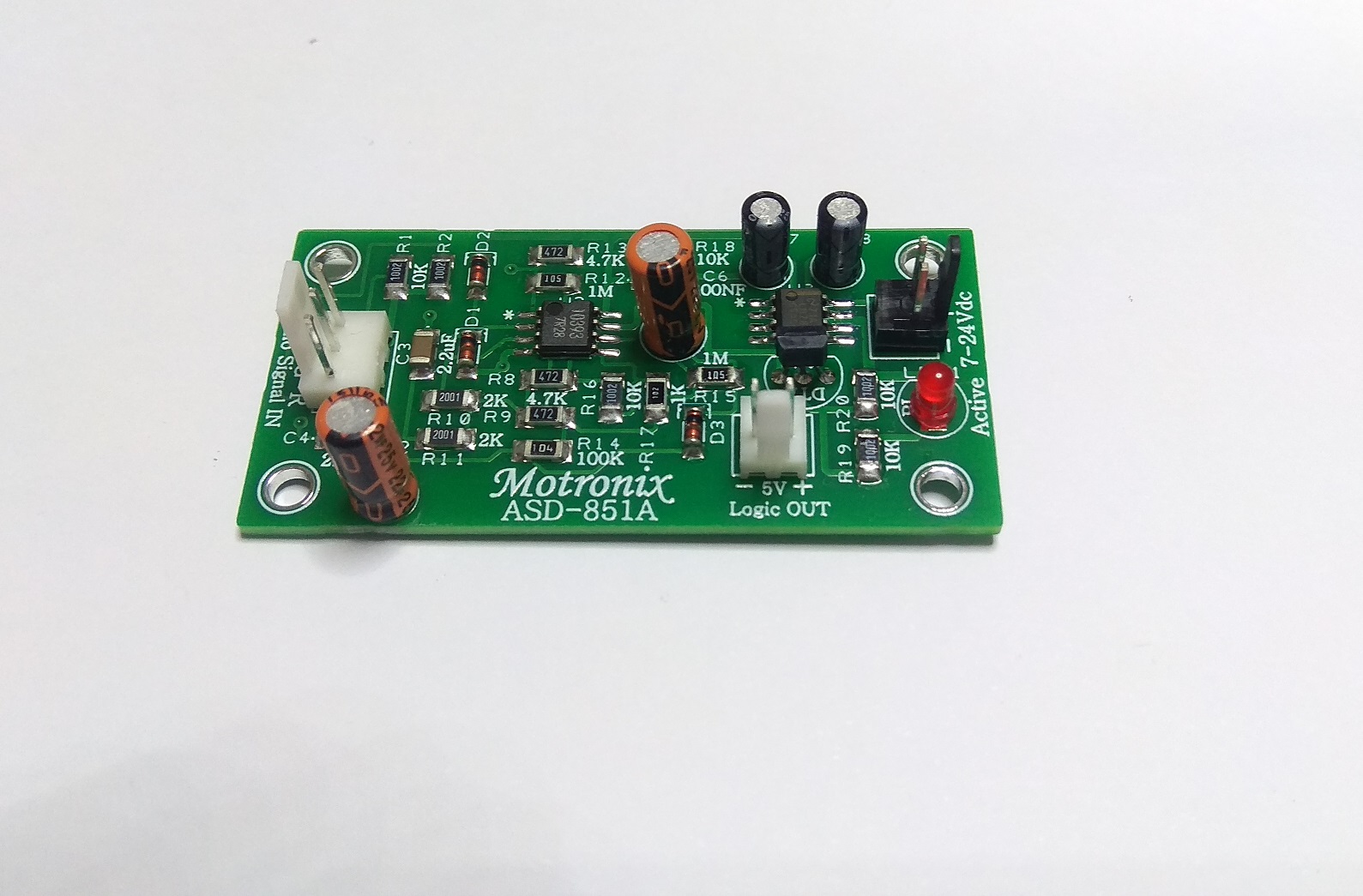

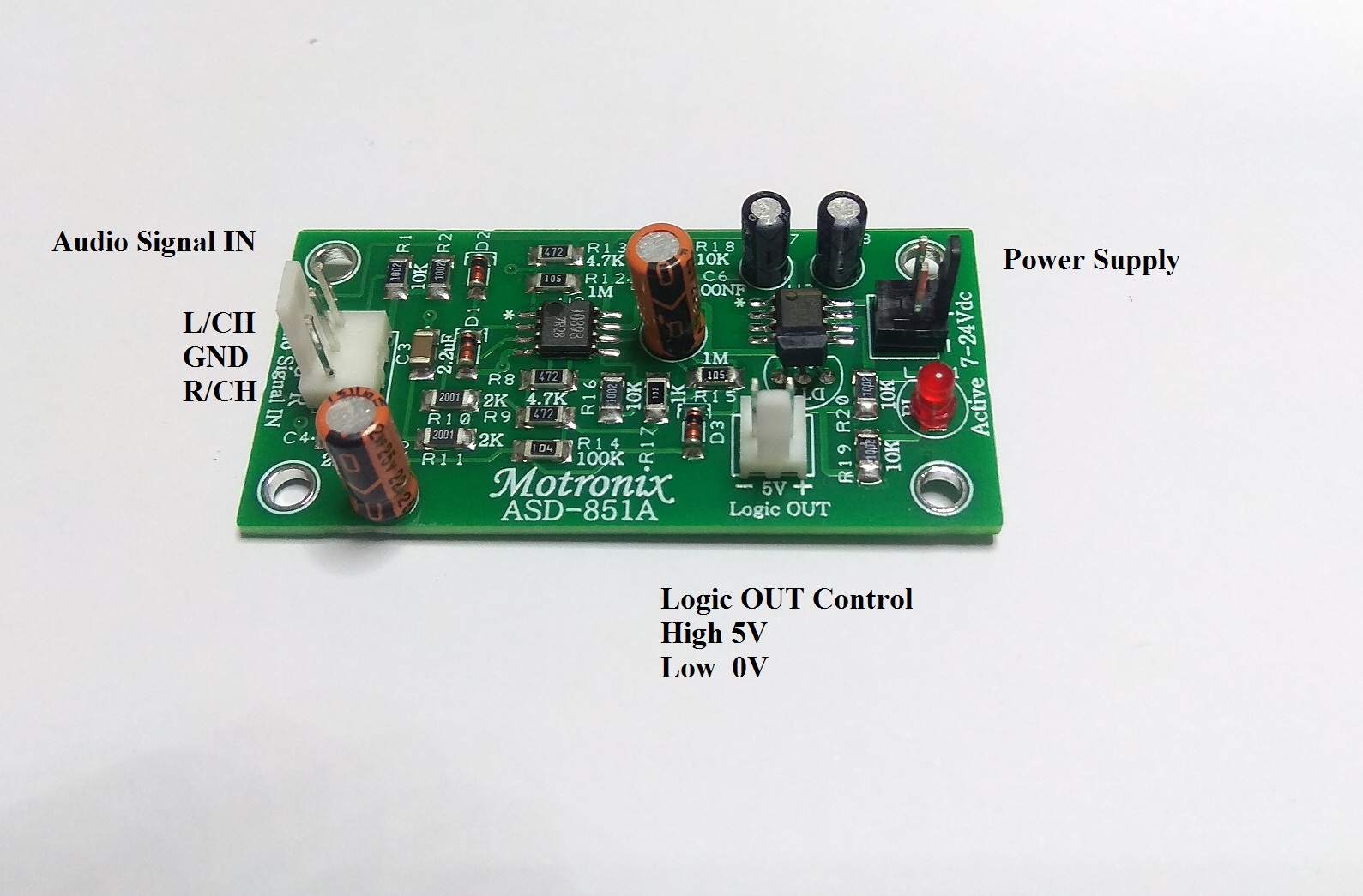

ASD-851A with Single color LED

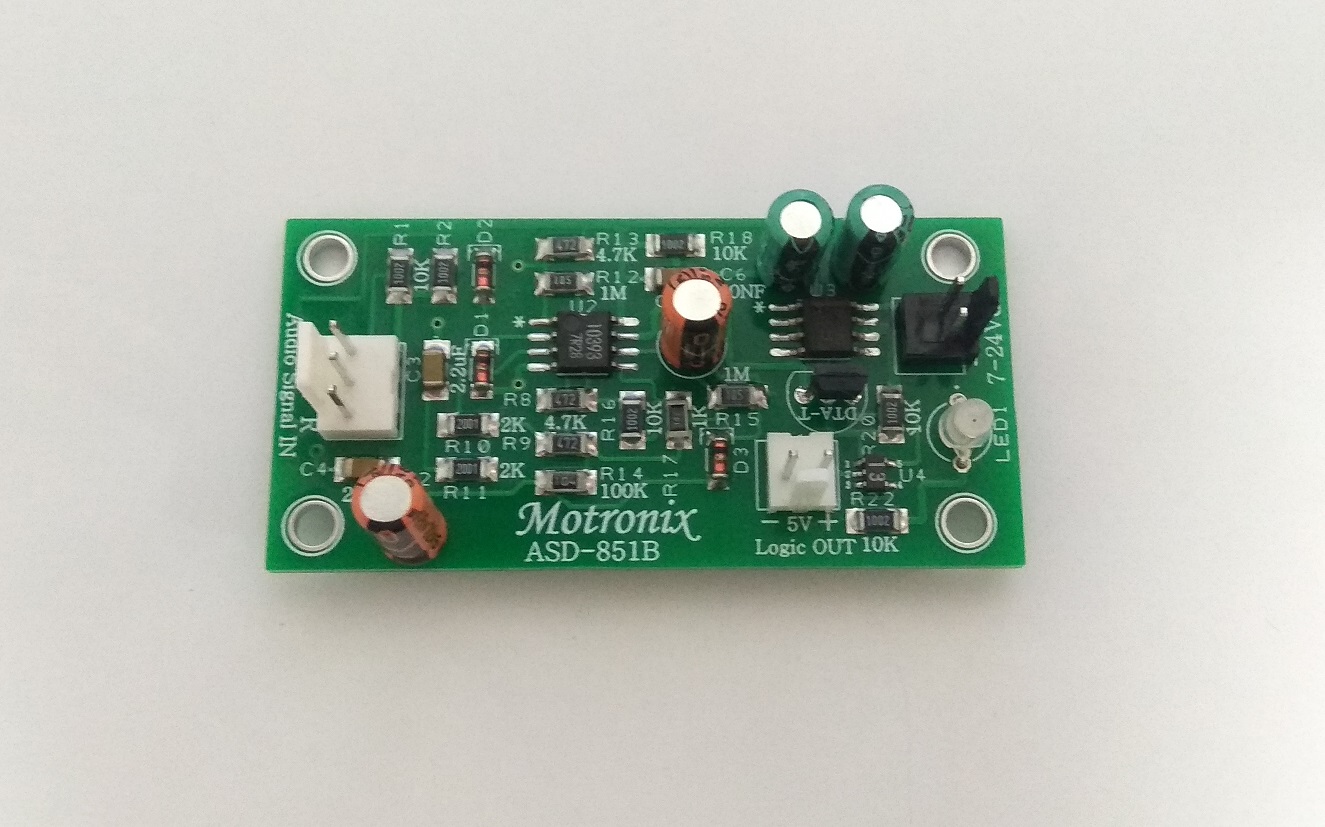

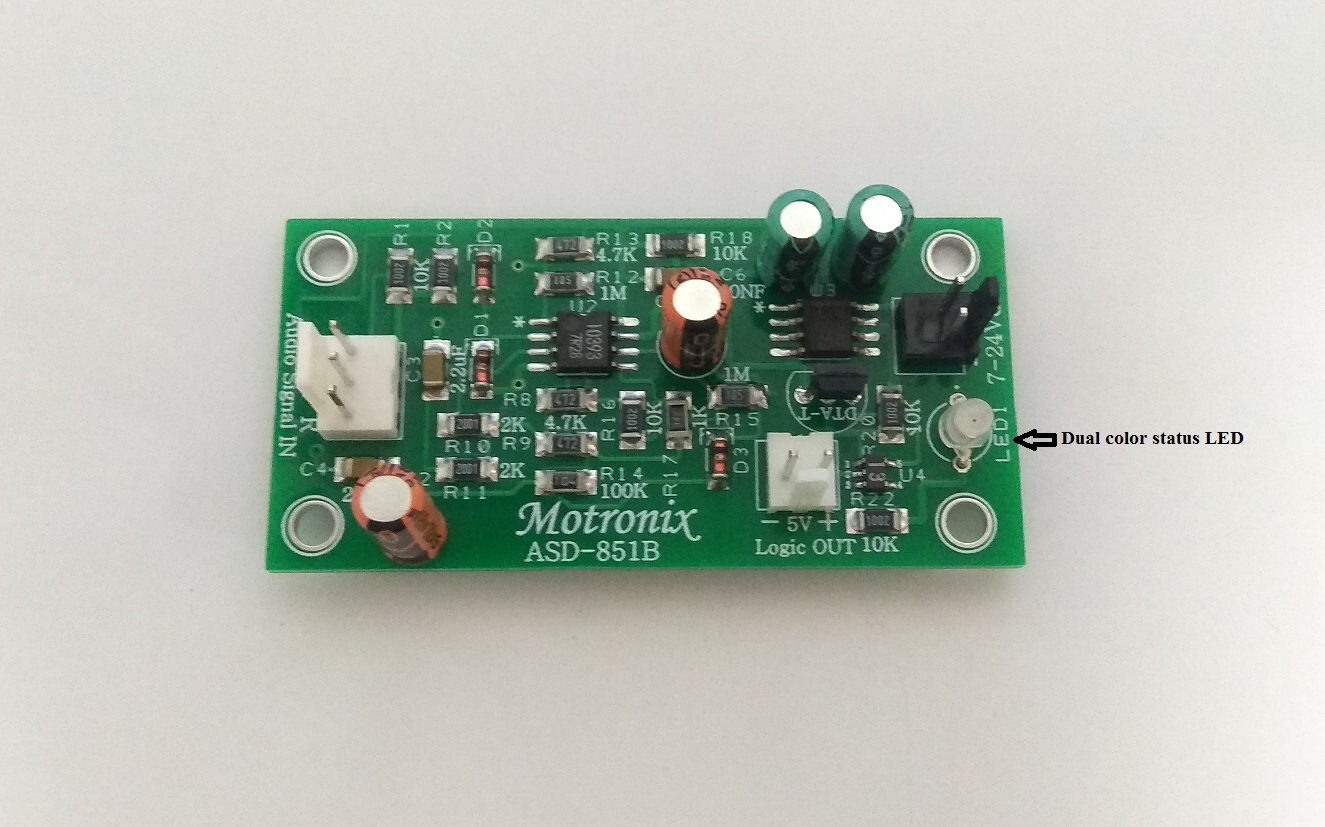

ASD-851B with Dual color LED
Fast turn on
Output Logic: 5V 50mA
Power Supply: 7-24Vdc
Current Consumption: 6-10mA
PCB Size:59mm*29mm Green double-sided HAL,FR4 1.6MM
