Description

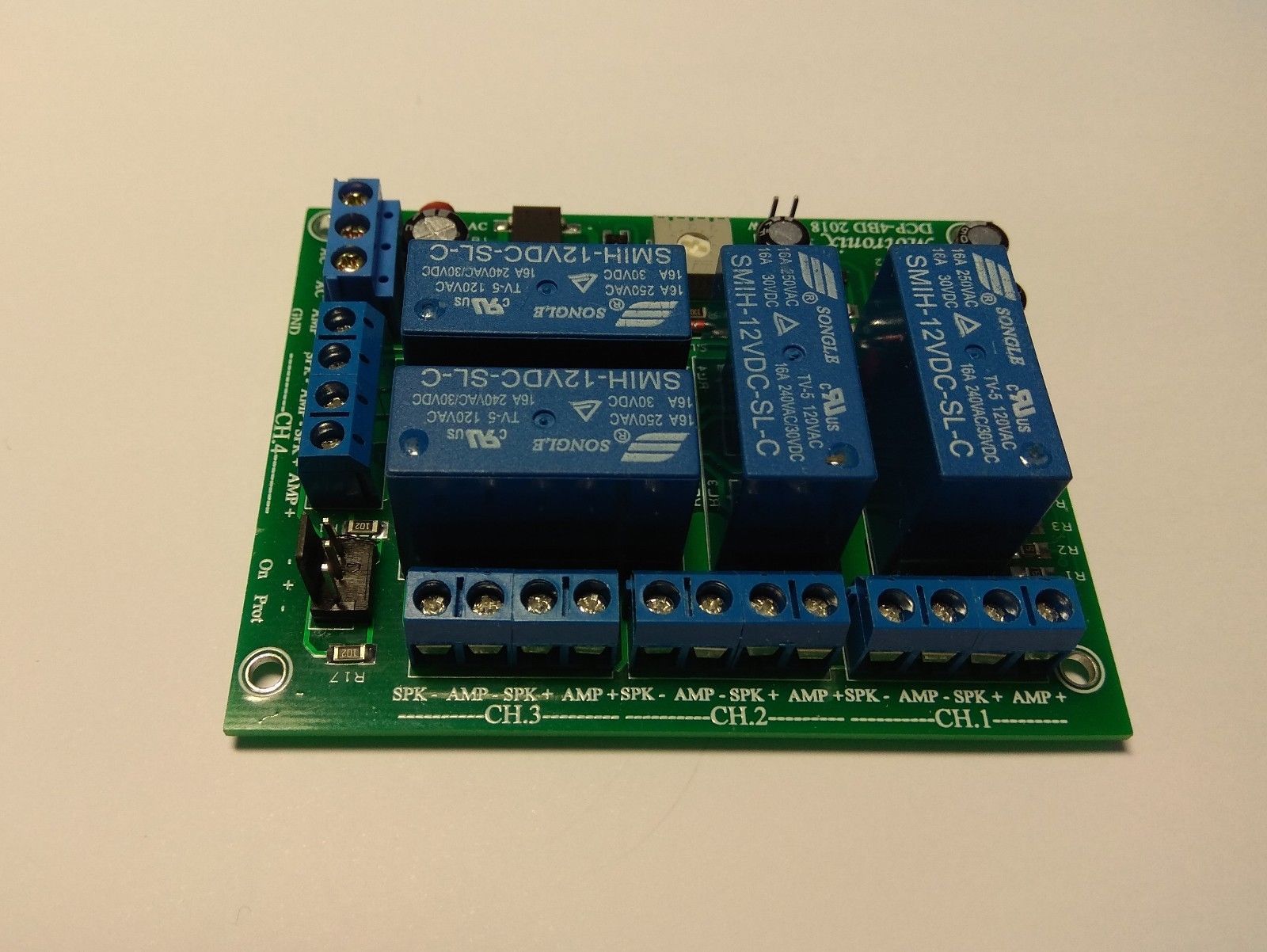

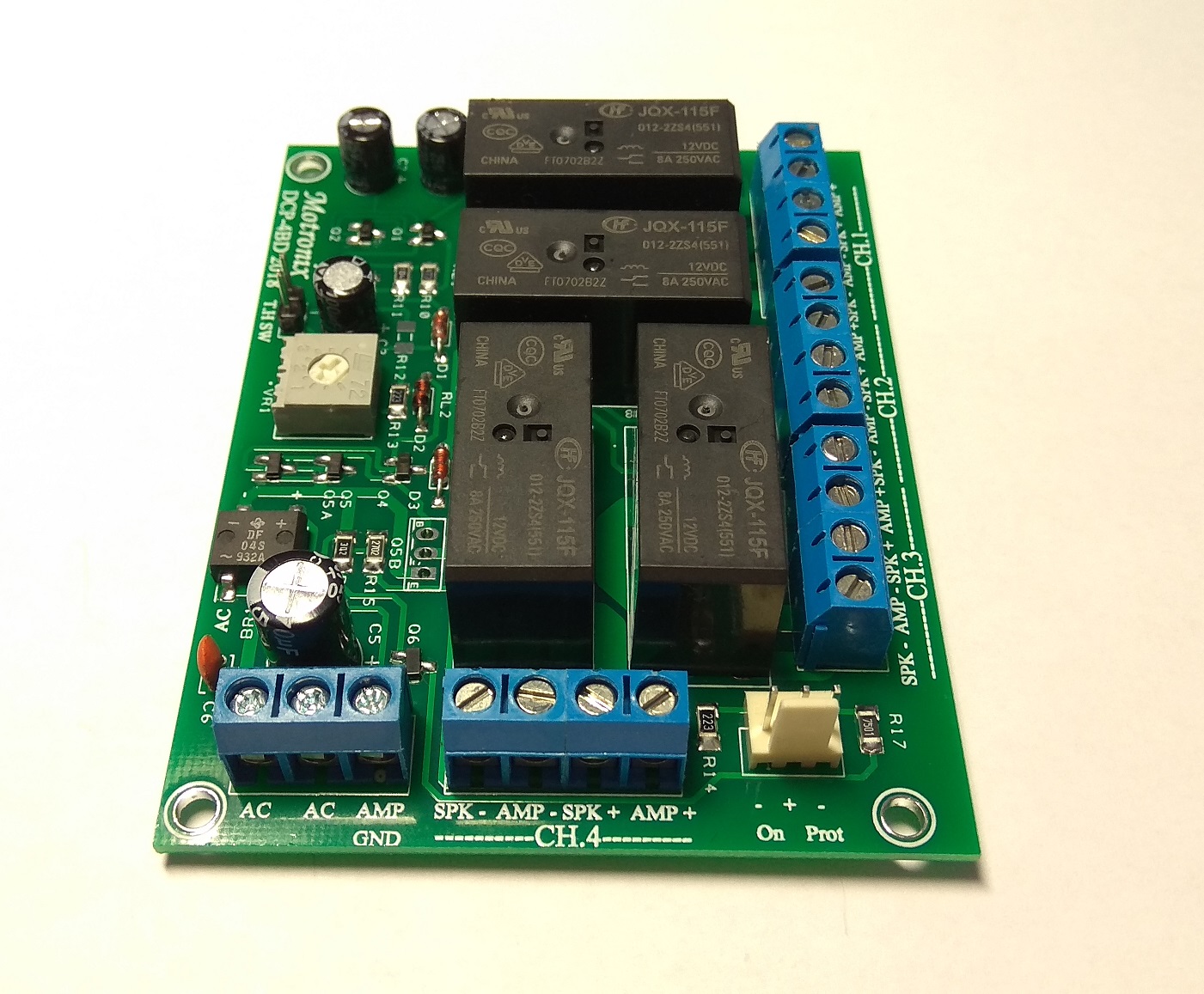

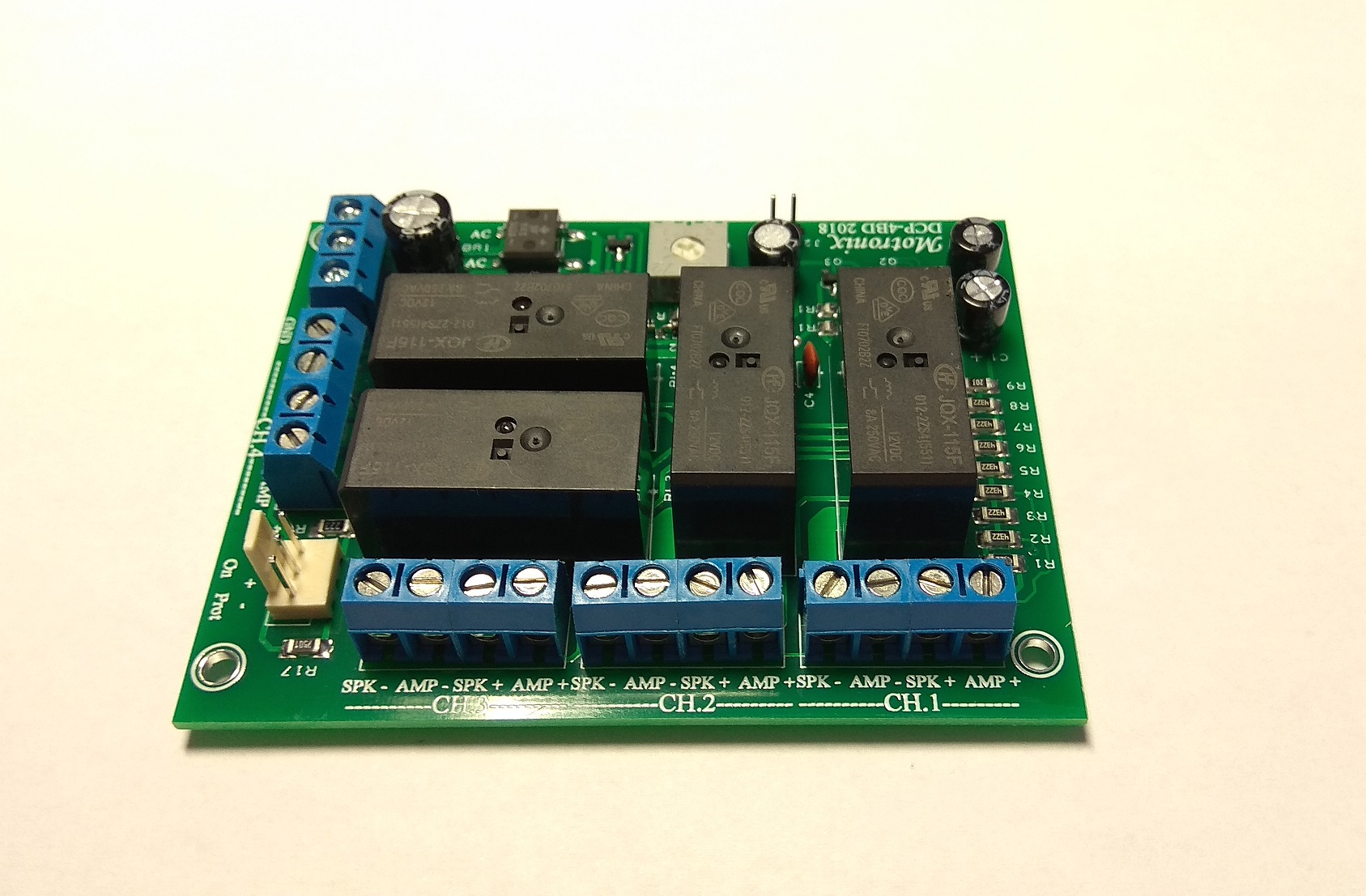

DCP-4BD 2018
DC Speaker Protection & Variable Turn On Delay + Thermal Switch Input option
Perfect Solution For multi 8 CH DIY Amplifiers or 4 CH BTL (Bridge) Amplifiers
Assembled Board
High quality and reliability Double side FR4 1.6MM
High quality components

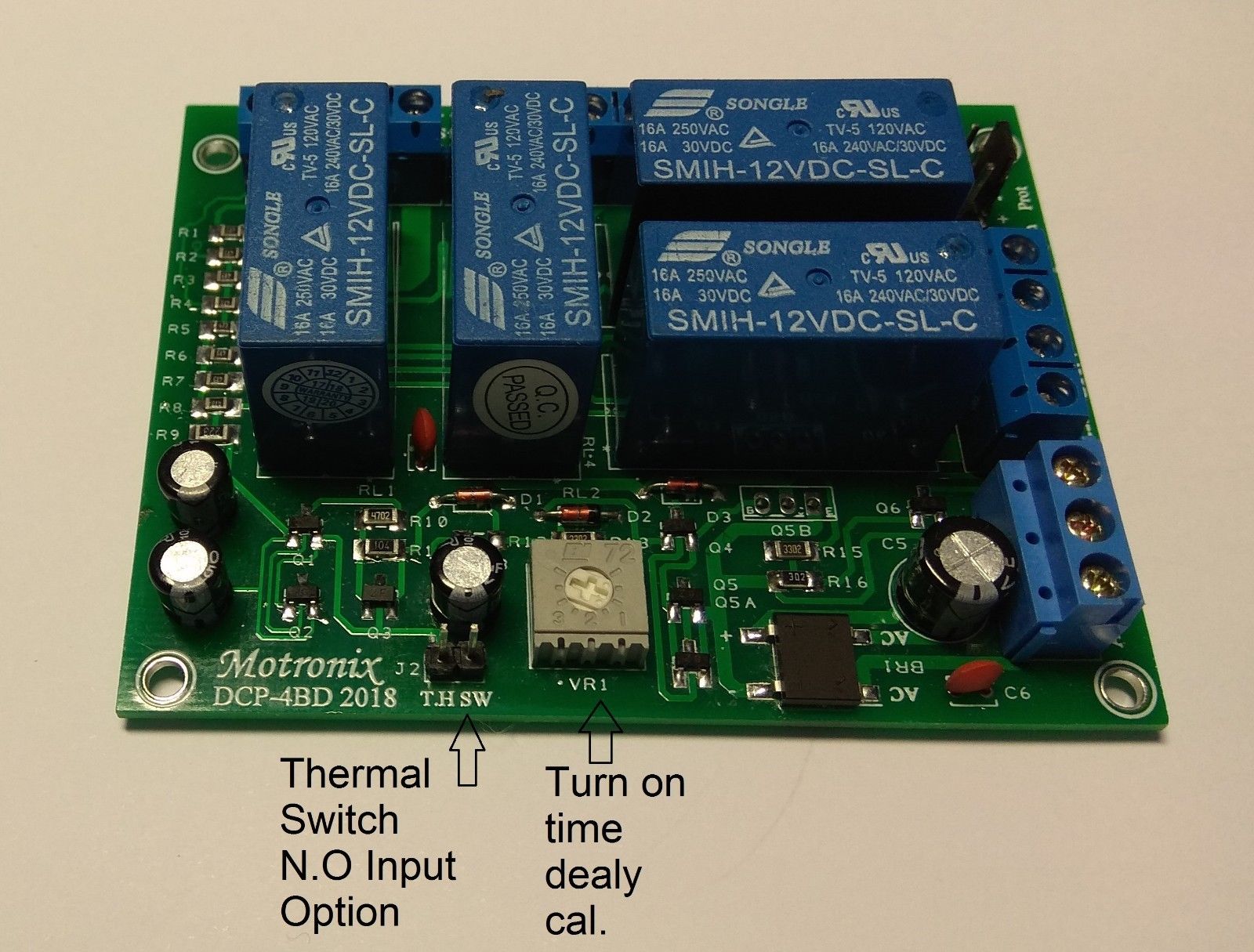

Variable Time Turn on delay From 1-15 sec. to prevent turn on click and noise
quick turn off
On board N.O Thermal switch input connector (not supplied)
On board connector to Power on LED & Protection/Thermal LED (Supplied Red/Green Led)
Quick screw terminal block
This item is only PCB with components Assembled

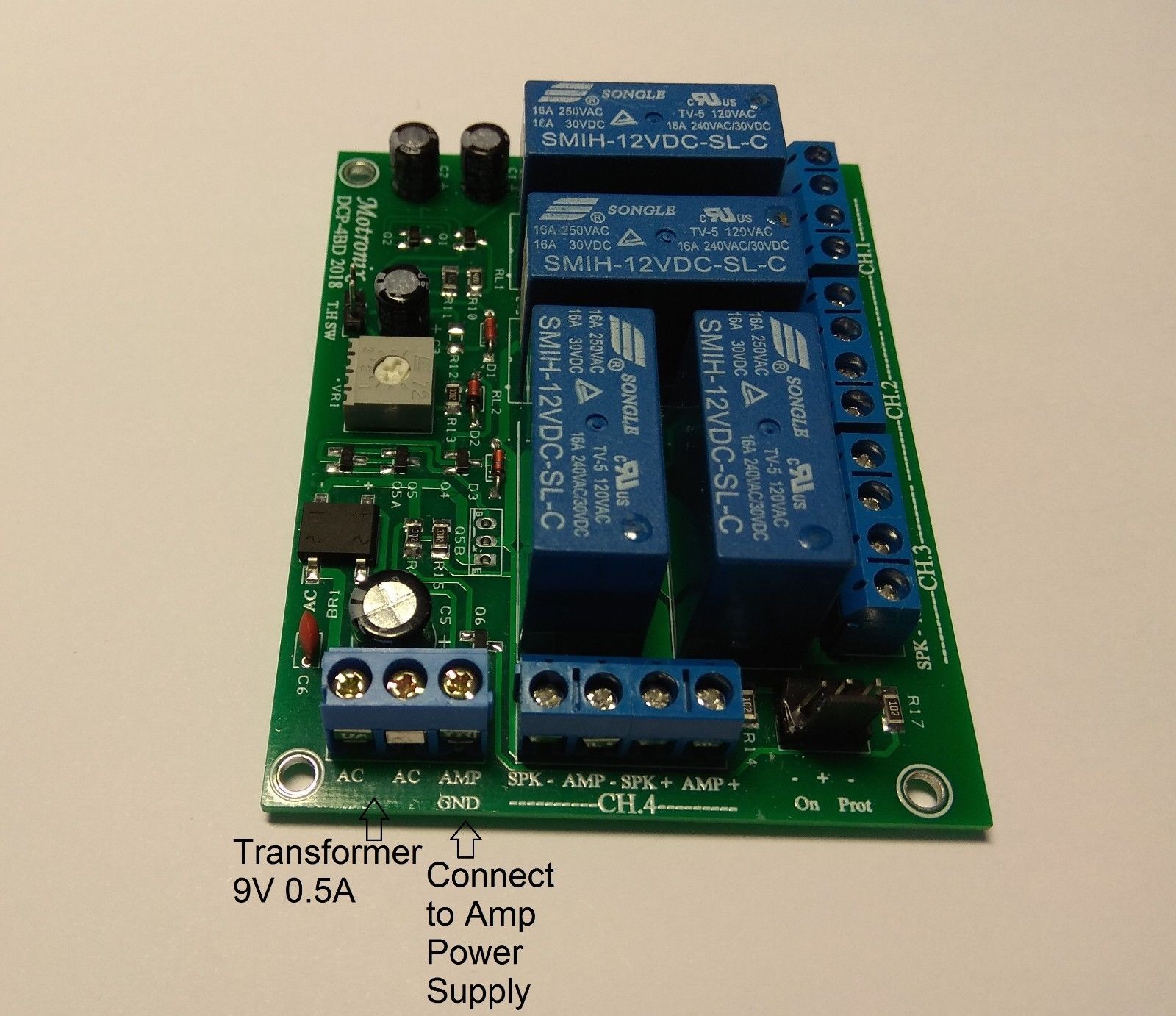

Working Voltage : 9-10Vac
Recommended Transformer: 10V 0.5A
Current consumption: 175ma
MAX. current rate Each CH.: 5A
PCB Size: 89mm*70mm double-sided HAL,FR4 1.6MM
Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier
