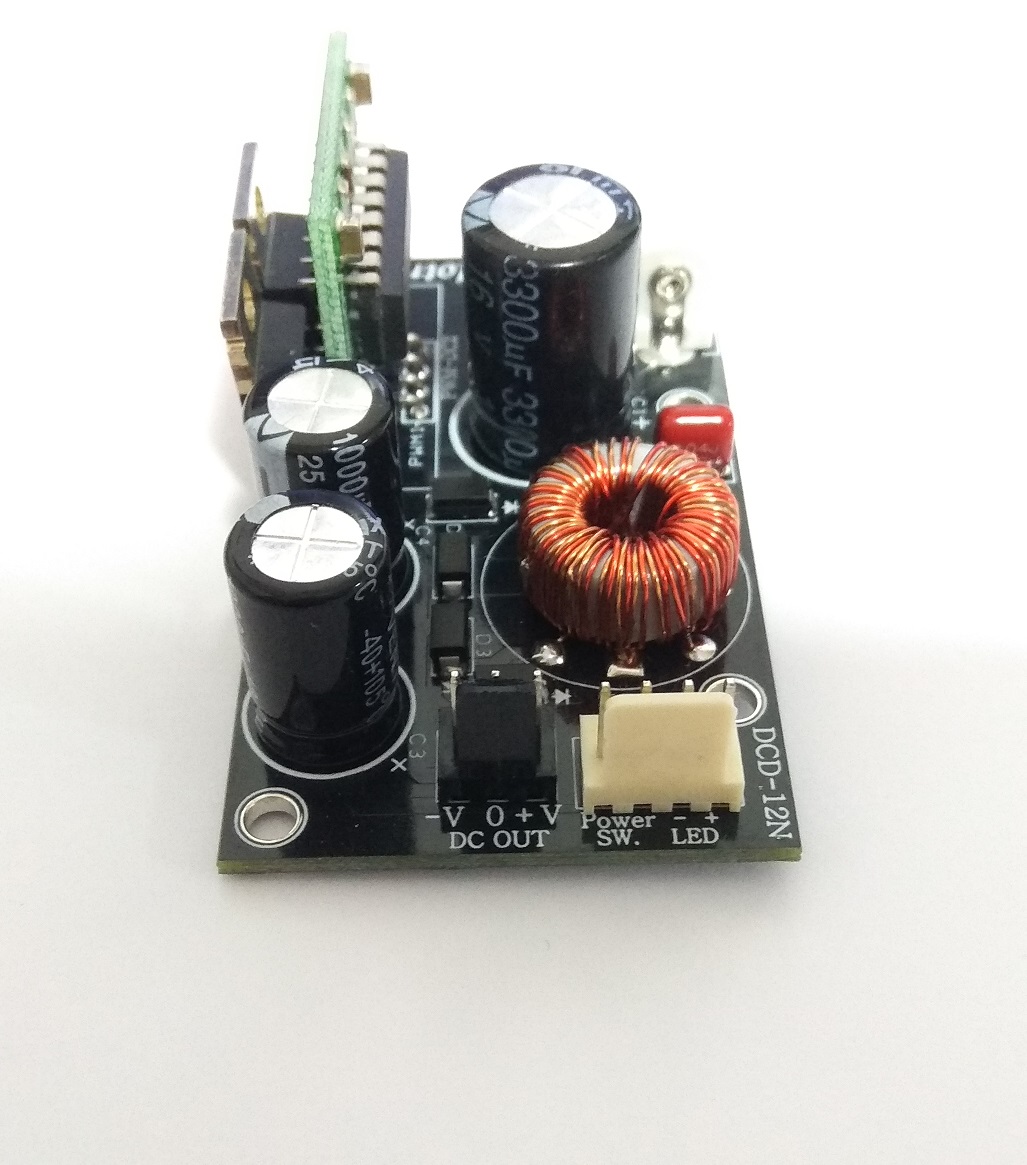

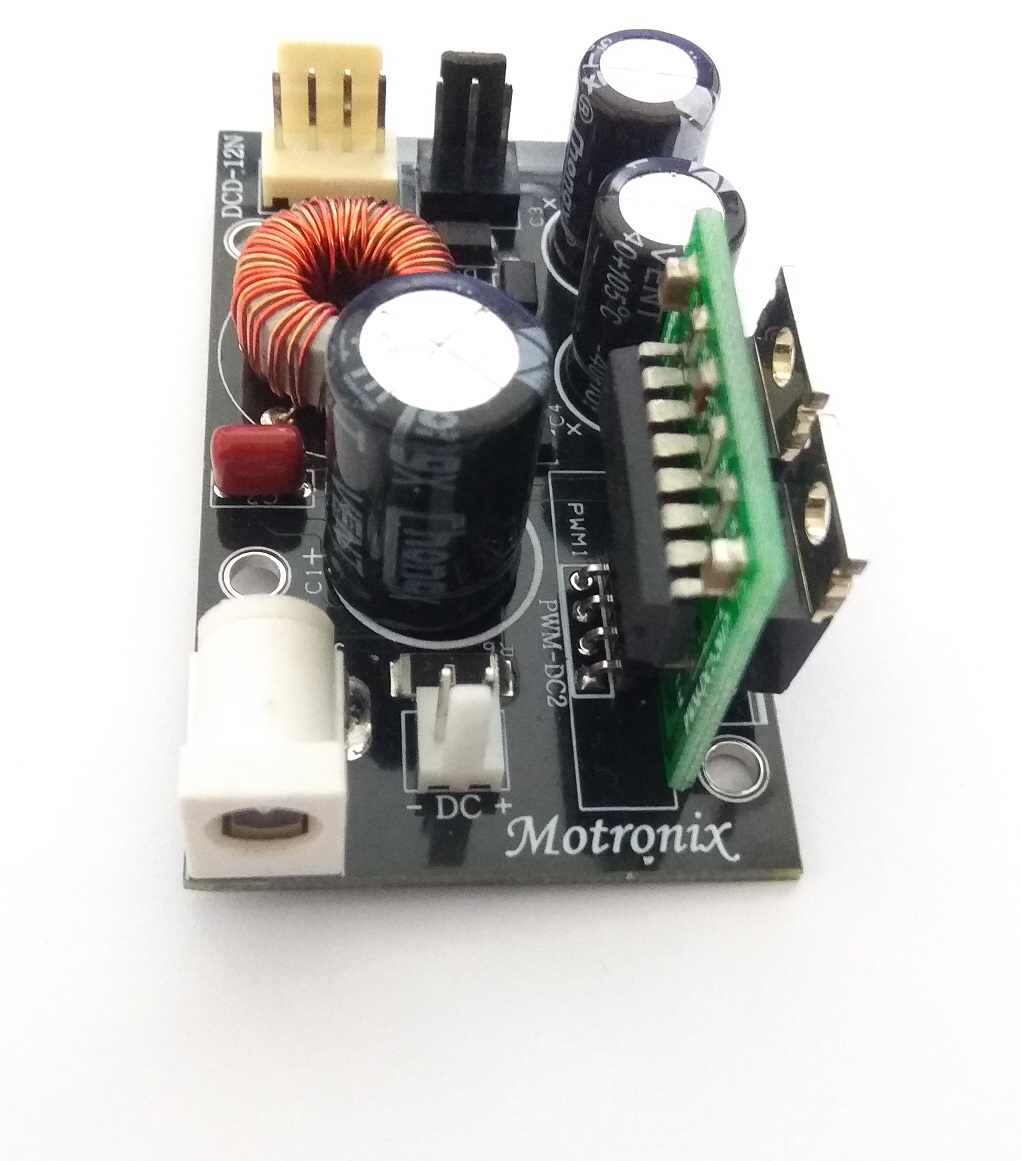

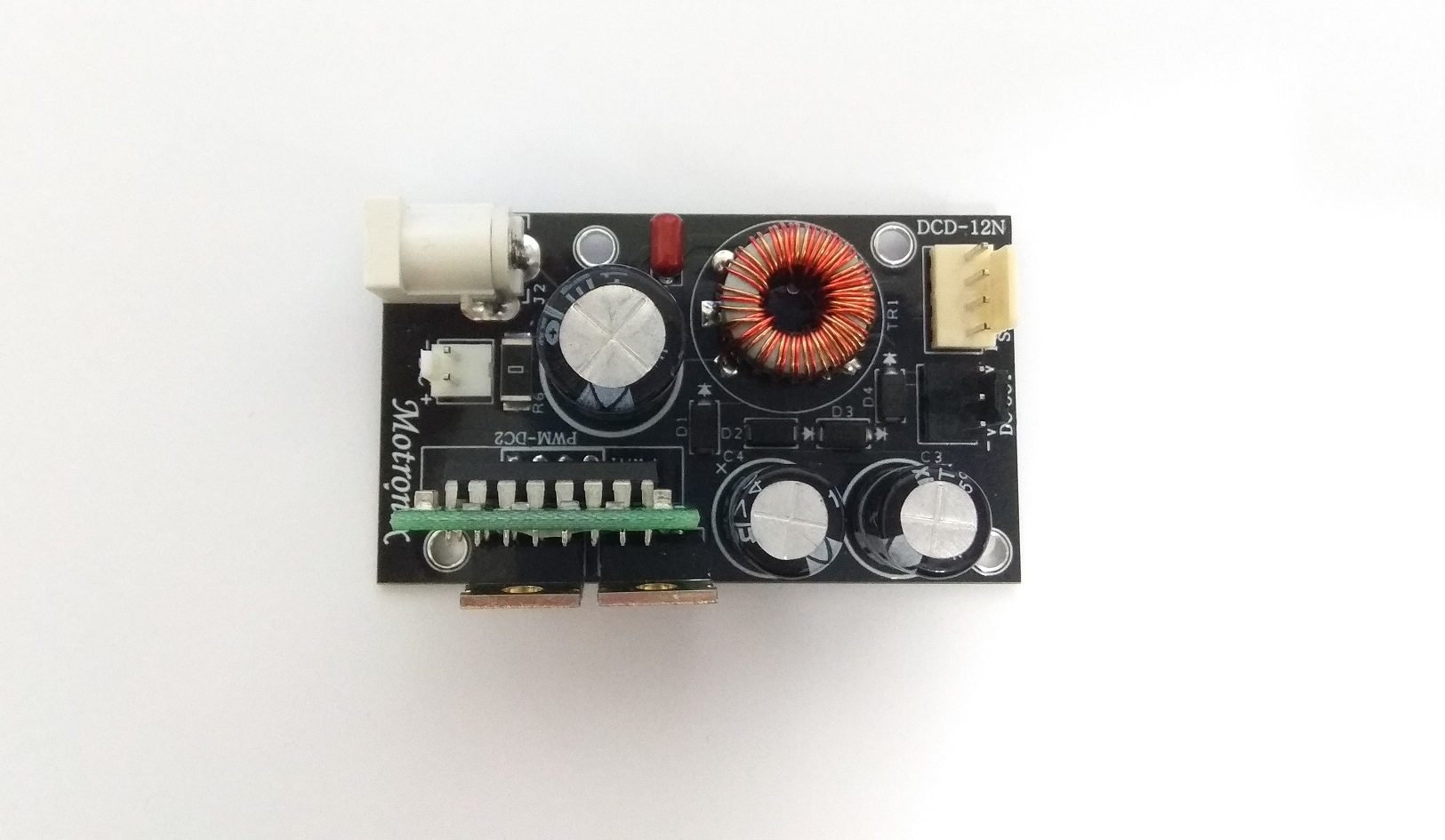

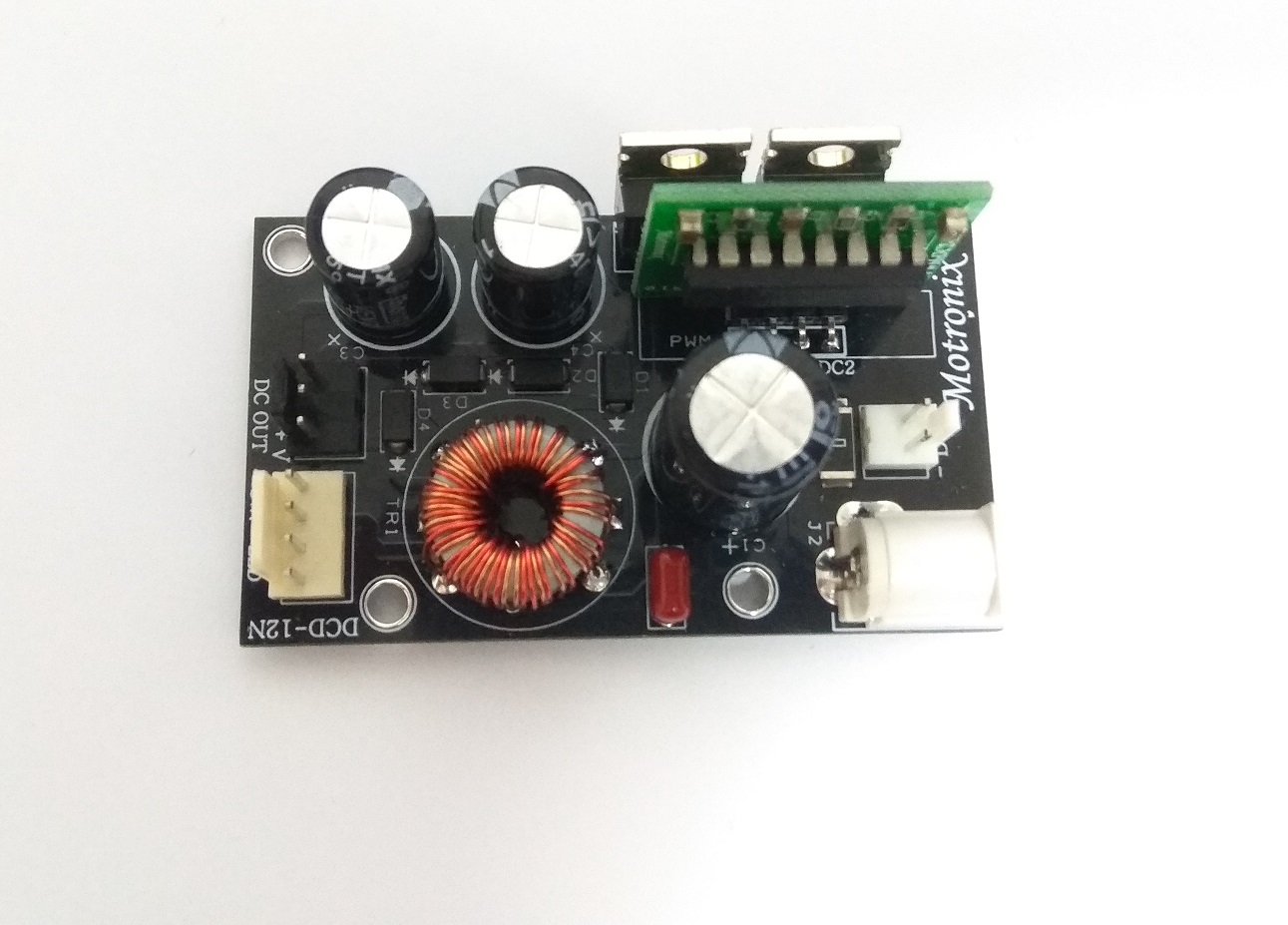

DCD-12N High Quality Single 12Vdc to +12V 0 -12 Vdc Converter

DCD-12N High Quality Single 12Vdc to +12V 0 -12 Vdc Converter - Image 2

DCD-12N High Quality Single 12Vdc to +12V 0 -12 Vdc Converter - Image 3

DCD-12N High Quality Single 12Vdc to +12V 0 -12 Vdc Converter - Image 4

DCD-12N High Quality Single 12Vdc to +12V 0 -12 Vdc Converter - Image 5

DCD-12N High Quality Single 12Vdc to +12V 0 -12 Vdc Converter

$16.00 – $18.00

Add to Wishlist

Model

Clear

SKU: N/A Category: Power Supply

Description
Additional information

Description

DCD-12N

Isolated PWM DC-DC Converter (Input GND isolated from Output GND)

Make Single DC Voltage to Dual DC for Audio Application

Optional Model Step UP from Single 12Vdc to Dual 15Vdc

Convert DC Voltage from Any DC wall Transformer

Input Workin Voltage for 12Vdc model : 9-18V DC (output will be 2×9-18Vdc 1:1)

Input Workin Voltage for 15Vdc model : 12Vdc only (output will be 2x15Vdc)

Output Current: Up to 1A

PWM Control: TL494

PCB: L64mm X W37mm X H30mm

Additional information

Model	DCD-12N 12Vout, DCD-12N 15Vout
