DCP-1HC Speaker DC Protection & Turn On Delay For High Power/Current Monoblock Amplifier

$10.00 $20.00

Availability:

5 in stock (can be backordered)

Description

DCP-1HC

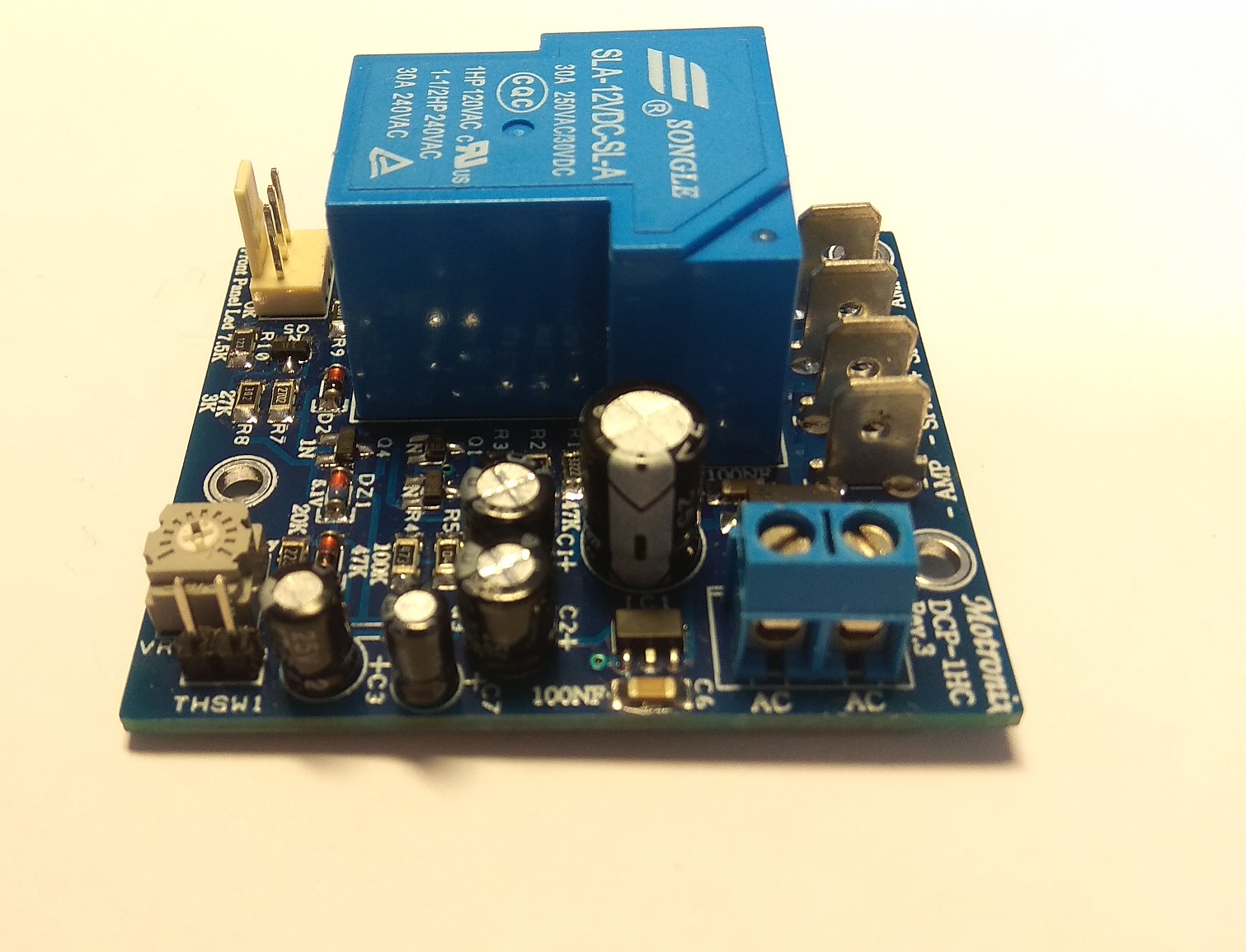

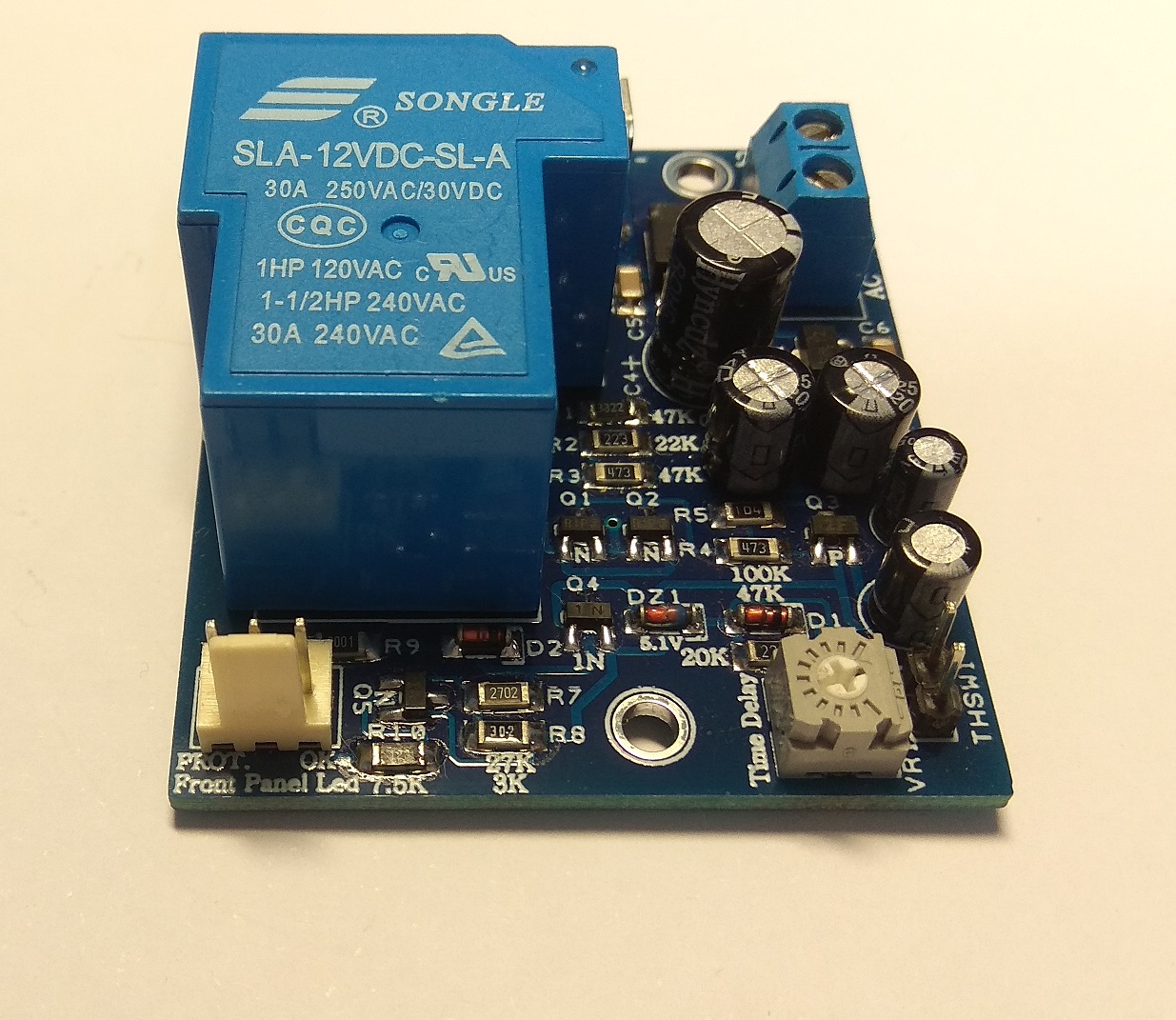

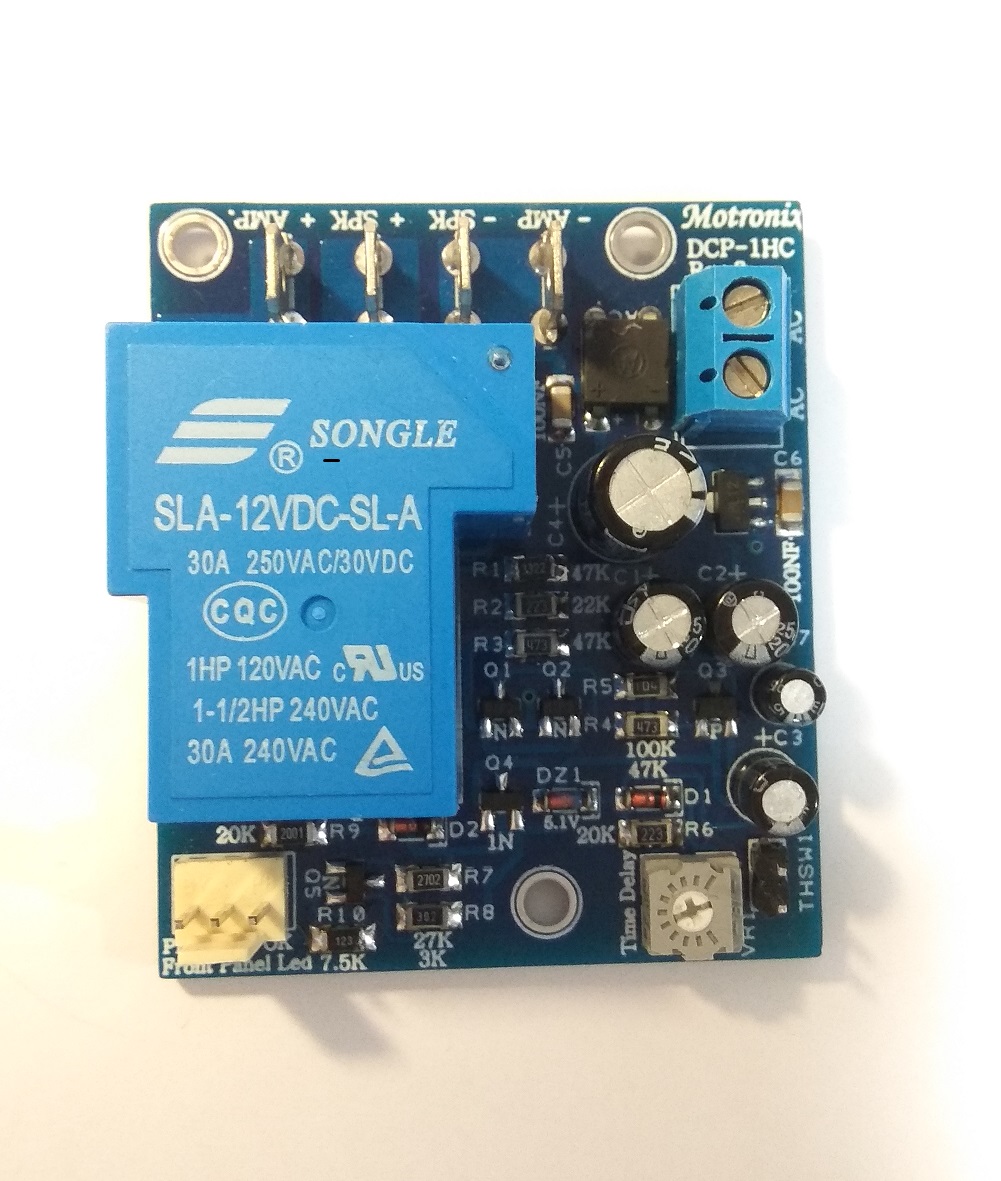

High Quality DC Speaker Protection PCB
 For Very High Power/Current 1CH Mono Block Amplifiers
Assembled Board
High quality product
High quality components
Variable ceramic trimmer Control Turn on delay to prevent turn on click and noise
On Board Status Dual Color Led
On board N.O Thermal switch input connector (T.H Switch not Included)
On board connector to Power on LED & Protection/Thermal Front Panel LED
Working Voltage : 9-12Vac
Time Delay: 1-12 Sec. Approximately (can customize by request)
Current consumption: Max. 85mA
Relay Contact MAX. Current rate: 30A Contact Power 3600W 50%  (Max switching power 7200W)
PCB Size: 66mm*49mm double-sided HAL,FR4 1.6MM
ApplicationsDIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier , PA/DJ Pro Amplifier
