Description
DCP-M2
Speaker DC Protection & Turn On Delay
Very Small Size Assembled Board
For Mono Block Amplifiers
For amplifiers with up to 600W RMS Output
High quality product
High quality components
Turn on delay to prevent turn on click and noise
Very quick turn off

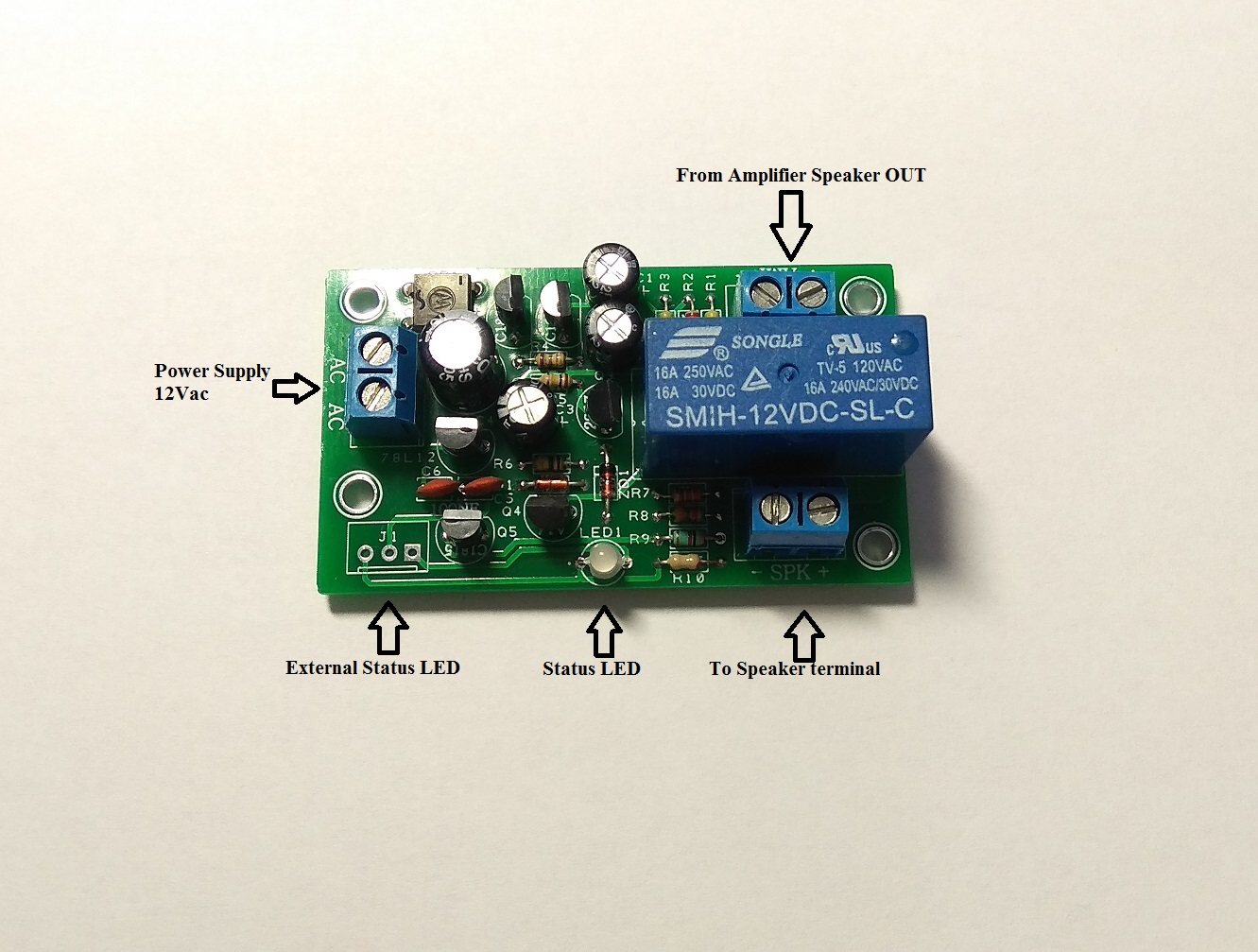

On Board Status Turn On / Protection Led
This item is only PCB with components Assembled
Working Voltage : 9-12Vac (Only)
Time Delay: 5-7 Sec.
Current consumption: 50ma
MAX. Relay current rate: 16A/240Vac
PCB Size: 65mm*37mm double-sided HAL,FR4 1.6MM
Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier , PA/DJ Pro Amplifier
