Description
M78-79REG
Dual Voltage Regulator Module
12Vdc or 15Vdc or 18Vdc Positive/Negative
PCB With 7812-18 & 7912-18
Especially For Audio Applications

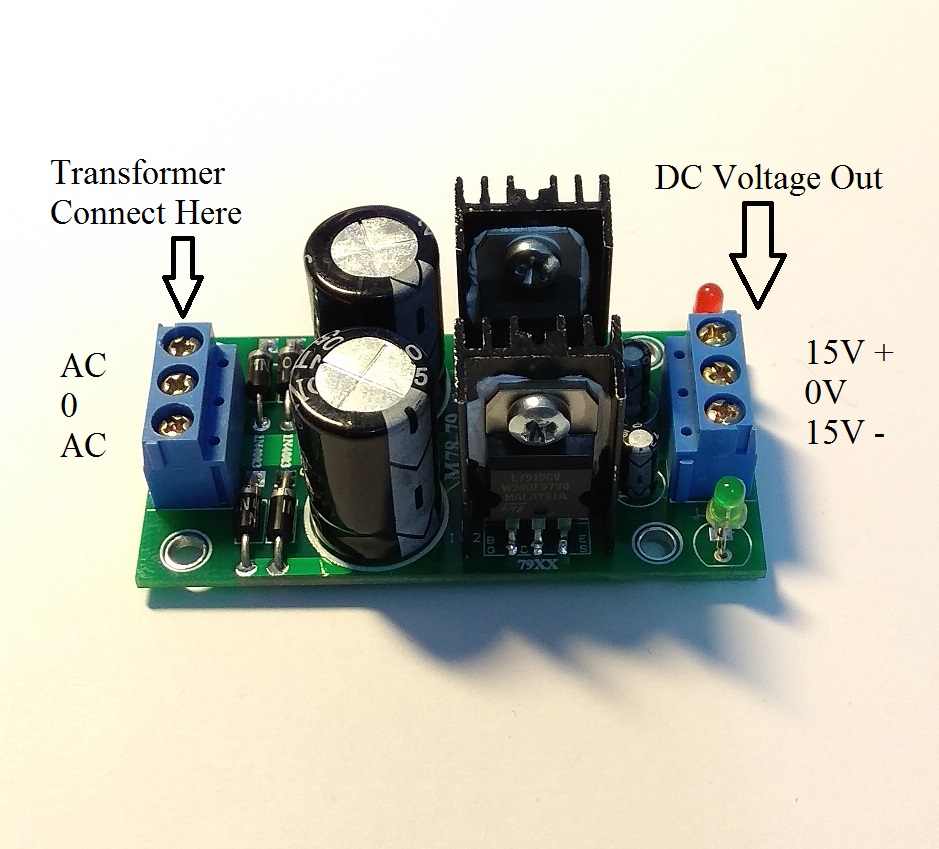

Input Voltage : 2X12-16Vac (For models with +/-12Vdc & 15Vdc)
2X15-22VAC (For model 2X18Vdc)
Output Voltage:
+/- 12VDC
+/-15VDC
+/-18VDC
Output Current: Up to +1A & -1A

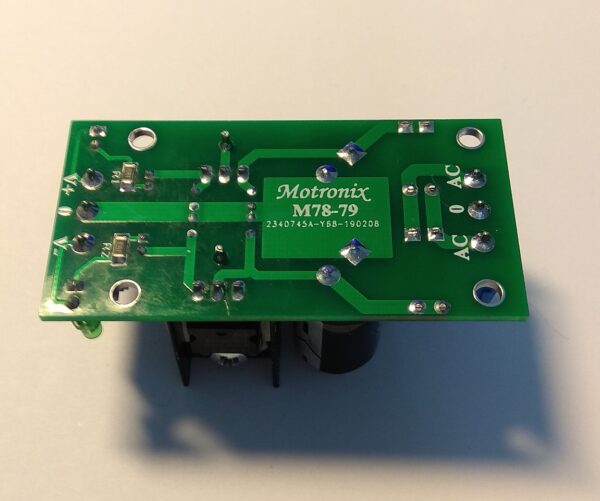

Double sided High quality Black FR.4 PCB
PCB Size:

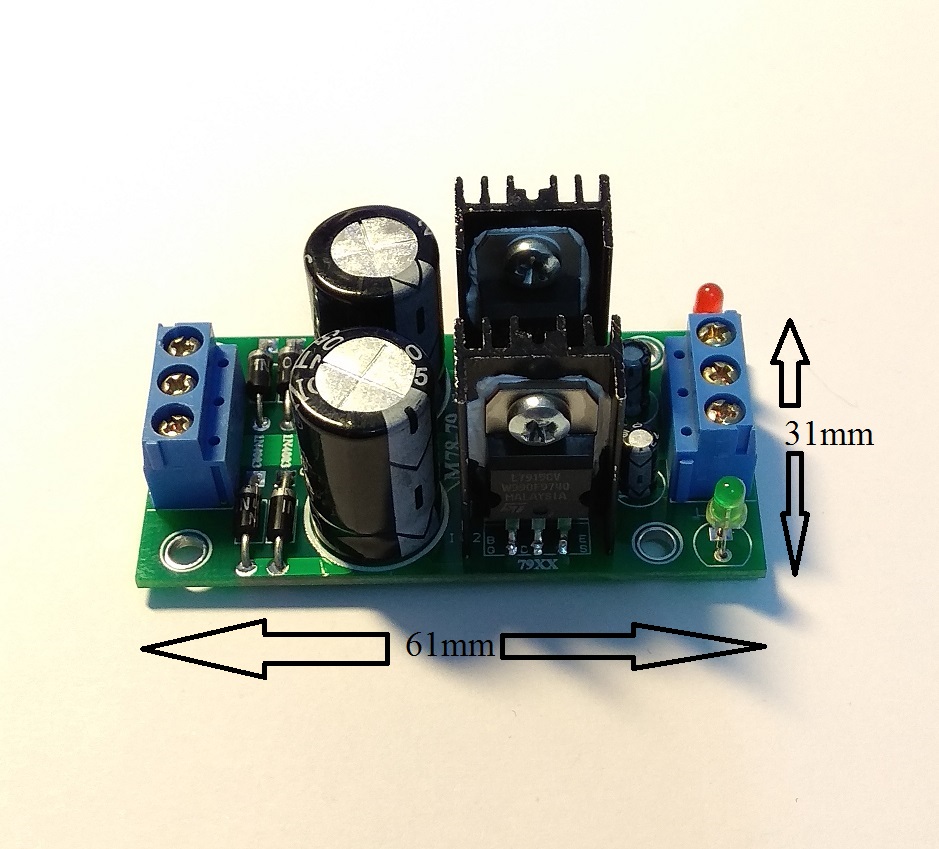

7812/7815 Model L61mm X W31mm X H30mm
7818 Model L74mm X W44mm X H30mm
