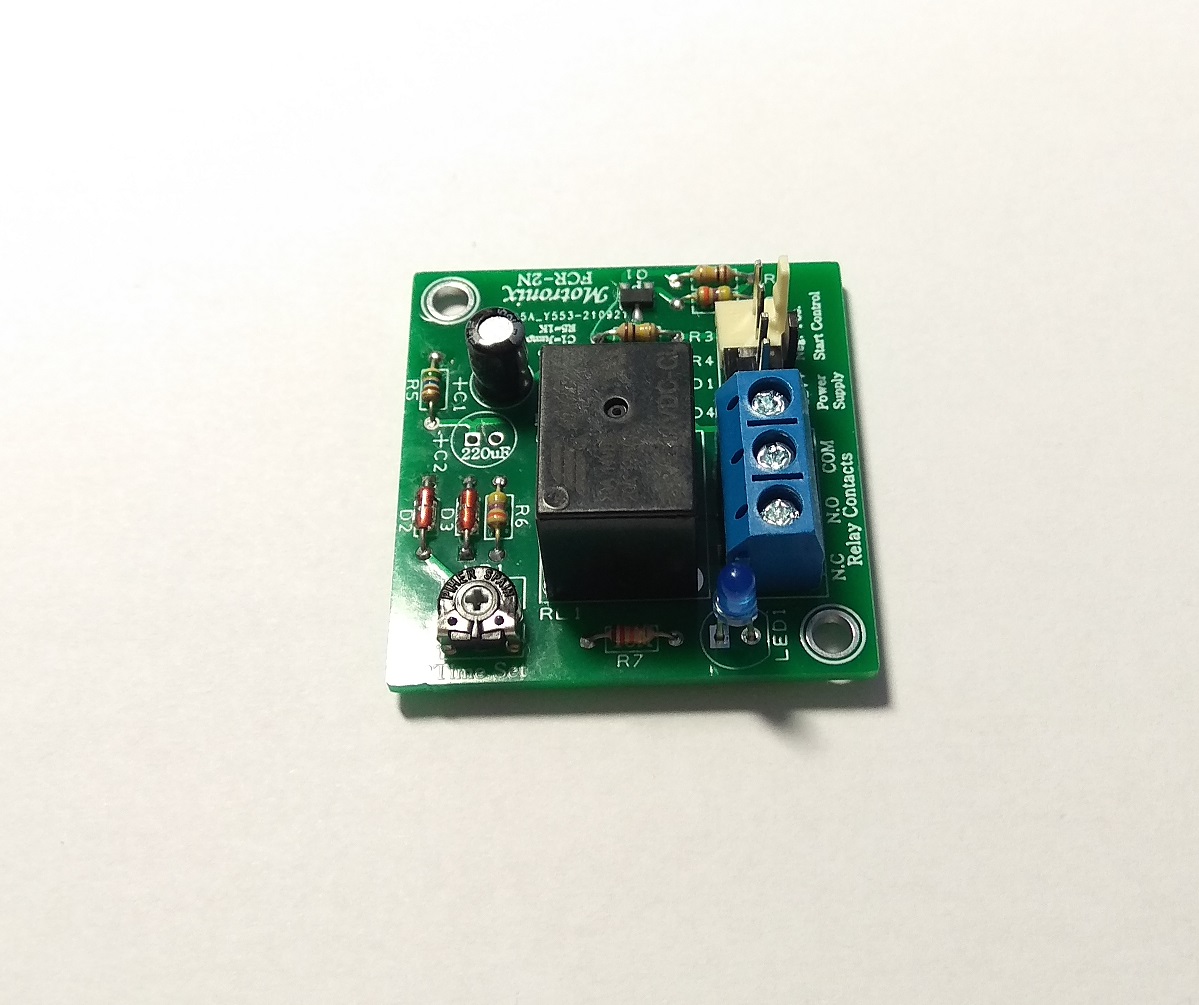

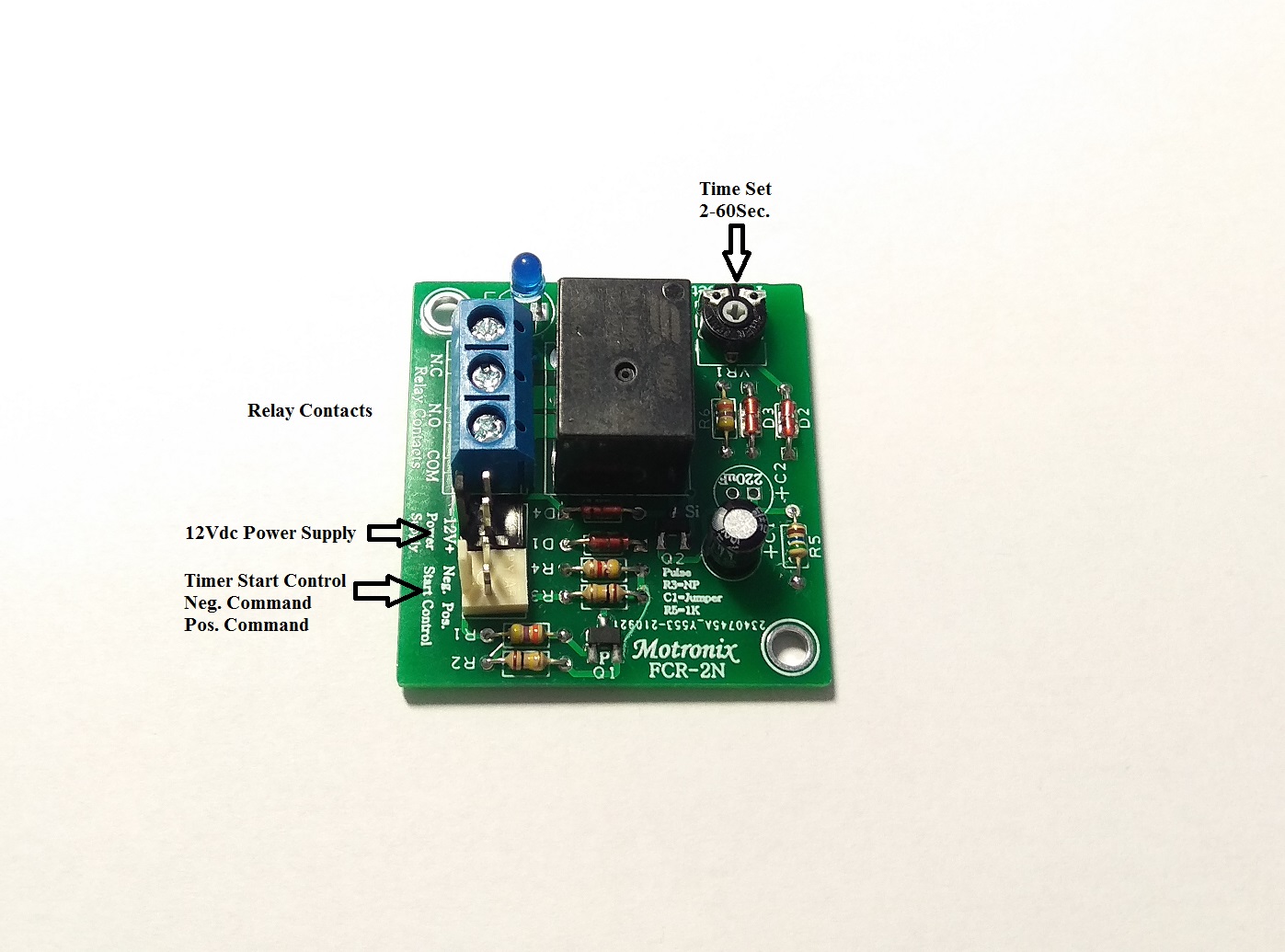

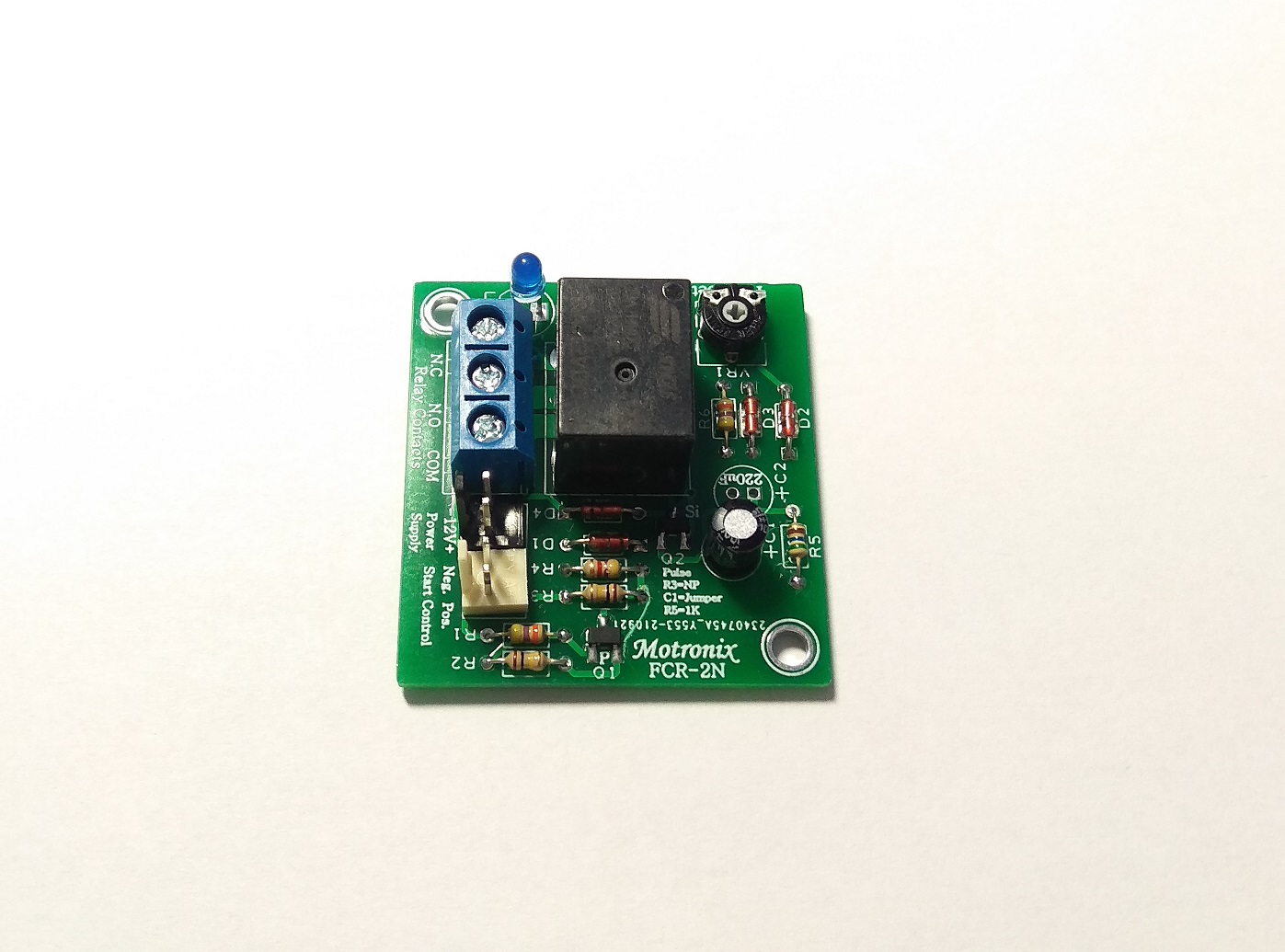

FCR-2N General Purpose Timer Module

Description

FCR-2N

General Purpose Timer for various applications

Variable Action Time:

Constant Command Model: 2Sec. to 1Min.

Pulse Command Model: 6Sec. to 3Min.

(The buyer can change the time according to his needs by replacing capacitor)

2 Version you have from this model:

1.  Pulse (momentary) 12Vdc Negative or Positive command

(Relay stay on for the time set than go off)

2. Constant 12Vdc Negative or Positive command

(Relay stay on for the time set than go off)

Working Voltage: 12-15Vdc

Current switching: 2A
