Description

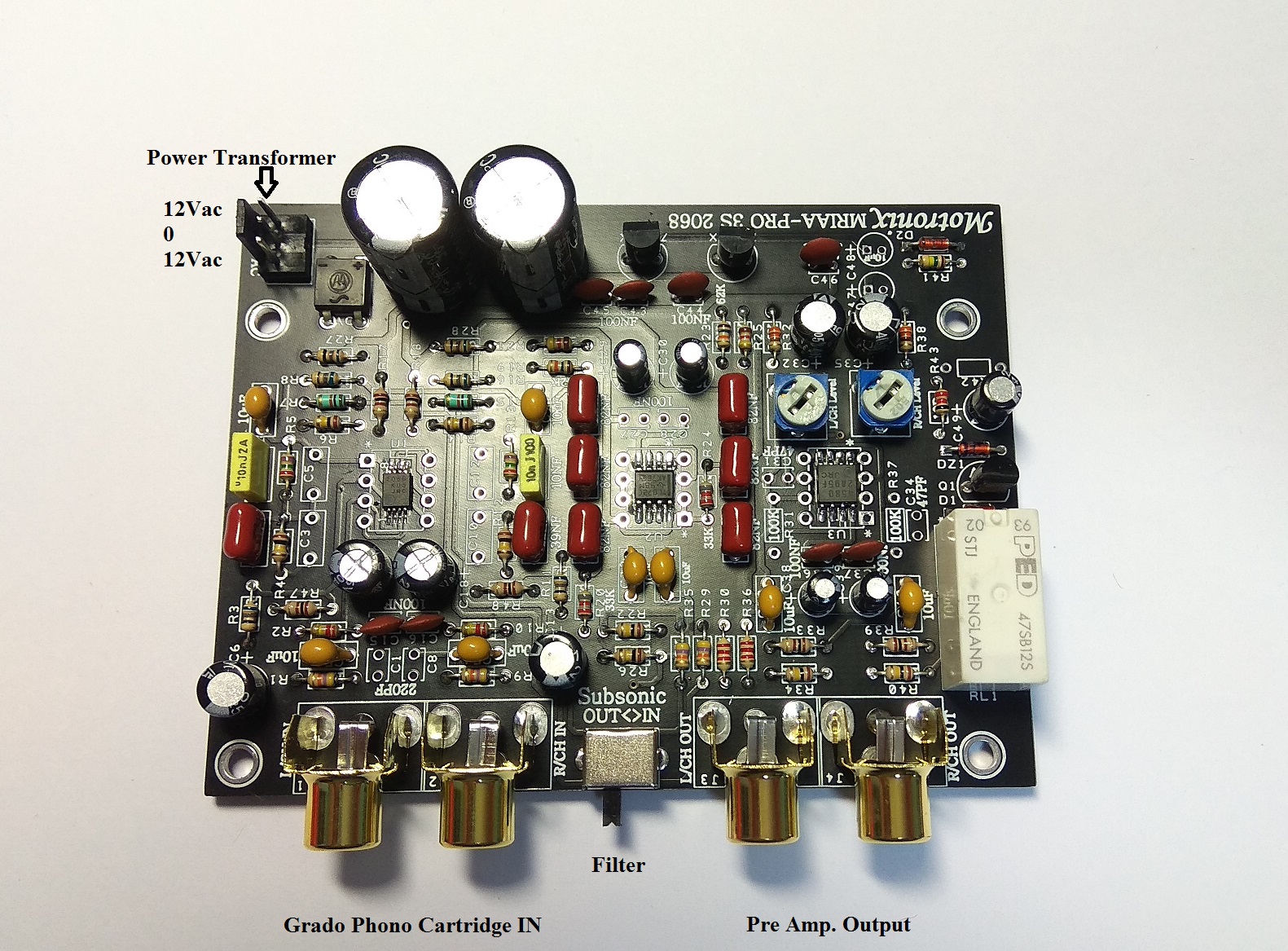

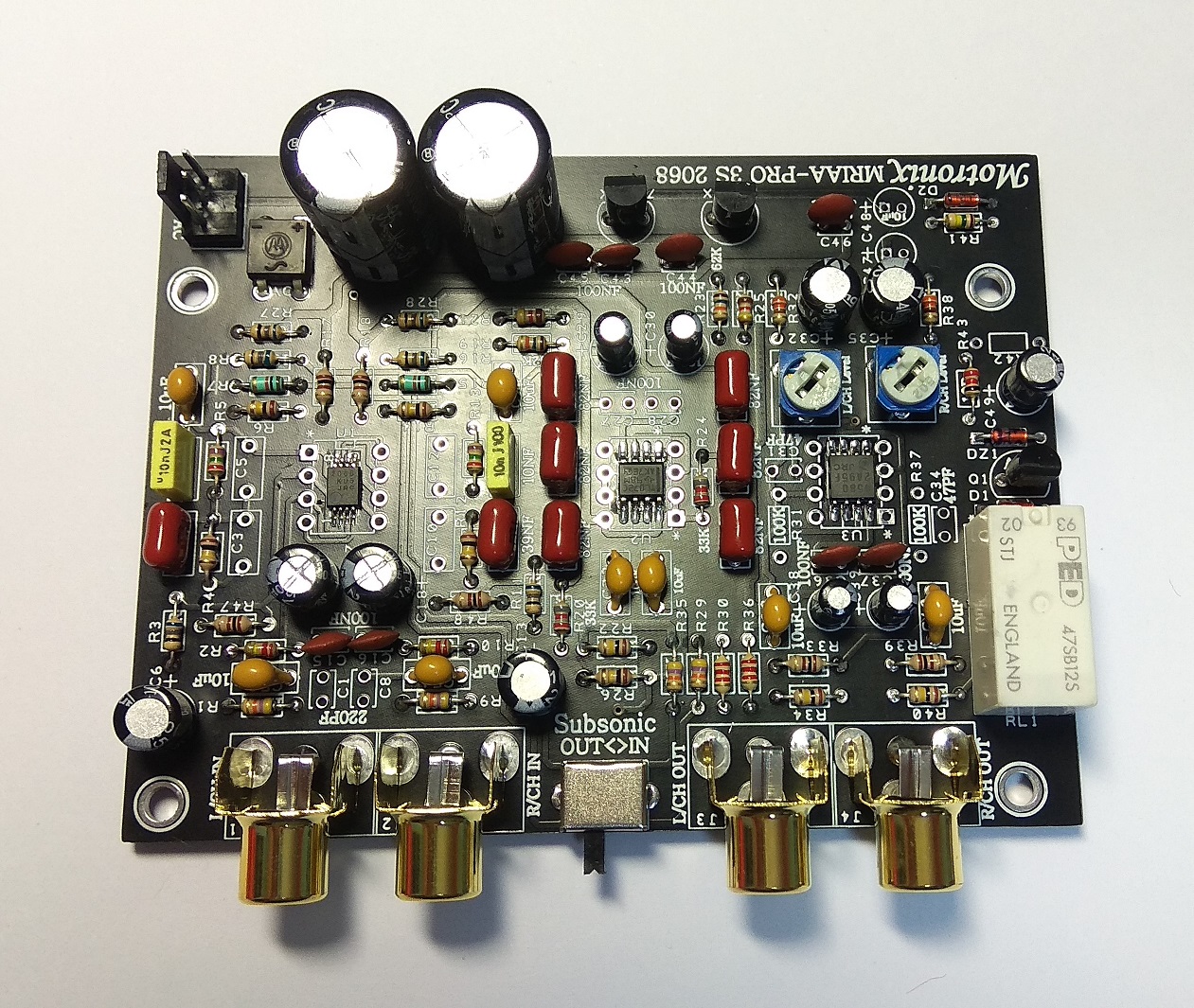

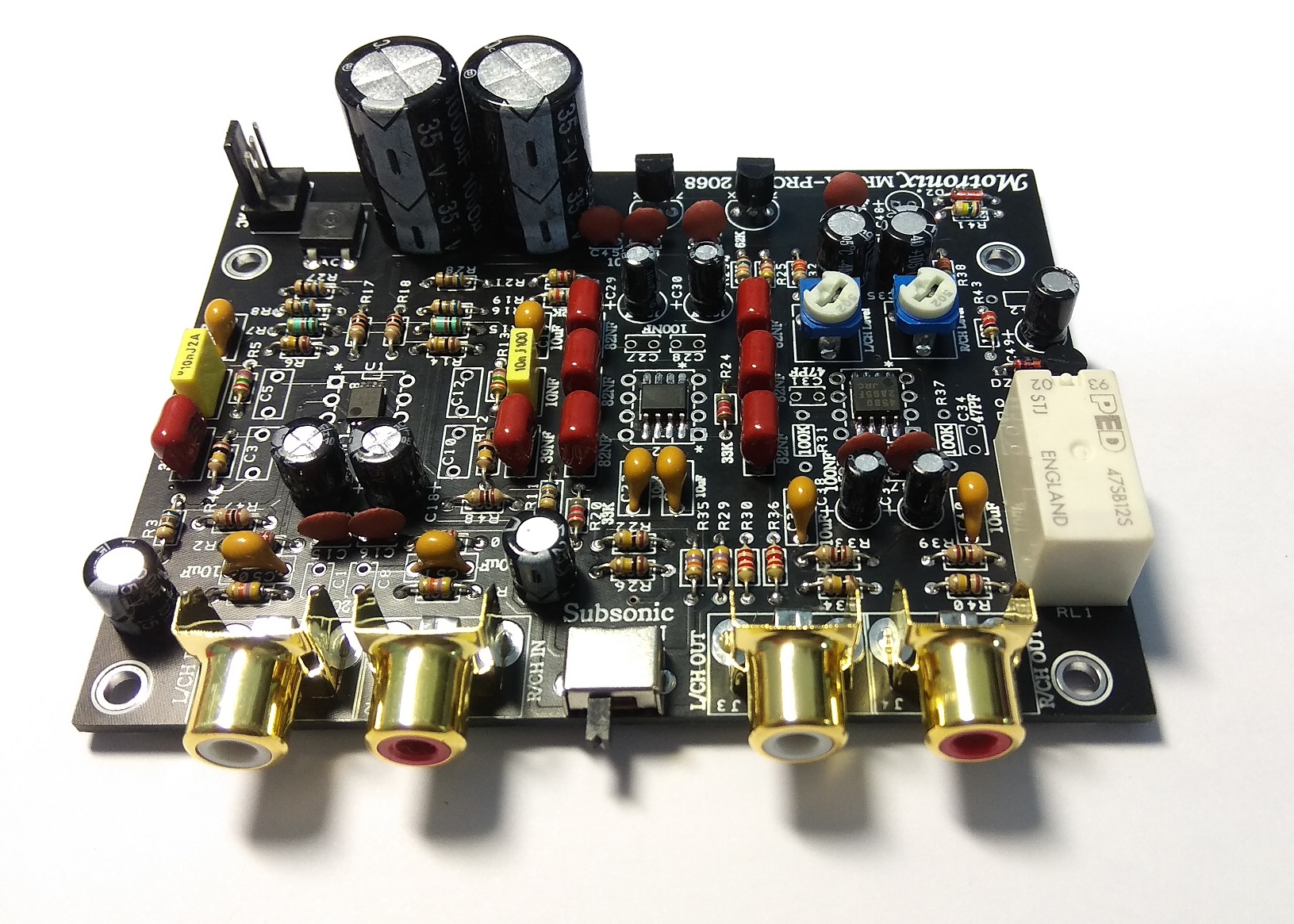

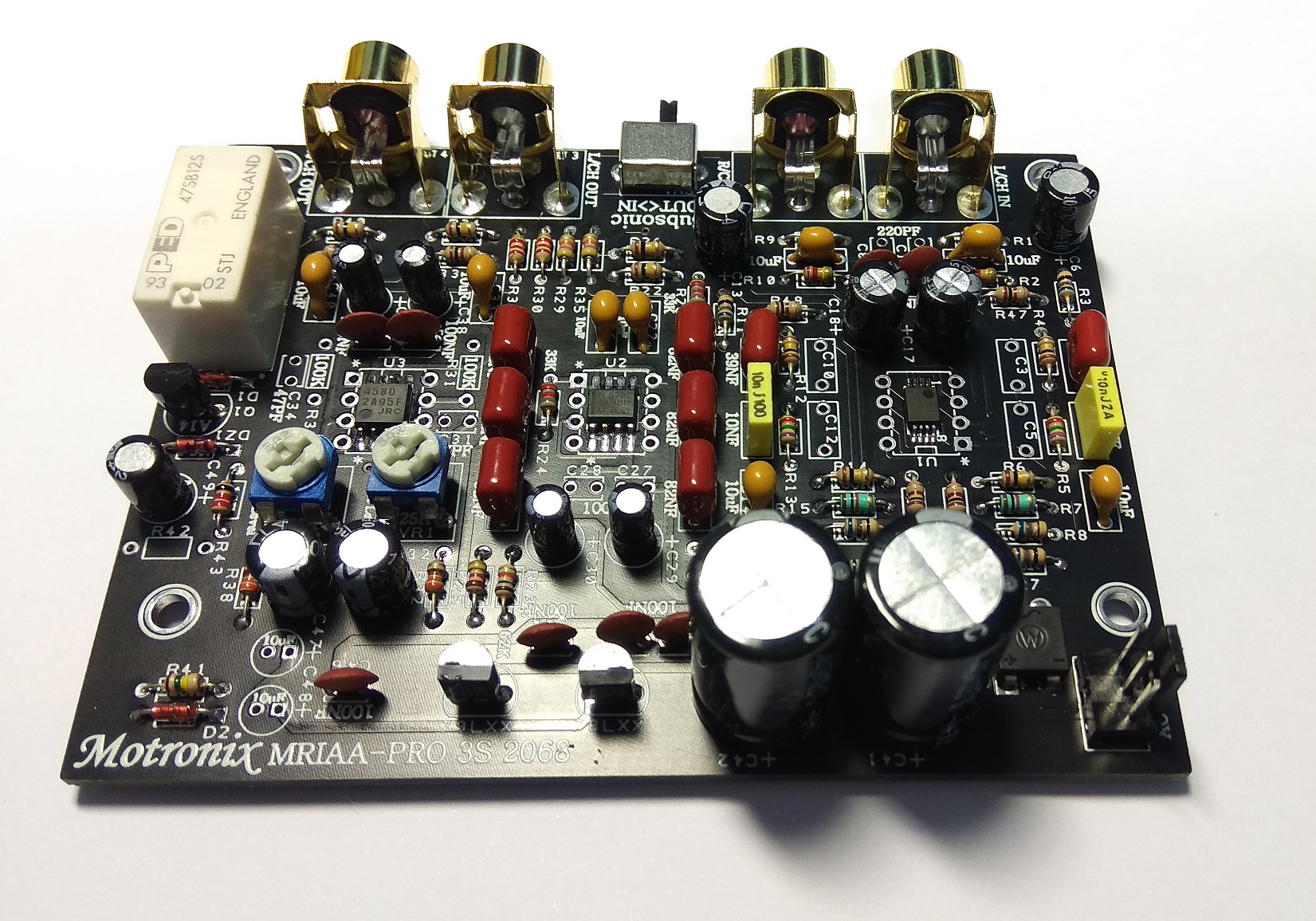

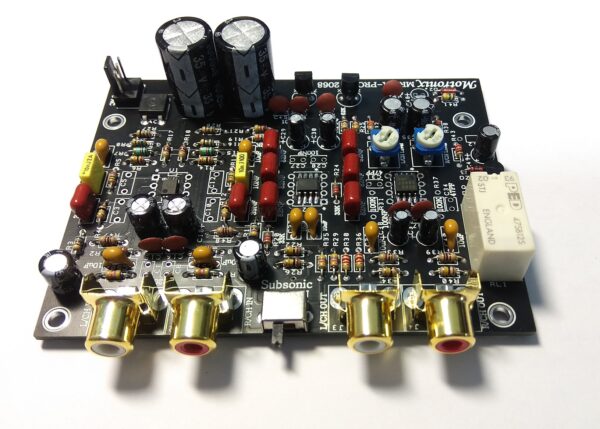

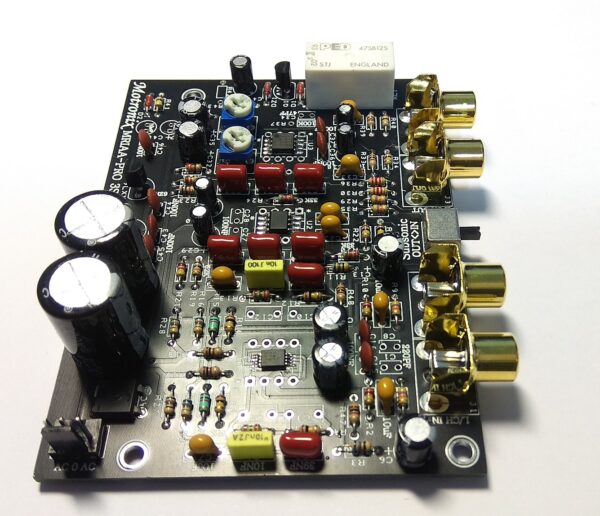

MRIAA-PRO3S 2068
Special Design Phono Stage for Grado Aeon3 Lineage Series
Matched to series with a low output of 1mV
Stereo Riaa Stage with Excellent Audio performance
Line Out with Turn On/Off mute
18db Subsonic/Rumble Filter
High Pre Out Level (Set to 775mV)
***Matched components***
***Low Noise Op Amps***
Input resistance: 47k ohms
Input capacitance: non
Input sensitivity: 1mV (for 775mV output @ 1Khz)
Output Voltage: Calibrate to 775mV/0dBu
Output resistance: 100 ohms
RIAA equalisation accuracy: 0.1dB
Rumble filter: 35Hz, 18dB/octave
Power Supply: center tap transformer
Dual AC – 12ac 0 12ac 2VA Transformer (Can be 12-15Vac)

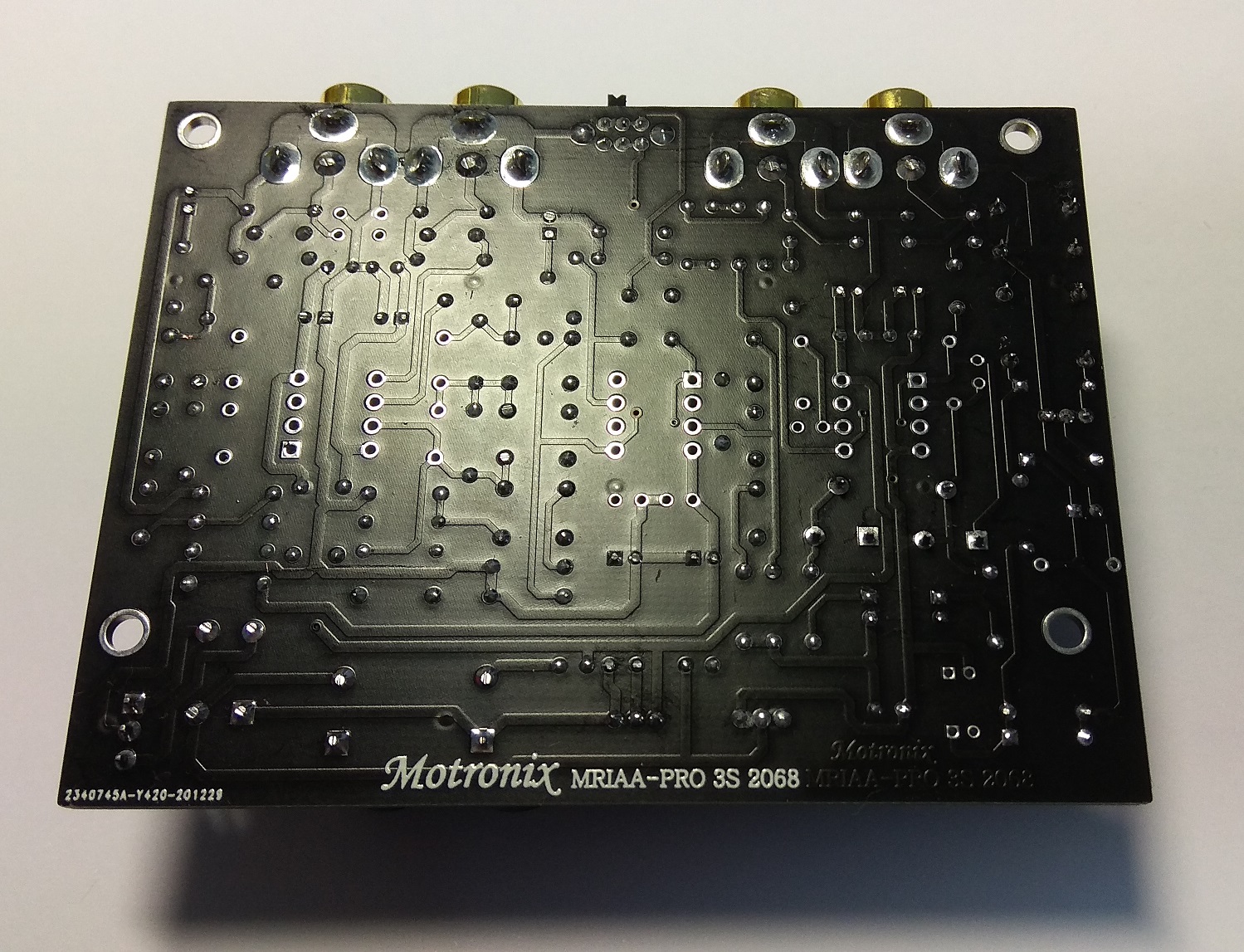

PCB Size:
98mm*74mm Black double-sided HAL,FR4 1.6MM
