Guitar Red Llama Overdrive/Distortion/Fuzz Effect DIY Board

Description

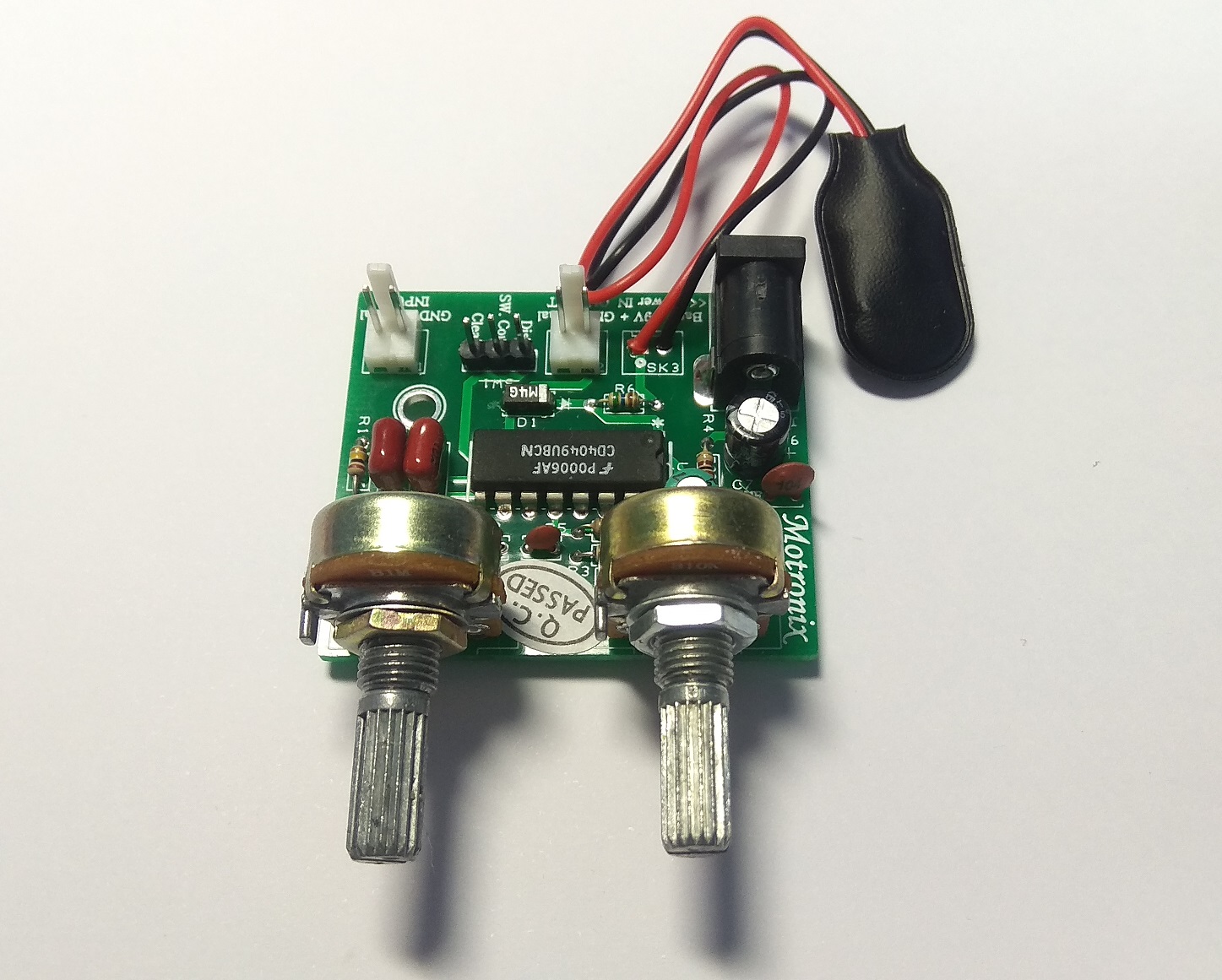

M-Red Llama

DIY Assembled Board

Overdrive/Distortion/Fuzz Effect

Red-Llama Rev.2 Small High quality and reliability FR4 1.6MM PCB

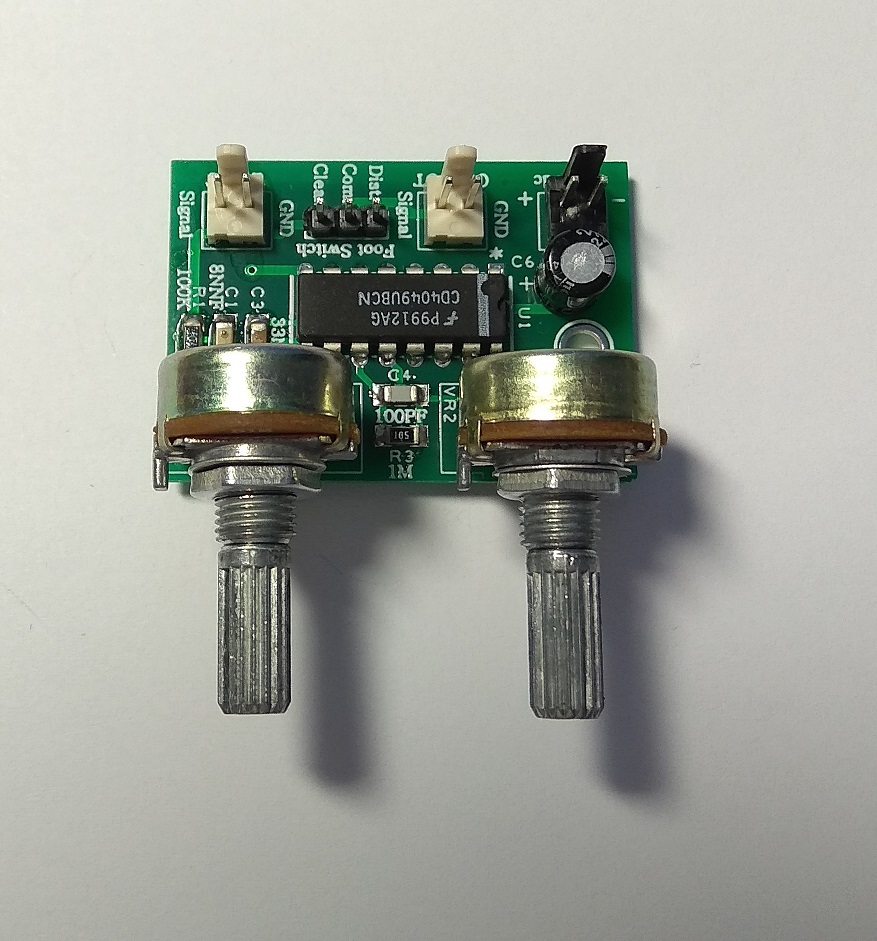

Red-Llama Rev.3 Smaller High quality and reliability FR4 1.6MM PCB

Input & Output Connectors will supply

Power Input : 9-15Vdc (Recommended: 12Vdc Regulated)

DC Plug Type: 5.5X2.1 (Rev.3 Only Molex connector)

Current Consumption: 30mA

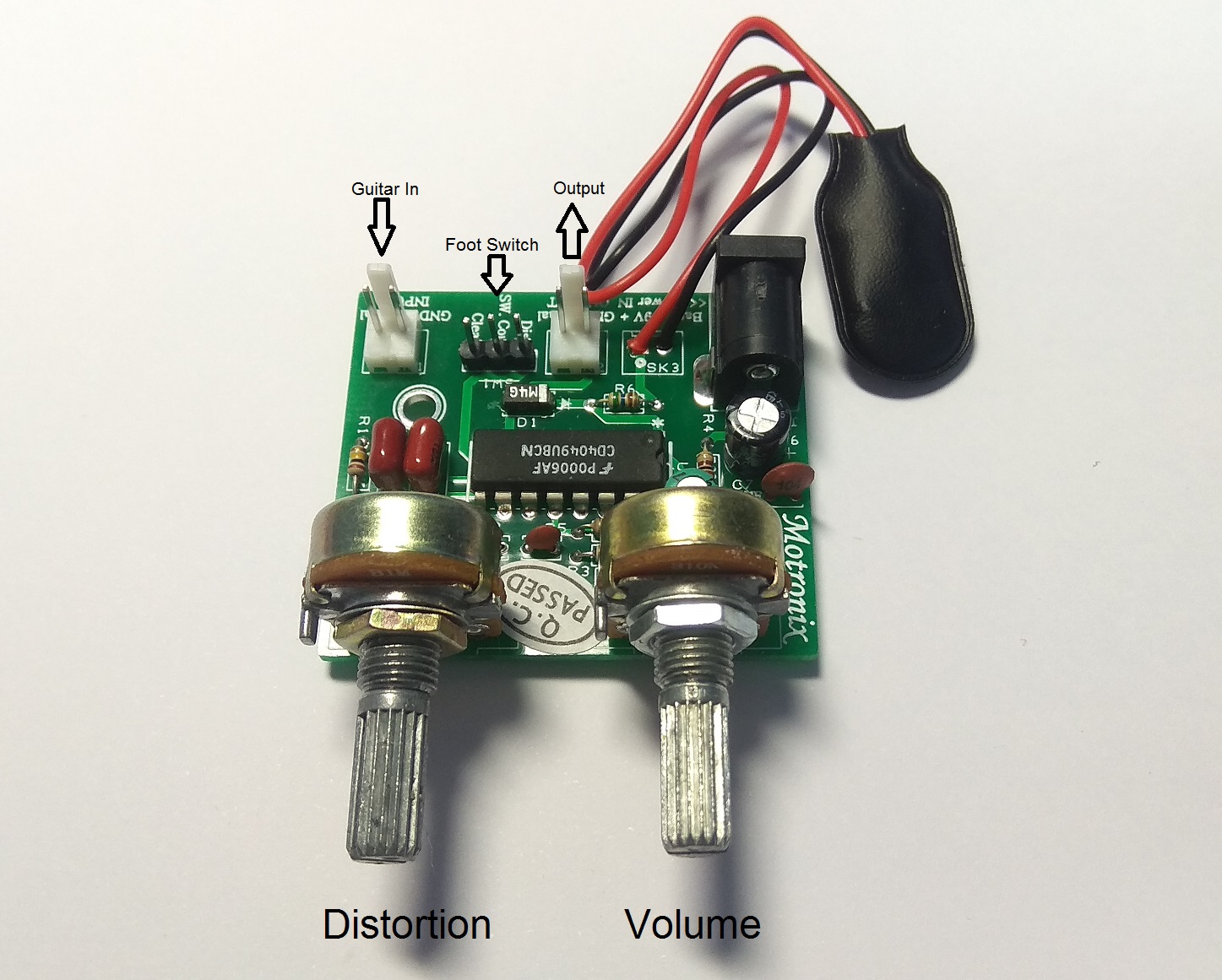

Control : 1 Volume + 1 Distortion/Gain

On Board Connector for Foot switch Effect (Effect IN/Effect OUT)

Foot switch Not Included!!!

PCB Size:

**Red-Llama Rev.2: 48mm*42mm double-sided HAL,FR4 1.6MM**

**Red-Llama Rev.3: 43mm*30mm double-sided HAL,FR4 1.6MM**

Potentiometer Gap: 25mm (Center to Center)

Applications: DIY Guitar Effect

Additional information

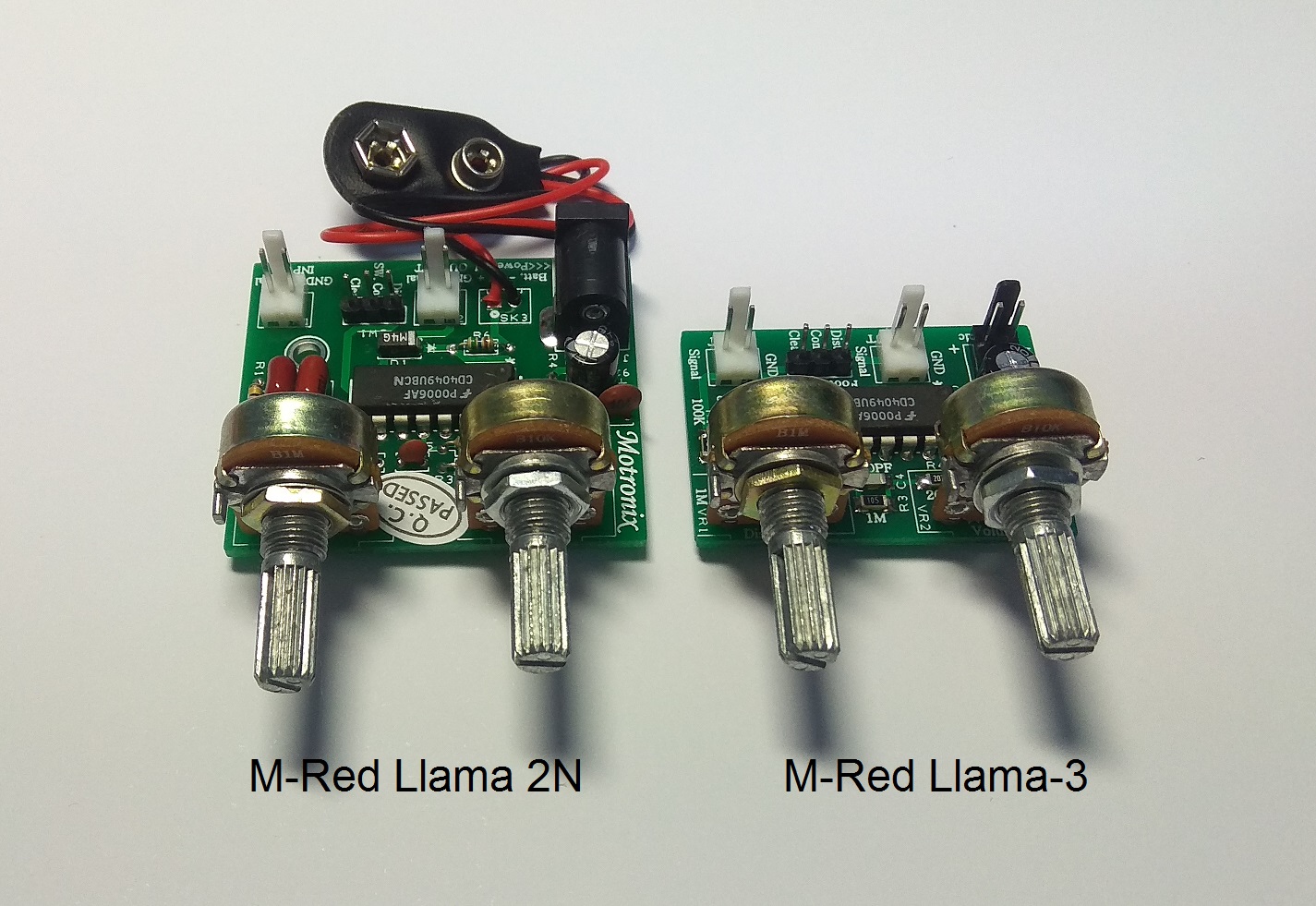

Model	M-Red Llama Rev.2, Red-Llama-3
