Description
DCP-HP1

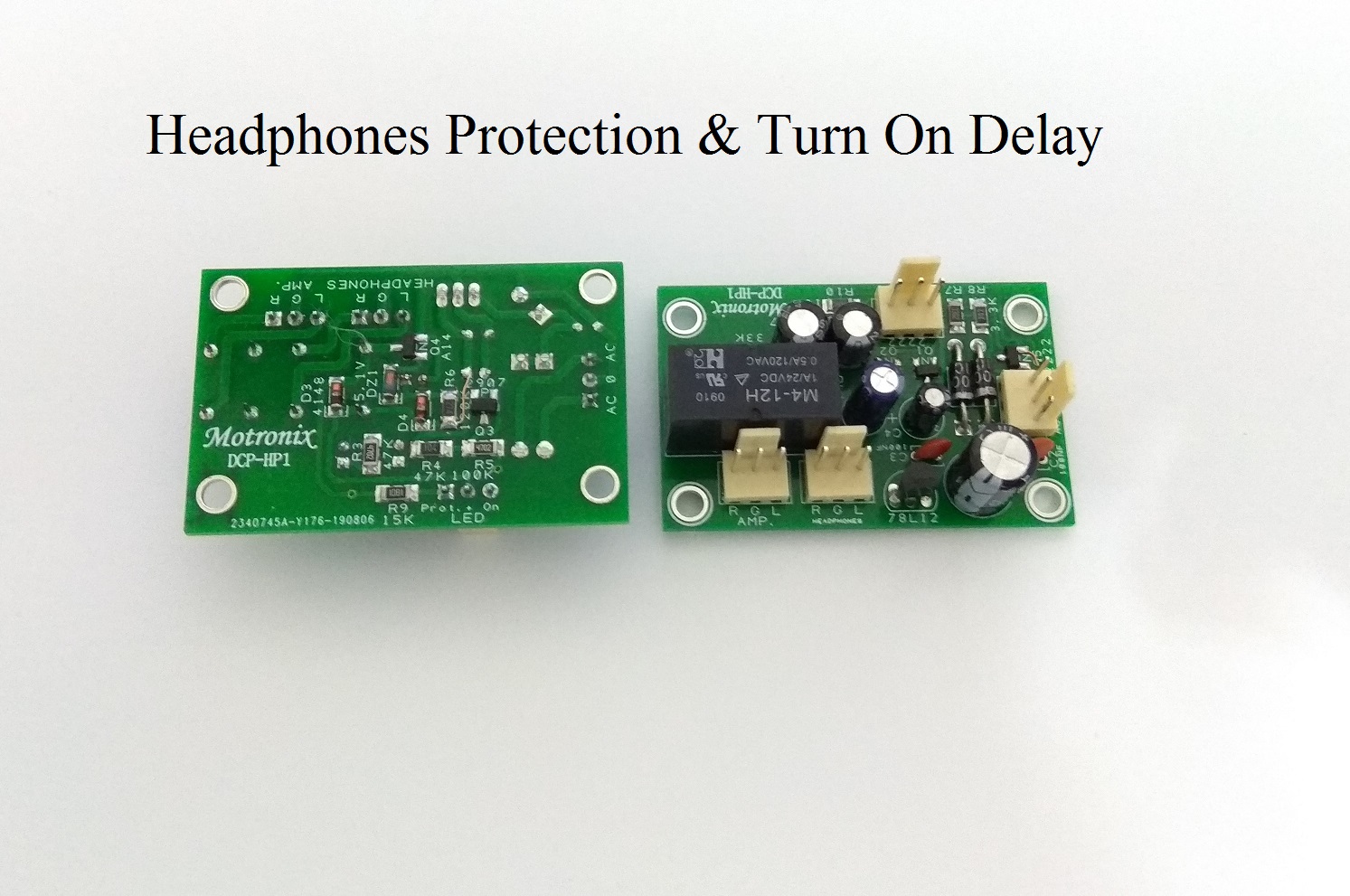

Stereo Headphones Protection & Turn On Delay
Can Use In Line Driver / Pre Amplifiers Output Stage
Very Small Size Assembled Board
Perfect for Small Size Audio Design
Perfect Solution for Headphones Amplifier Chassis / Aluminum Case Power Amp Shell
High quality and reliability FR4 1.6MM
High quality product
High quality components
Can work with Single/Dual AC or Single DC Power Supply
Turn on delay to prevent turn on click and noise
quick turn off

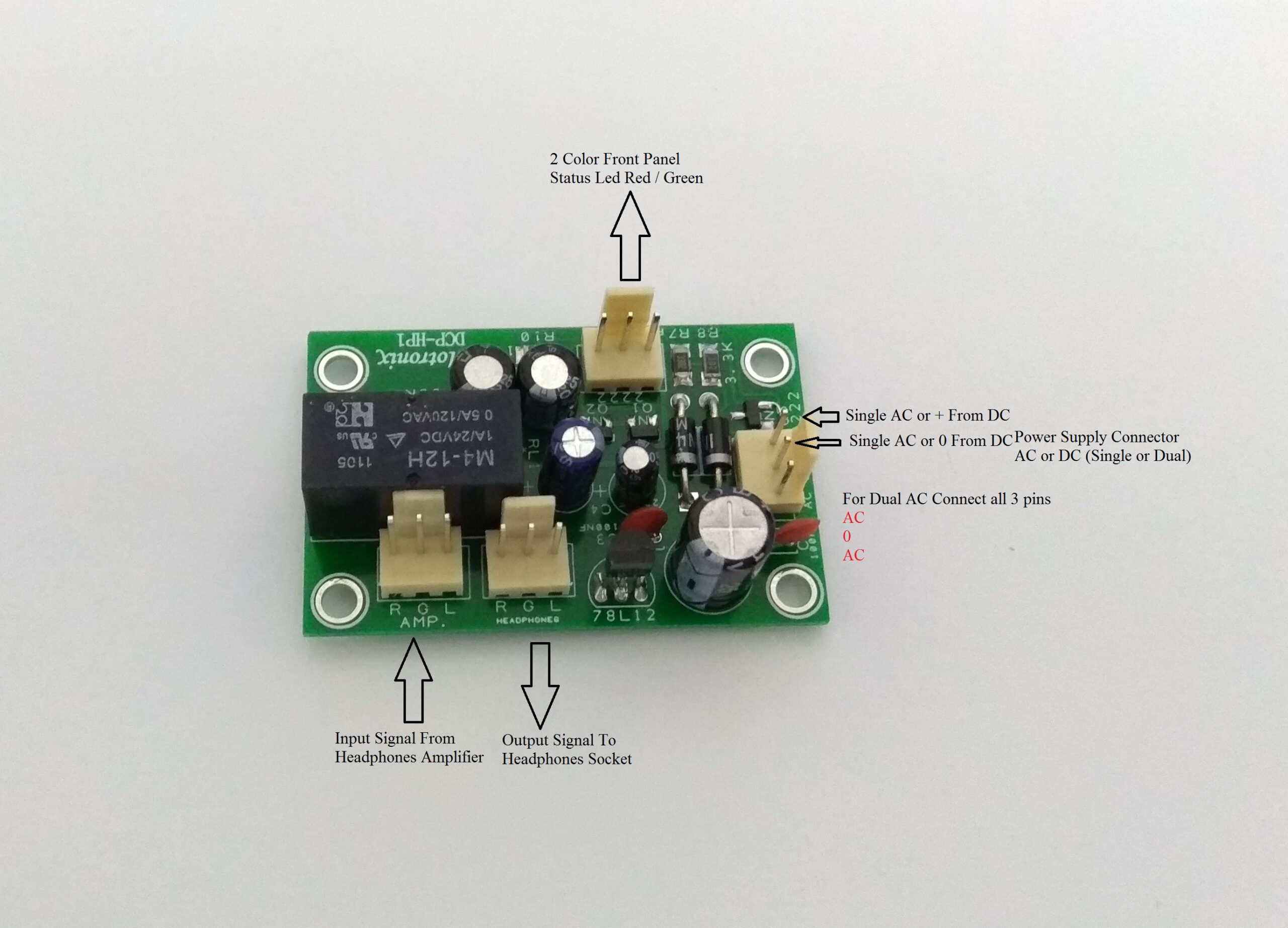

On Board Turn On/OK or Protection Mode Dual Color Led
(All Connector included)
This item is only PCB with components Assembled
Working Voltage :
Single/Dual AC 10-13Vac
Single DC 14-18Vdc
Time Delay: 2-5 Sec.
Current consumption: 30ma (On Stat)
MAX. Each CH. current rate: 1A

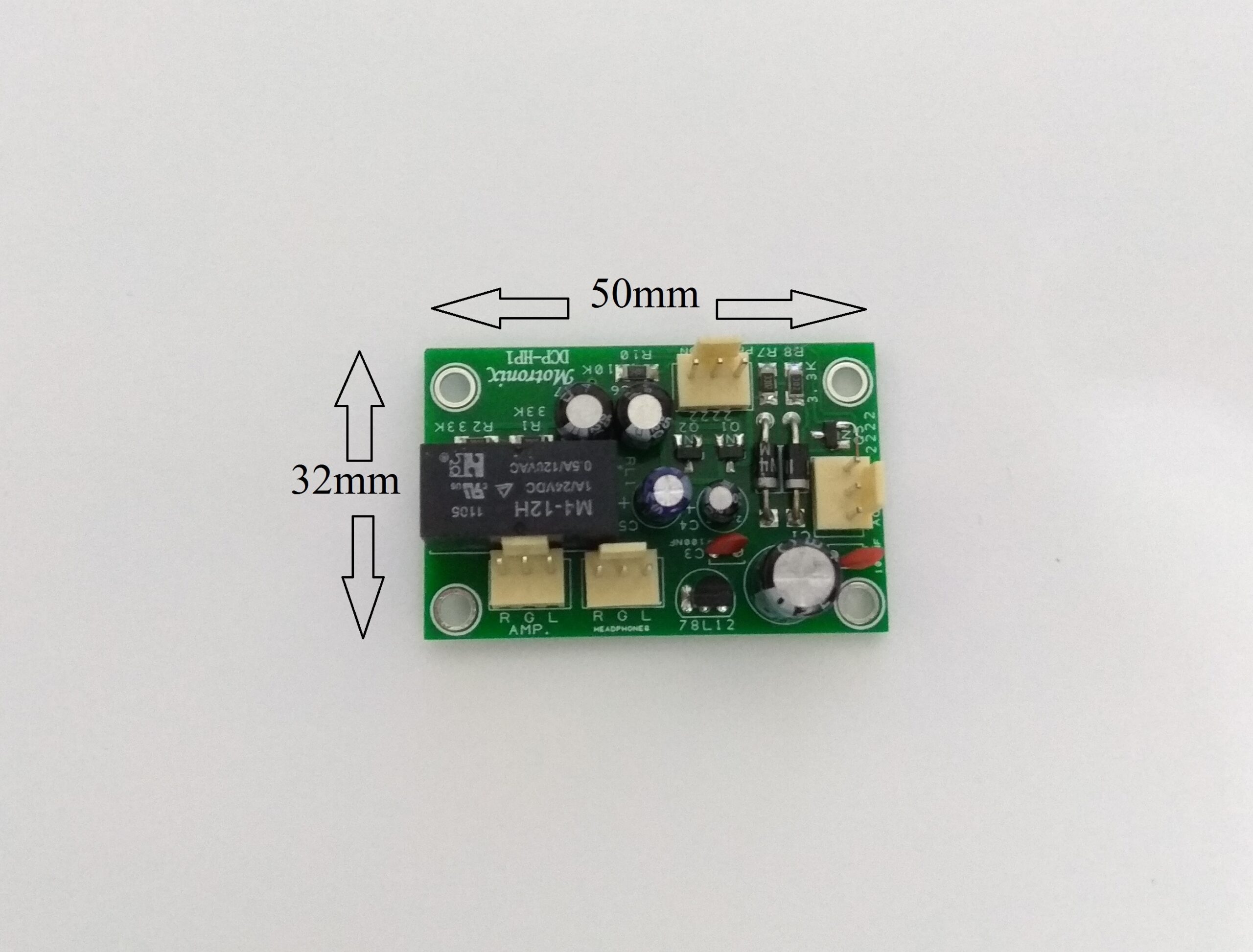

PCB Size: 50mm*32mm double-sided HAL,FR4 1.6MM
Applications: DIY Home Headphones Amplifier, Pre Amplifiers
