Description

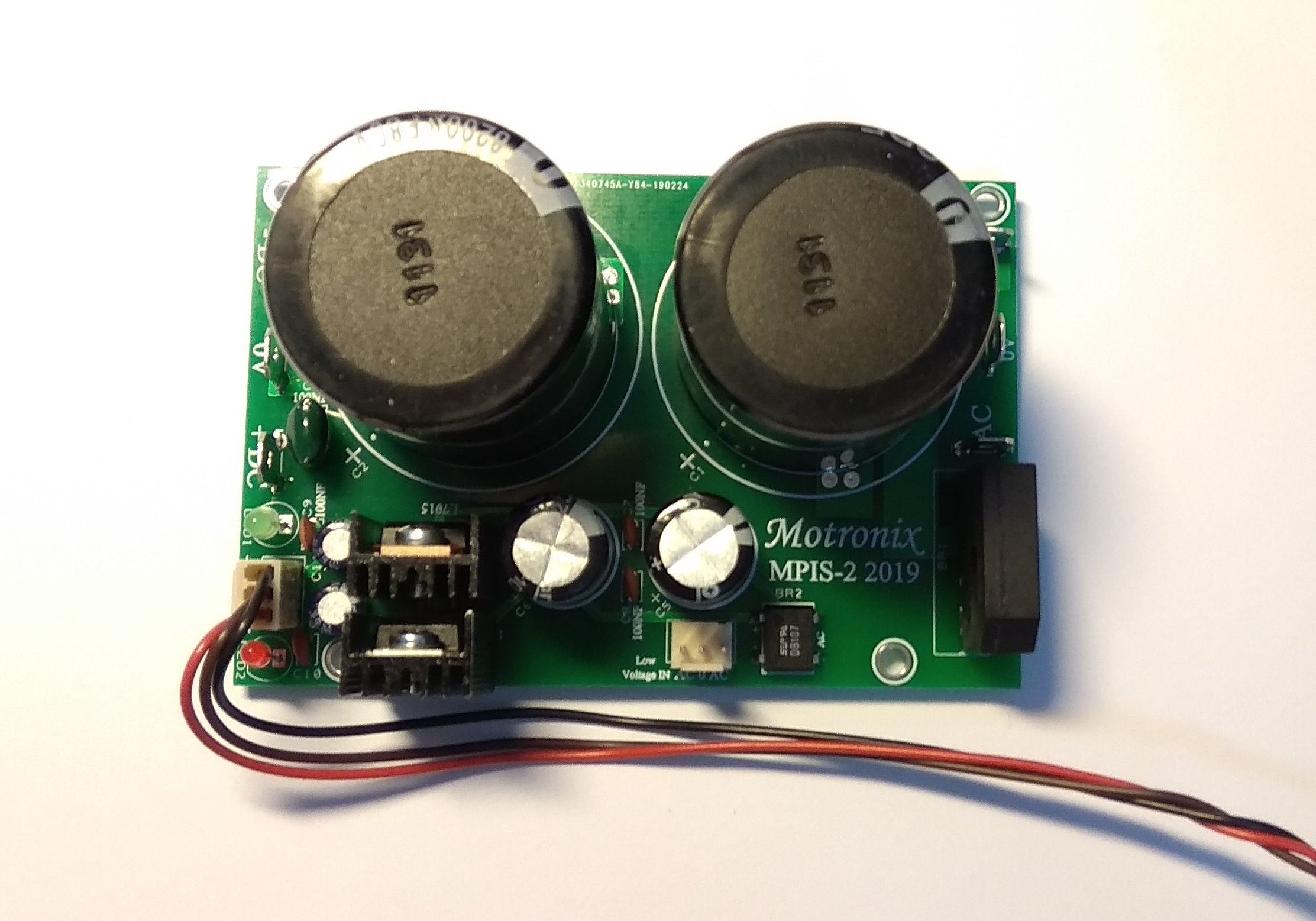

MPIS-2
Dual High & Low Voltage Power Supply PCB
High Voltage Output: UP to 77Vdc (with 55Vac Input)
Low Voltage Output: Regulated +/-15V Positive/Negative With 7815 & 7915

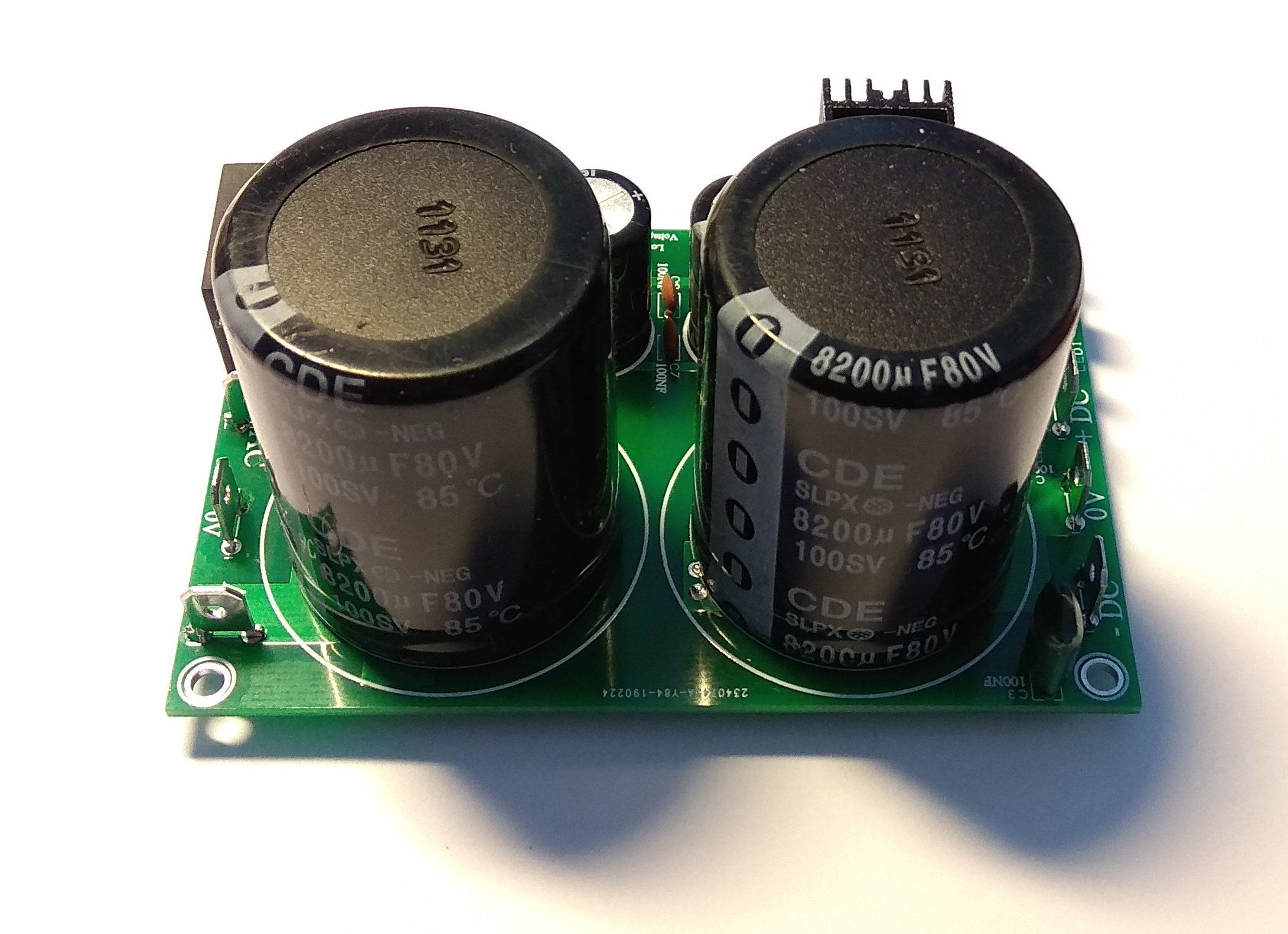

High Voltage Capacitors: 8200uF 80/100Vdc High Grade Japan Capacitors
Connector with wires For The Low Voltage will Supply with the Board
Especially Product For Audio Applications
Also The Low Voltage Can Send by special request With:
+/-12V Positive/Negative With 7812 & 7912
+/-18V Positive/Negative PCB With 7818 & 7918
Input High Voltage Range : 2X25-55Vac (Max.)
Input Low Voltage Range : 2X12-17Vac (Max.)
Double sided High quality Black FR.4 PCB
15V Rail Power On LED
PCB Size: L100mm X W67mm X H60mm
