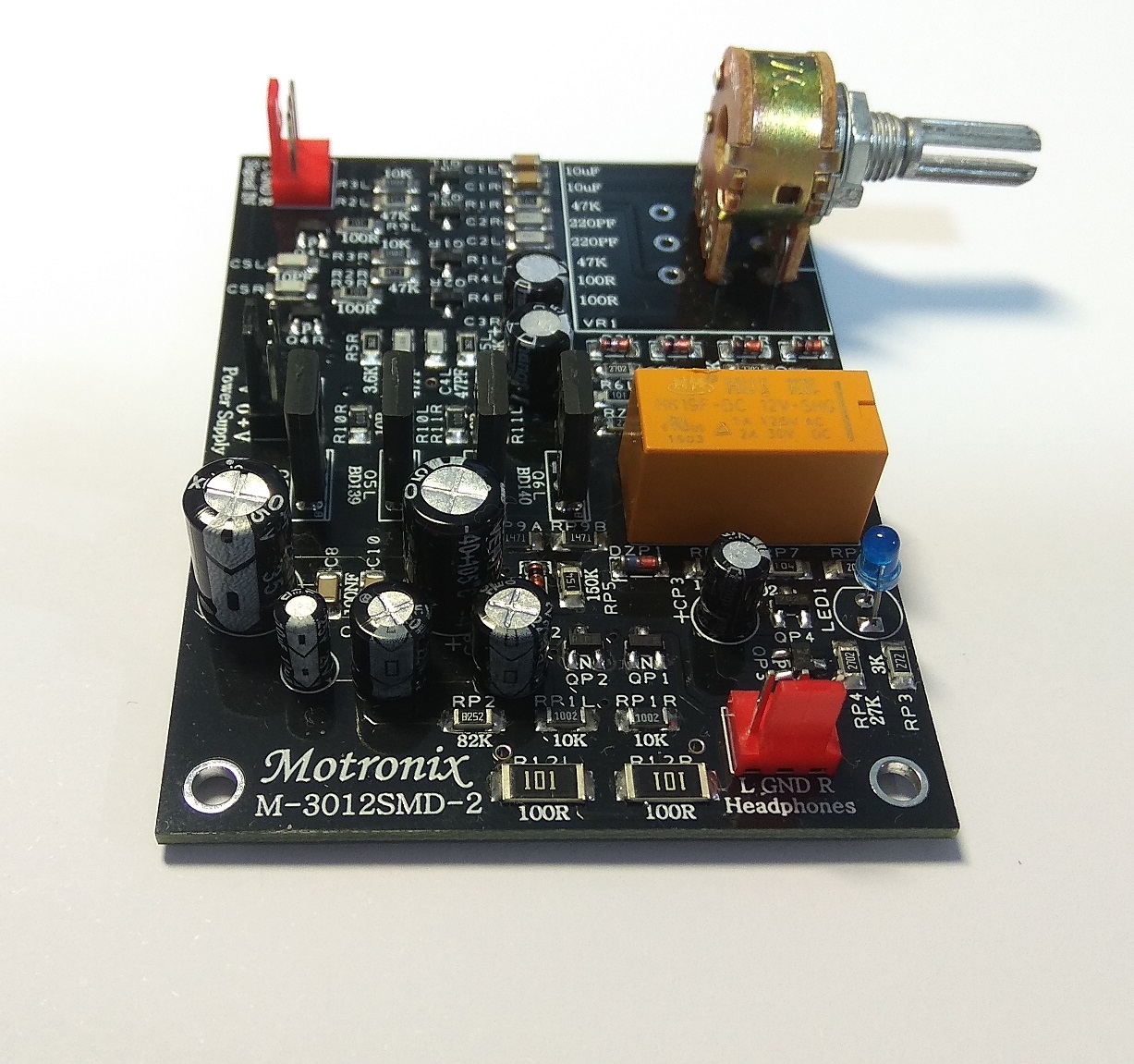

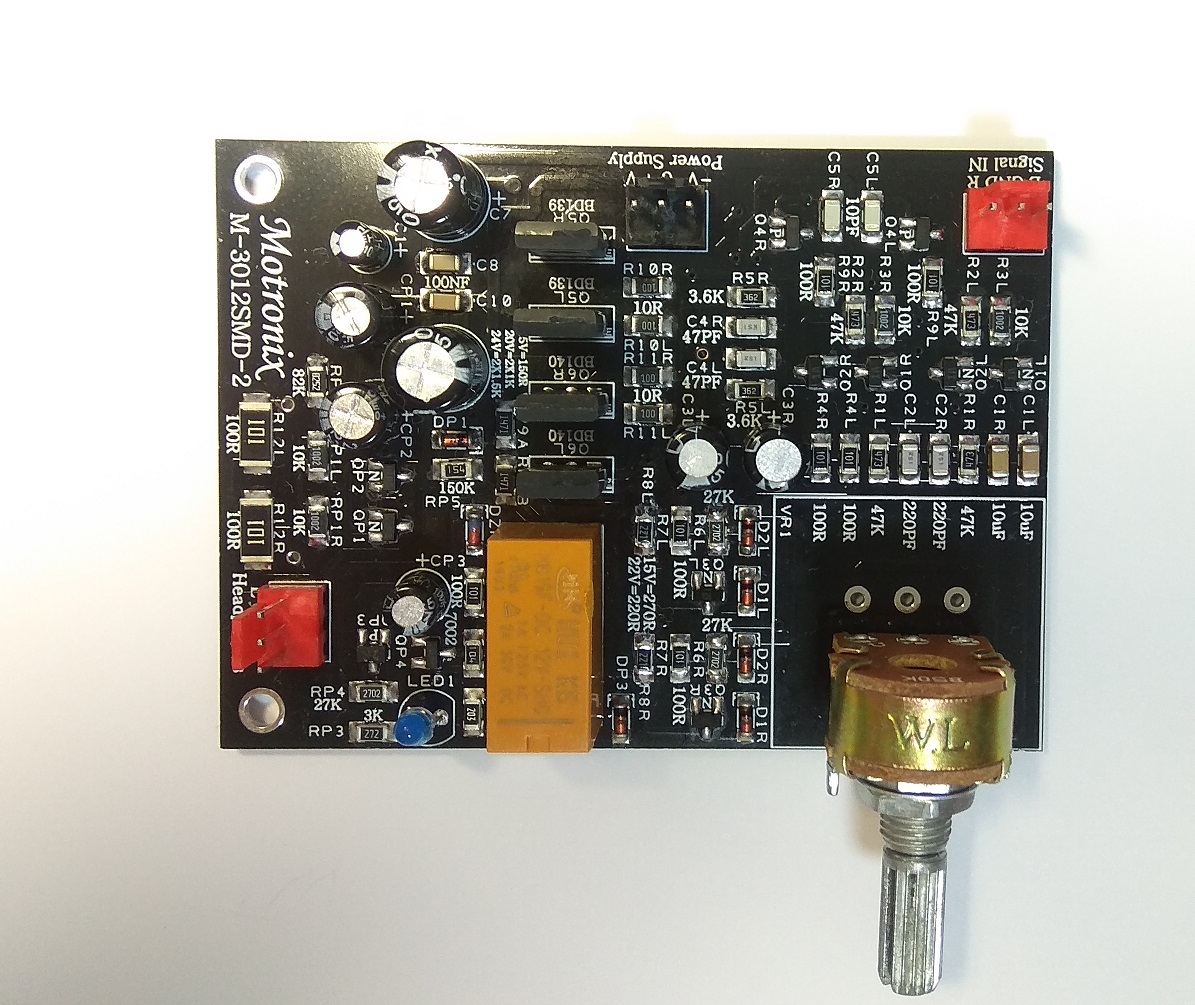

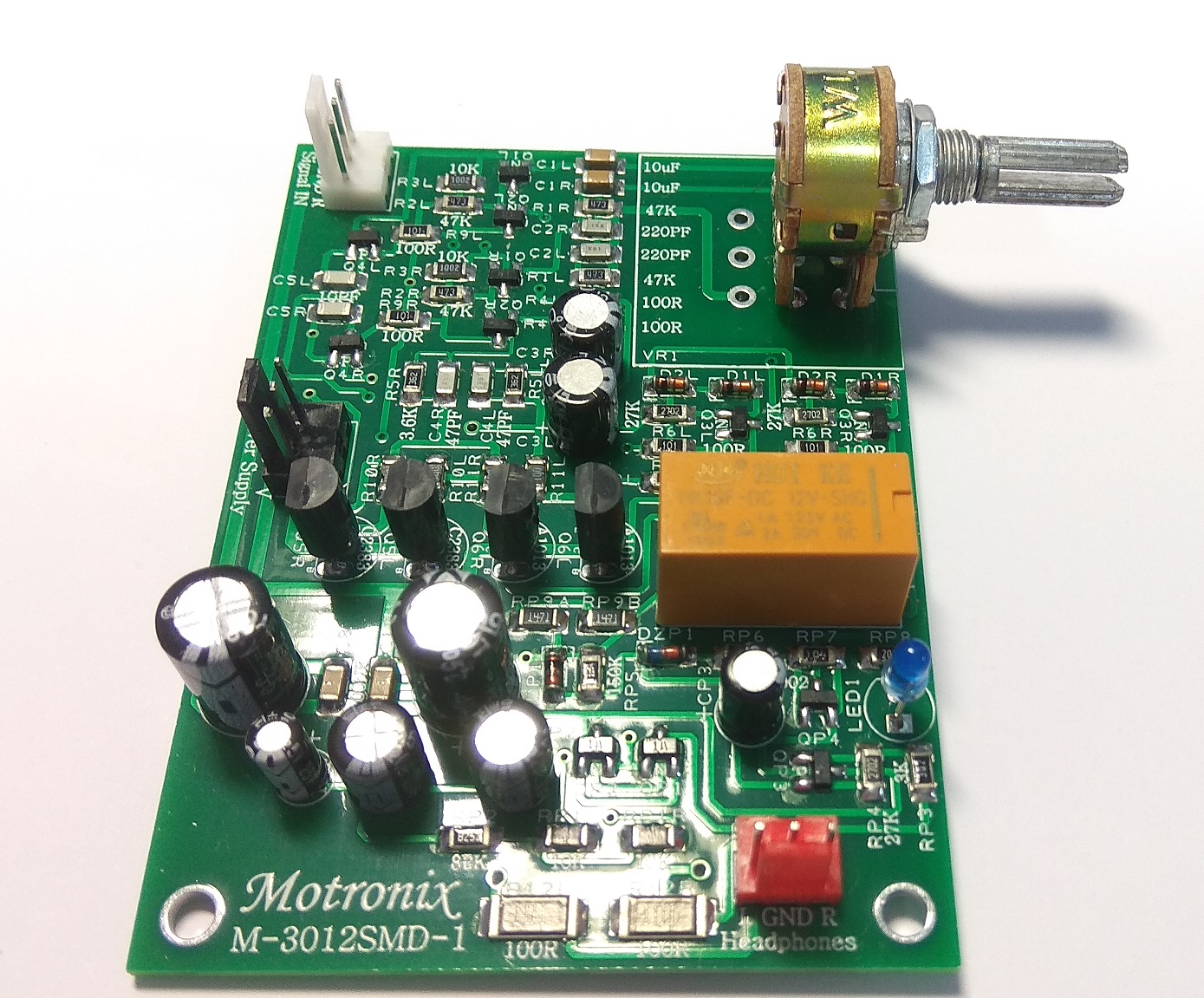

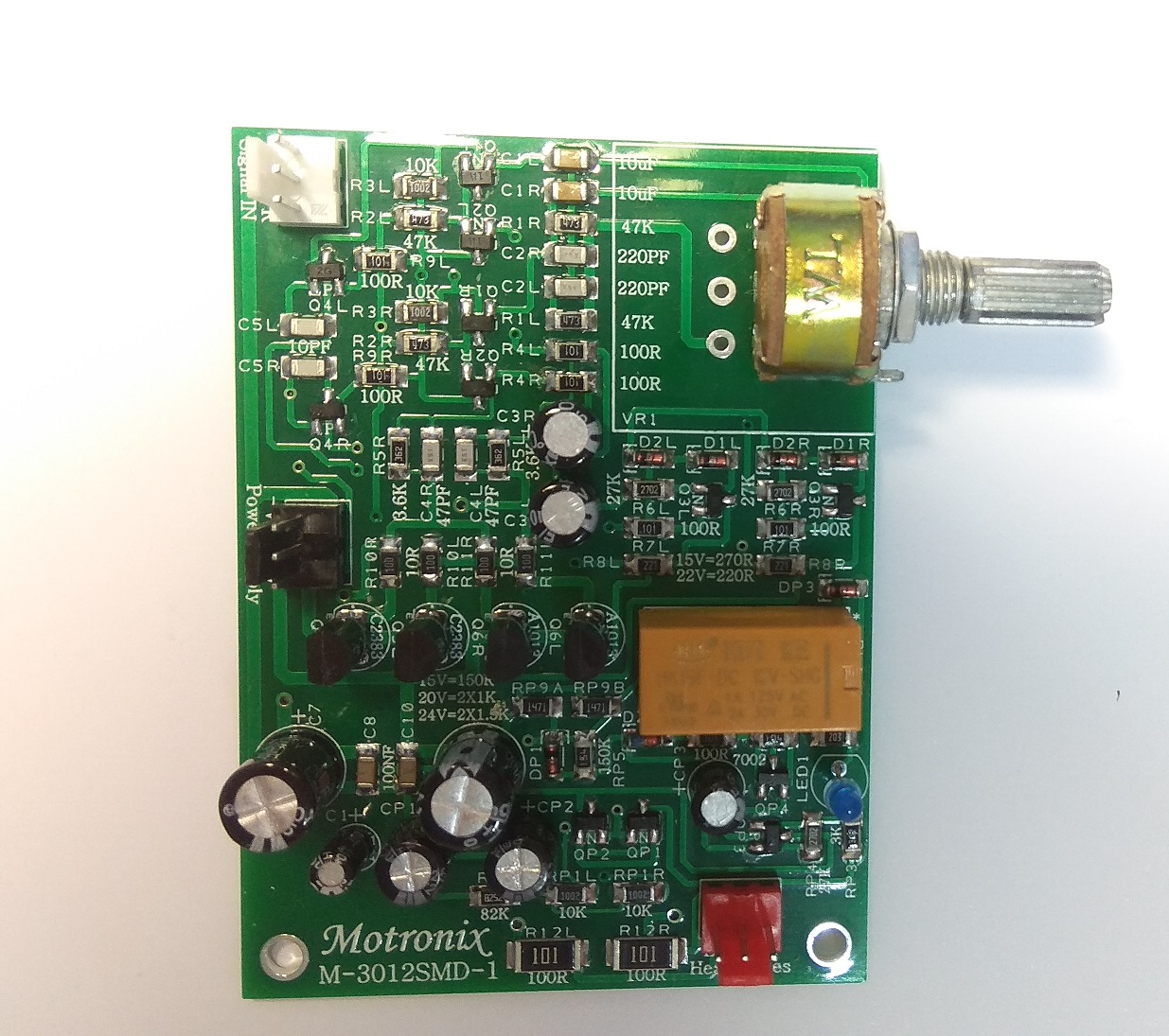

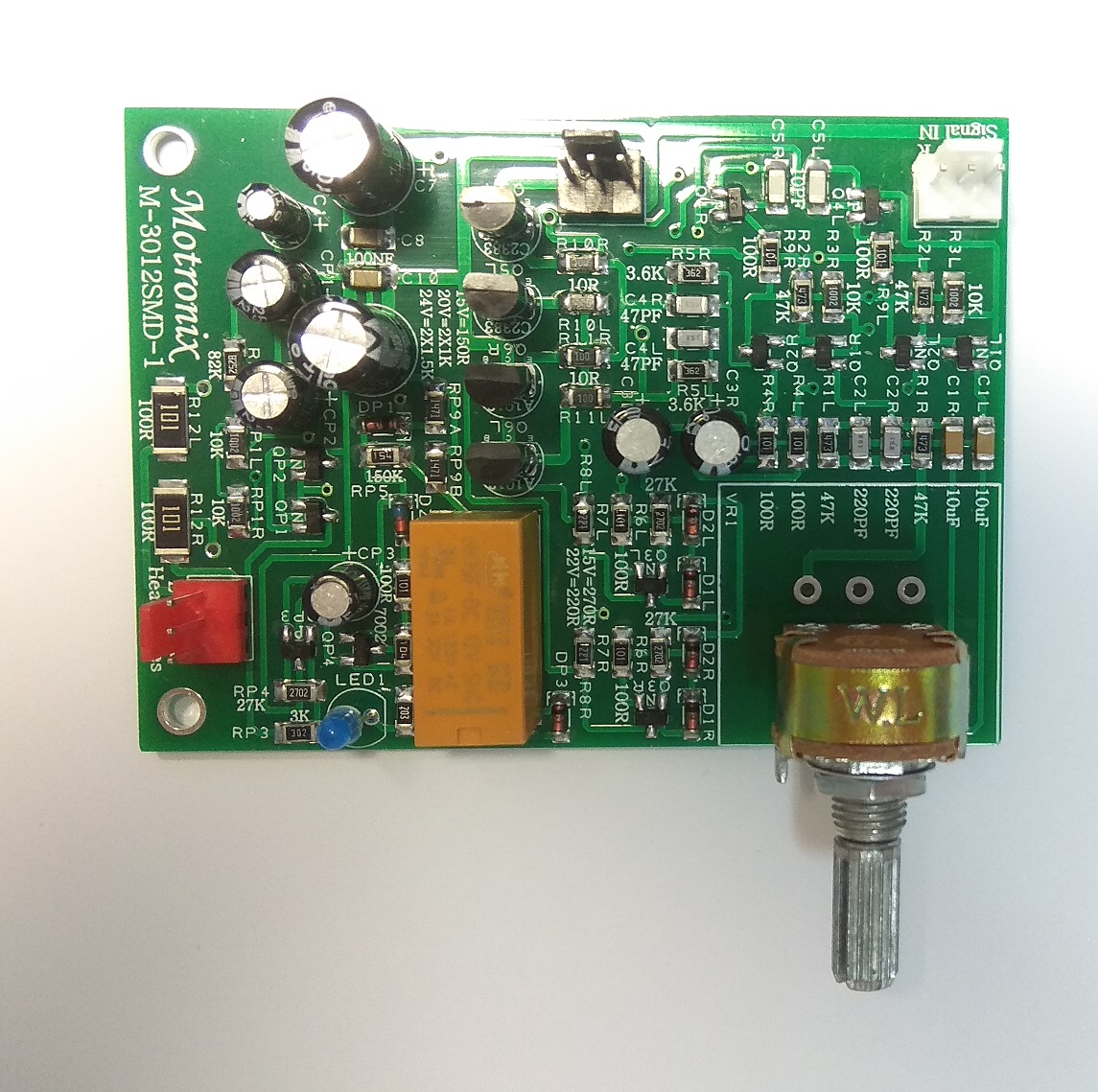

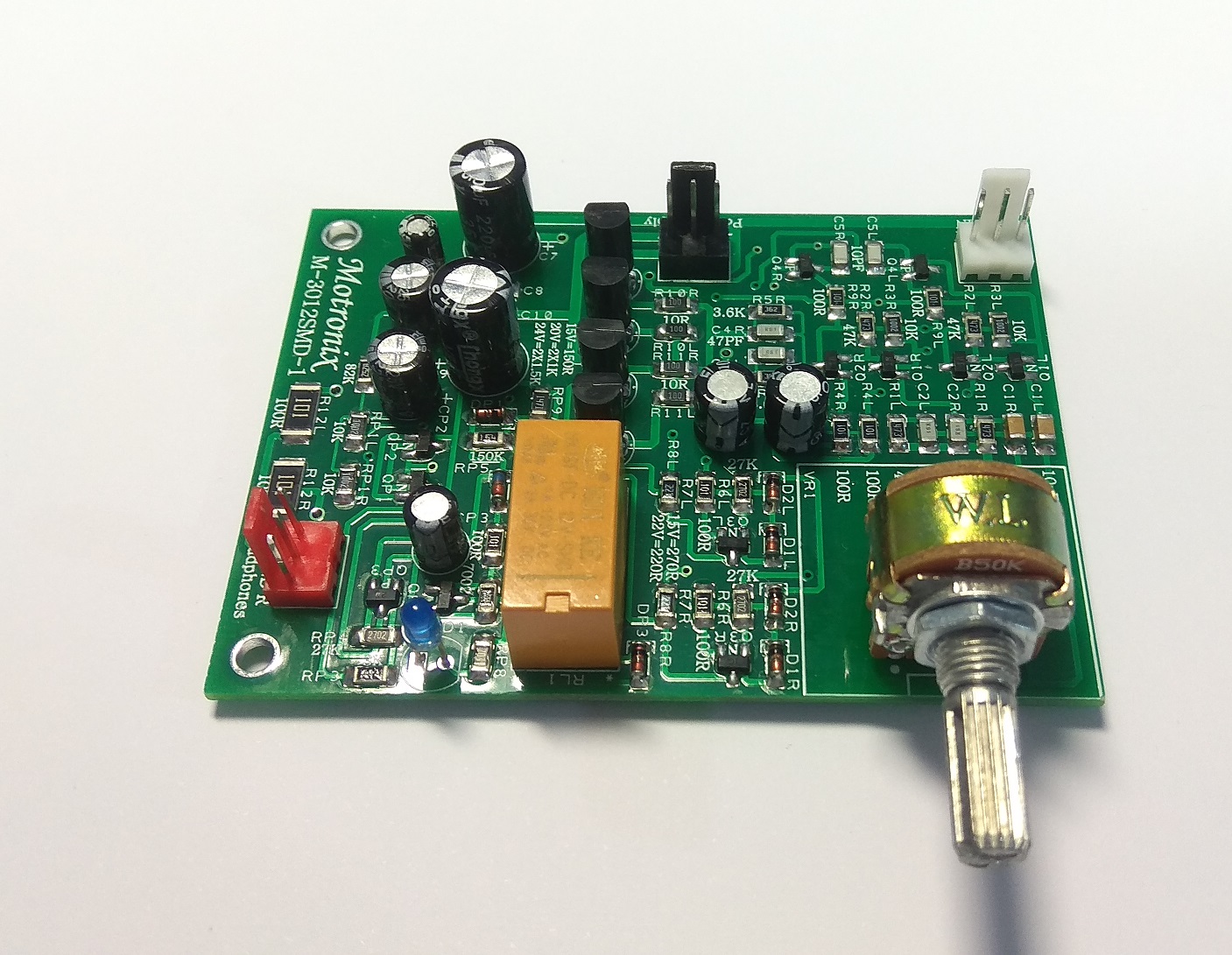

M-3012SMD
Discrete Stage Professional Headphones Amplifier
Ultra Quality Powerful Amplifier for DIY
High Quality Low Noise Discrete Transistors and all other parts
Headphones DC Protection and Turn On Delay
High Current Final Stage Transistors
Symmetrical Output Stage
Absolutely amazing sound amp
High quality and reliability FR4 1.6MM PCB
This item is PCB with all components assembled ready to use.
Working Voltage: Recomended +20Vdc 0 -20Vdc
Min. 2x18Vdc to Max. 2x24Vdc (Must be regulated V+ 0 V-)
Current Consumption:130mA Full power with 32 Ohm H.P
Frequency Response: 20Hz-92,000Hz
Power Out:
3.2Vrms Each Ch.With 32 Ohm Headphones
13Vrms Each Ch.With 600 Ohm Headphones
Input sensitivity: 350mV (For max. output power)

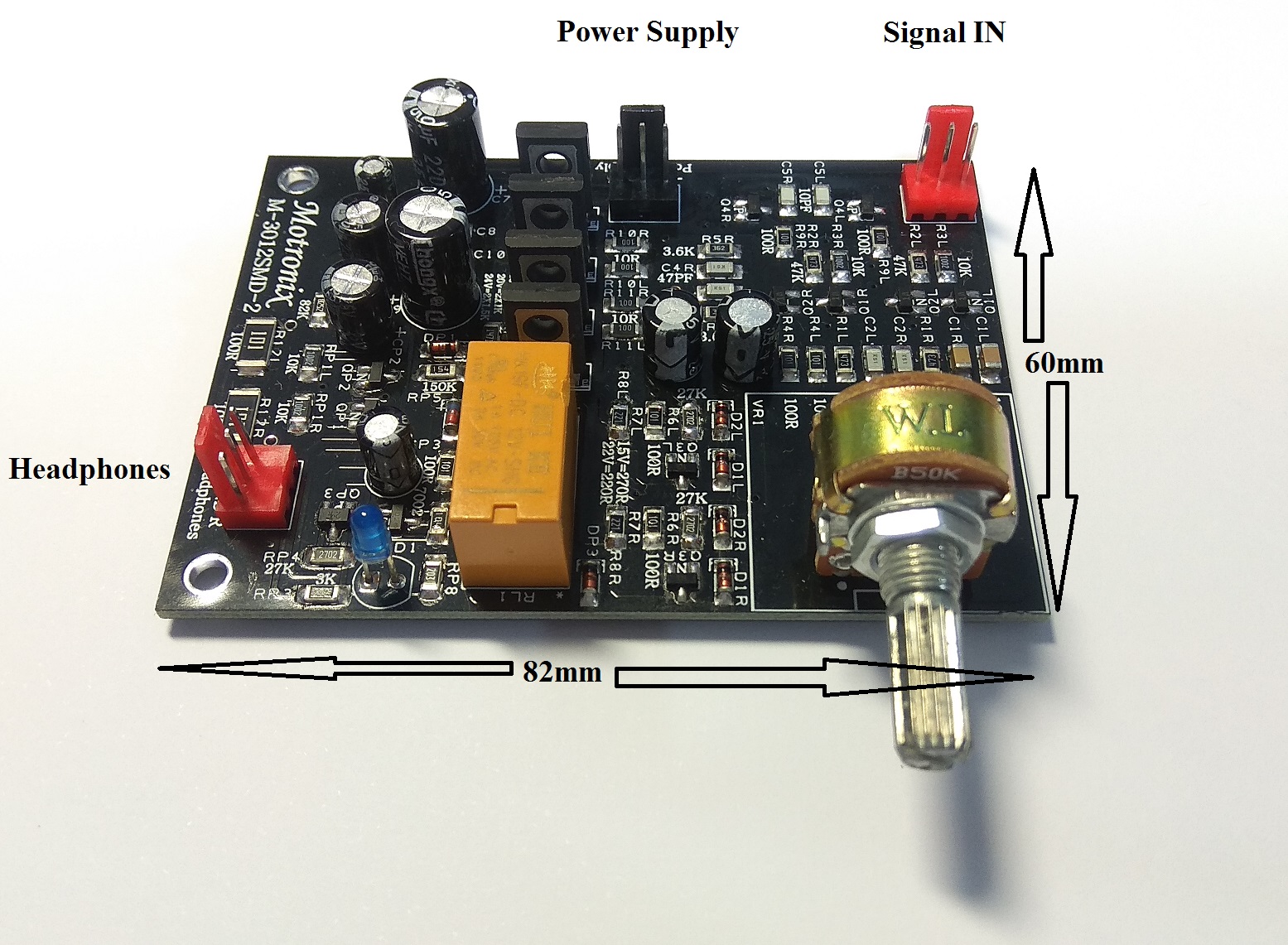

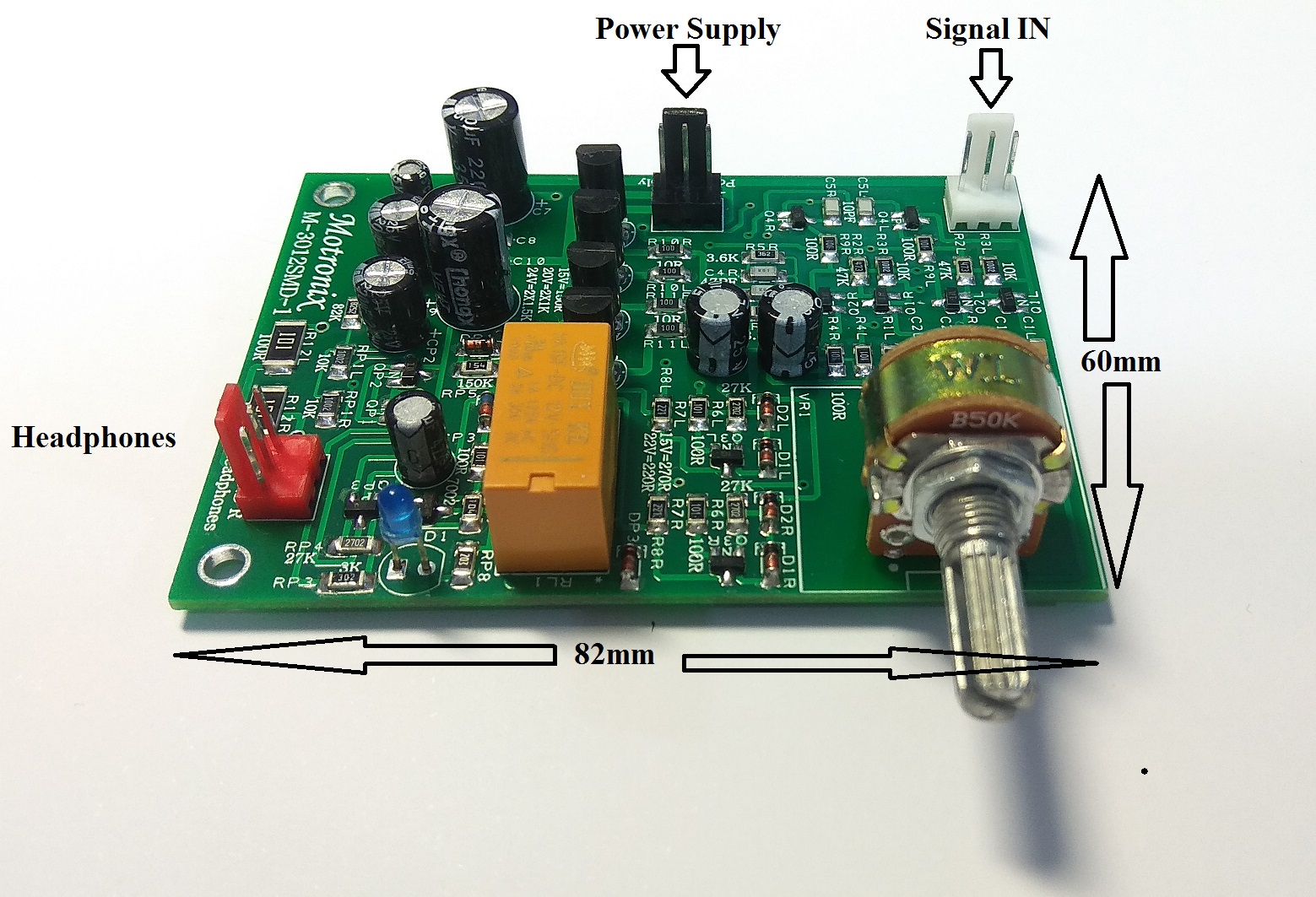

PCB Size: 82mm*60mm double-sided HAL,FR4 1.6MM
