Description

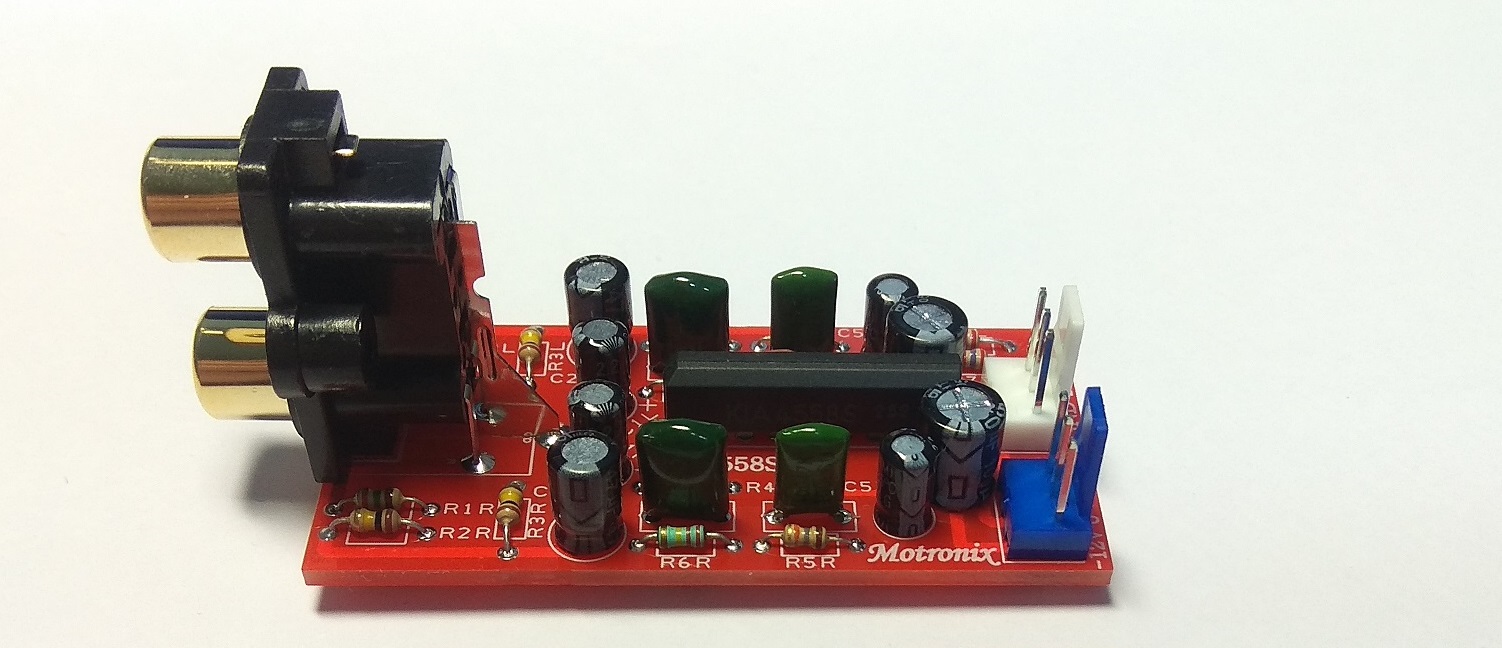

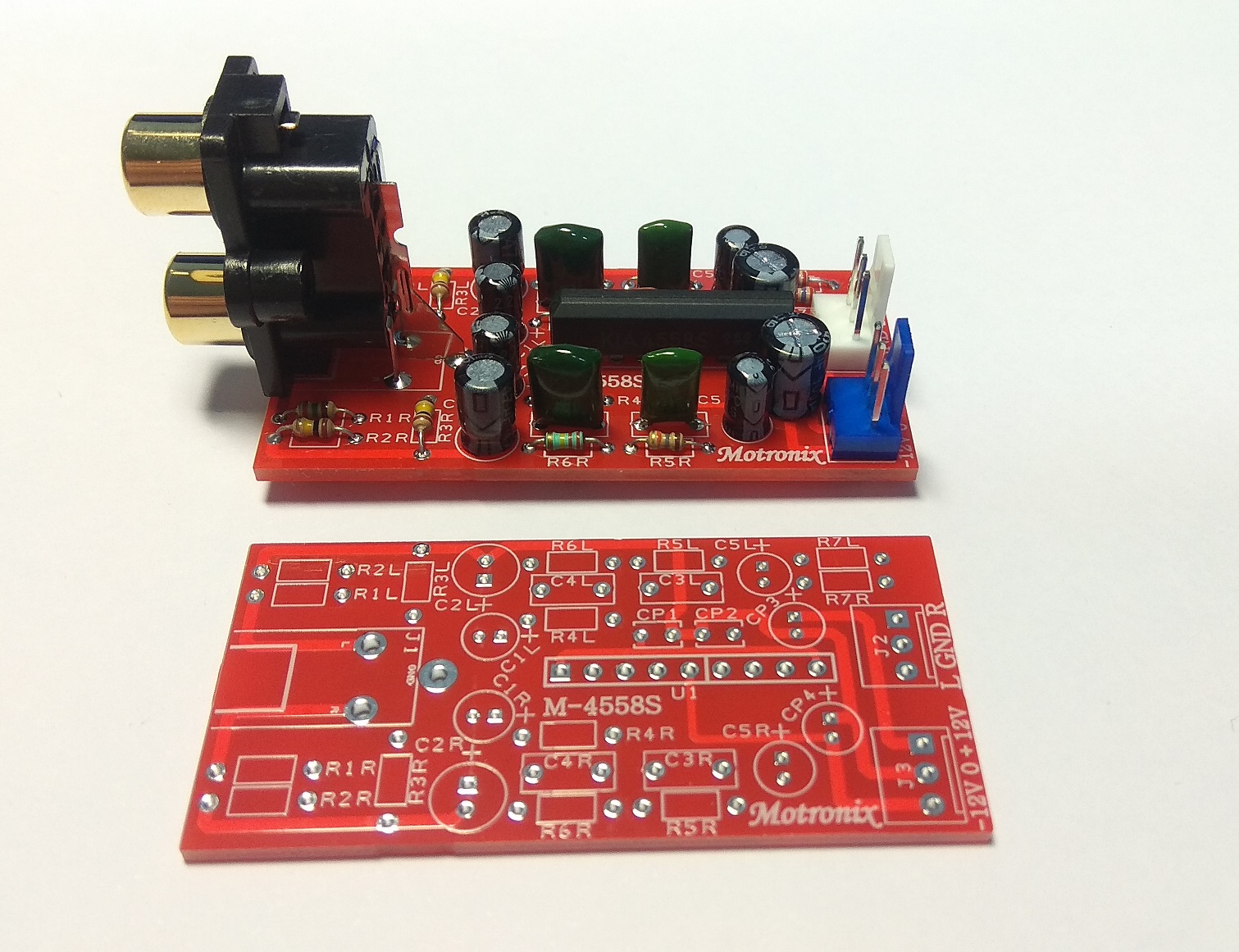

M-4558S
MM Phono Stage Pre Amplifier
Excellent performance & Sound You will be very surprised by the quality.

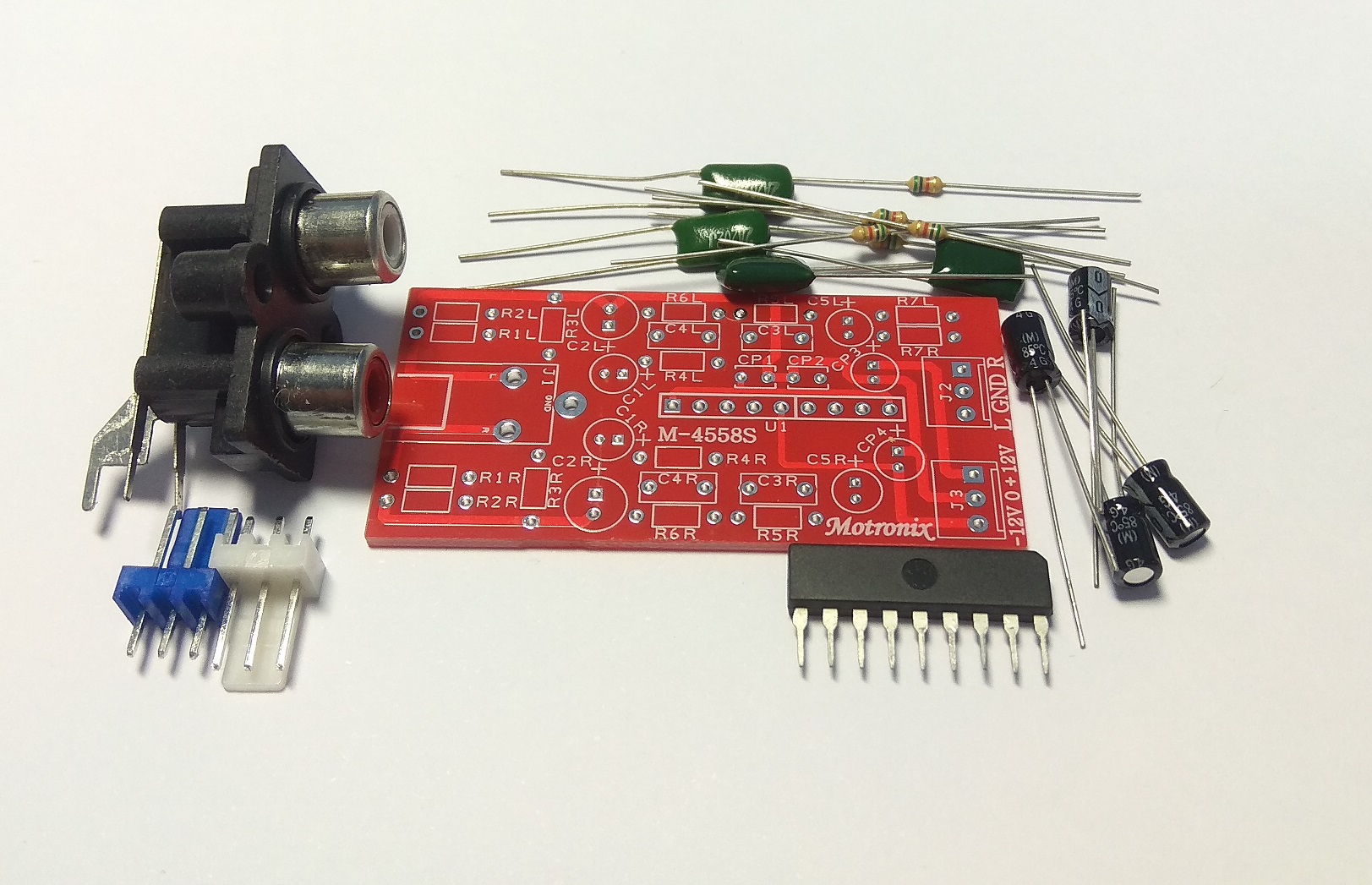

Very easy to do it yourself
Small size PCB
Input resistance: 47k ohms
Input sensitivity: 2.5mV (Overload at 1Khz 100mV)
Output Level: 200mV with 1khz 2.5mV at Input
RIAA equalisation accuracy: +/- 0.5dB (30Hz-20Khz)
Output impedance: 1K ohm
Working Voltage: Dual 12-15Vdc (+15V 0 -15V)

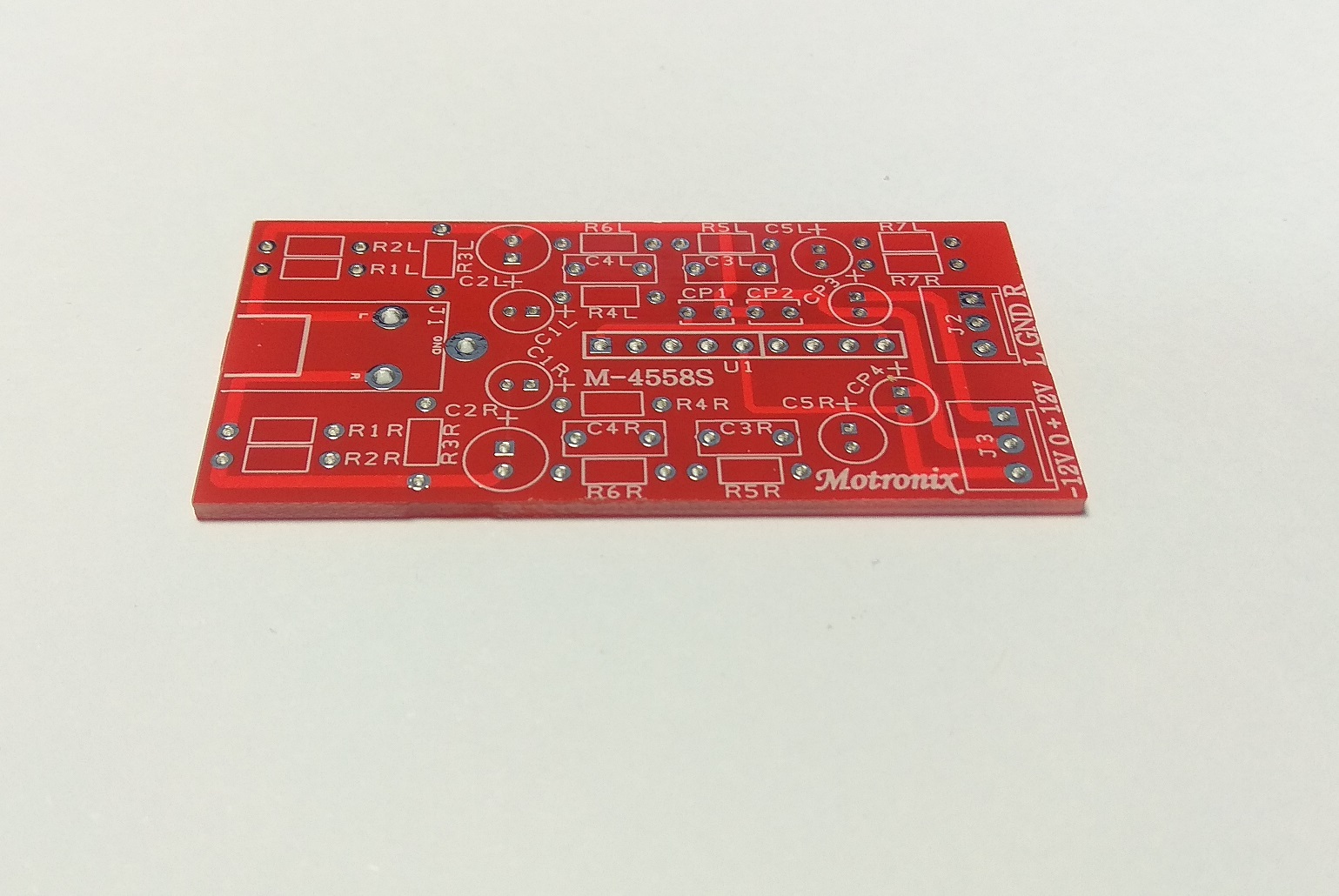

PCB Size: 58mm*28mm Red/Green double-sided HAL,FR4 1.6MM
Applications: DIY Home / Integrated Amplifier / Pre-Amplifier
