Description

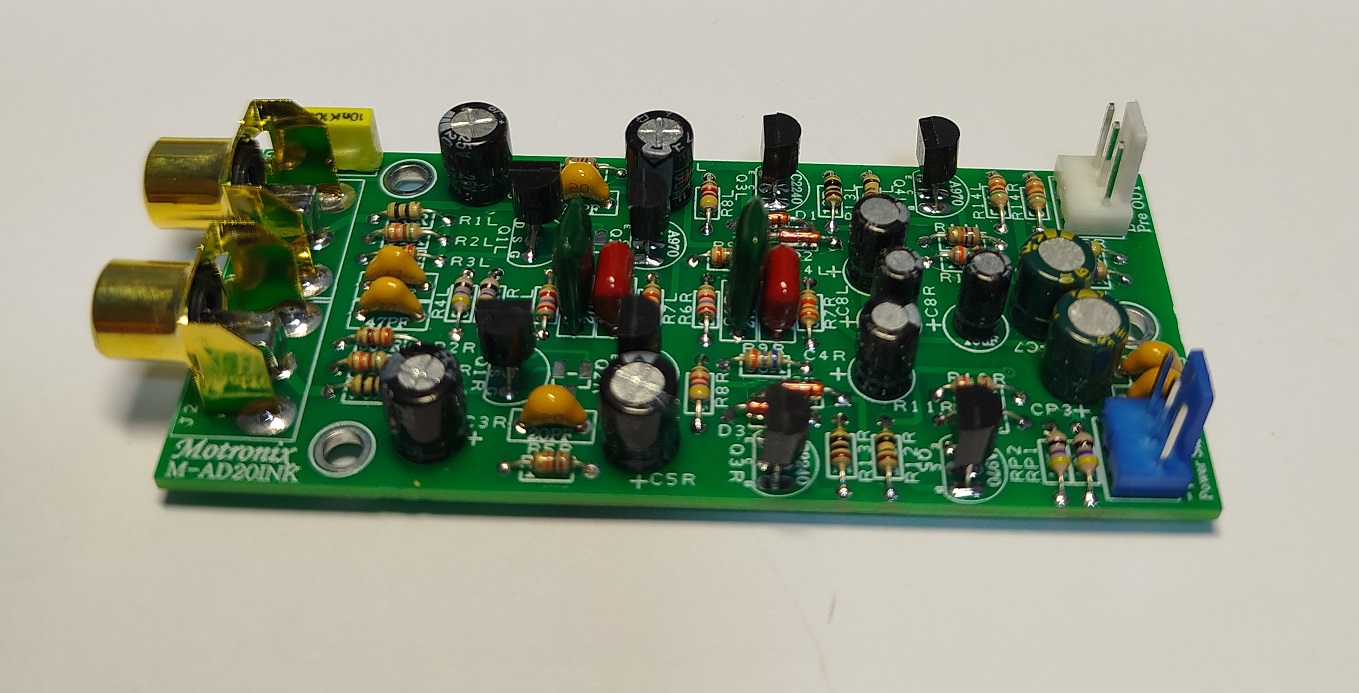

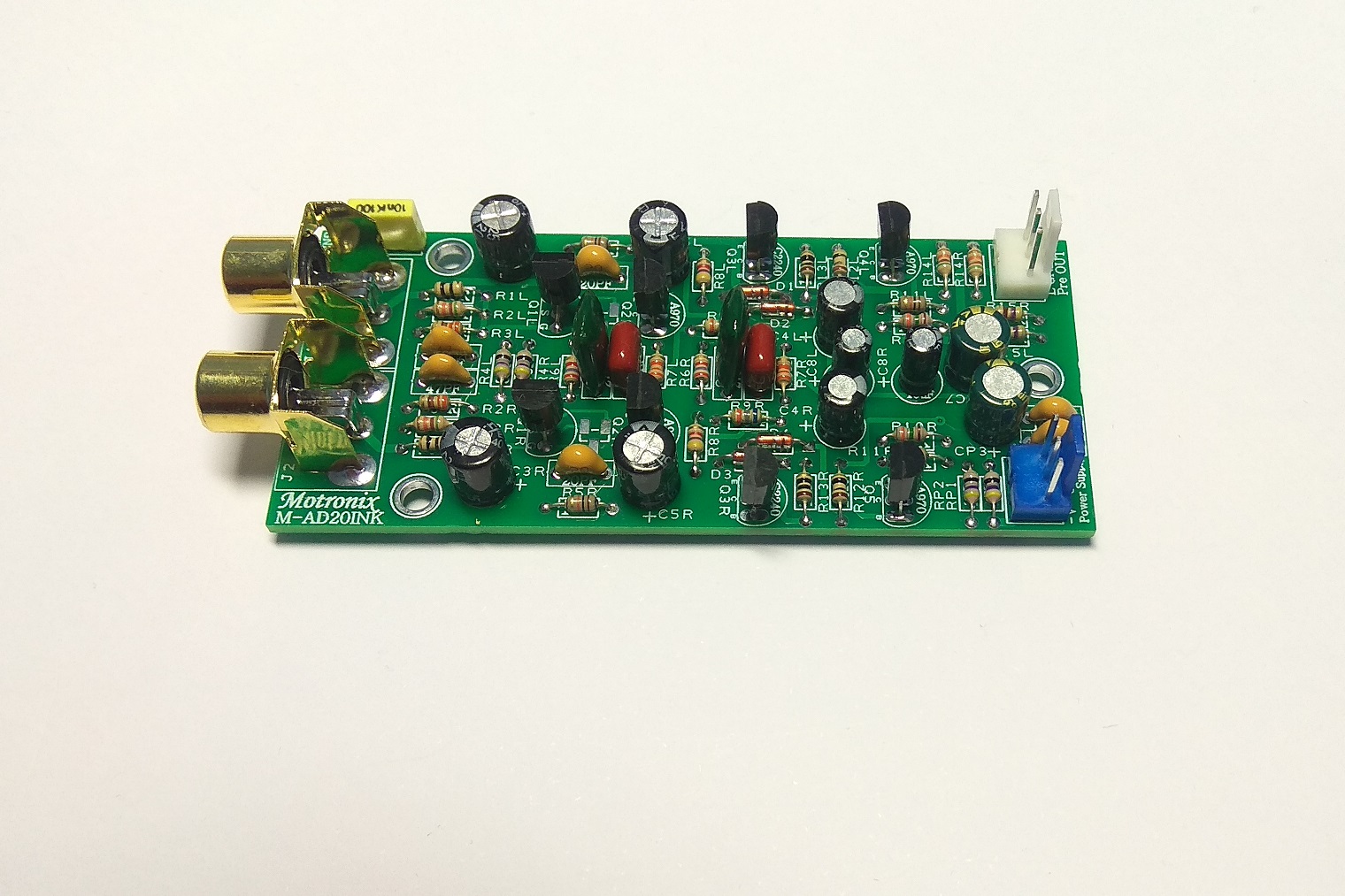

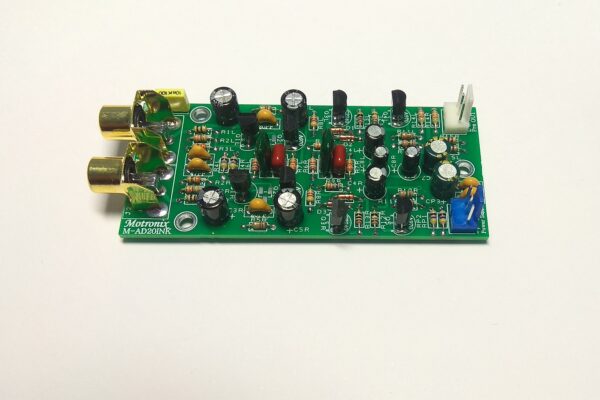

M-AD20INK
Ultra High Quality and Low Noise Phono Stage
MM Phono Pre Amplifier with JFET Input stage
Amazing sound and Excellent Audio performance
Very wide operating voltage range
Gold RCA Input Socket
***Matched components***
***All Transistor are Low Noise***
Input resistance: 51k ohms
Input capacitance: 33pf
Input sensitivity: 2.5mV
Output Voltage: 195mV/-10dBu @ 2.5mV 1Khz IN
RIAA equalisation accuracy: 0.1dB
Output resistance: 470 ohms

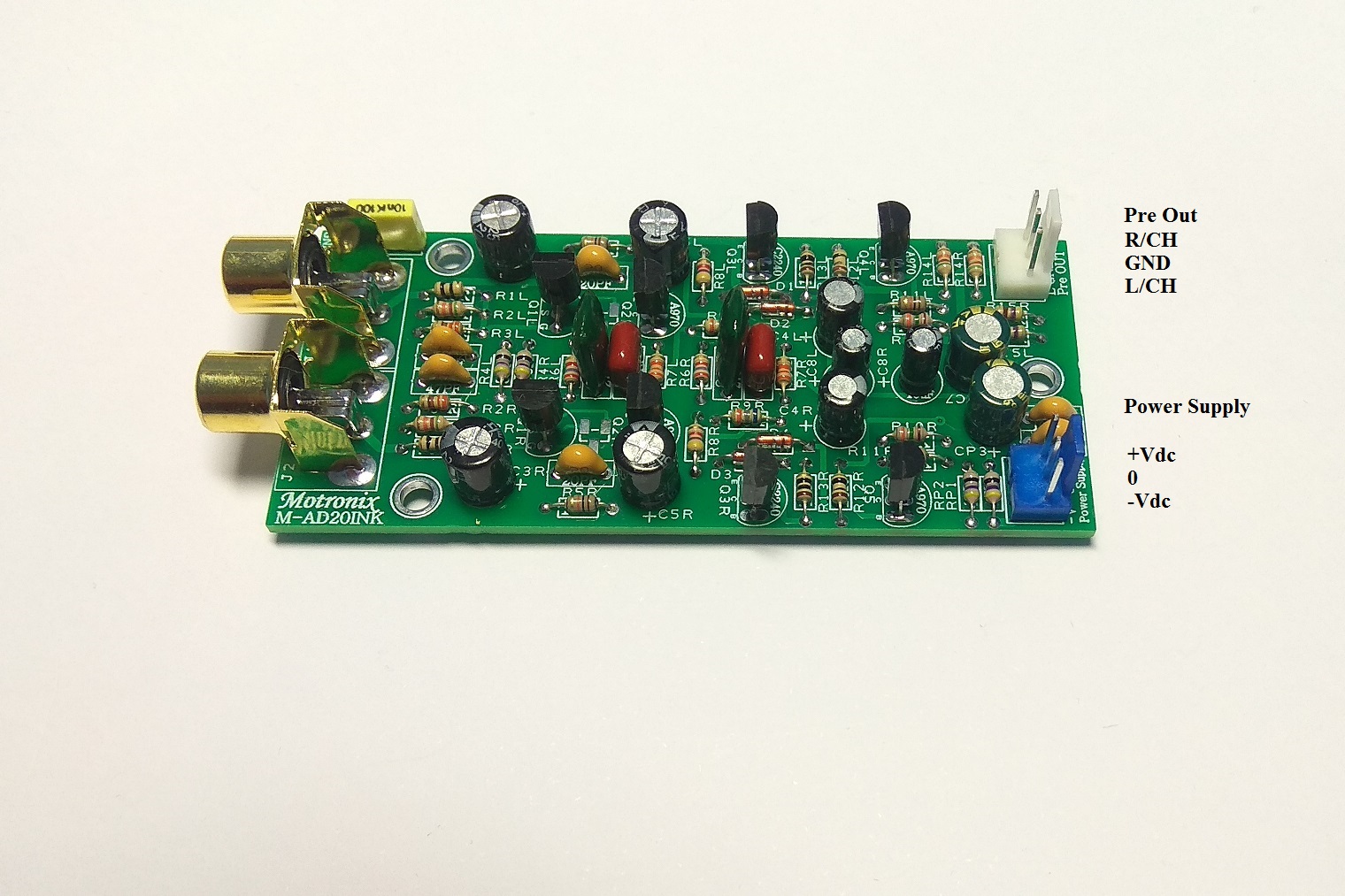

Power Supply:
+20Vdc 0 -20Vdc (Working Range +/- 5-24Vac)

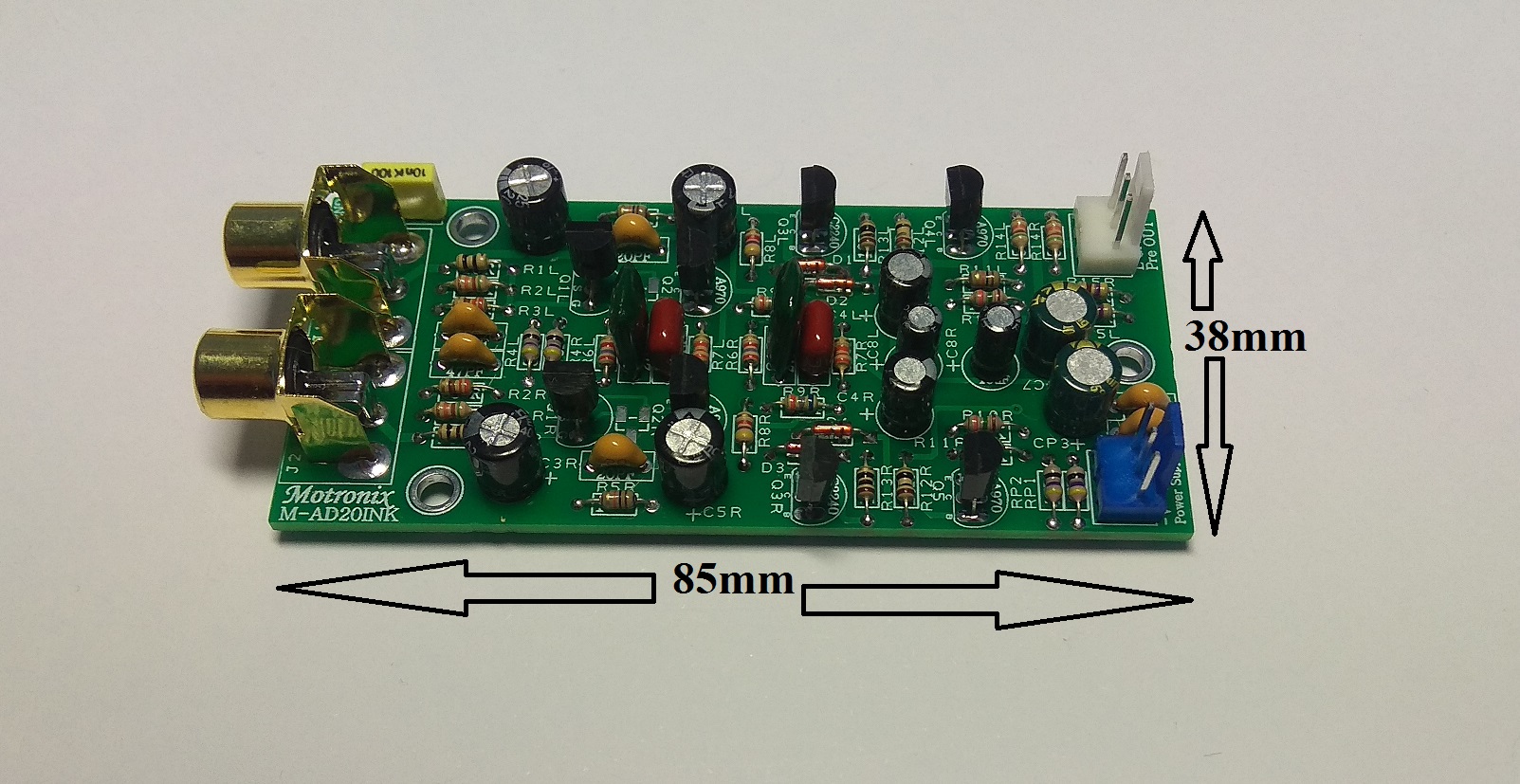

PCB Size:
85mm*38mm Green double-sided HAL,FR4 1.6MM
