Description

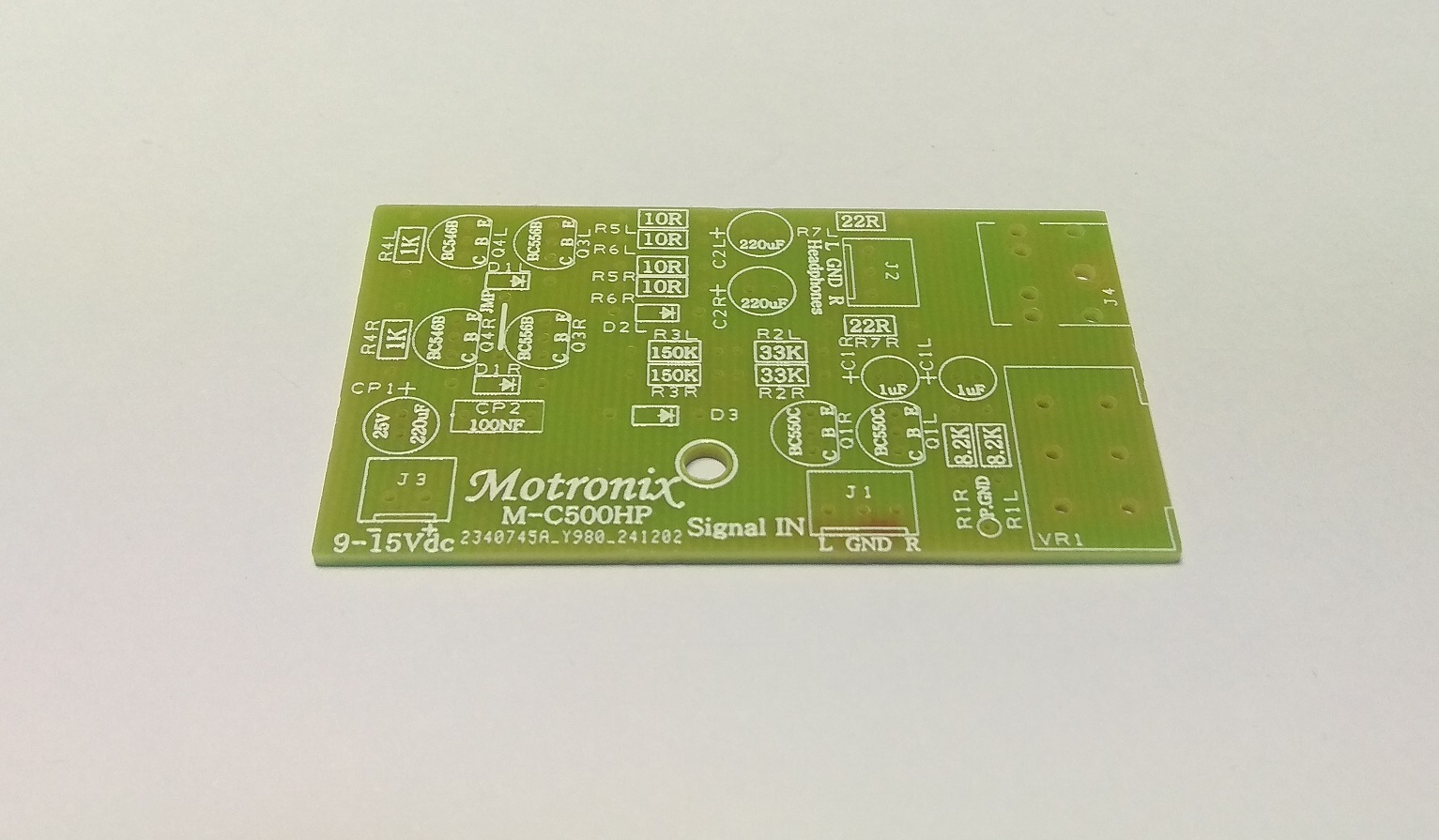

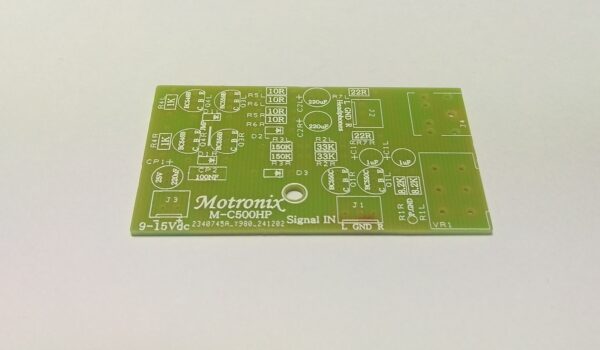

M-C500HP Single side PCB
Amazing Headphones Amplifier
Simple design with amazing results
Schematic diagram Provided
It’s very easy to do it yourself.
Work with single 9-15Vdc
Your order options:

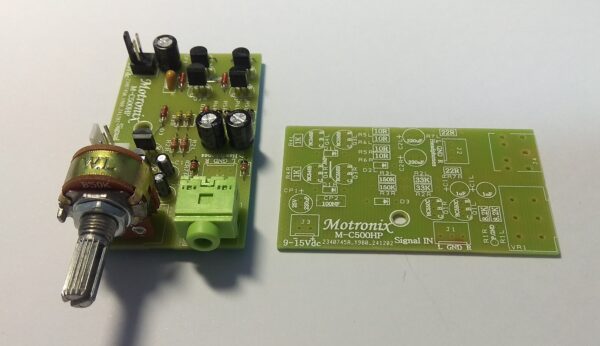

Only PCB without parts

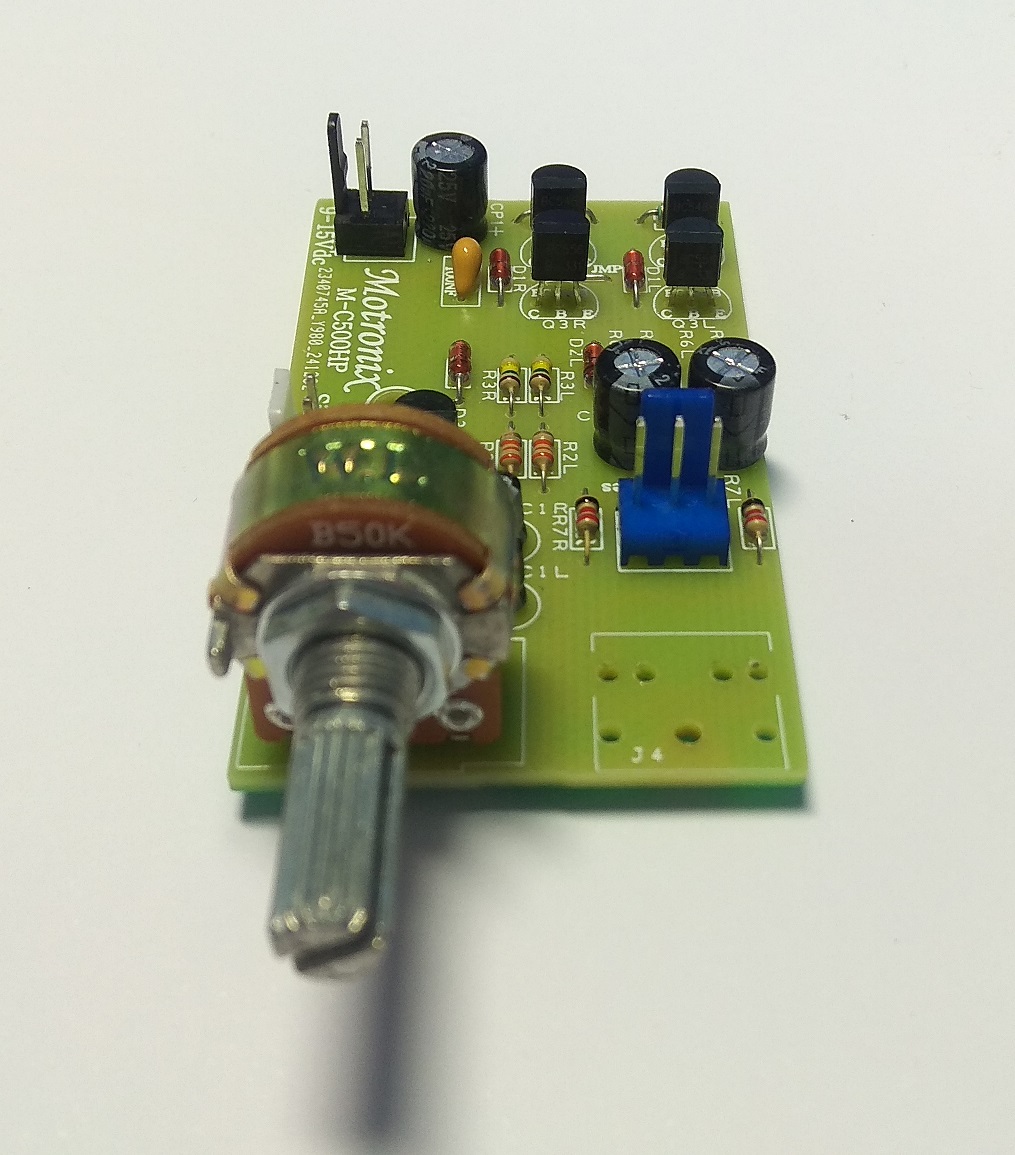

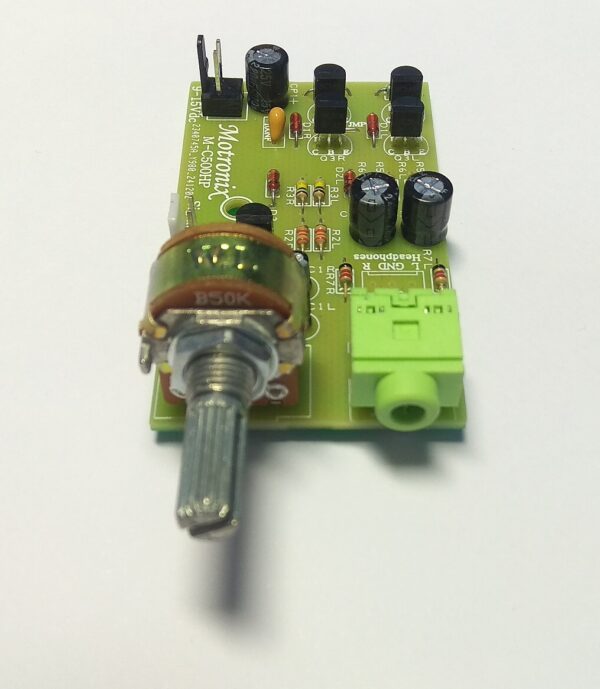

Assembled with 3.5mm Plug
Assembled with Molex connector
The recommended Voltage for the Best Performance is: 12-15Vdc
Working Voltage: Min. 9Vdc to 18Vdc Max.
Current Consumption: 12mA (No Load No Signal)
Frequency Response: 22Hz-100KHz
Power Out: 1.3Vrms at 32 Ohm Load
Input sensitivity: 220mV (for 1.3Vrms drive)
PCB Size: 63mm*36mm single-side HAL,FR4 1.6MM
Applications: Headphones Amplifier
