Description
M-C500HP
Tiny Headphones Amplifier
High Quality Amplifier for DIY

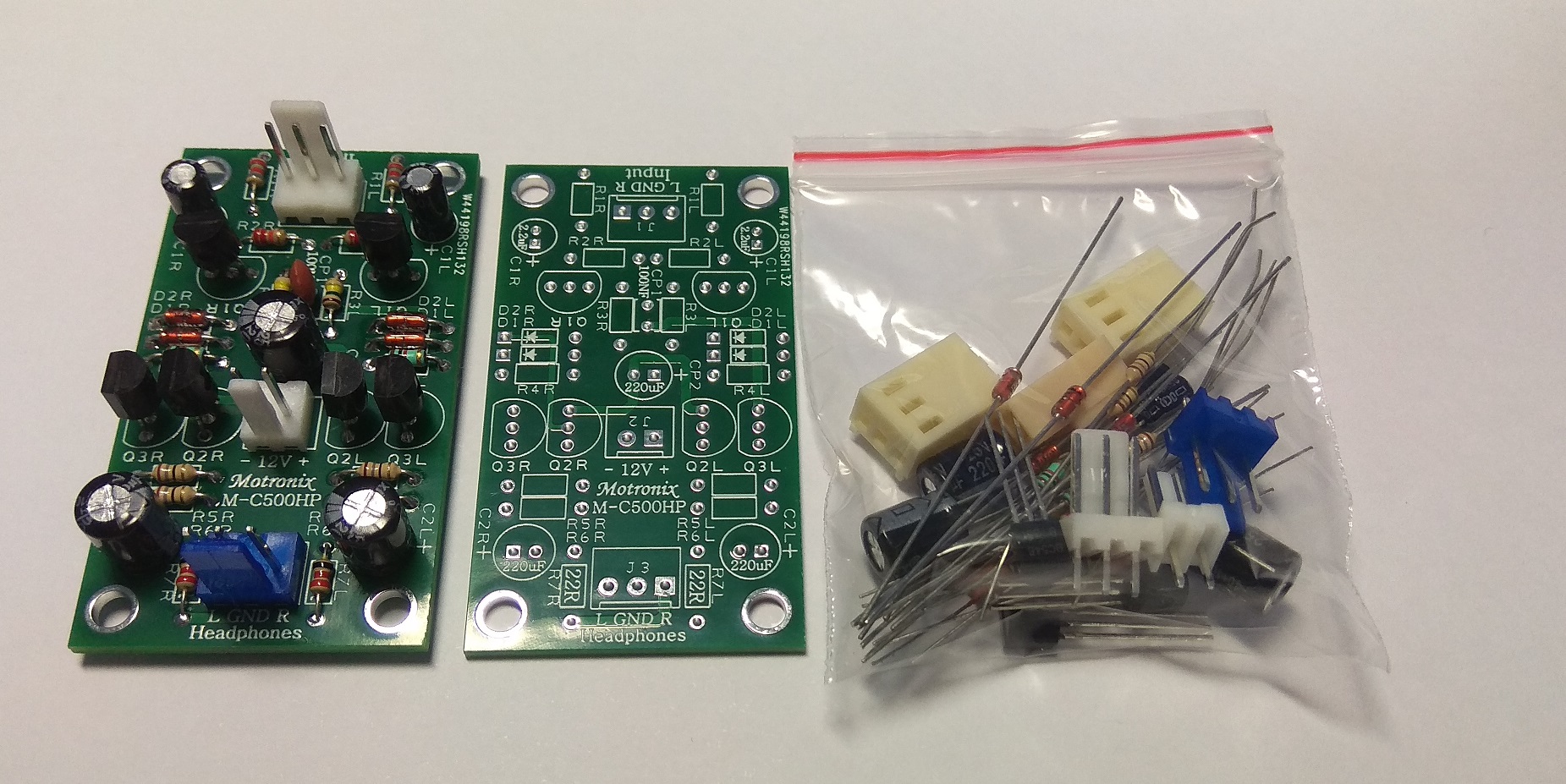

2 Option Order:

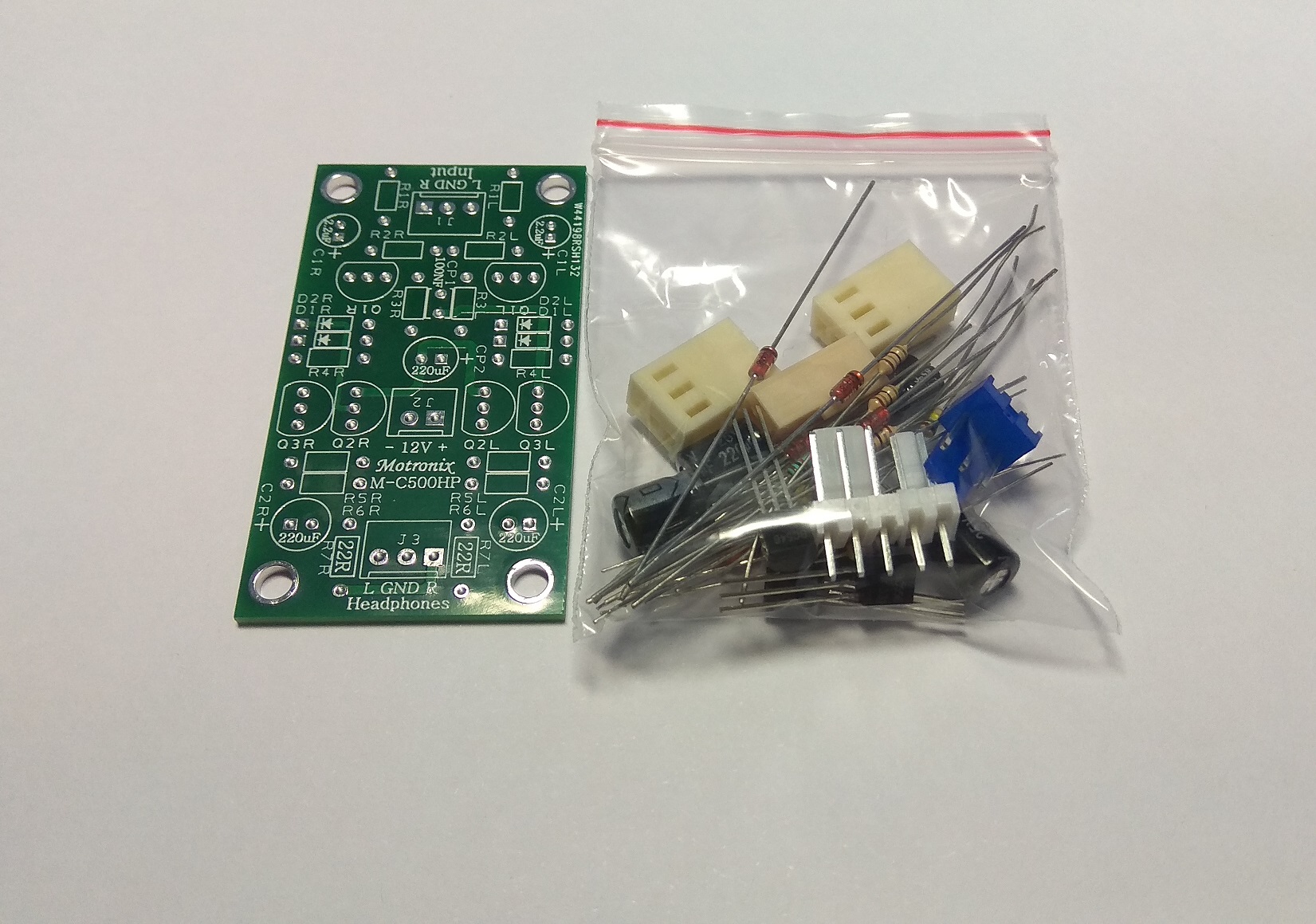

1.KIT Parts+Board You need to place and solder all parts

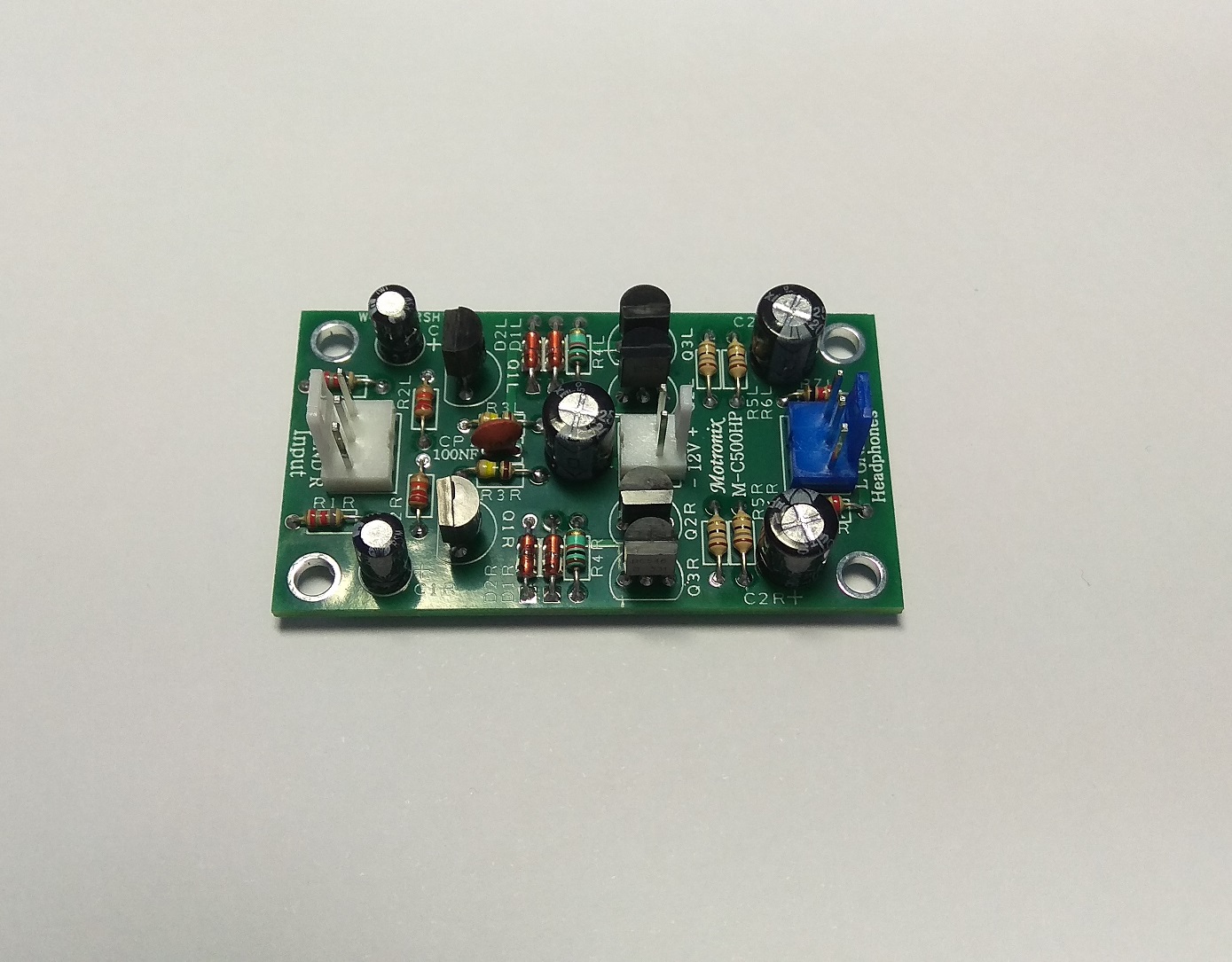

2.Assembled Board tested and Ready to use
High quality and reliability FR4 1.6MM PCB
The recommended Voltage for the Best Performance is: 12-15Vdc
Working Voltage: Min. 9Vdc to 18Vdc Max.
Current Consumption: 12mA (No Load No Signal)
Frequency Response: 22Hz-100KHz
Power Out: 1.3Vrms at 32Ohm Load
Input sensitivity: 220mV (for 1.3Vrms drive)
PCB Size: 55mm*30mm double-sided HAL,FR4 1.6MM
Applications: Headphones Amplifier
