M-DOD250 Overdrive/Distortion/Fuzz Effect DIY PCB

SKU: N/A Category:

Description

M-DOD250 / SMD
DIY Assembled Board
Overdrive/Distortion/Fuzz Effect

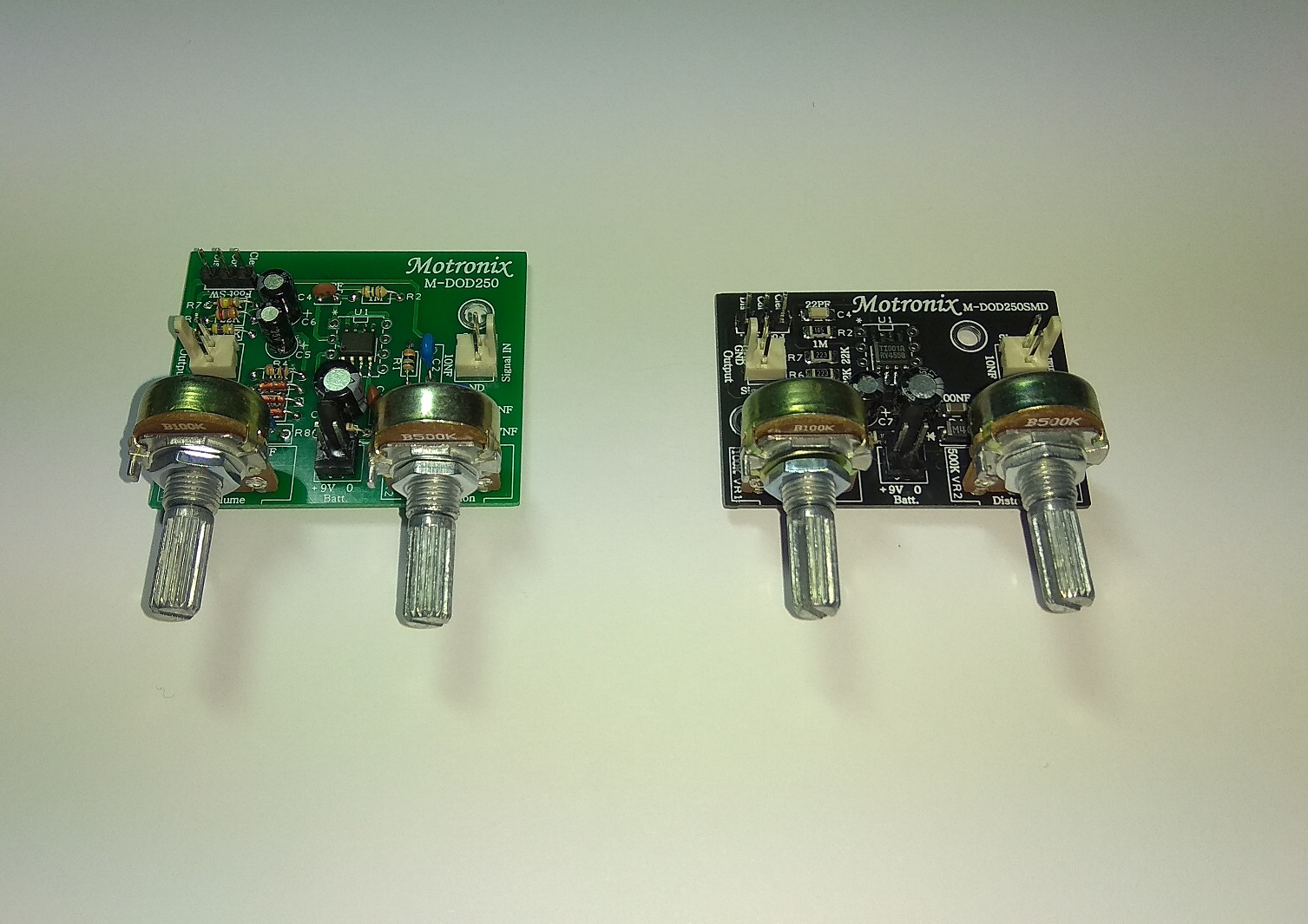

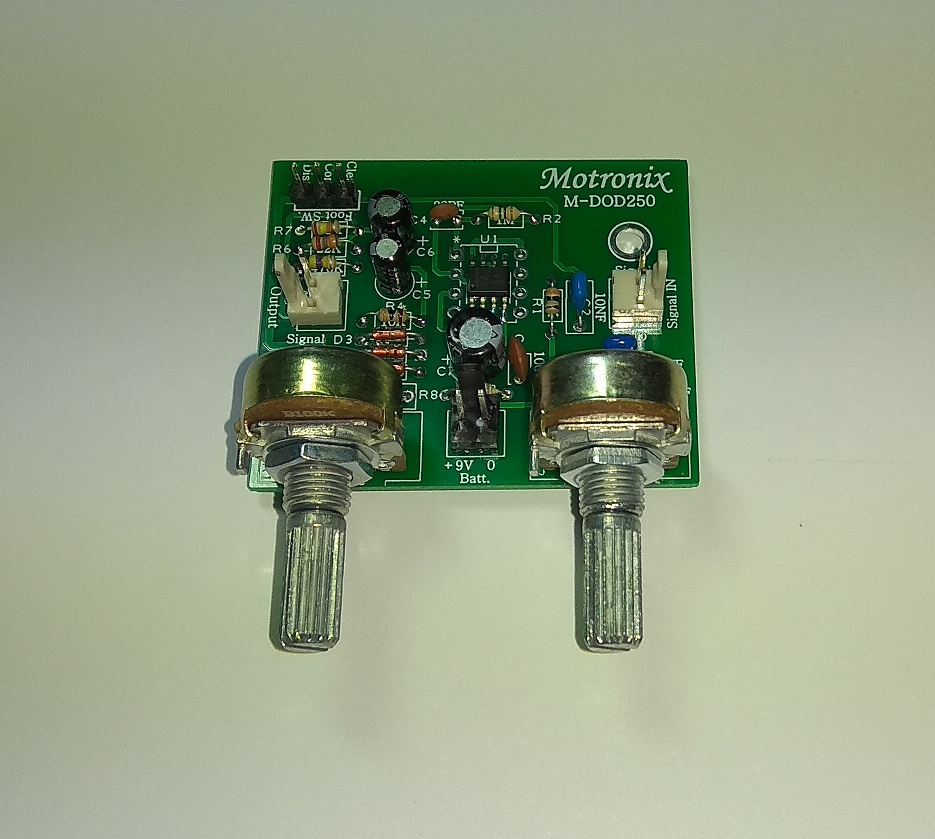

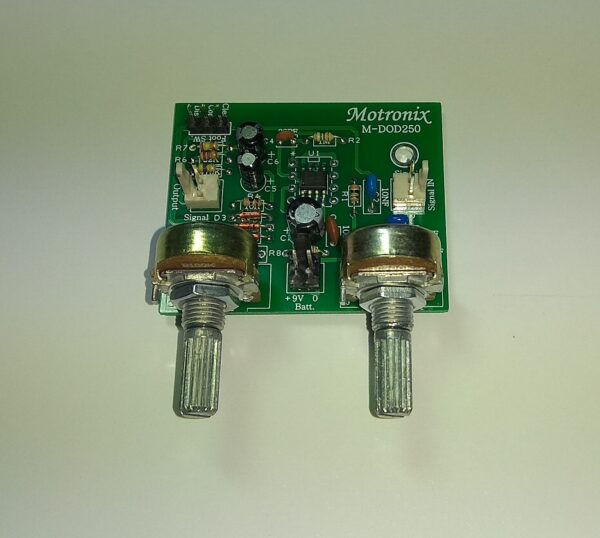

M-DOD250 PCB with T.H Parts

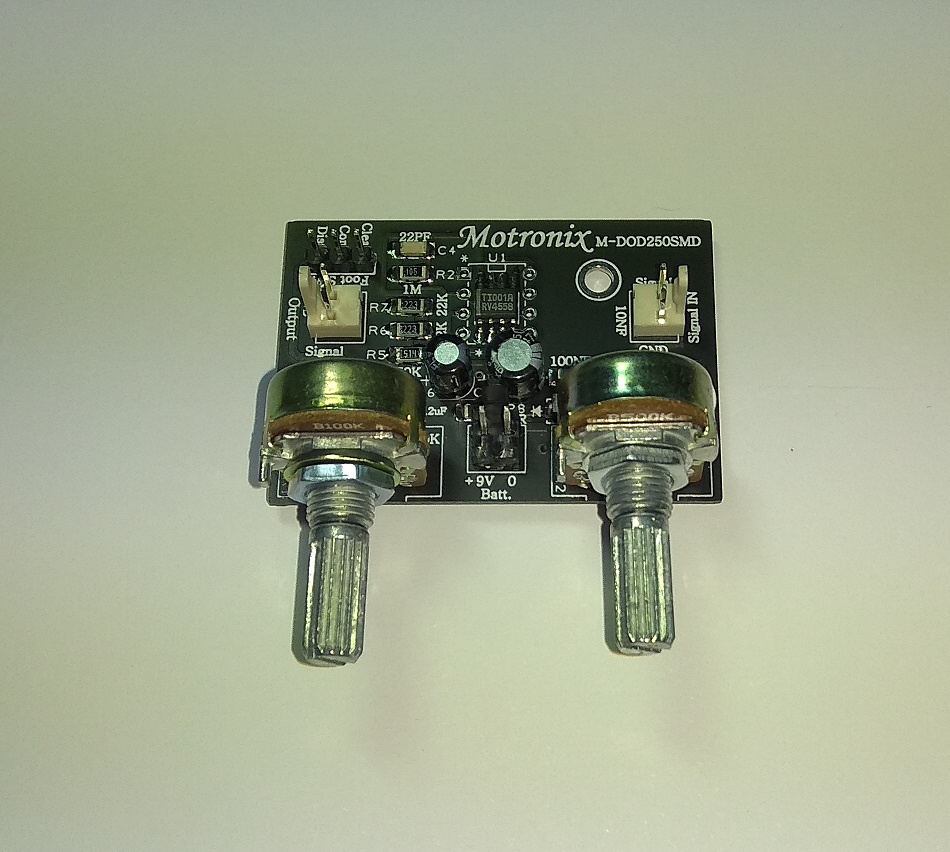

M-DOD250SMD PCB with smd Parts
Input & Output Connectors will supply
Power Input : 9-15Vdc
Current Consumption: 8mA
Control : 1 Volume + 1 Distortion/Gain
On Board Connector for Foot switch Effect (Effect IN/Effect OUT)
Foot switch Not Included!!!
PCB Size:
M-DOD250: 50mm*42mm double-sided HAL,FR4 1.6MM
M-DOD250SMD: 50mm*35mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 30mm (Center to Center)
Applications: DIY Guitar Effect

Additional information

Model

M-DOD250SMD, M-DOD250

1 review for M-DOD250 Overdrive/Distortion/Fuzz Effect DIY PCB

  1. Chris N.

    Super excited to box one of these up to hear it! I love my Motronix Red Llama and MIT-DIST58 units, so I just know this DOD250 will sound great too. Thank you Lior!
