Description

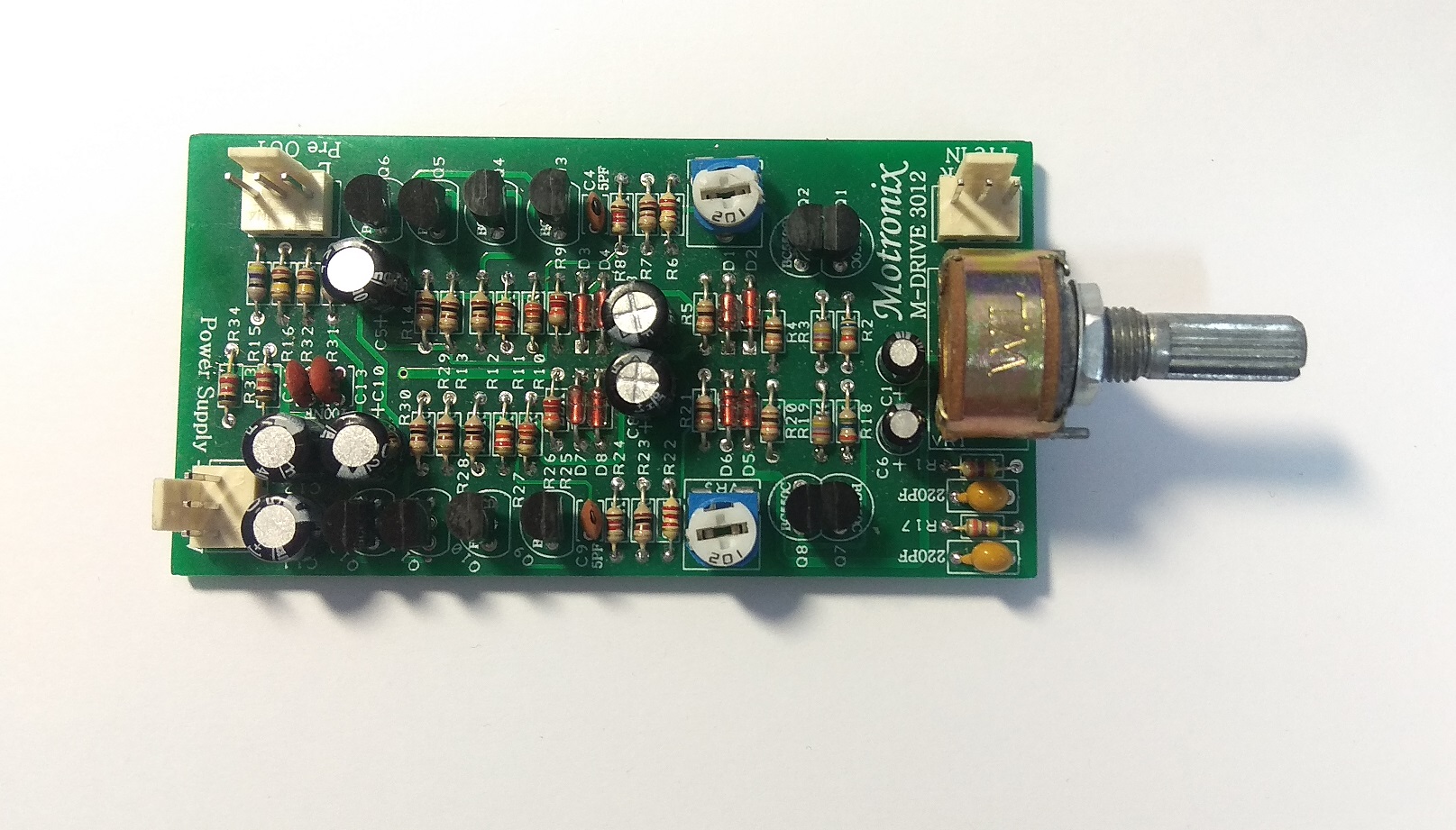

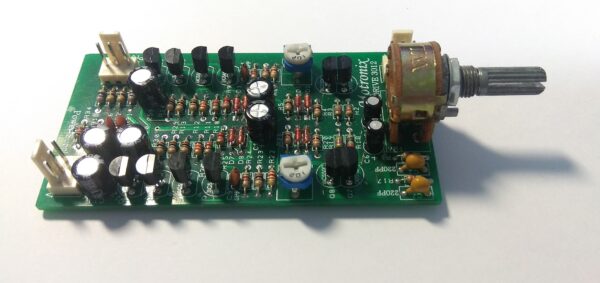

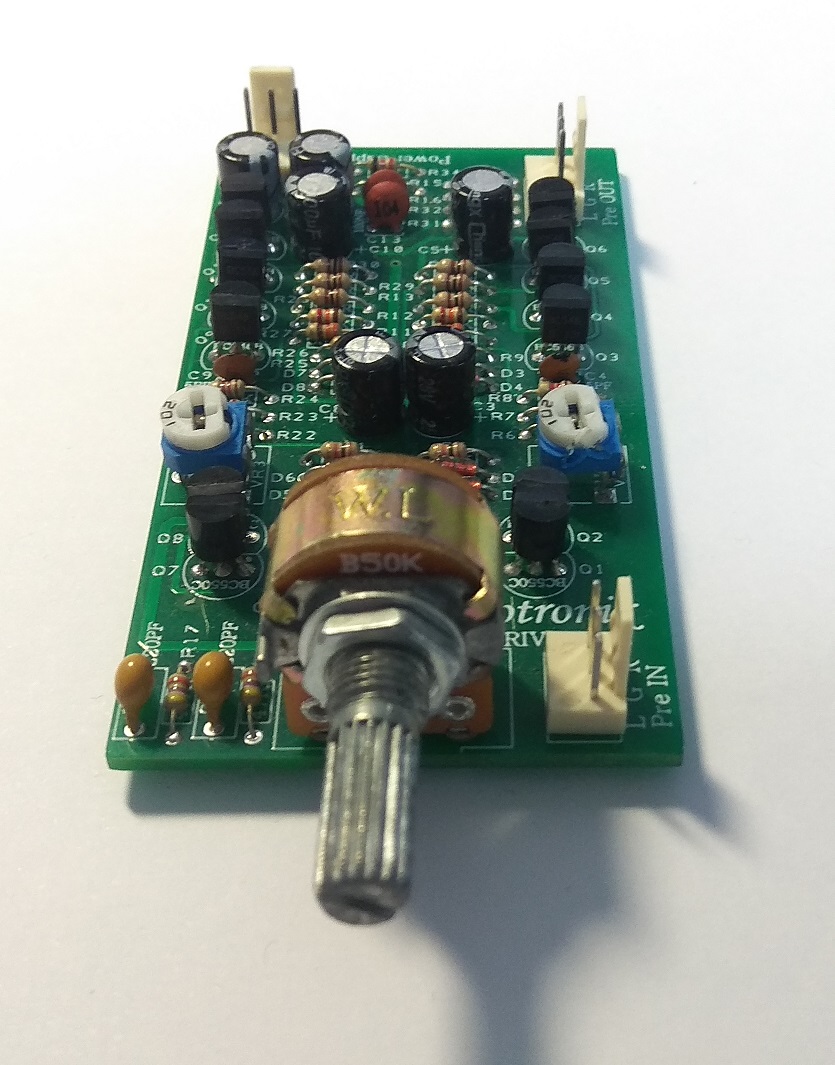

M-Drive 3012
Stereo Line Driver Pre-Amplifier Module
High Output Drive Level up to 12V rms
Pre amplifier With Discrete Low noise transistors
Very high quality product and sound
Great pre amp to drive any Power Amplifier
Double sided High quality and reliability FR4 1.6MM
This item is only PCB with High Quality components Assembled

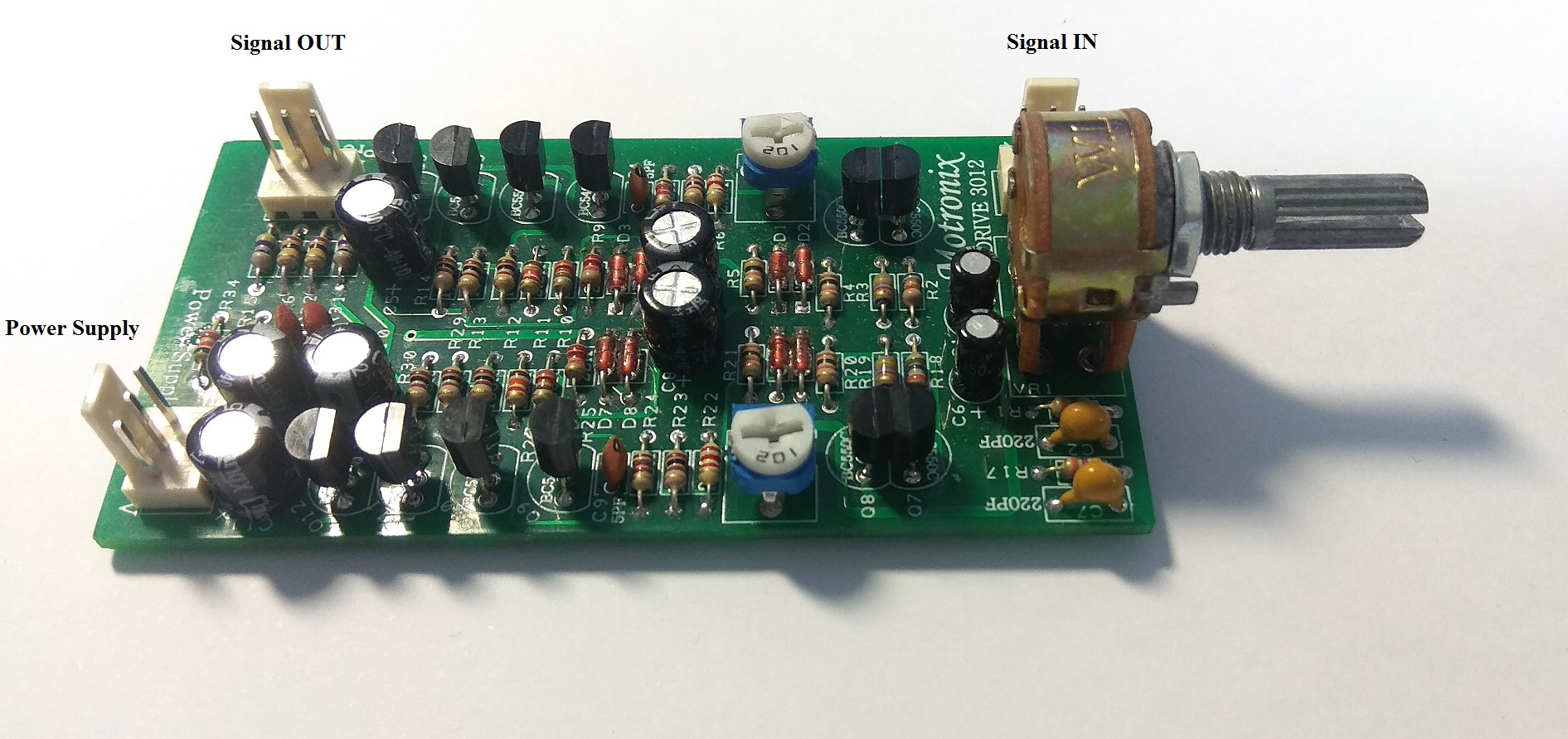

Input & Output Female Connectors & Pins included
Working Voltage: +20Vdc 0 -20Vdc (min. 12Vdc to 25Vdc max.)
Freq. Response: 15HZ to 100Khz
Input Resistance: 47 Kohm
Output Resistance: 47/100 Ohm
Output Level: (Volume at max.)
12V rms (+23.8dbu) with 900mV (+1.3dbu) at input
10.6V rms (+22.7dbu) with 775mV (0dbu) at input
3.2V rms (+12.3dbu) with 250mV (-10dbu) at input
Current consumption: 40mA
PCB Size: 83mm*43mm double-sided HAL,FR4 1.6MM
Applications: DIY Home/Studio / PA Audio Equipment
