Description

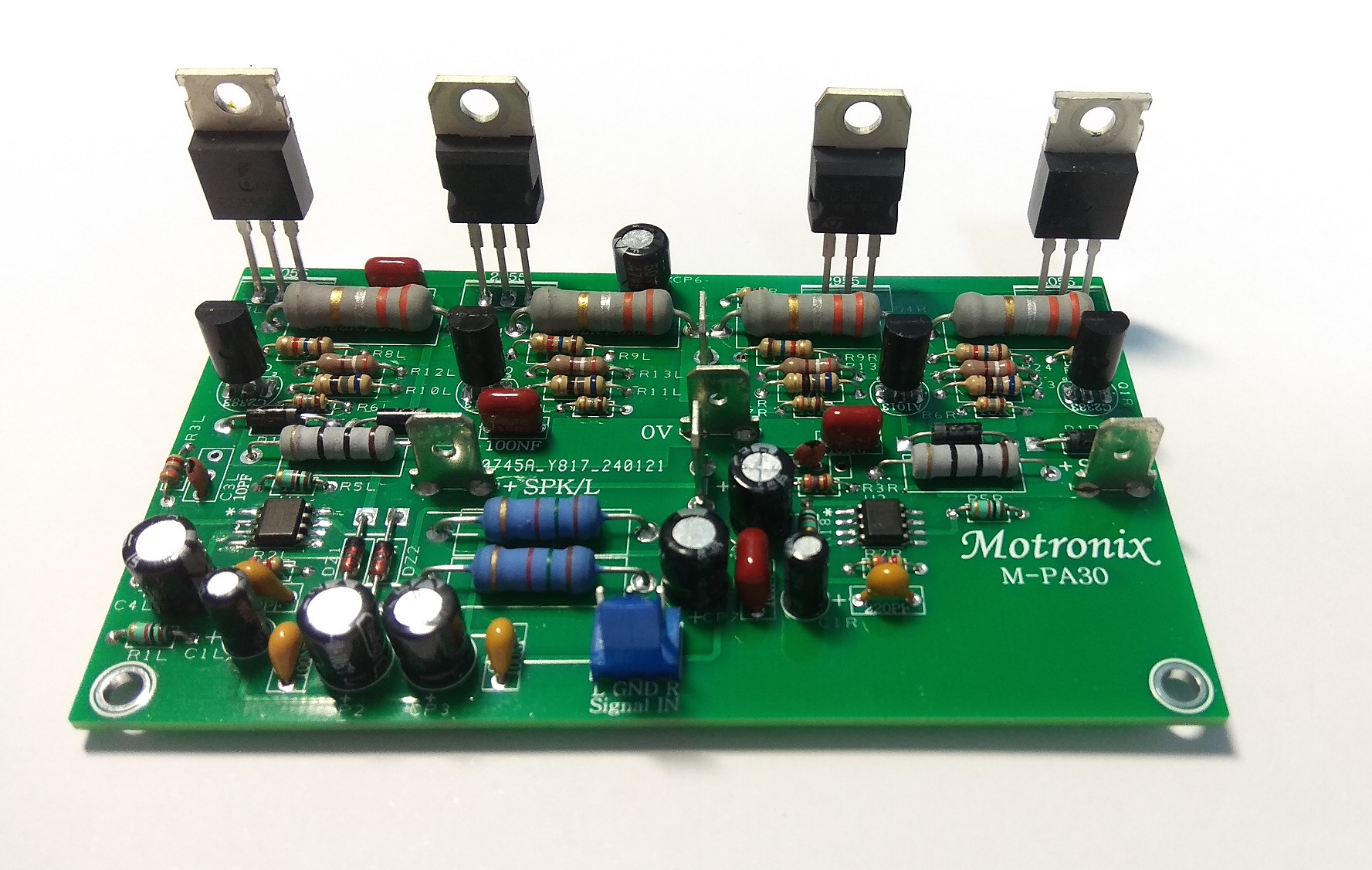

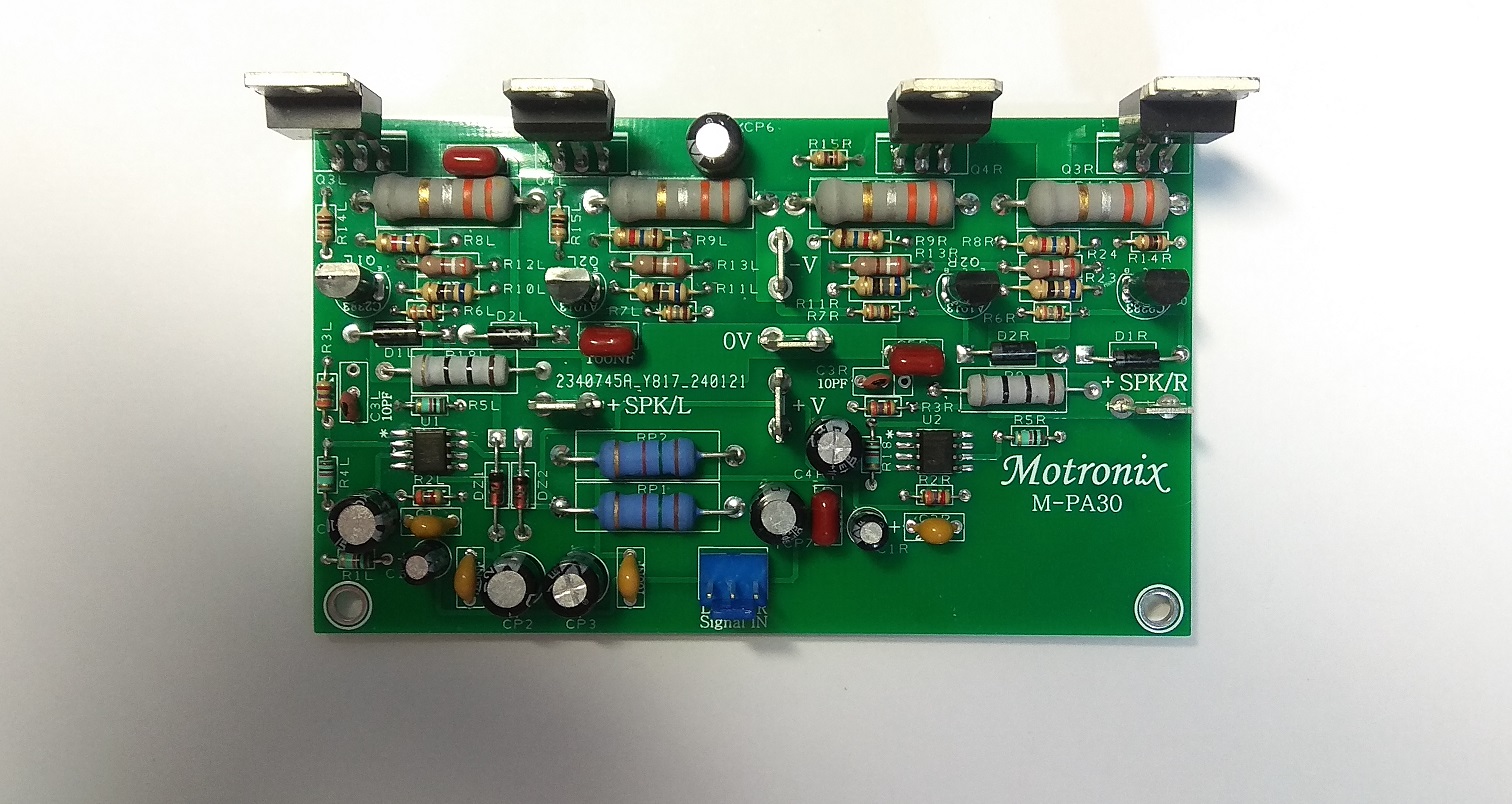

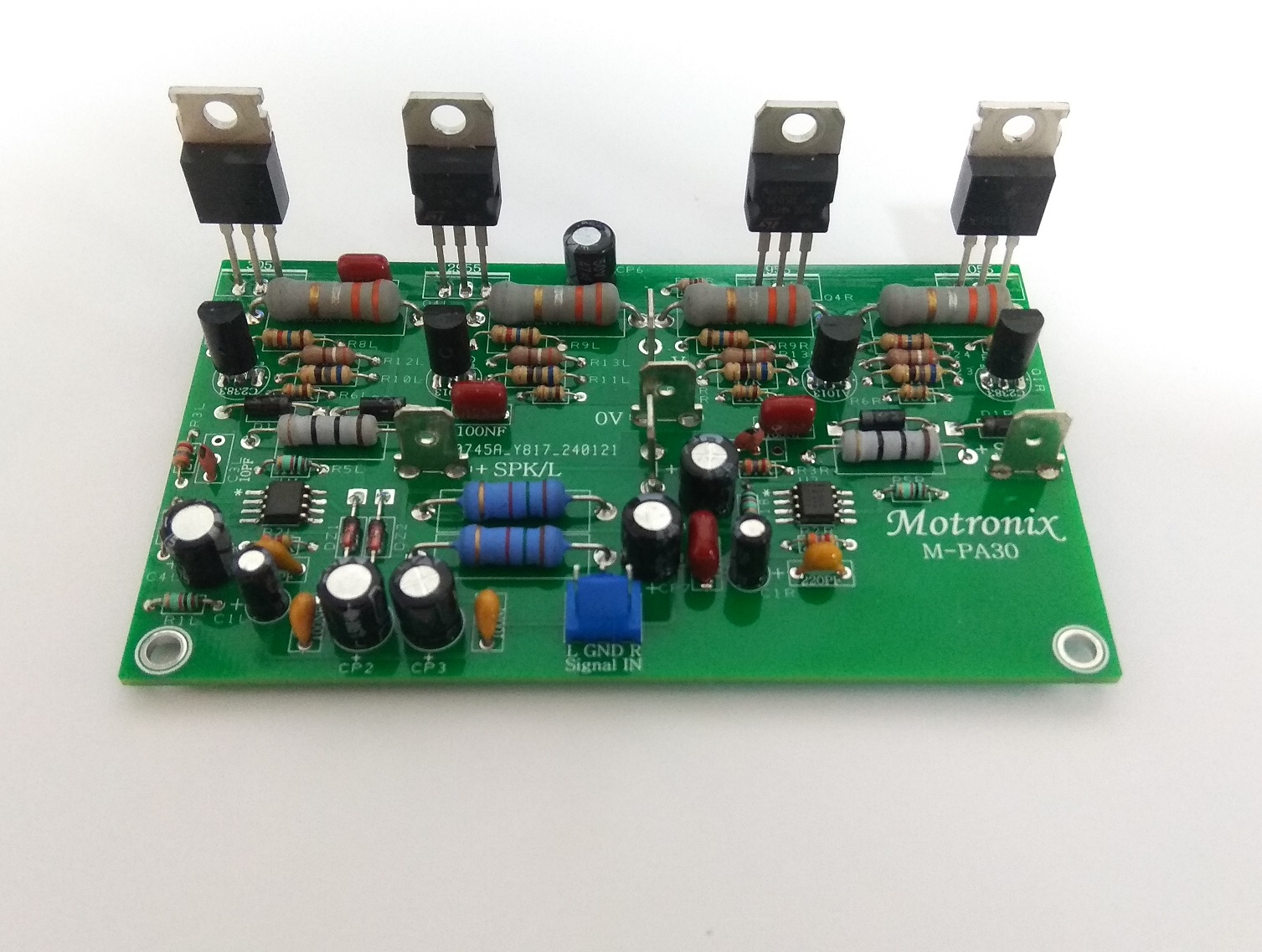

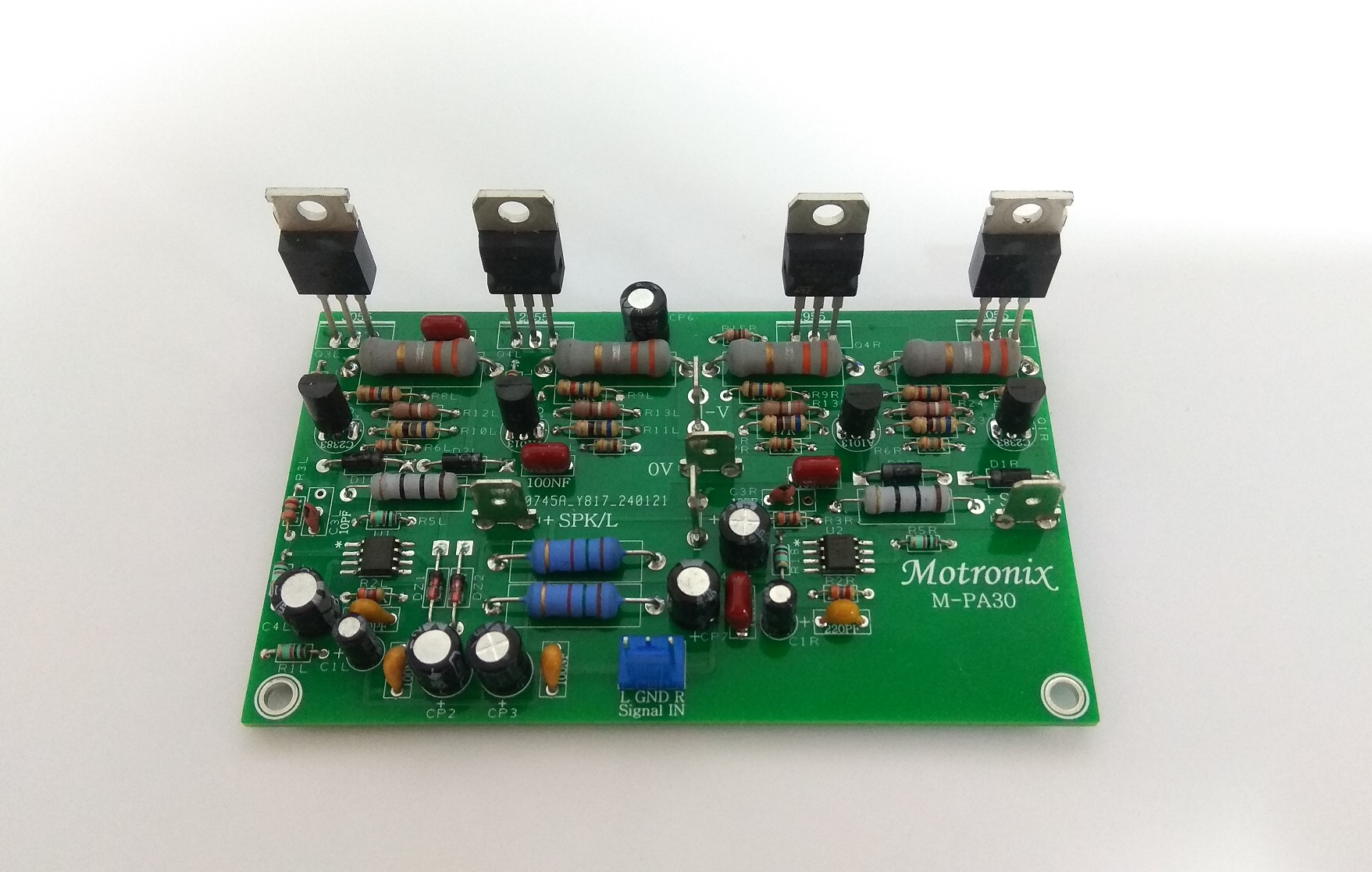

M-PA30
Small size PCB Stereo Class AB Power Amplifier
Very good sound quality
No calibration need
Works at low working voltage starting from 2X18Vdc
Easy and simple to connect.
The PCB is assembled, soldered and tested ready for use
KIT version is PCB + Parts you need to place and solder all parts
Working Voltage: +/- 18Vdc to MAX. +/- 30Vdc
Power Out: 35W @ 8Ohm with +/-30 Vdc
PCB Size: 100mm*59mm double-sided HAL,FR4 1.6MM
Applications: DIY Home Amplifier
