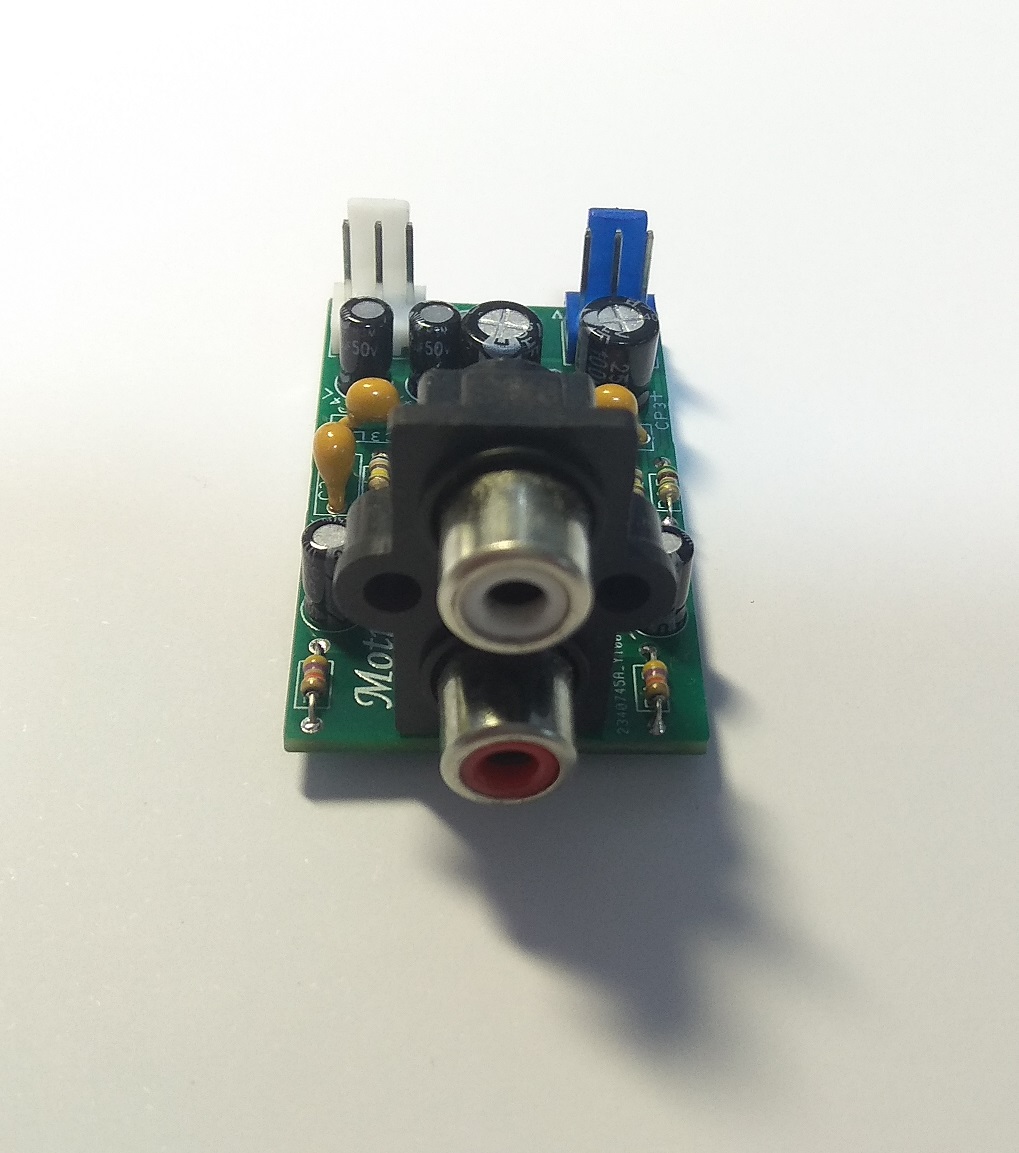

Name: M-RIAA72 Mini Size Phono MM RIAA Low Noise Pre Amplifier
SKU: 3921
Availability: InStock

M-RIAA72 Mini Size Phono MM RIAA Low Noise Pre Amplifier

Availability:

10 in stock

Description

M-RIAA72

MM Phono Stage Pre Amplifier

Excellent performance & Sound

Low Noise and Cleen Sound

Very Small size PCB

Input sensitivity: 2.5mV (Overload at 1Khz 100mV)

Output Level: 200mV with 1khz 2.5mV at Input

Input resistance: 47k ohms

Output Impedance: 1kohm

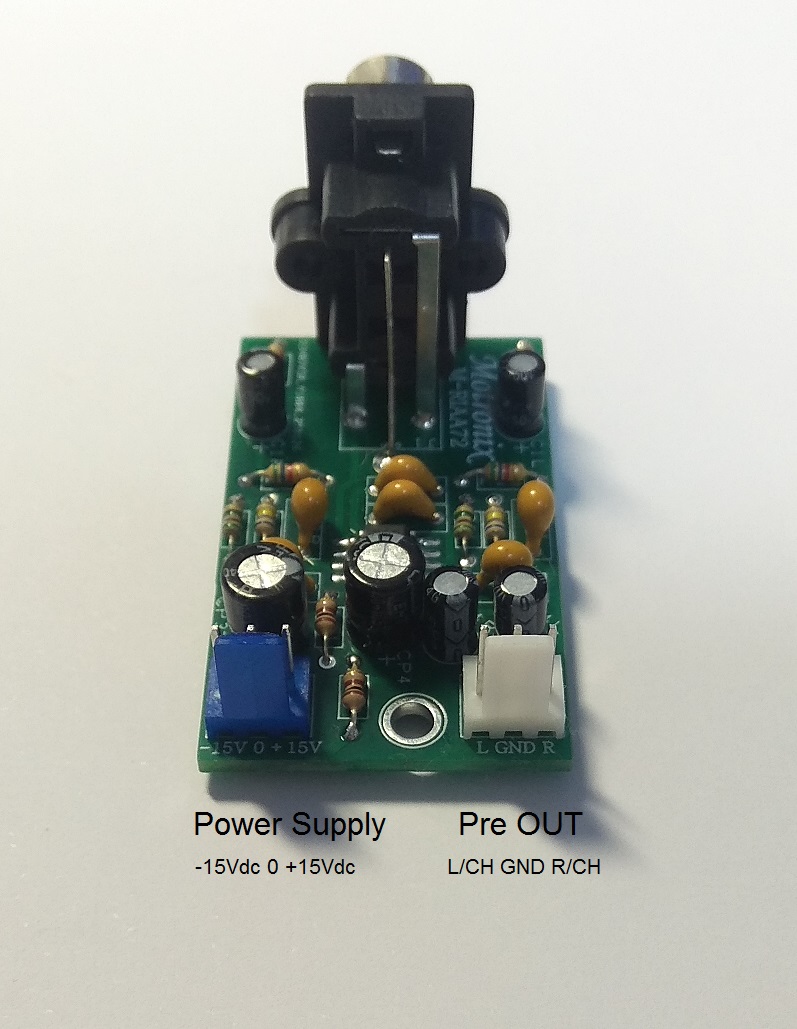

Working Voltage: Dual 12-15Vdc (+15V 0 -15V)

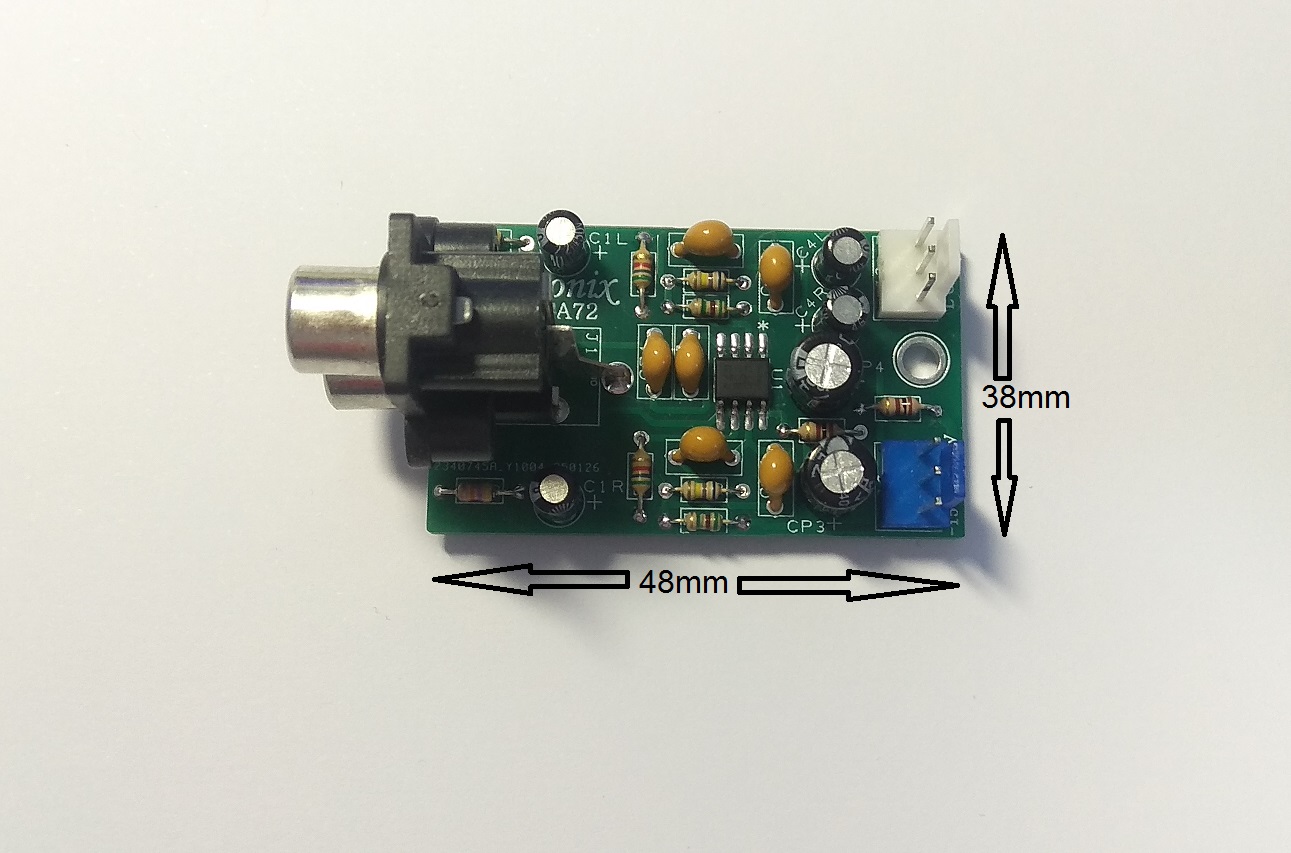

PCB Size: 48mm*38mm Green double-sided HAL,FR4 1.6MM

Applications: DIY Home / Integrated Amplifier / Pre-Amplifier

Additional information

Type	M-4558S Assembled, PCB+Parts, PCB Only
