Description

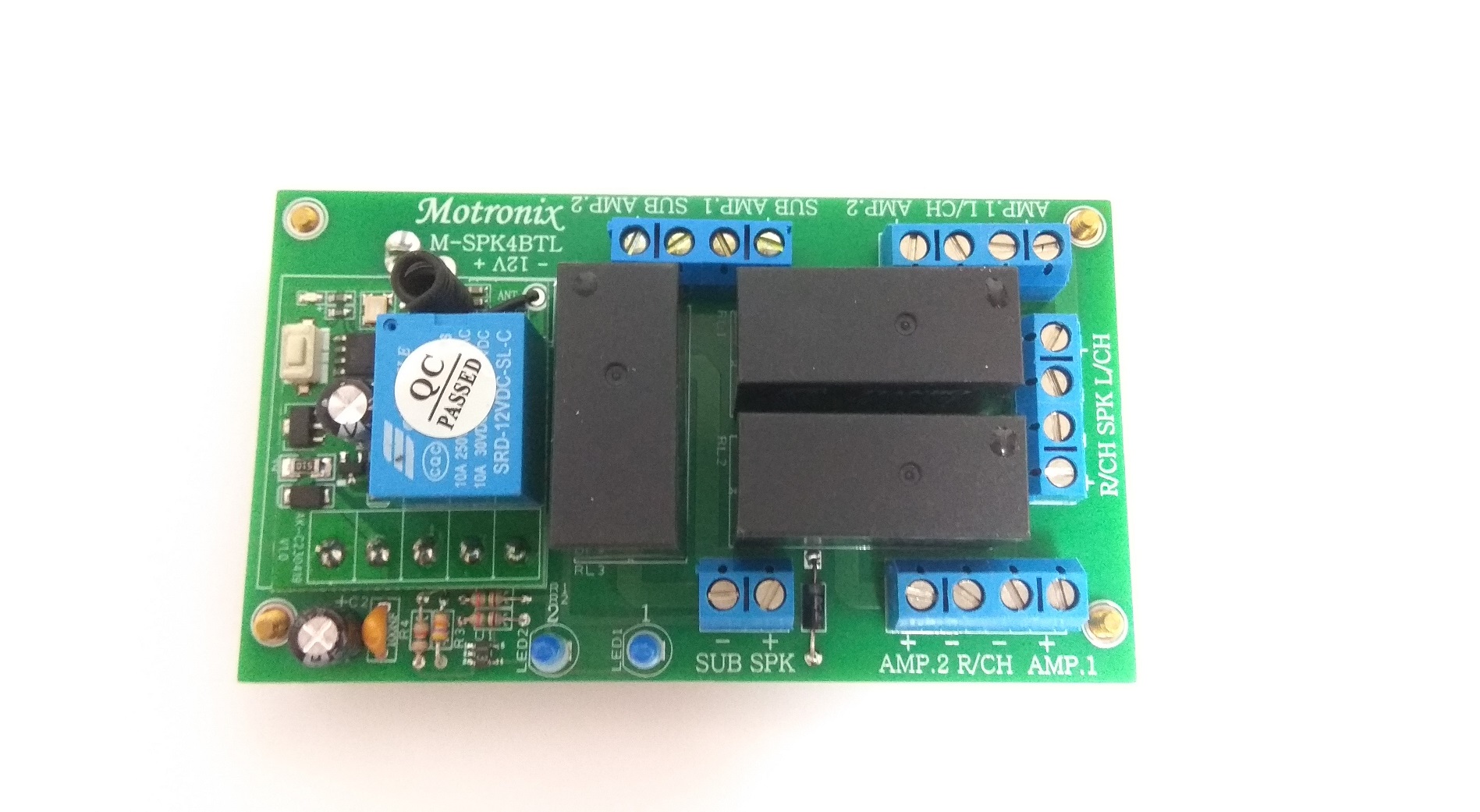

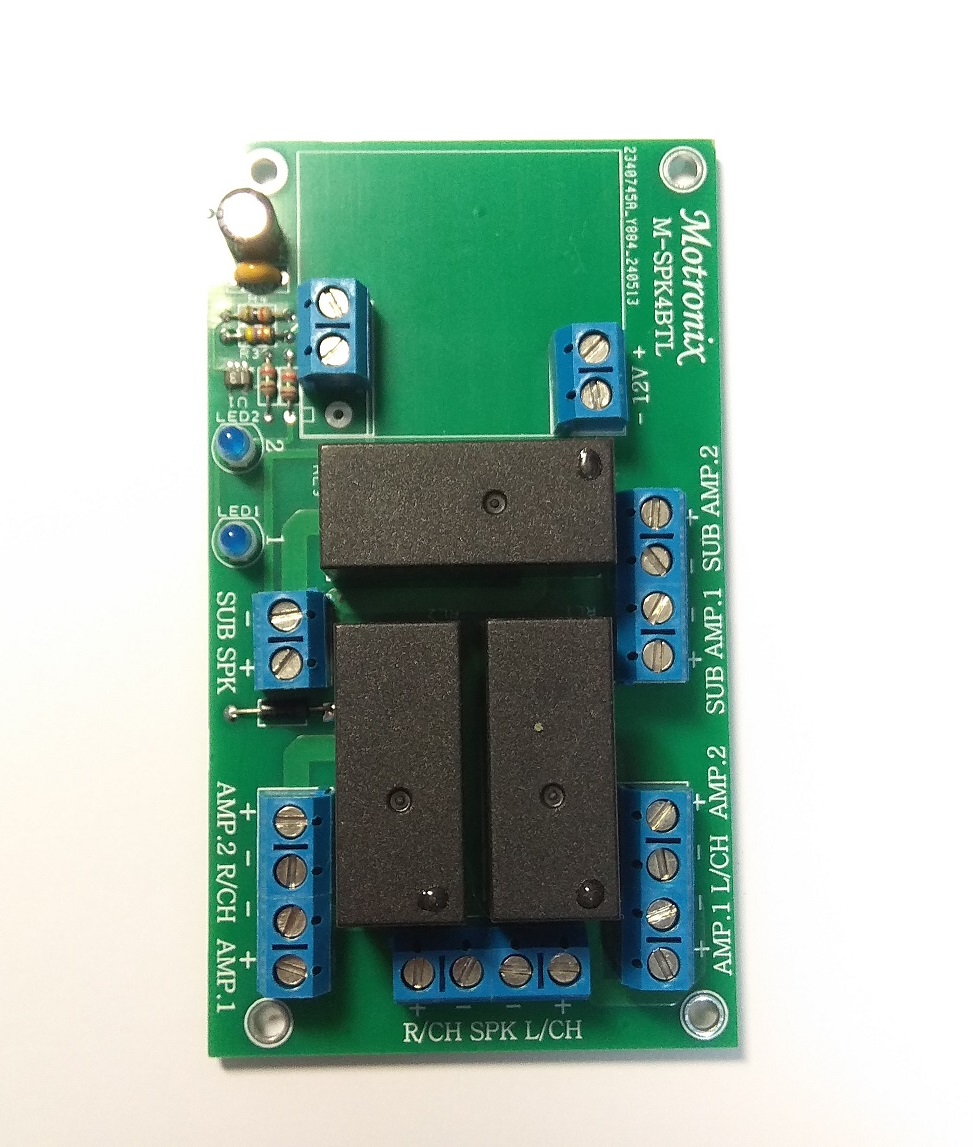

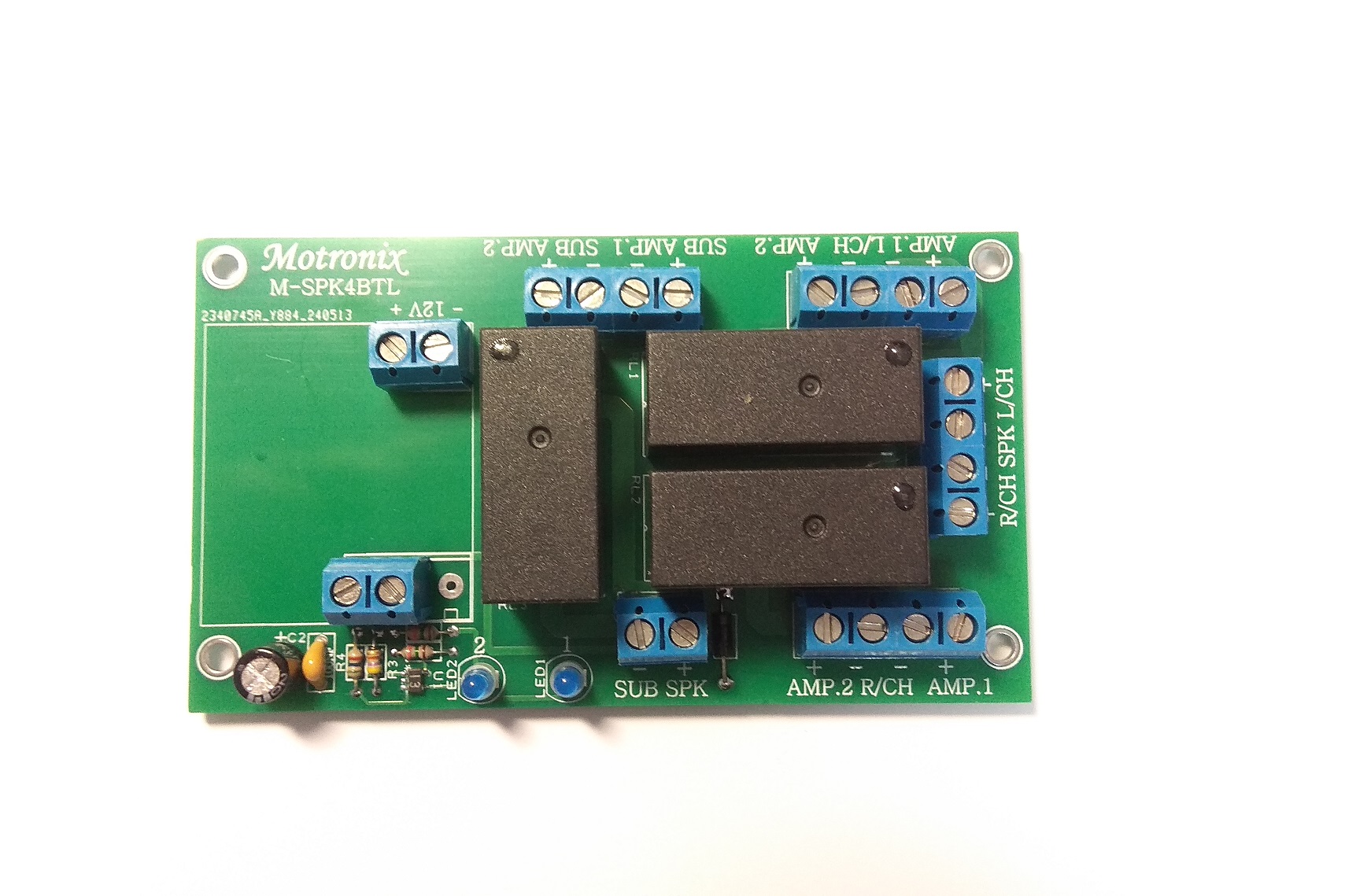

M-SPK4BTL
High Quality Speaker Control Relay Switch
An excellent solution for electronics technicians to use in the laboratory
Control An output signal from two different amplifiers and also for subwoofer amplifiers

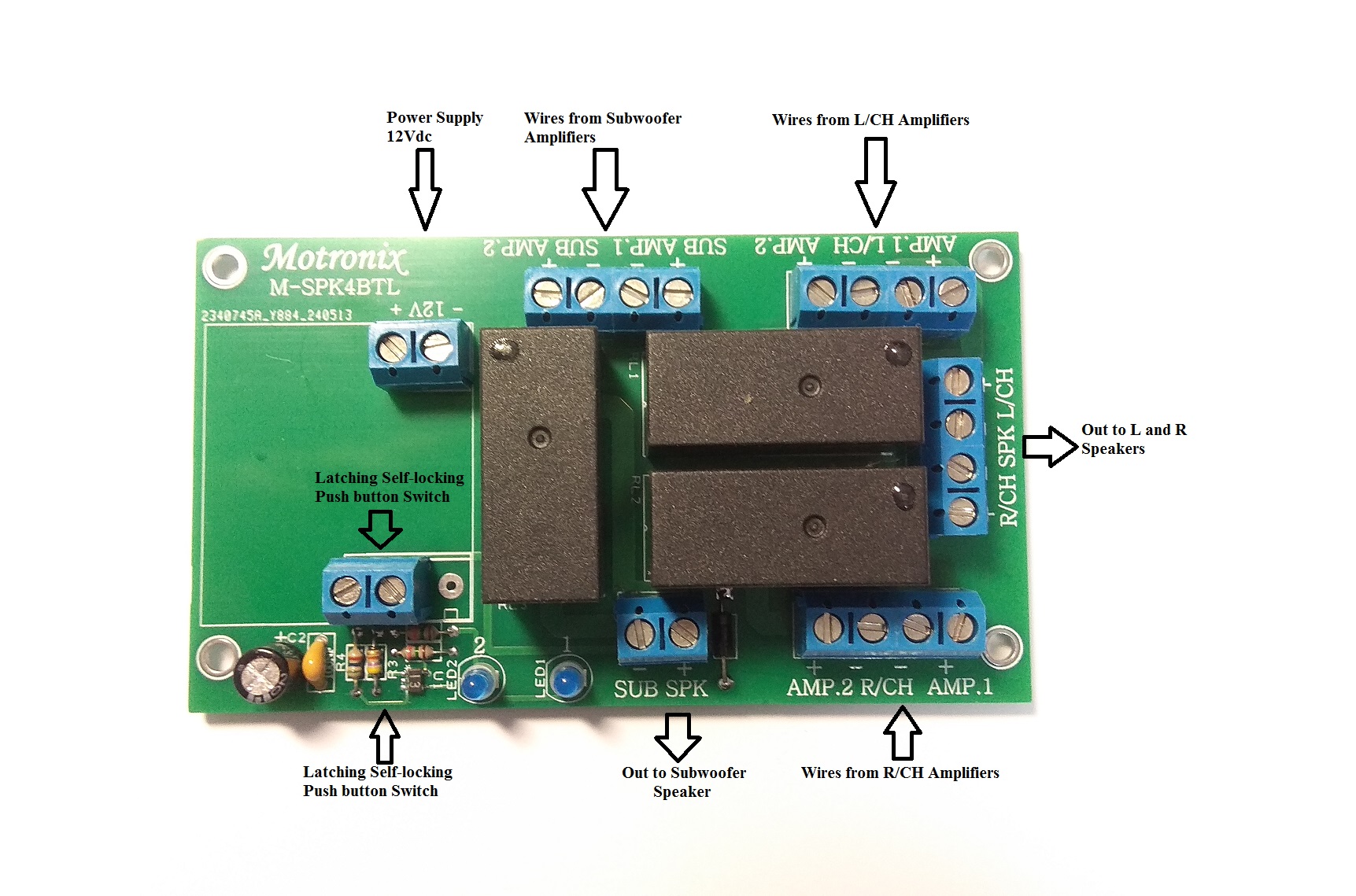

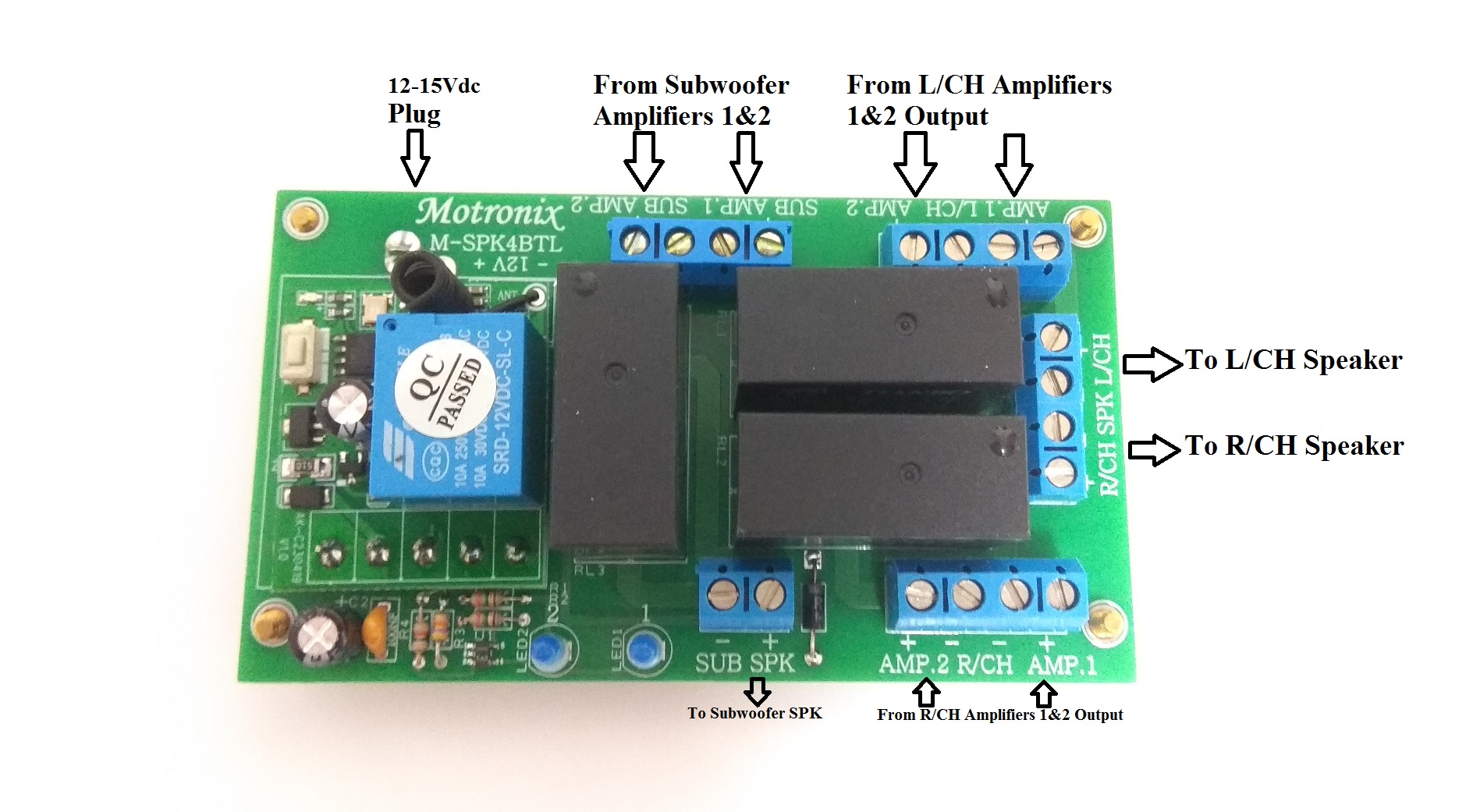

2 Stereo In from 2 Amplifiers to 1 SET Speakers
Also 2 Mono In from 2 Subwoofer Amplifiers to 1 Subwoofer Speaker (Passive SPK)
Work with Bridge configuration Amplifiers the minus is separately not common
Order option:
1: Switch control by “on/off” simpleLatching Self-Locking Push Button (Not Include)

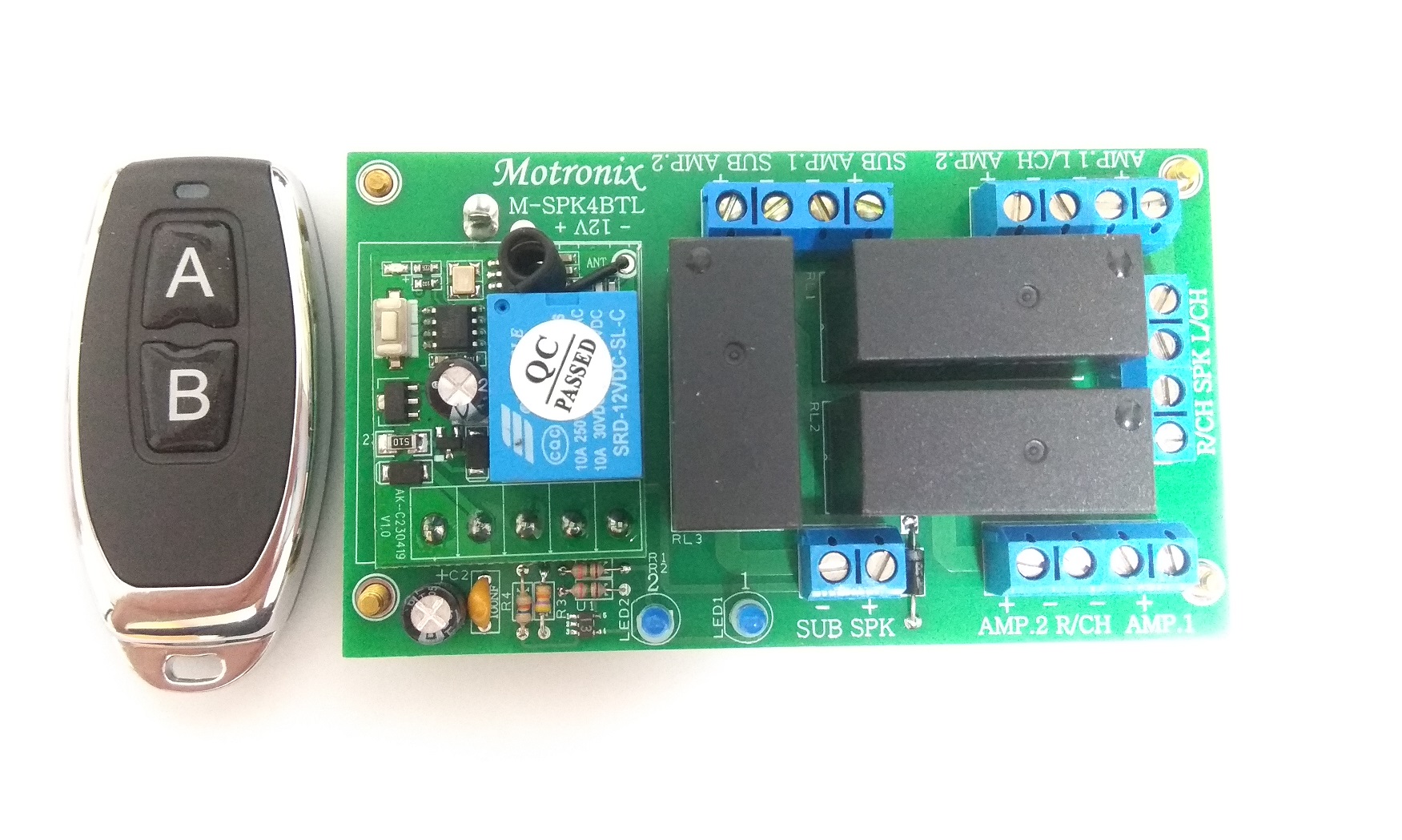

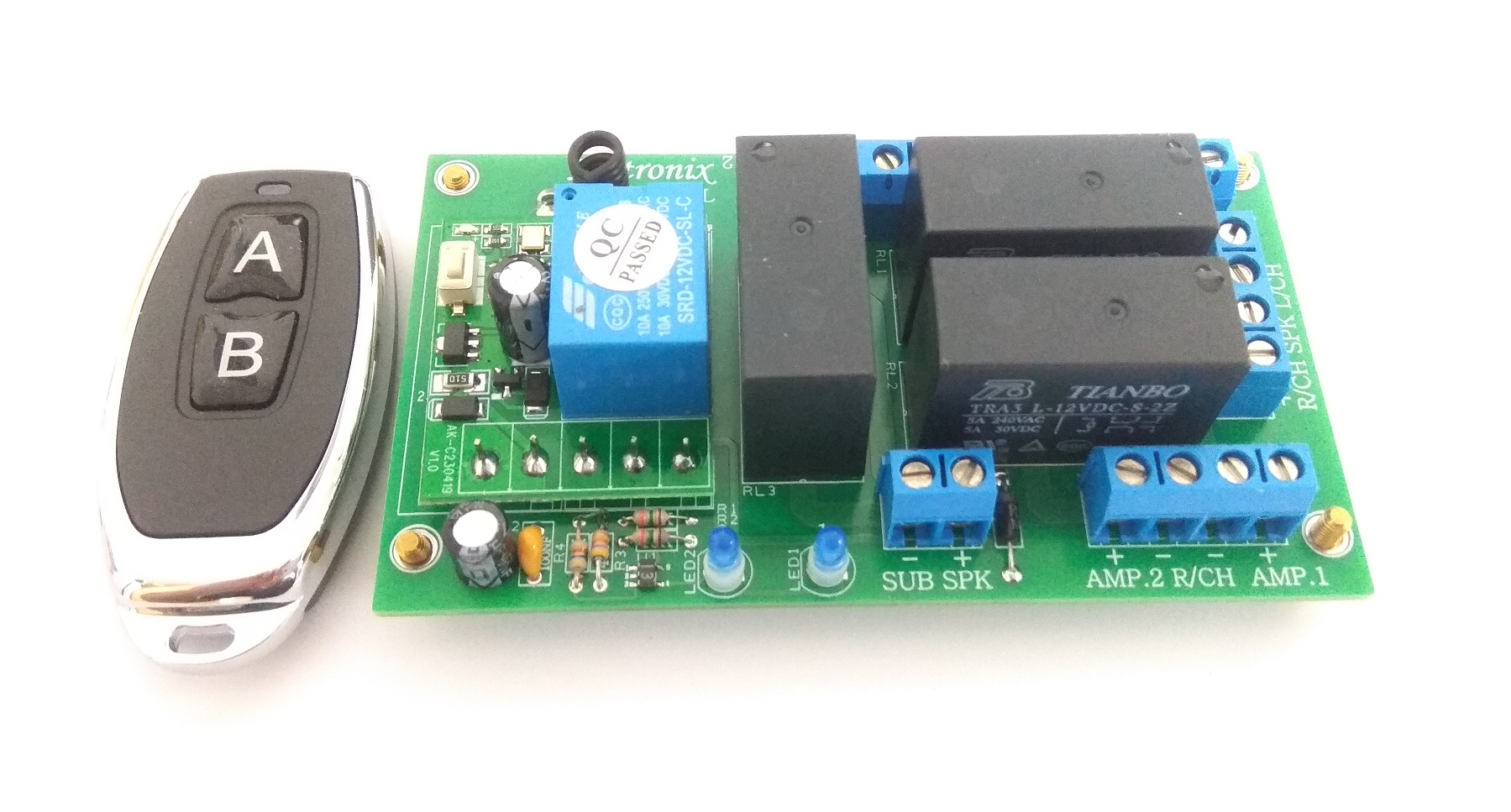

2: Remote Control (Remote control Include) The remote control model varies
Working Voltage : 12Vdc
Current consumption: 0.2A (200mA)
Relay Contact Power: 600W Each CH. (5A)

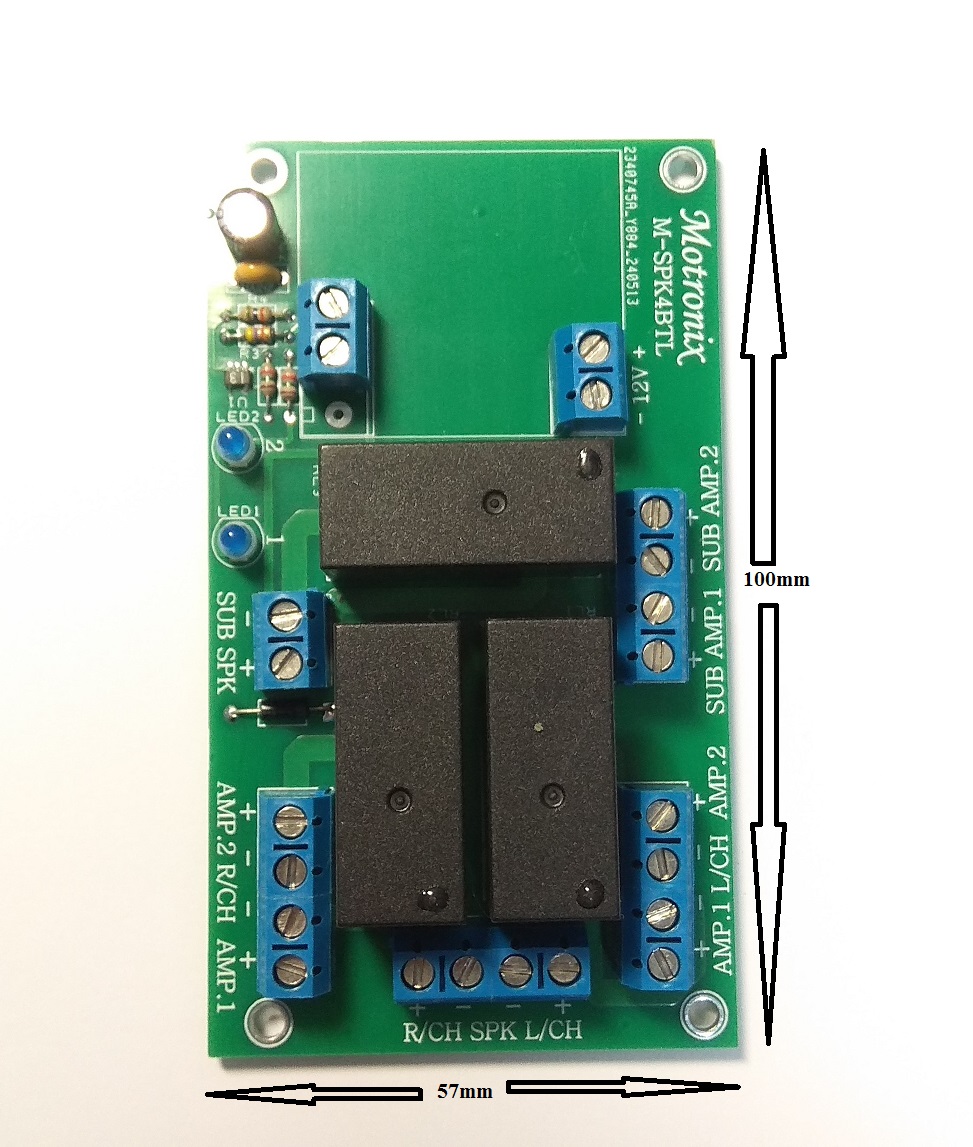

PCB Size:100mm*57mm Green double-sided HAL,FR4 1.6MM
