Description

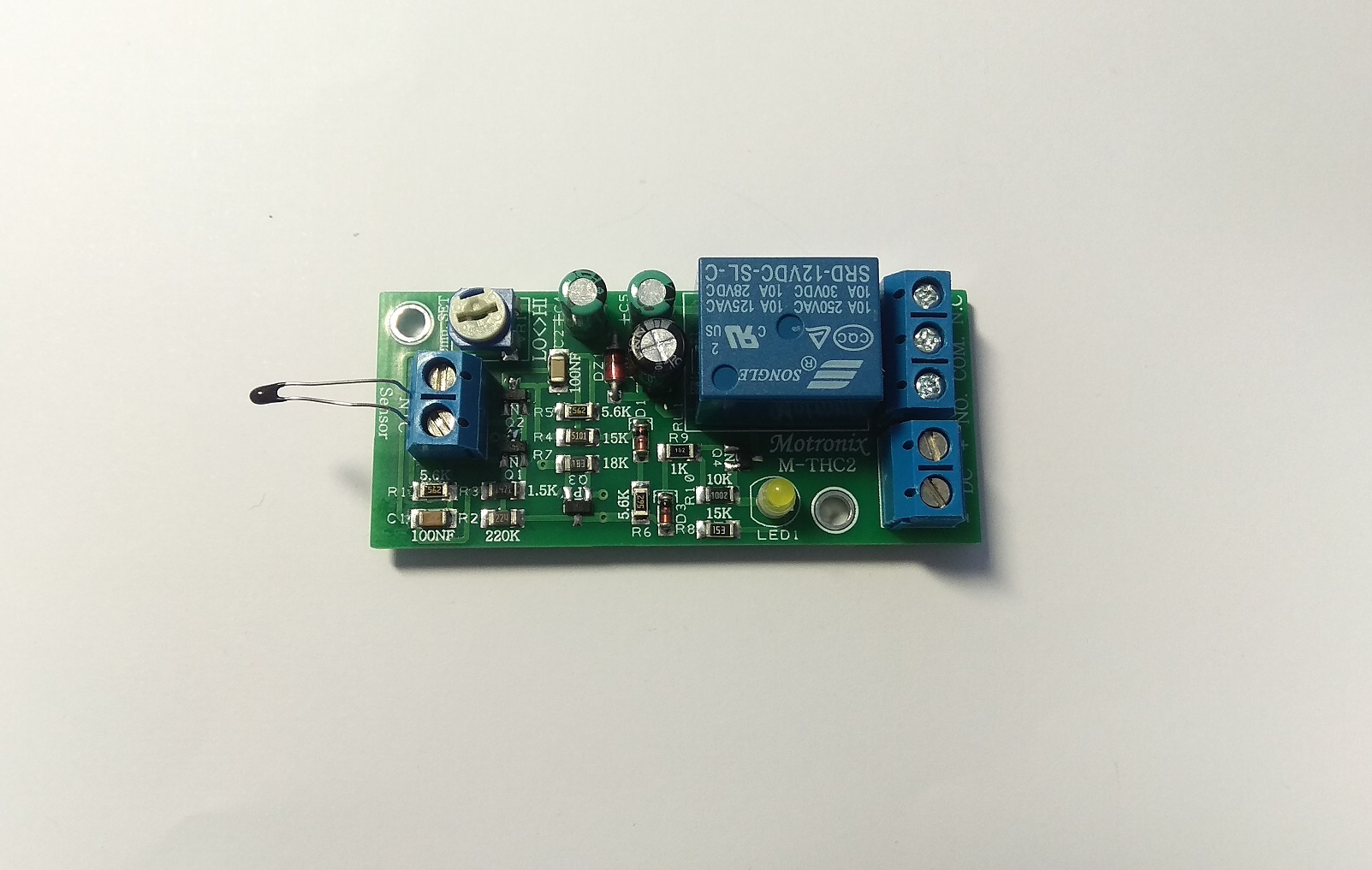

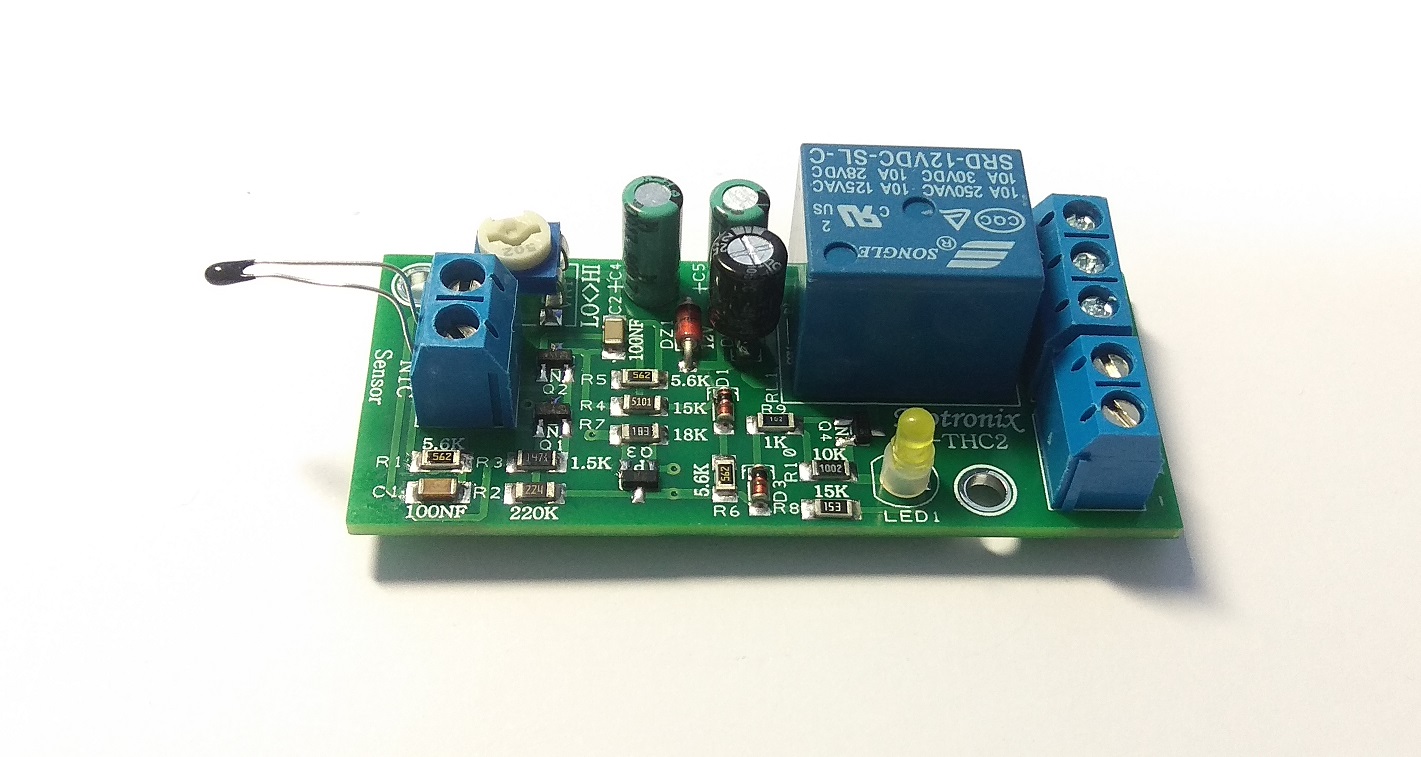

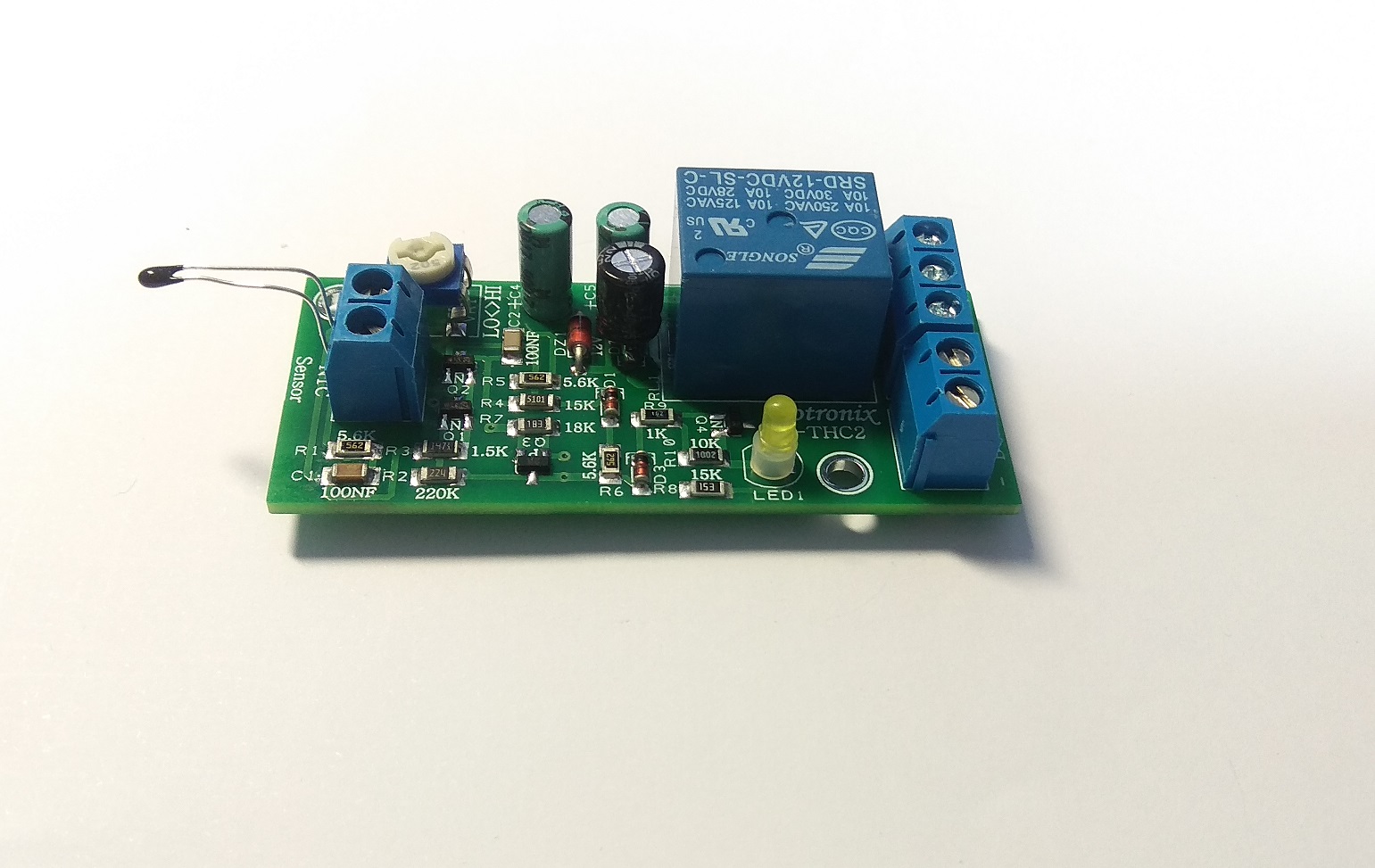

M-THC2
High Quality Temperature control module
An excellent solution for temperature control and cooling for power amplifiers

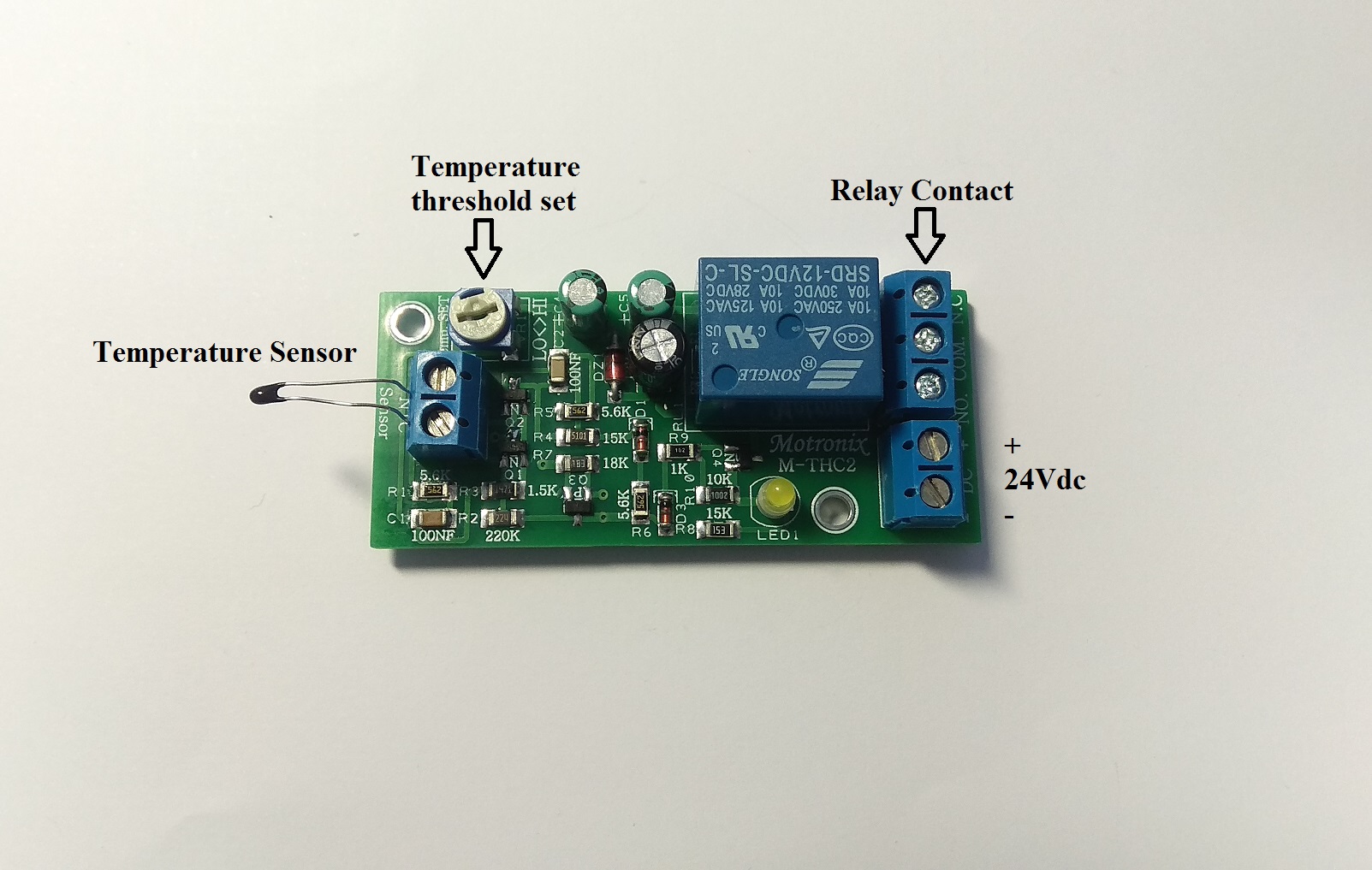

The relay controls a 24dc volt fan or switching with the relay N.O/N.C contacts
Variable set for Temperature threshold 50-80 Celsius
NTC Sensor included
Order option:
1: Independent relay contacts
2: For 24Vdc FAN
Working Voltage : 22-25Vdc
Current consumption: 11mA (Standby) 85mA When Relay active (Without Fan)
Relay Contact Power: 500W
PCB Size:67mm*29mm Green double-sided HAL,FR4 1.6MM
