Description

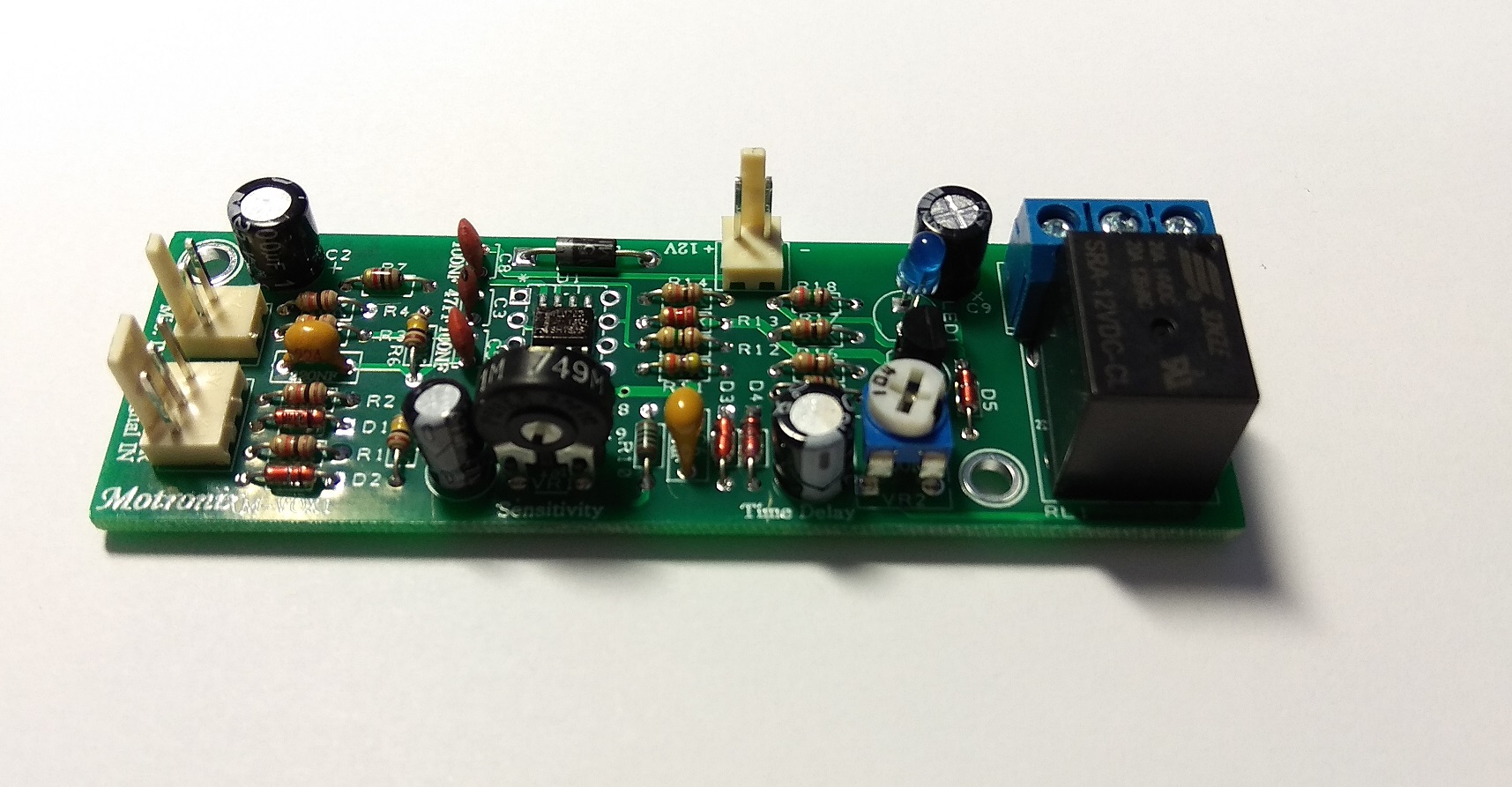

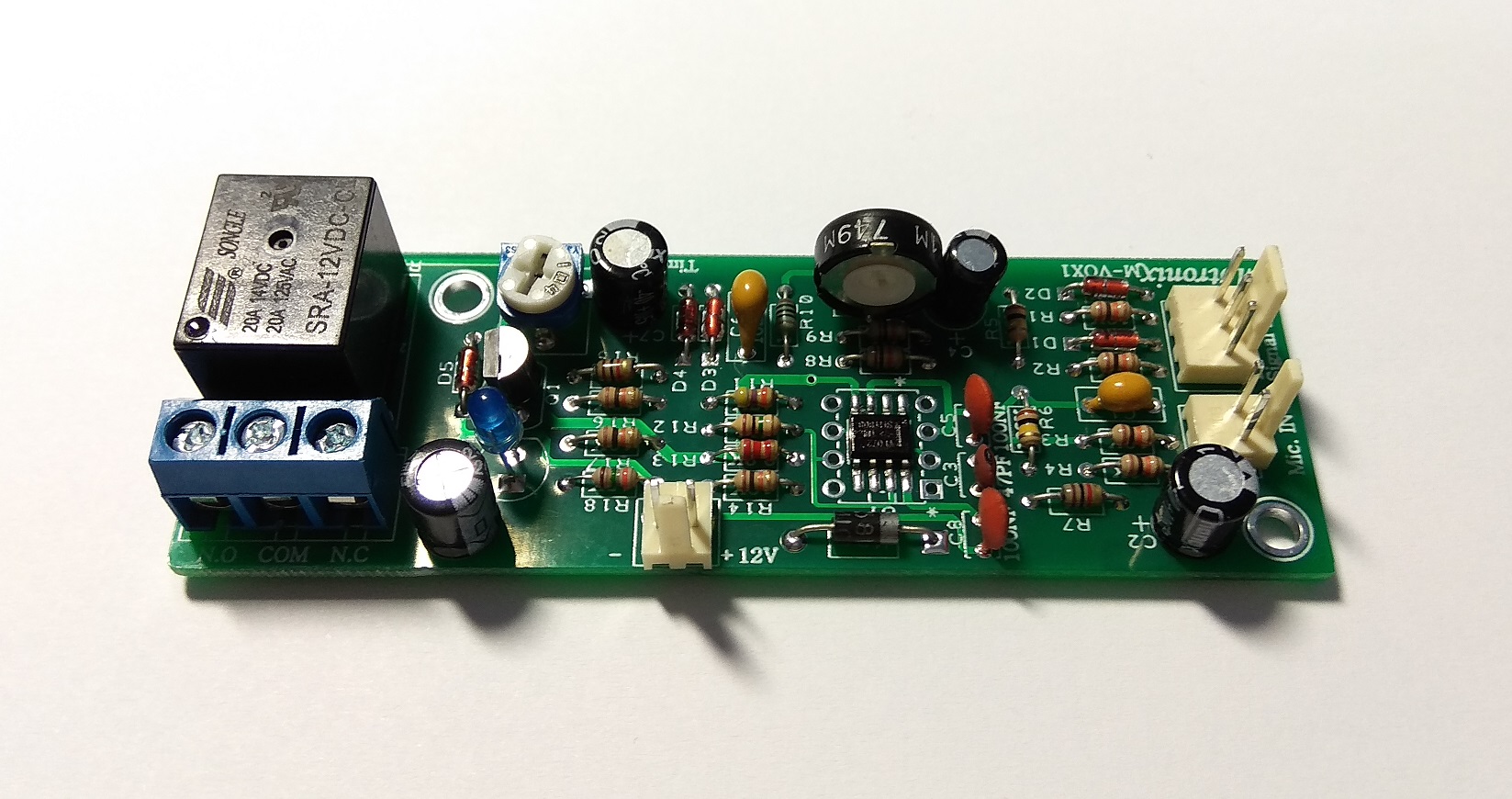

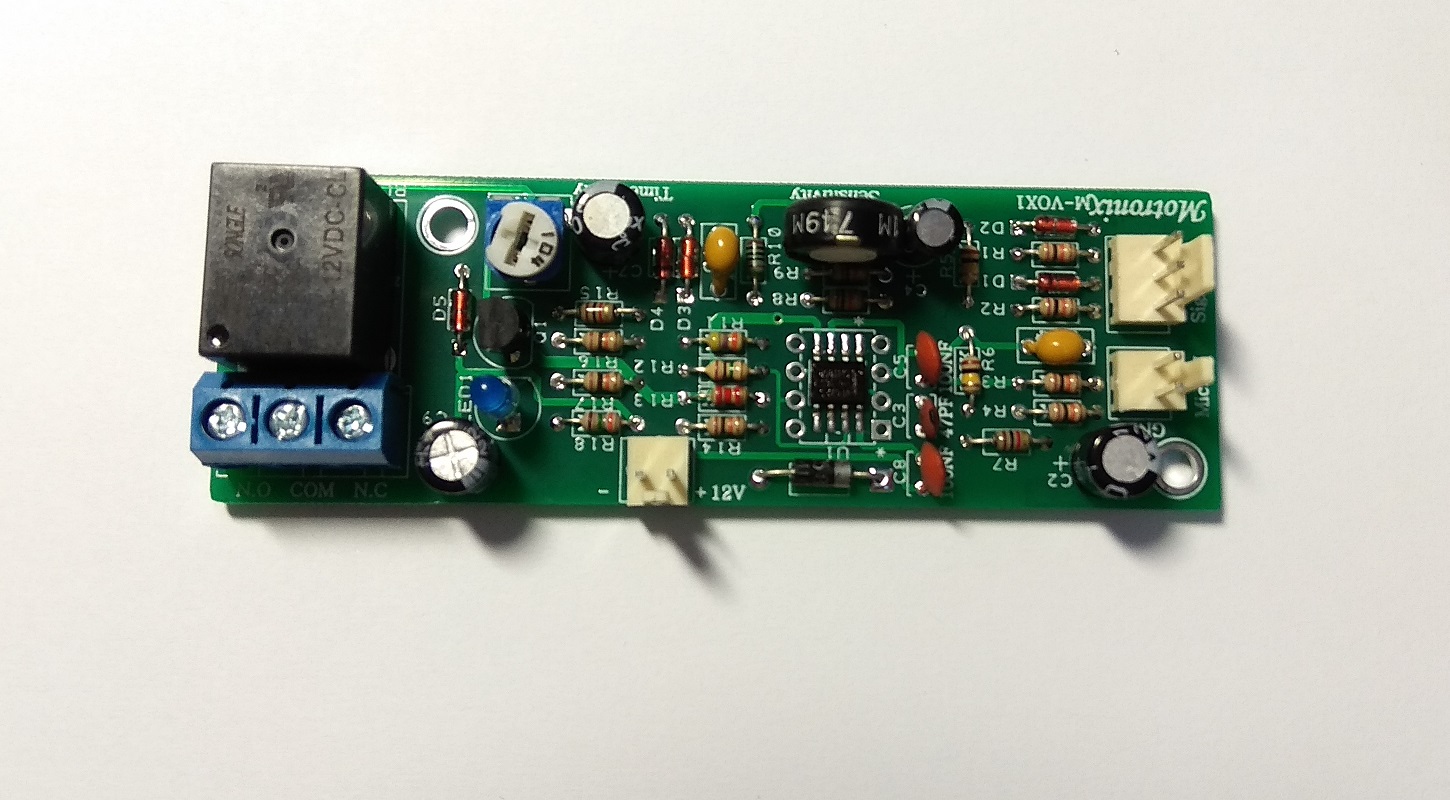

M-VOX1/M-VOX2
Audio Sound Active Relay
Order Option:
M-VOX1 Complete Assembled Boardor PCB + Parts
M-VOX1 KIT You need to place and solder all the parts
M-VOX2 Complete Assembled Board with smd parts
Molex female connector and pins included
Features:
Working Voltage:
M-VOX1 Model: DC Voltage Power Supply 12Vdc
Current Consumption: standby 2mA. with relay on 50mA
M-VOX2 Model: AC Voltage Power Supply 10-15Vac or 15-18Vdc

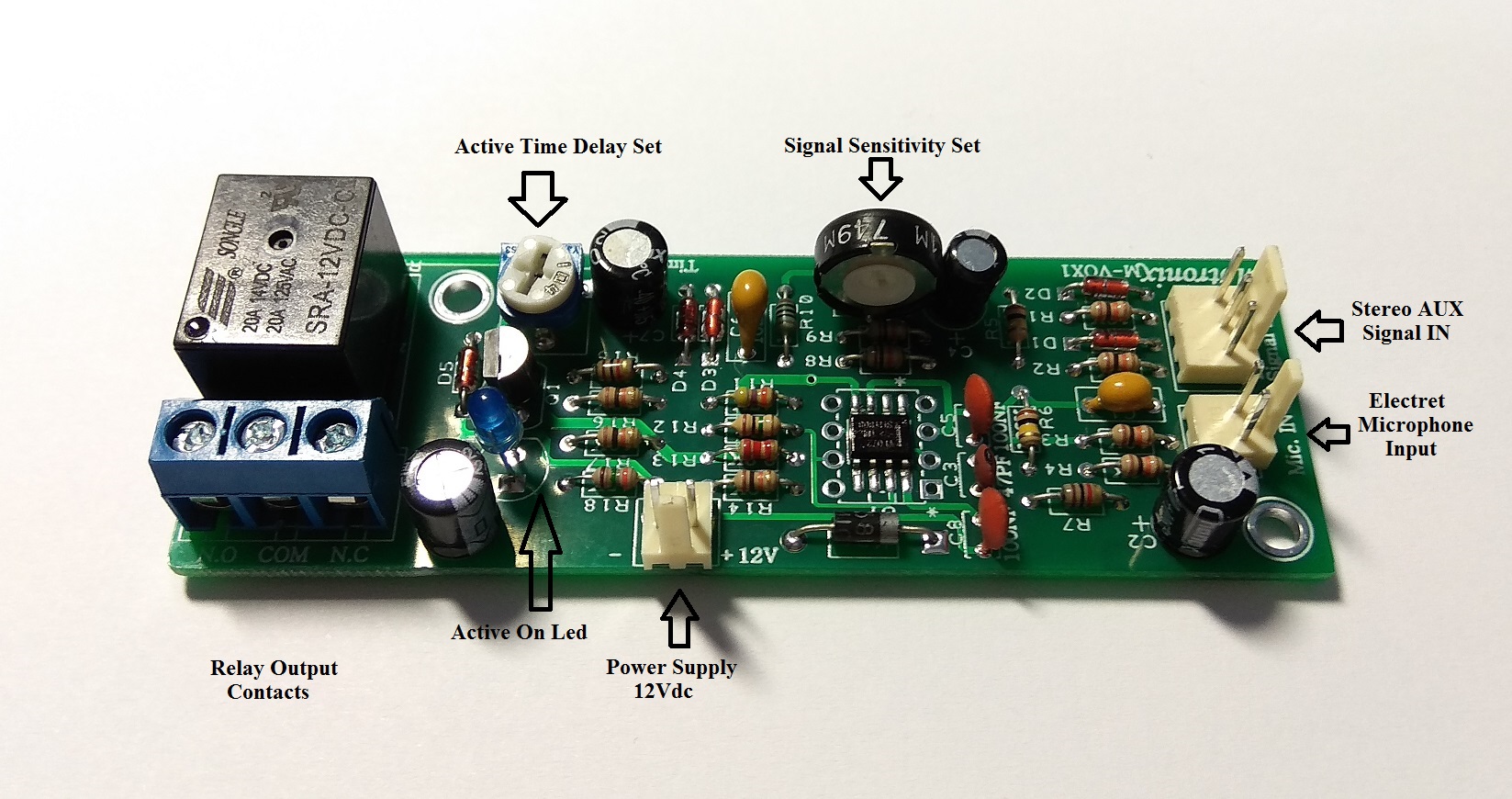

On Board 2 Input Option:
1 Connector For Electret Microphone (The Microphone is provided)
1 Connector For Stereo AUX Signal
Time Delay Set:
0.3sec Trimmer at min.
7sec Trimmer at max.
Electret Mic. Bias: 320uA
Input Signal Sensitivity:
Aux Input -42db 6mV Trimmer set at max. to -8db 310mV Trimmer set at min.
Active Status Led
On Board 10A Relay with Open contact (N.O or N.C)
PCB Size:
M-VOX1=88mm*29mm Green double-sided HAL,FR4 1.6MM
M-VOX2=83mm*29mm Green double-sided HAL,FR4 1.6MM
Applications: Voice/Sound Activated Relay
