Description

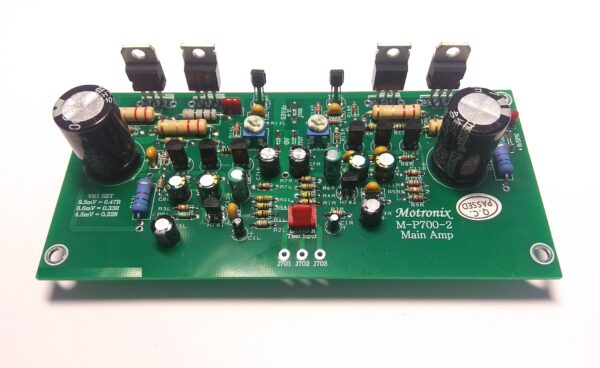

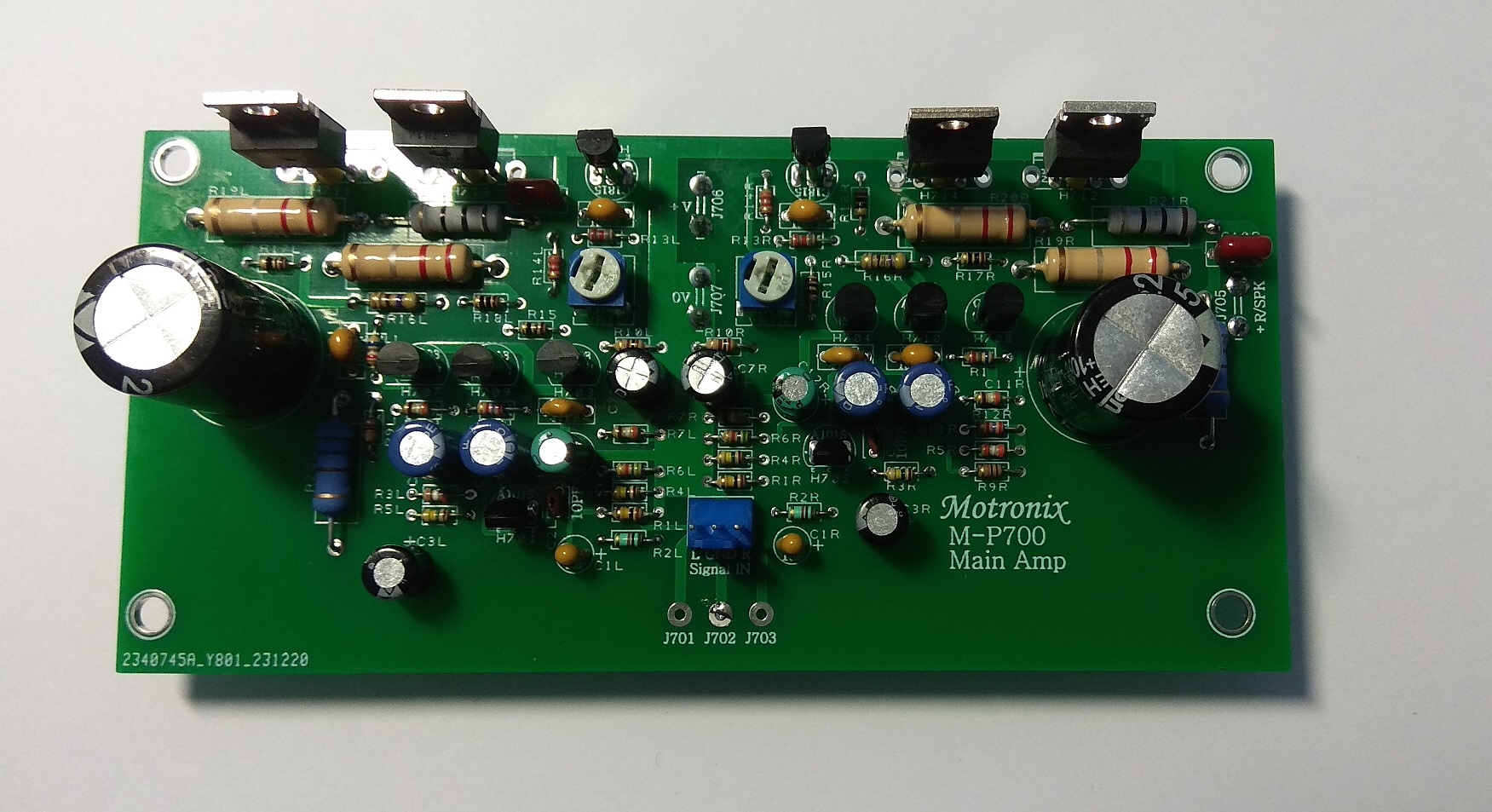

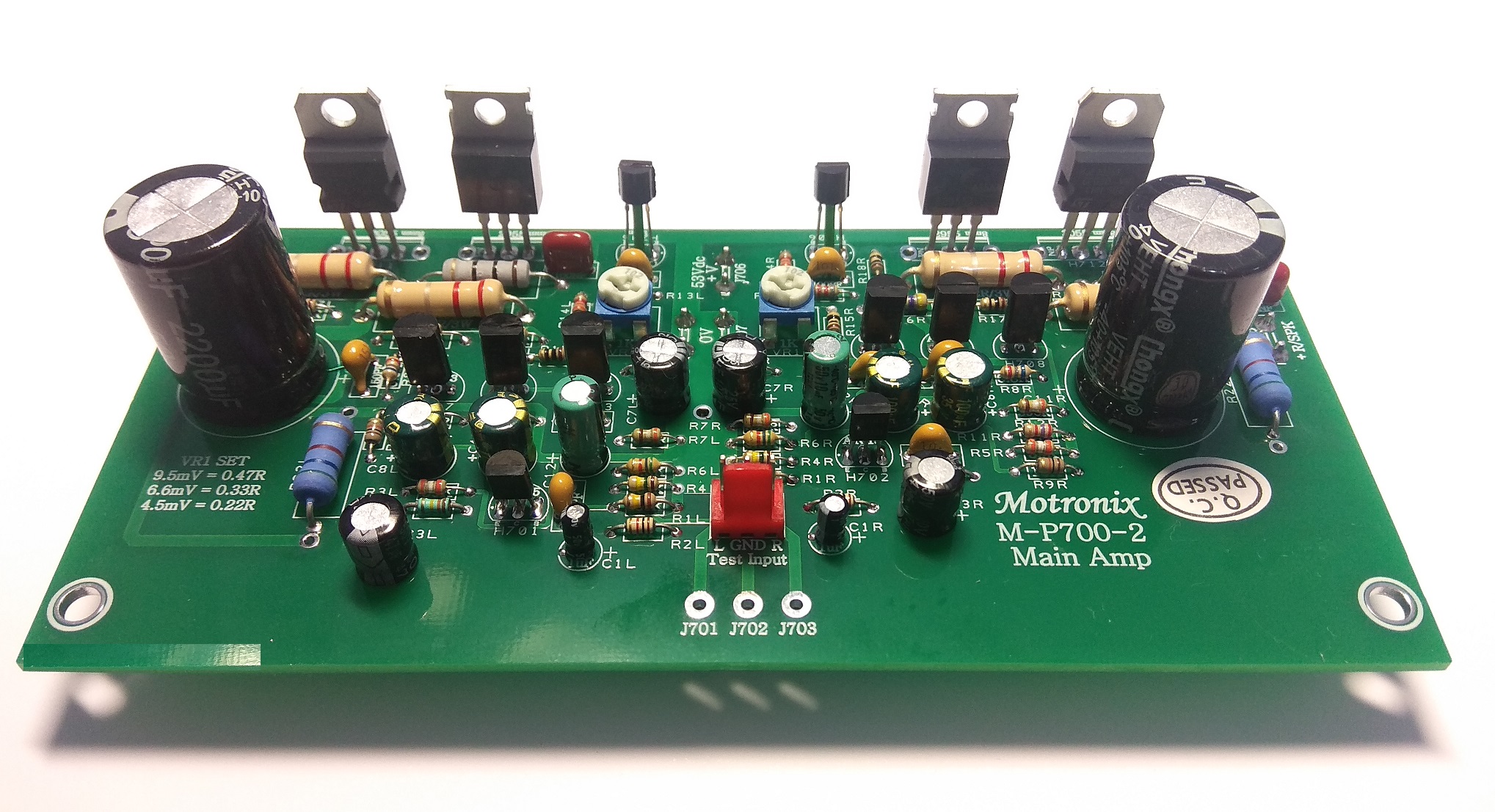

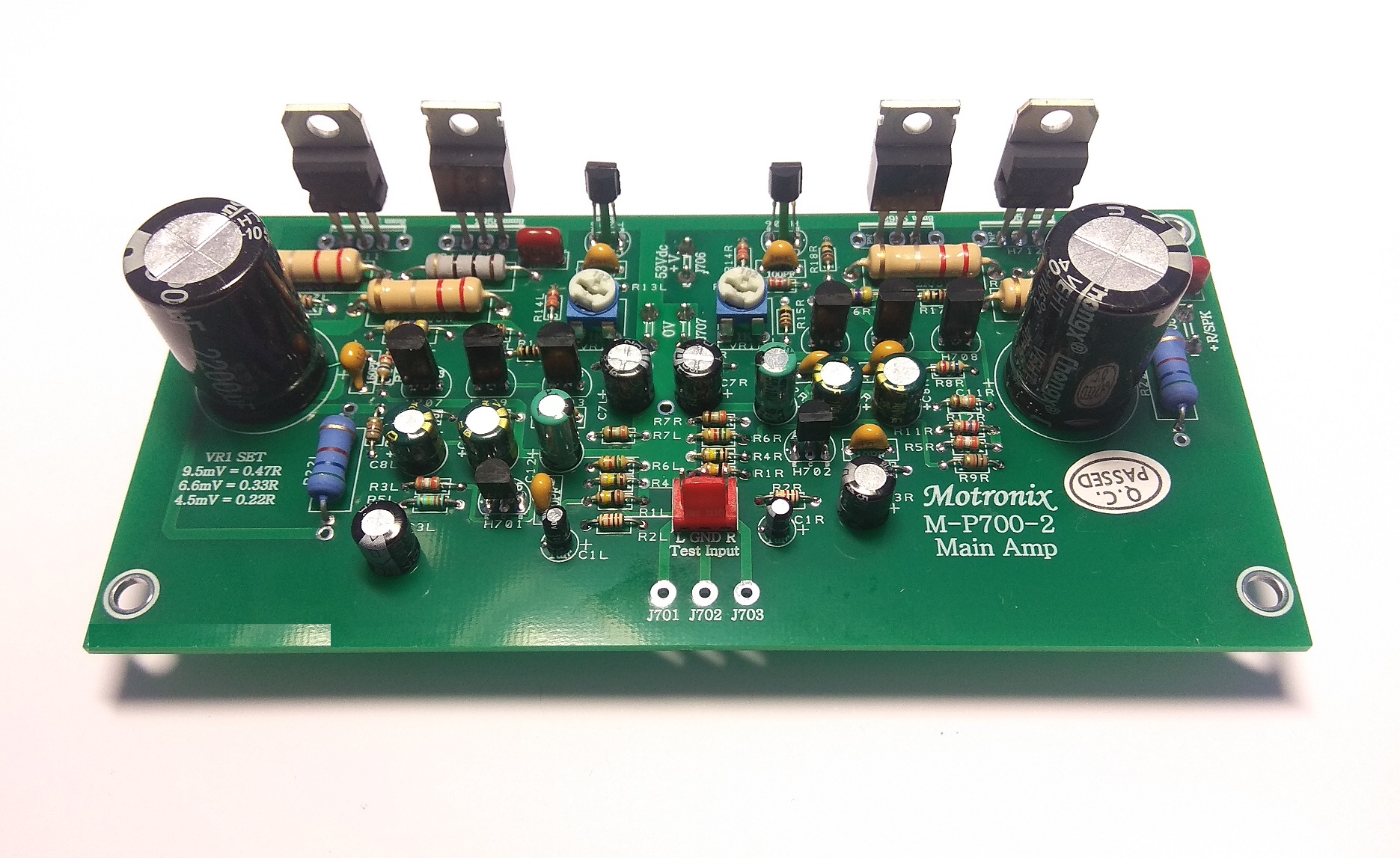

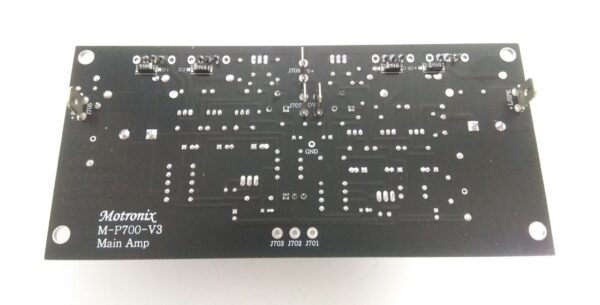

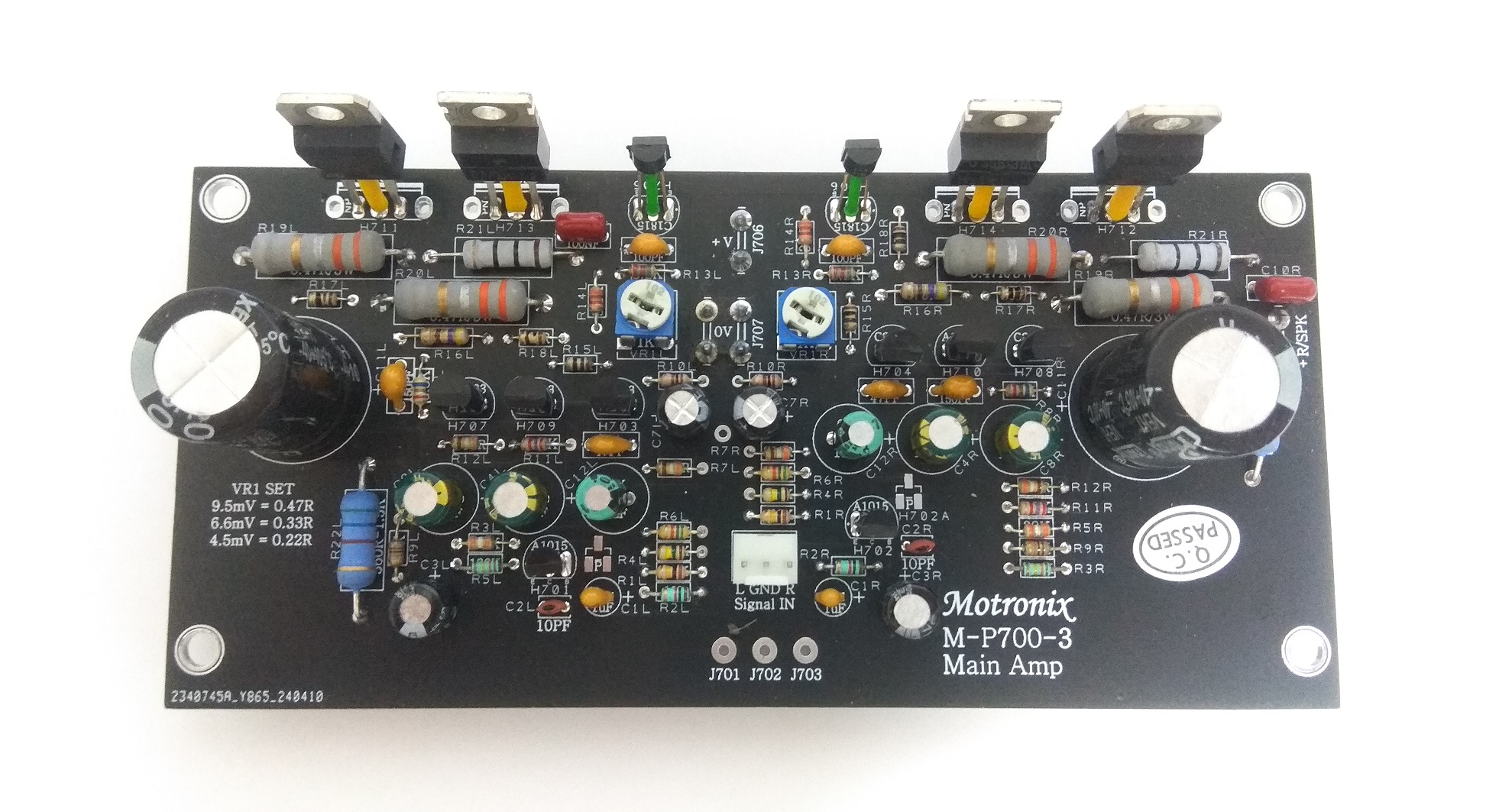

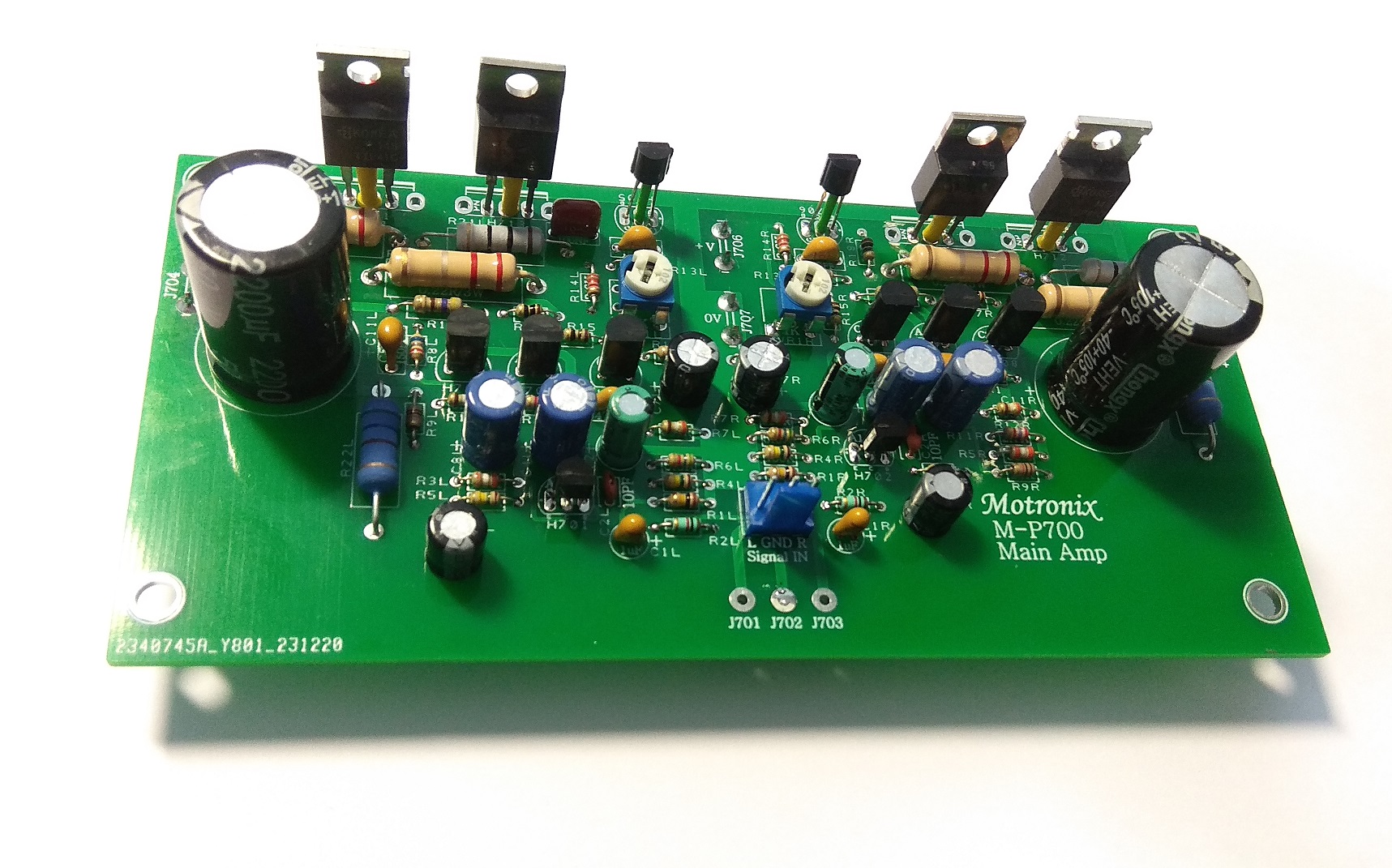

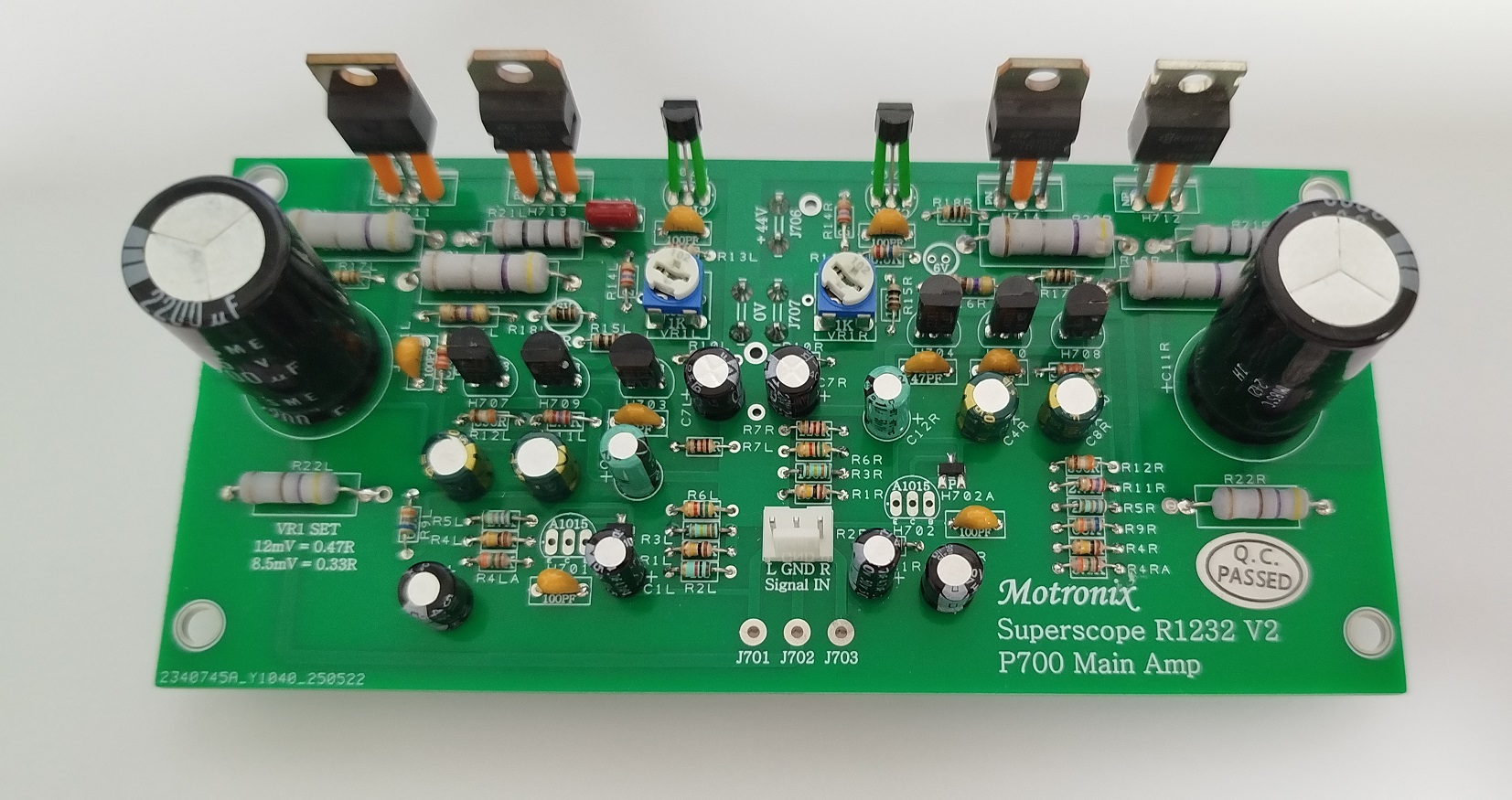

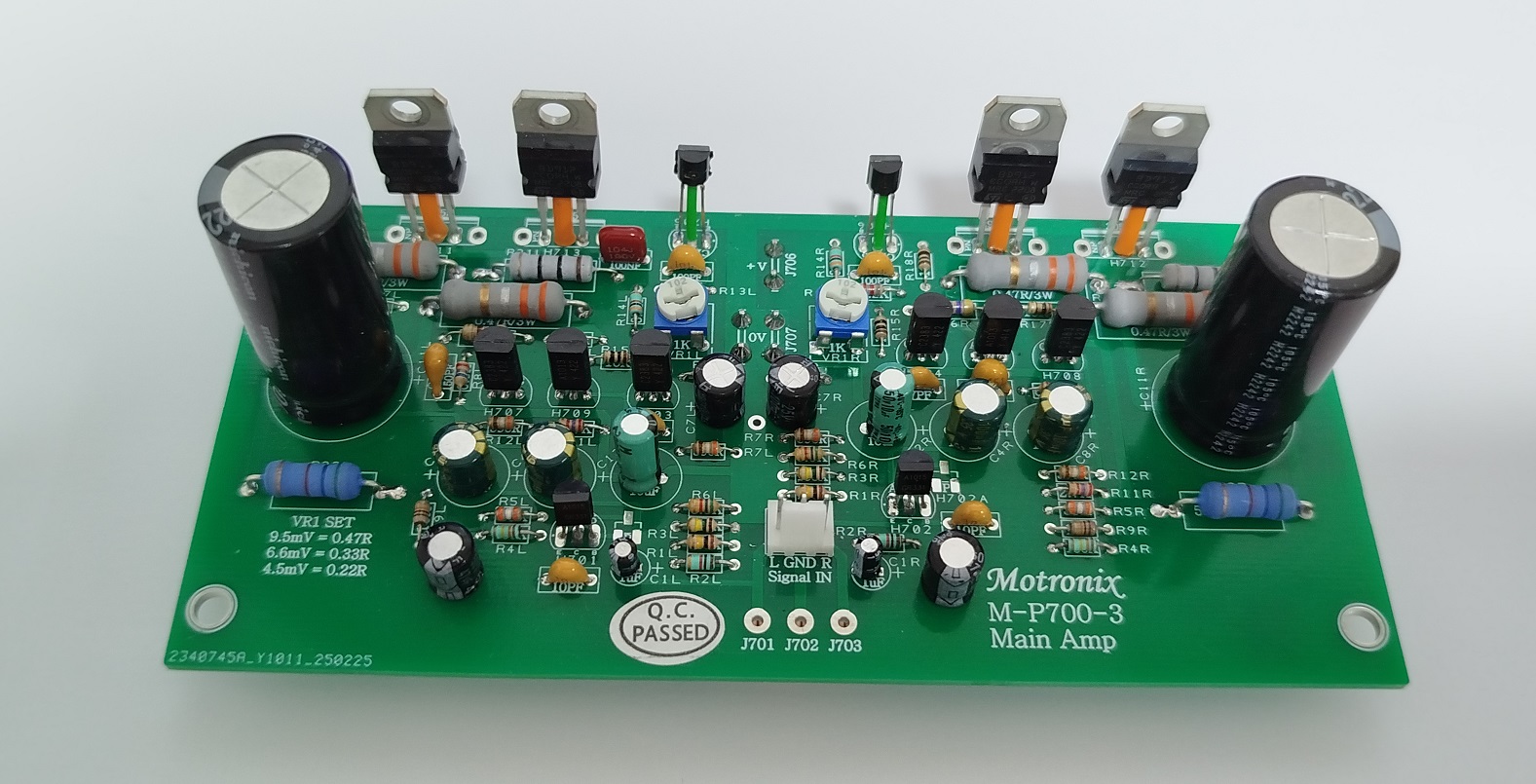

Marantz P700 Power Amplifier Board
Direct Replacement PCB

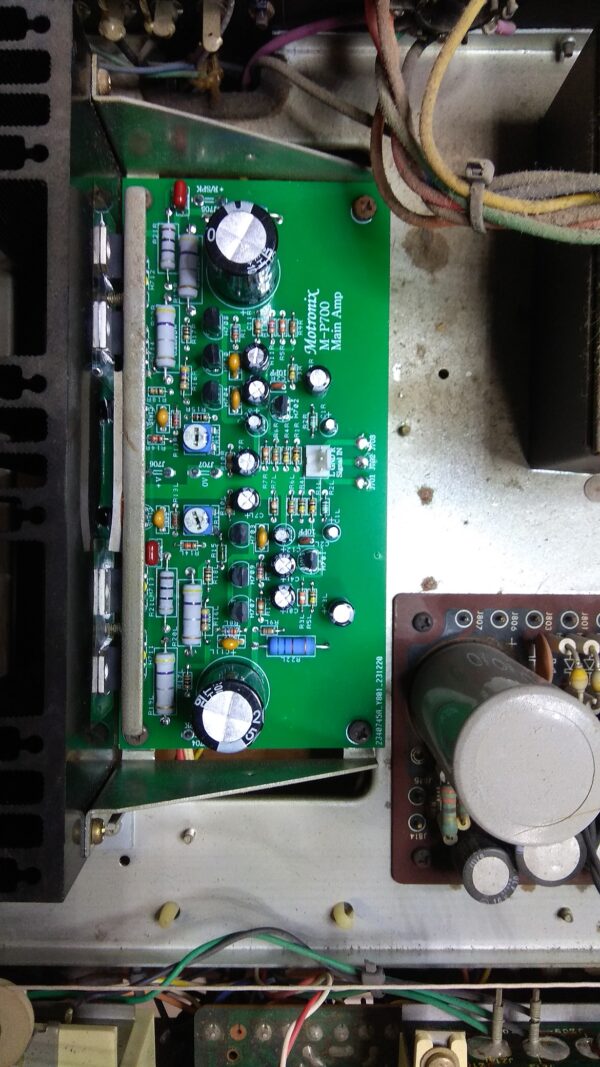

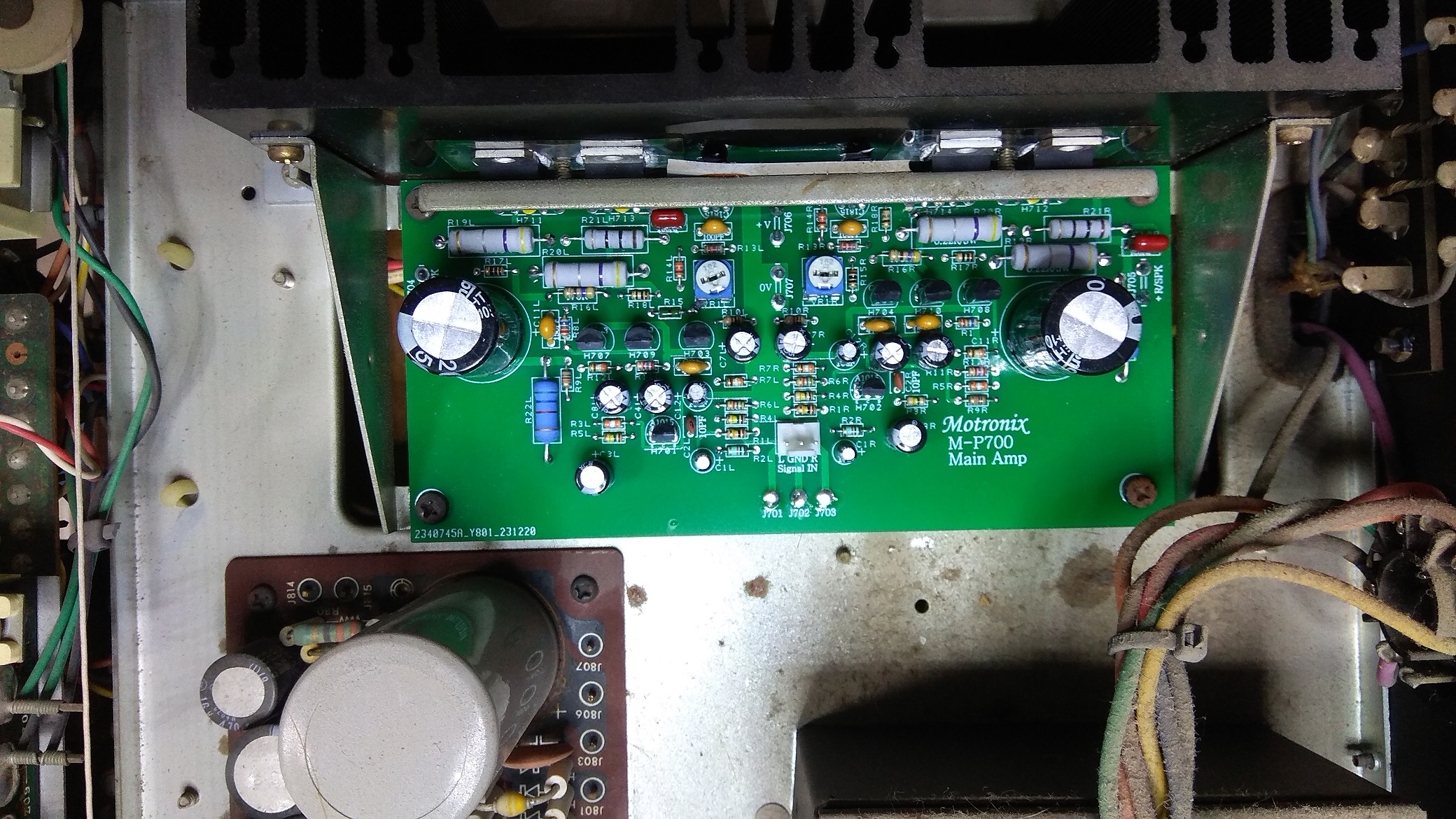

For use in 2215B,2216,2200 Models

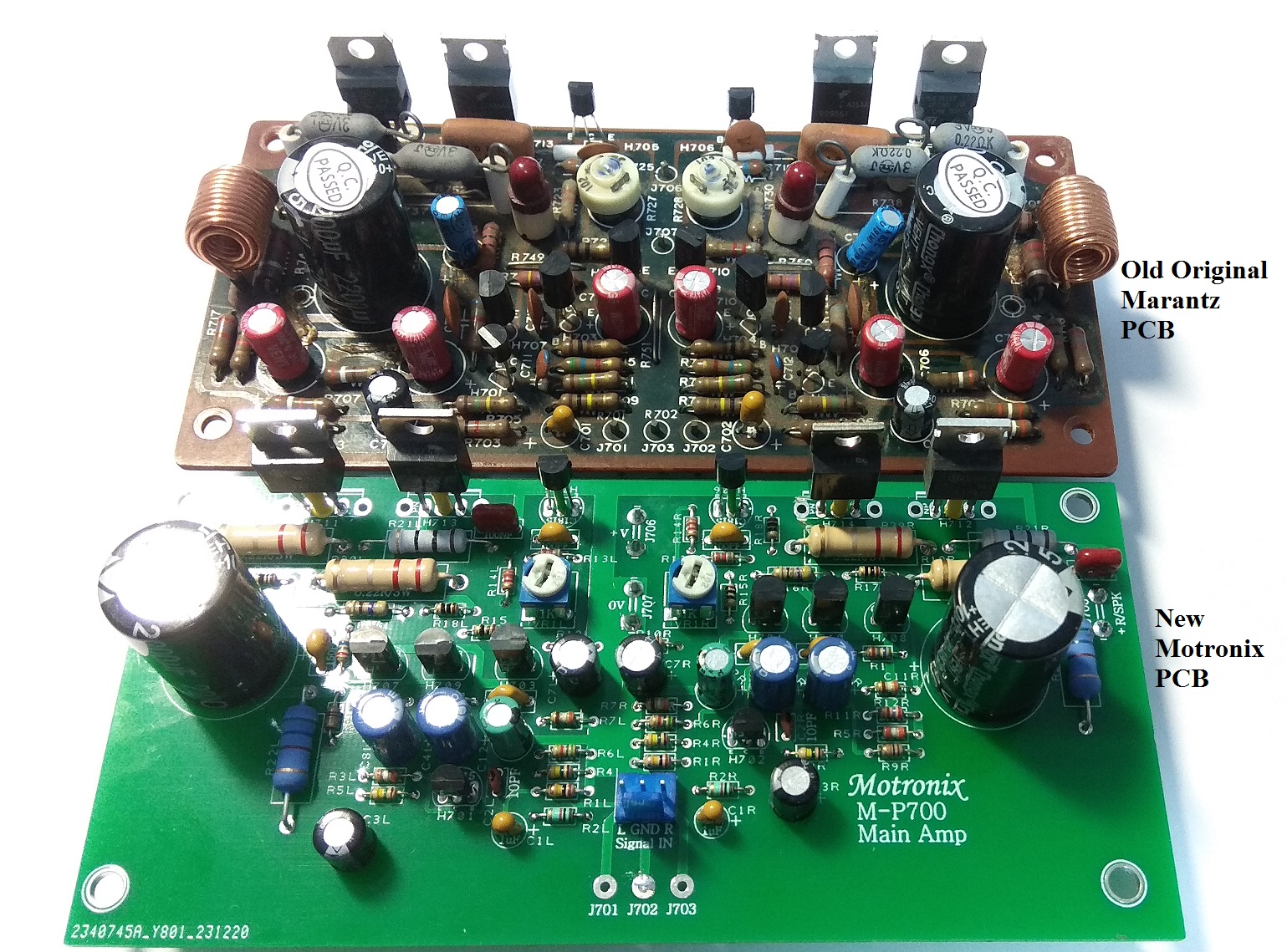

Exactly the same as the original Marantz Schematic Design

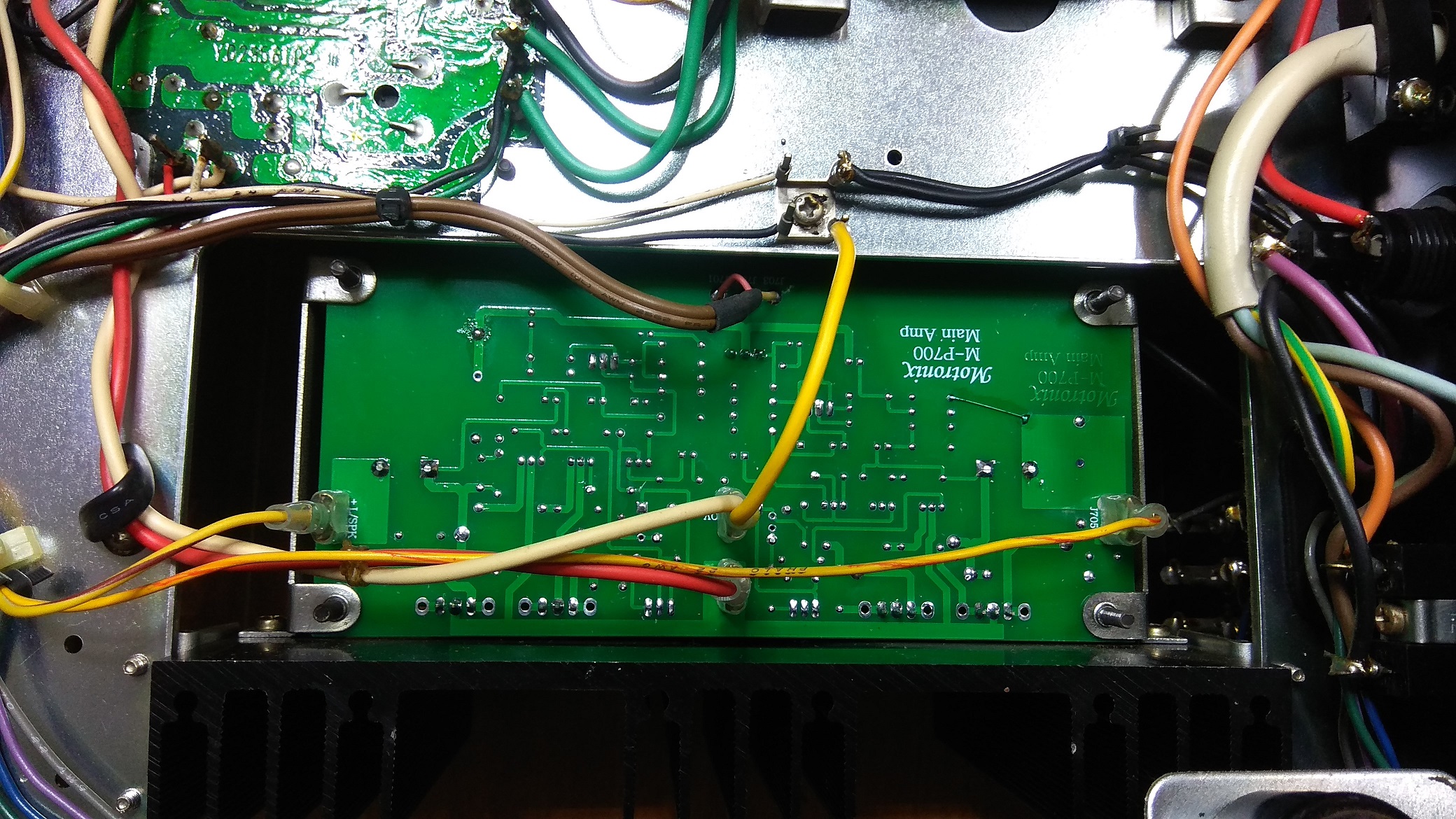

The wire connections are the same as the original PCB

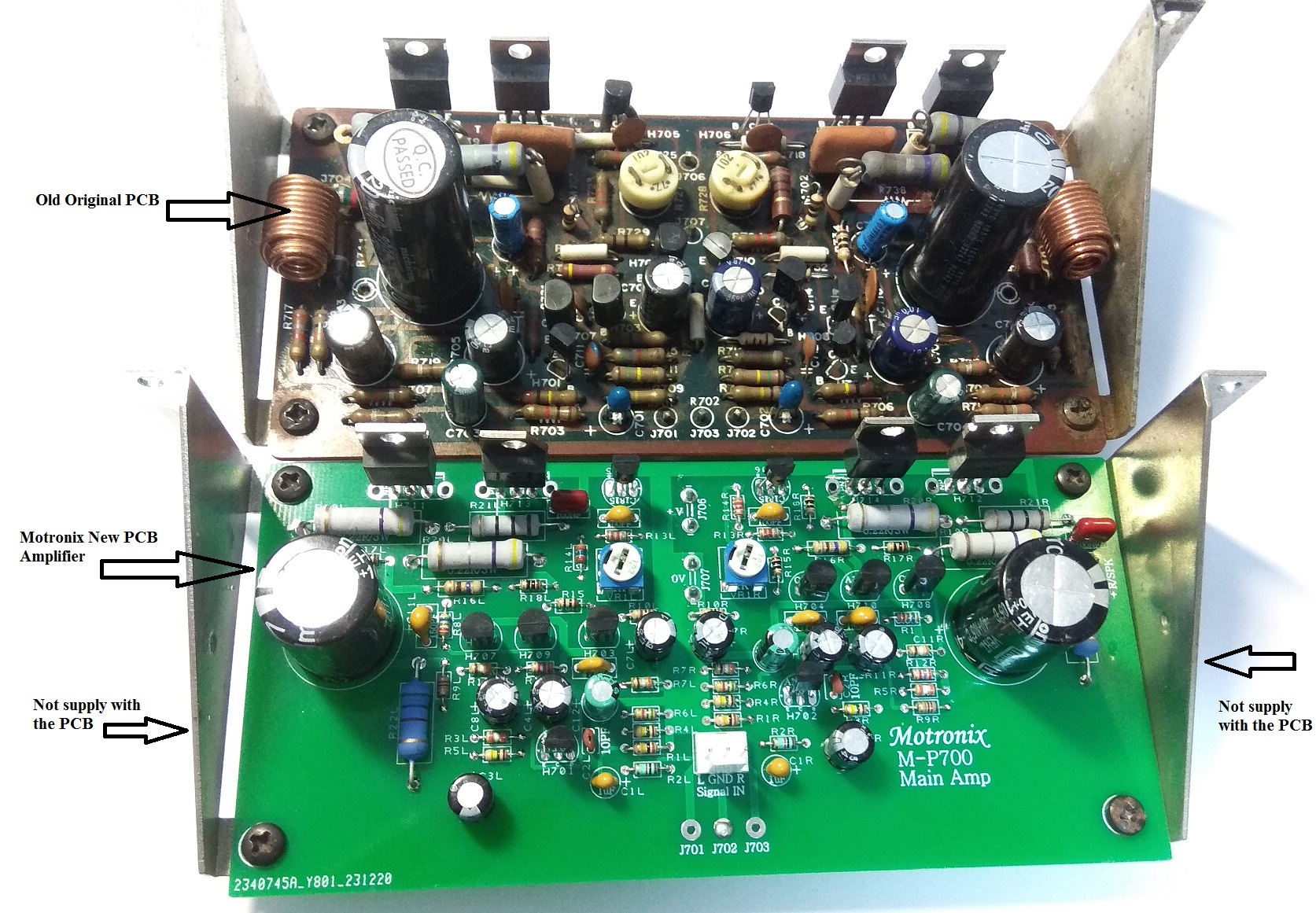

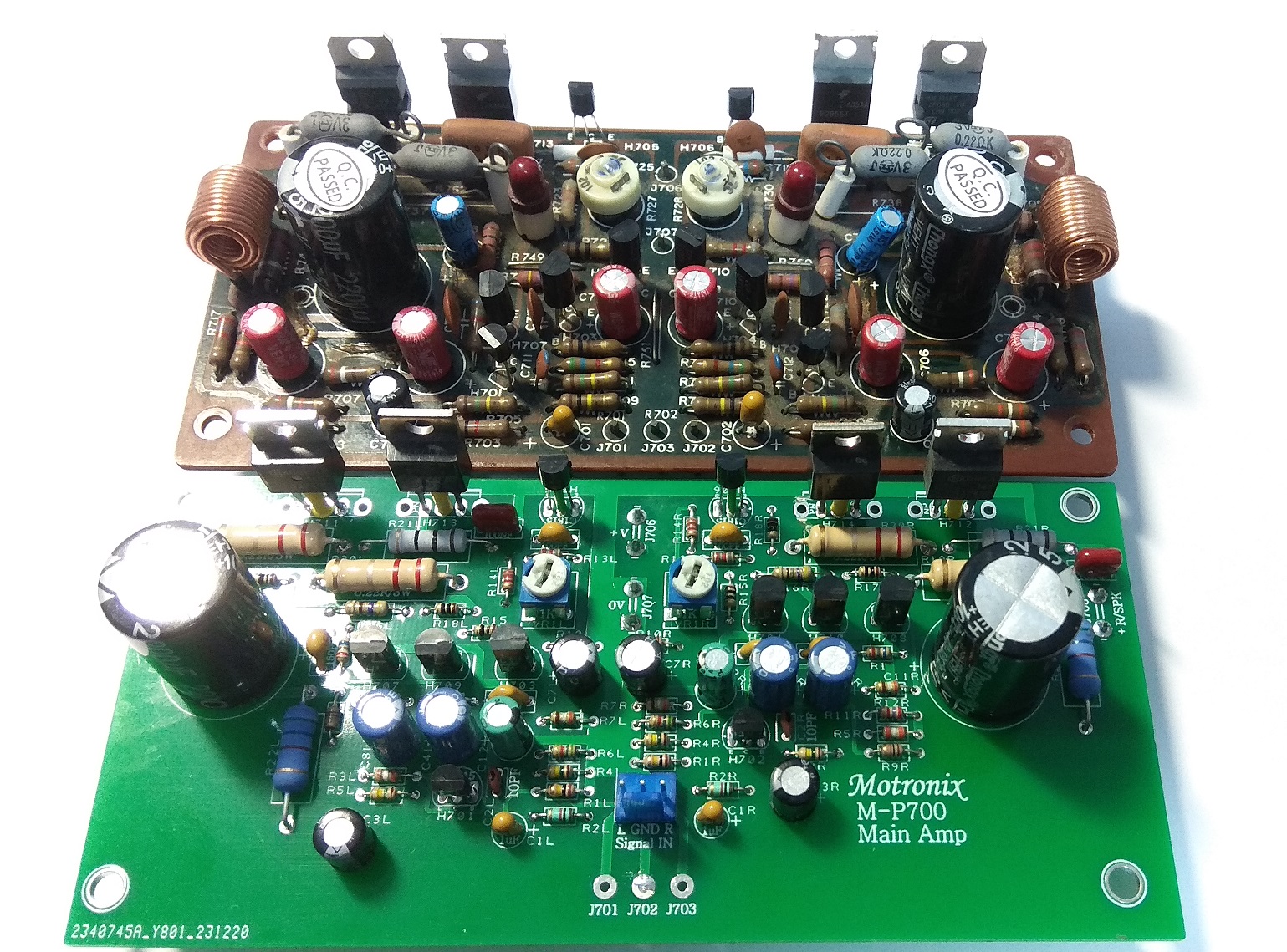

Excellent for restoring amplifiers whose printed circuit is damaged
This Amplifier PCB is assembled with new and high-quality components
Fully tested
High quality and reliability FR4 1.6MM PCB
This item is PCB with all components assembled ready to use (No bracket,Heatsink,Metal frame)
Working Voltage: Marantz Single 53Vdc (40-55Vdc max.)
Tested Power Output: 24Wrms/14Vrms @1Khz with 8 Ohm load P.S 53Vdc (Marantz declares 16 watt)
PCB Size: 140mm*65mm double-sided HAL,FR4 1.6MM
