MBHP-1 Professional Studio HiFi Headphones Amplifier With Balanced/Unbalanced Input

$20.00 $25.00

Clear
SKU: N/A Categories: ,

Description

MBHP-1

Professional Studio Stereo  Headphones Amplifier.

HiFi Super Quality Powerful Amplifier for DIY

With Balanced/Unbalanced Input

JFet Low Noise Input Stage

Low Noise High Quality Final Driver

Symmetrical Output Stage

Special Original Toshiba/ON Semi Final Transistors

 High quality and reliability FR4 1.6MM PCB

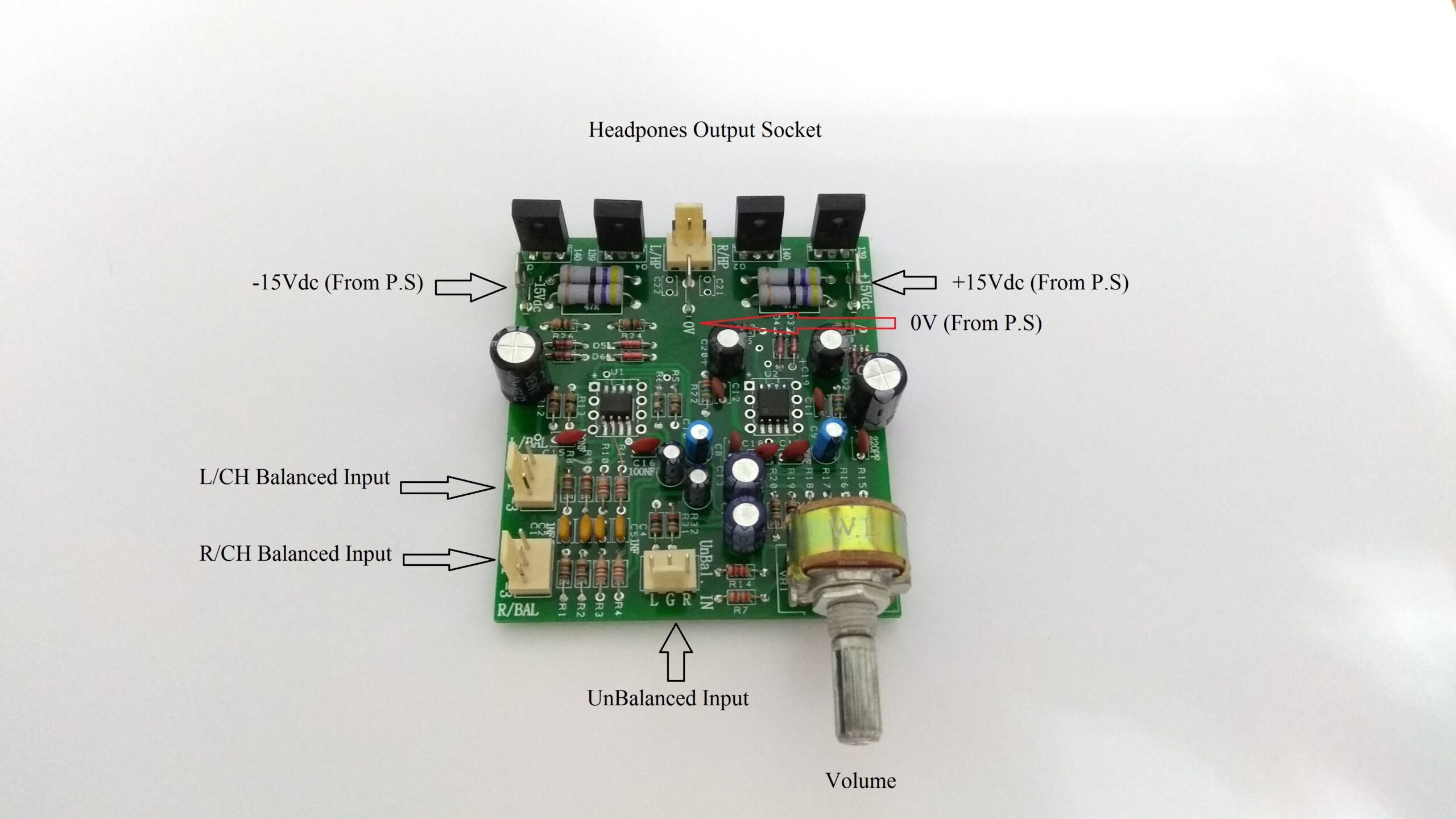

This item is PCB with all components assembled ready to use. only need Connect Power Supply Signal In Signal to H.P

The recommended Voltage for the Best Performance is: 2X15Vdc

Working Voltage: Min. 2x12Vdc to Max. 2x18Vdc (Must be regulated)

Current Consumption: 9mA (with no signal) 130mA Full power with 32 Ohm H.P

Frequency Response: 15Hz-22,000Hz

Power Out: 400mW Each Ch.With 32 Ohm Headphones (3.6V rms)

Input sensitivity: 1V 0dbv (To max. power drive)

PCB Size: 59mm*39mm double-sided HAL,FR4 1.6MM

Recommended Power Supply:

Dual AC to DC : https://www.ebay.com/itm/173121178263

Single AC to Dual DC : https://www.ebay.com/itm/173841815663

Single DC to Dual DC : https://www.ebay.com/itm/172751512784

Recommended Headphones Amplifier DC Protection with Turn On Delay Model DCP-HP1

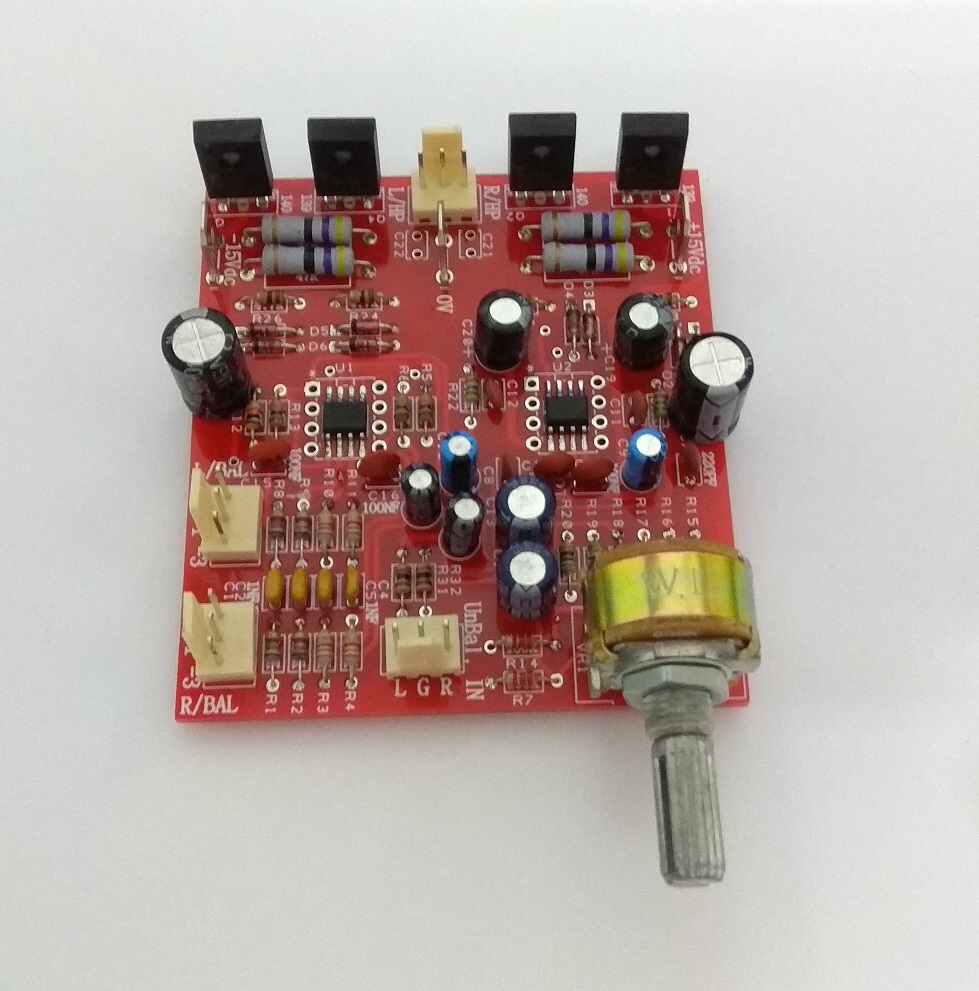

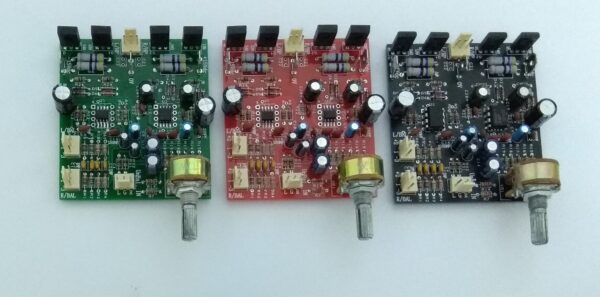

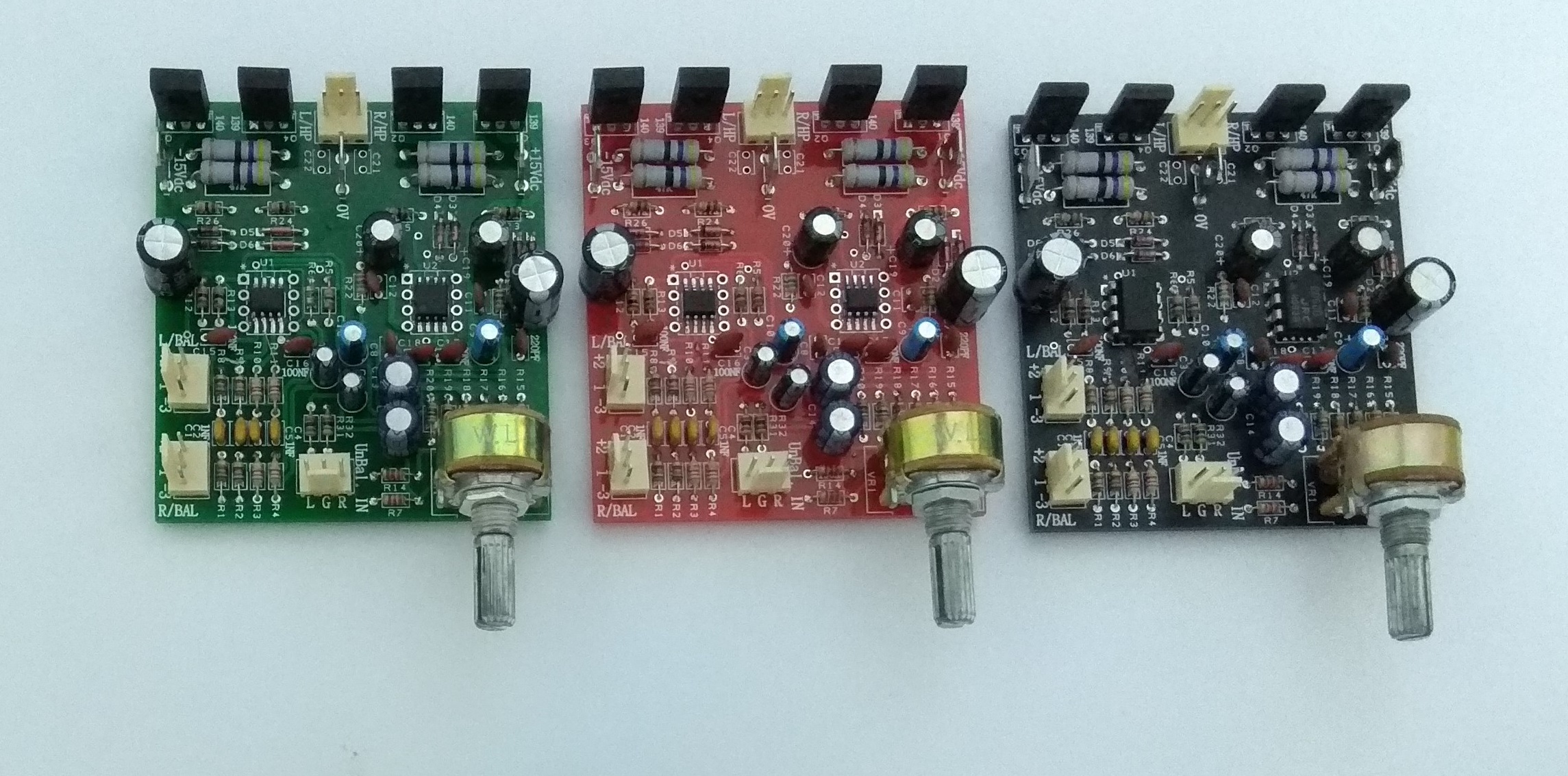

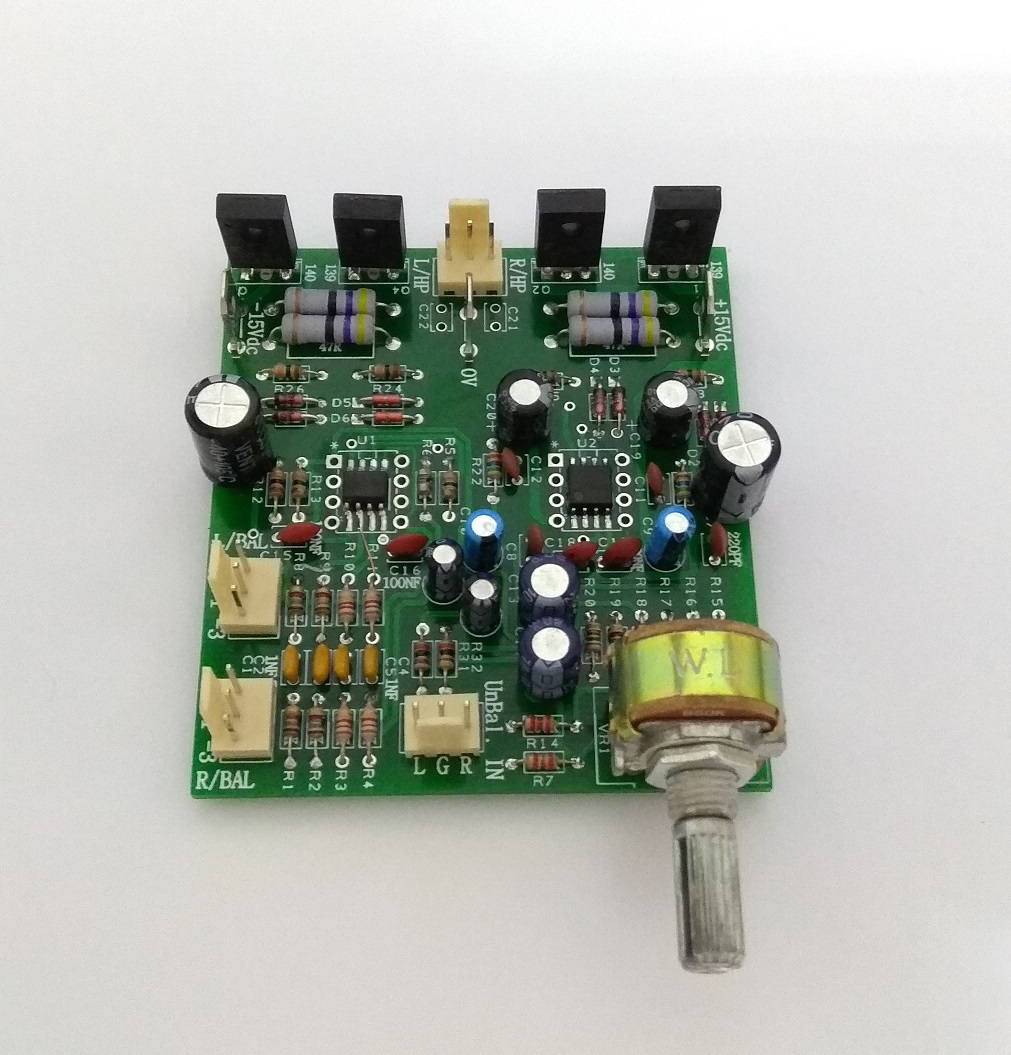

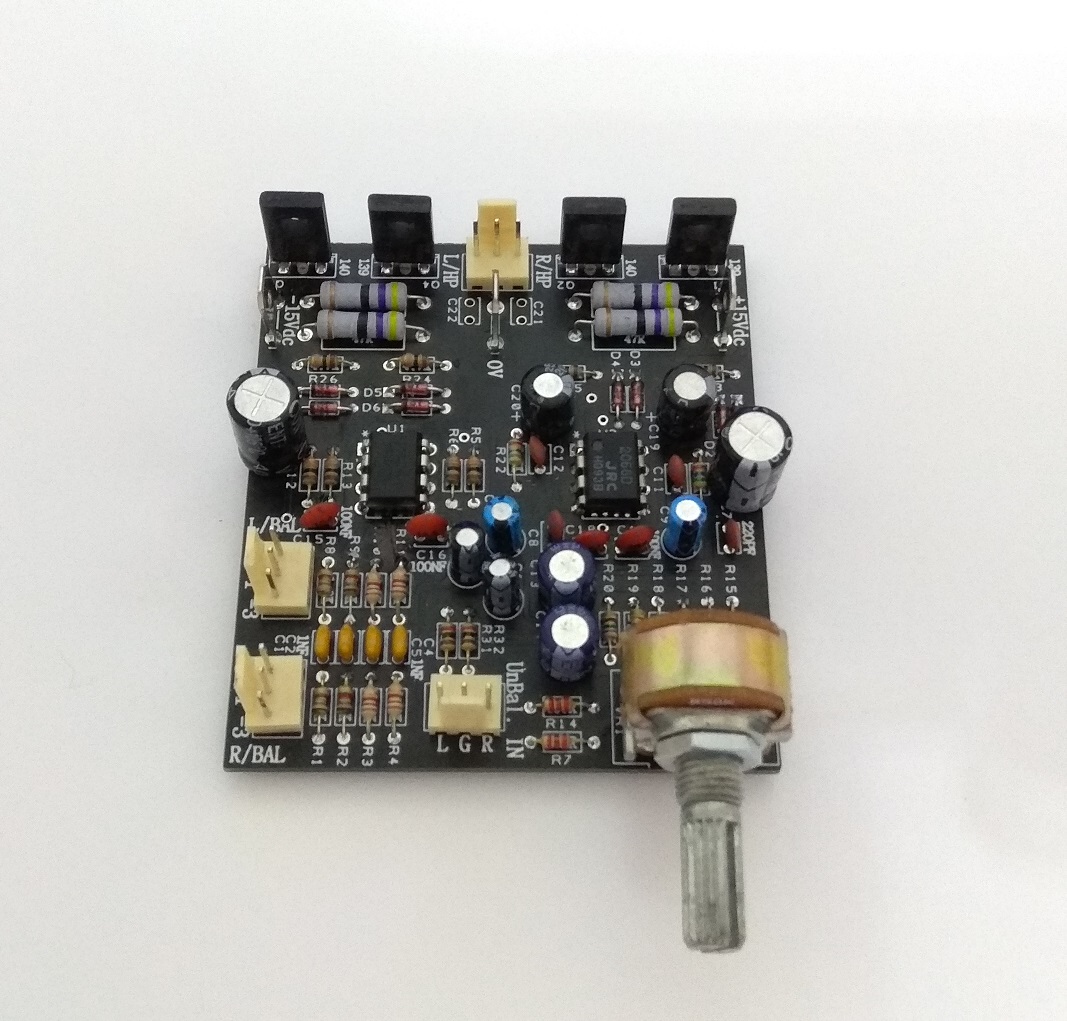

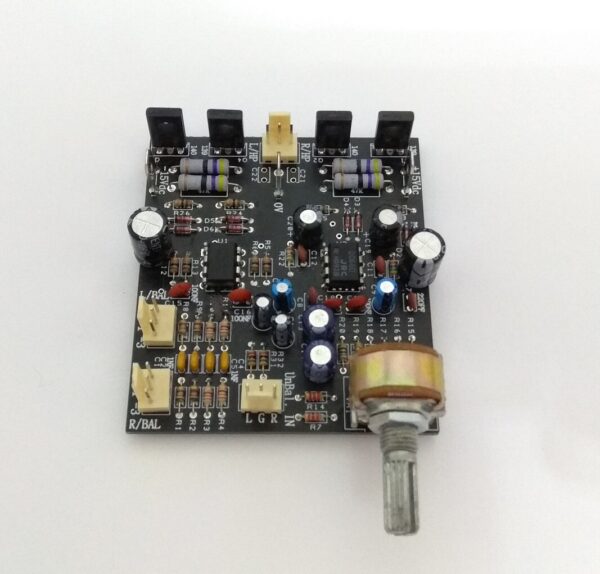

Order Option: Assembled 3 Color PCB

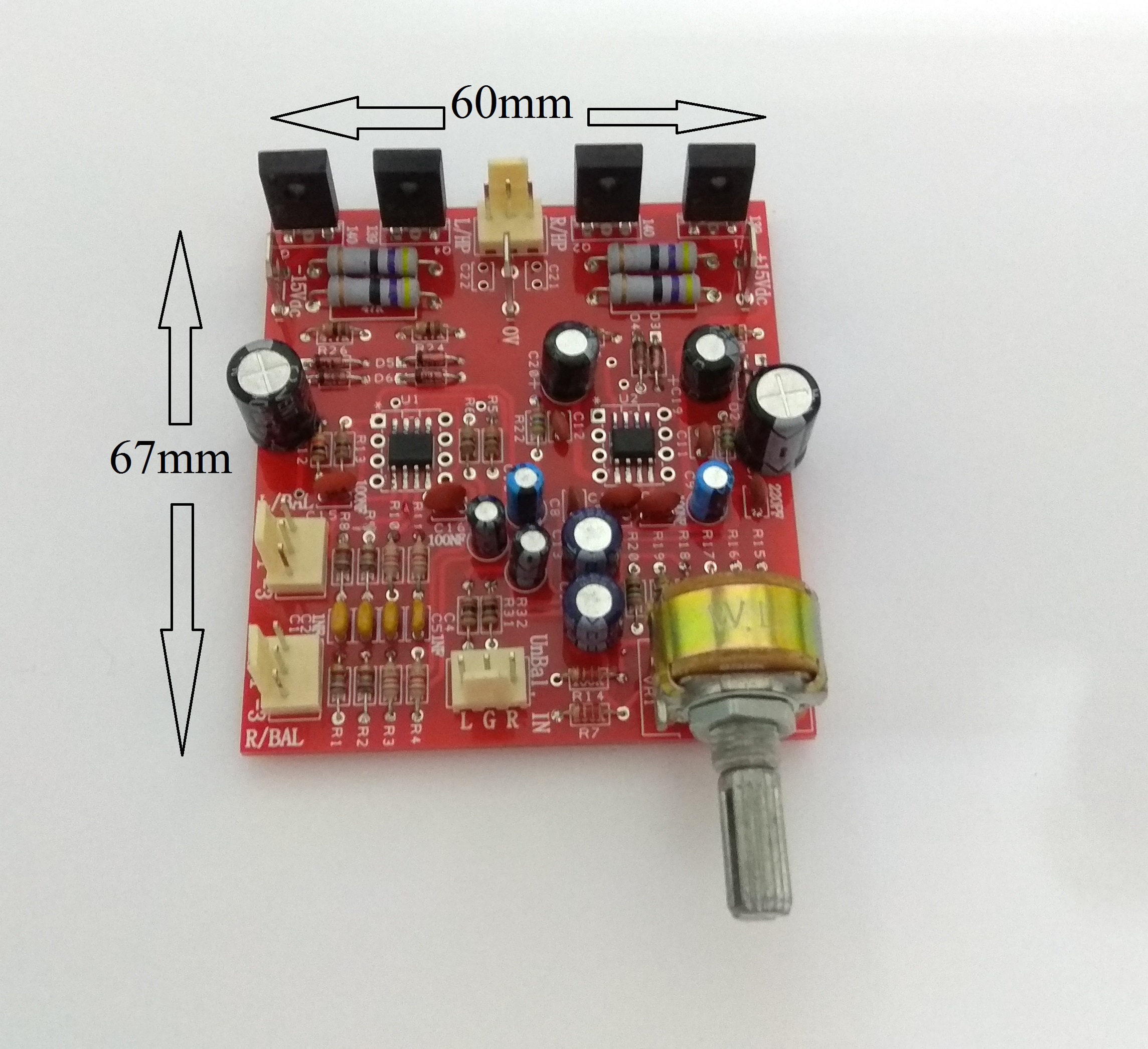

PCB Size:

 67.1mm*60mm double-sided Green/Red/Black HAL,FR4 1.6MM

ApplicationsHeadphones Amplifier
