Description

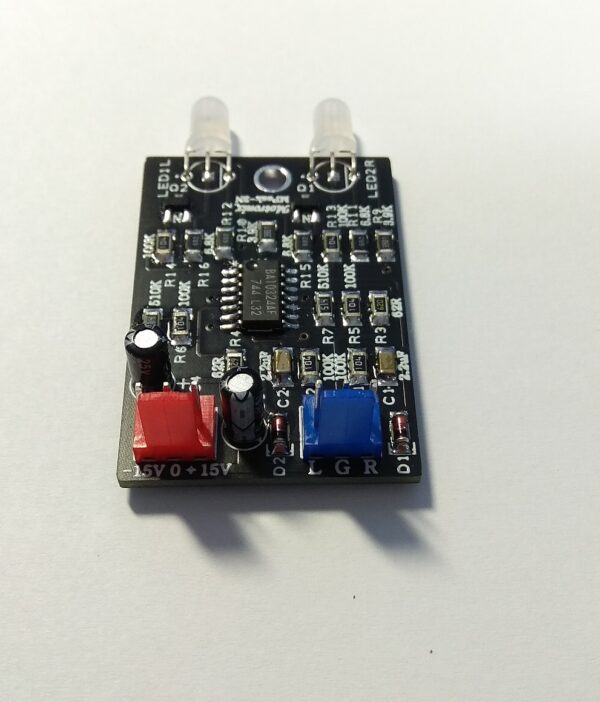

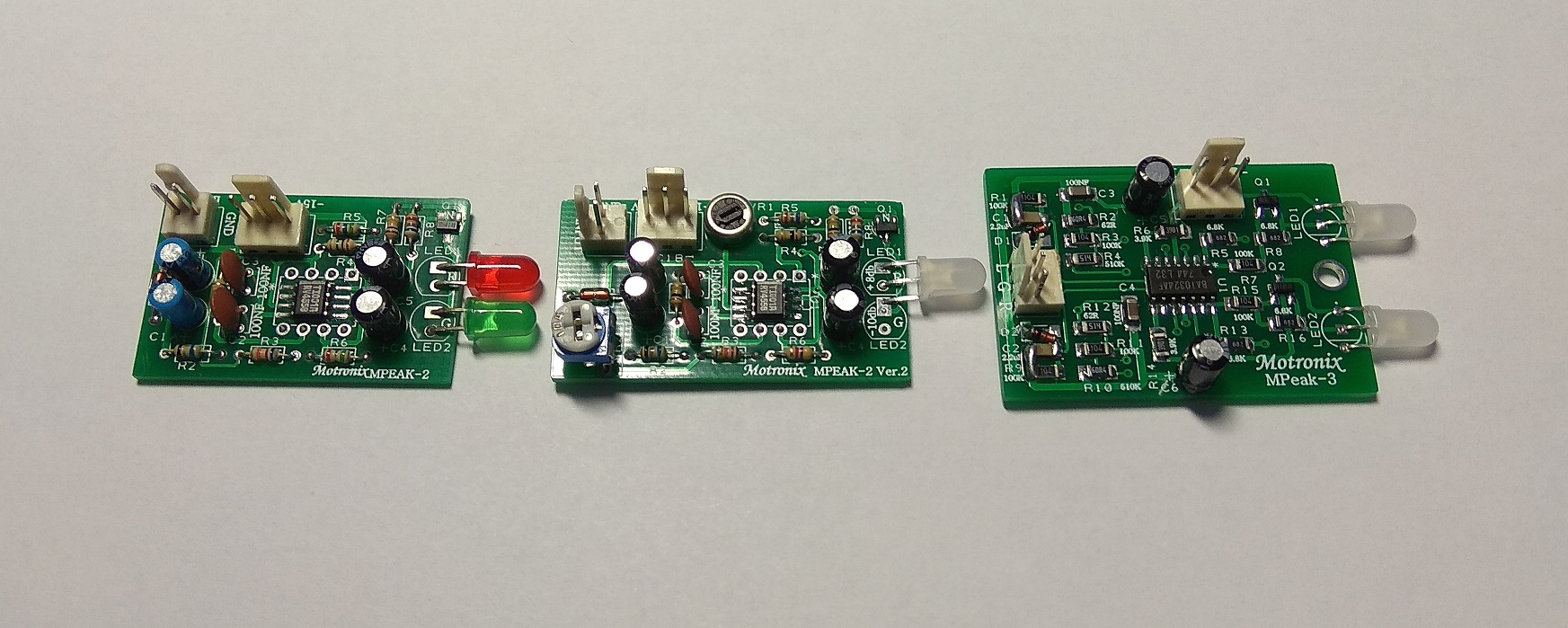

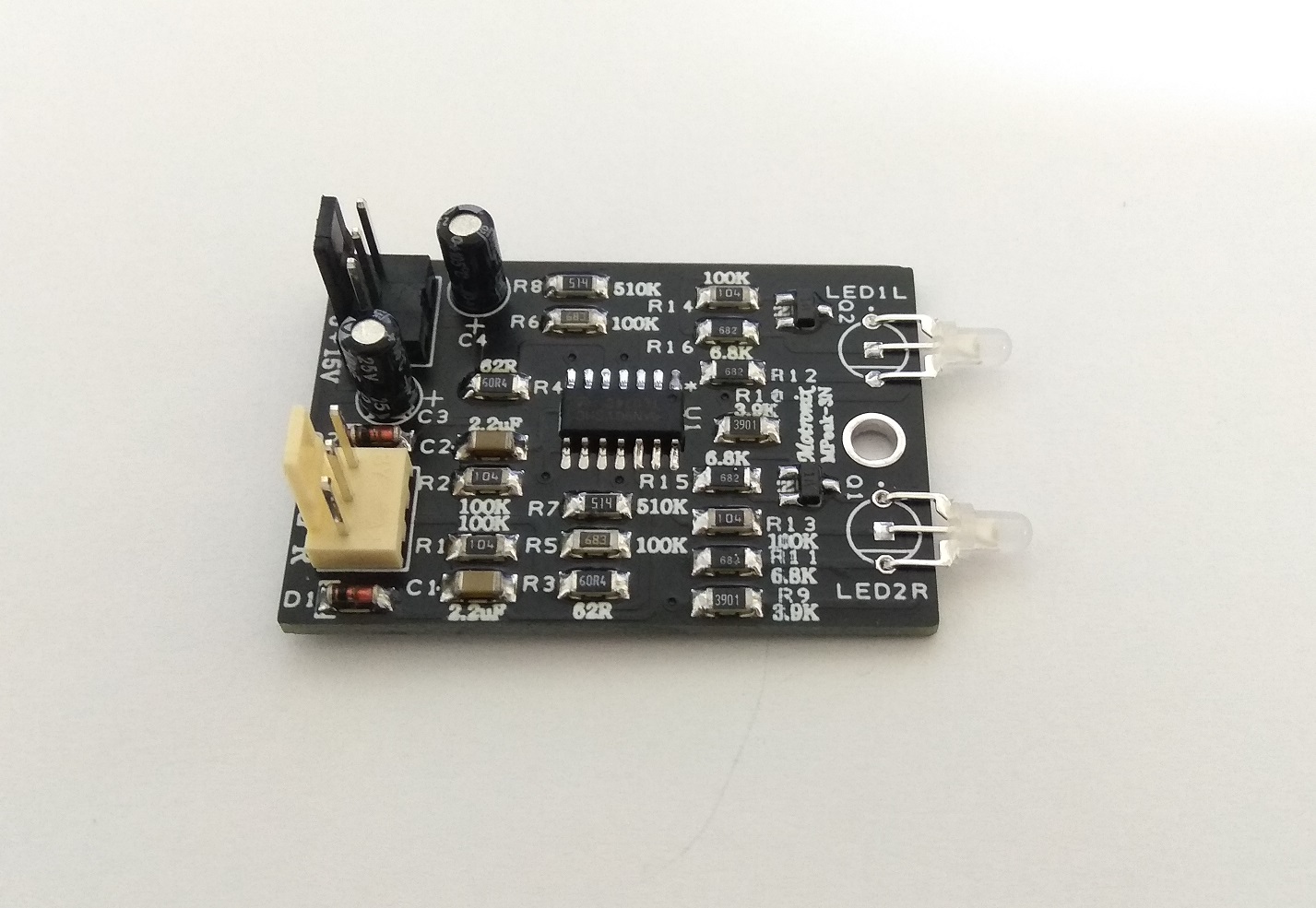

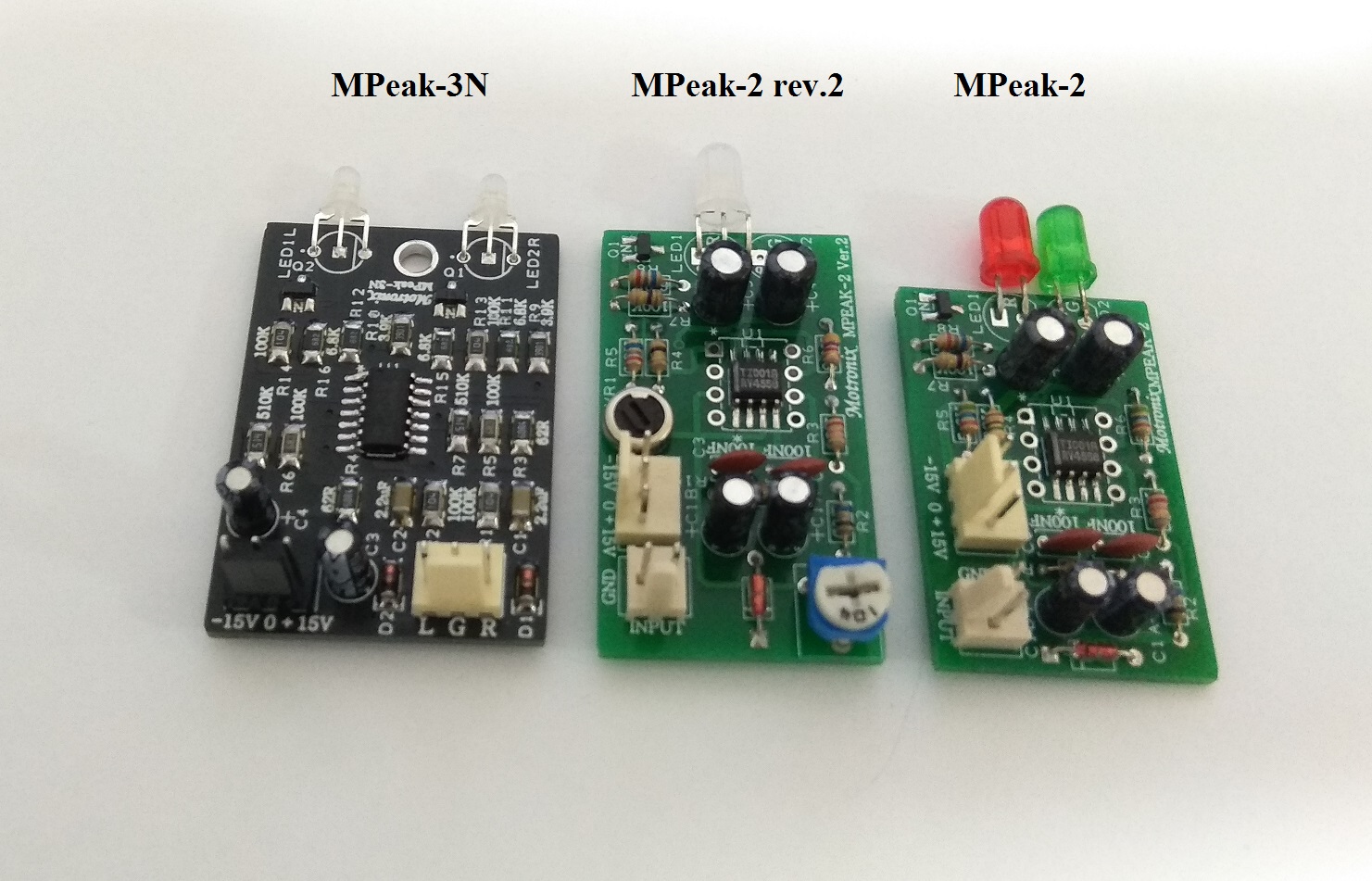

MPeak-3N

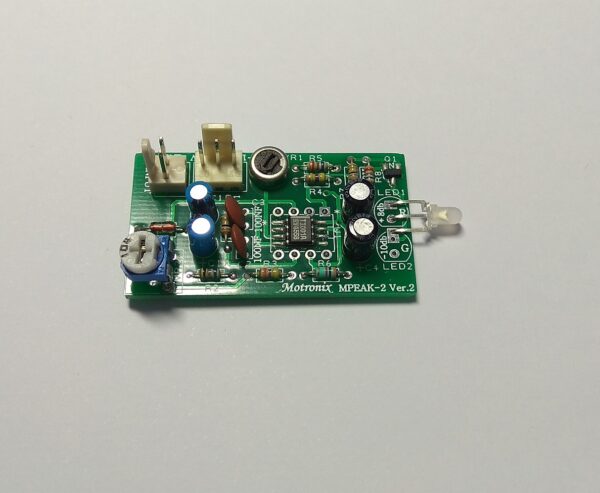

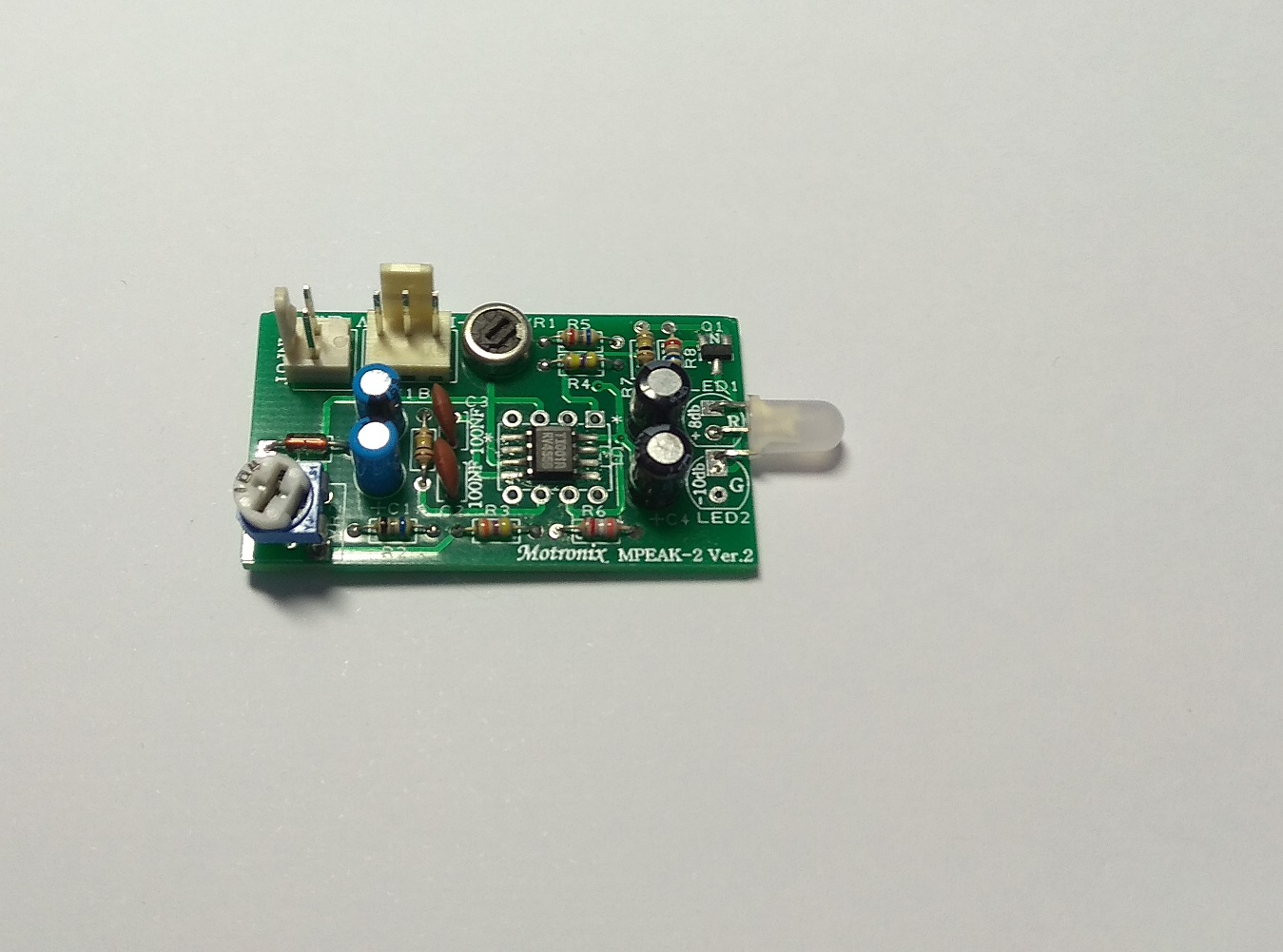

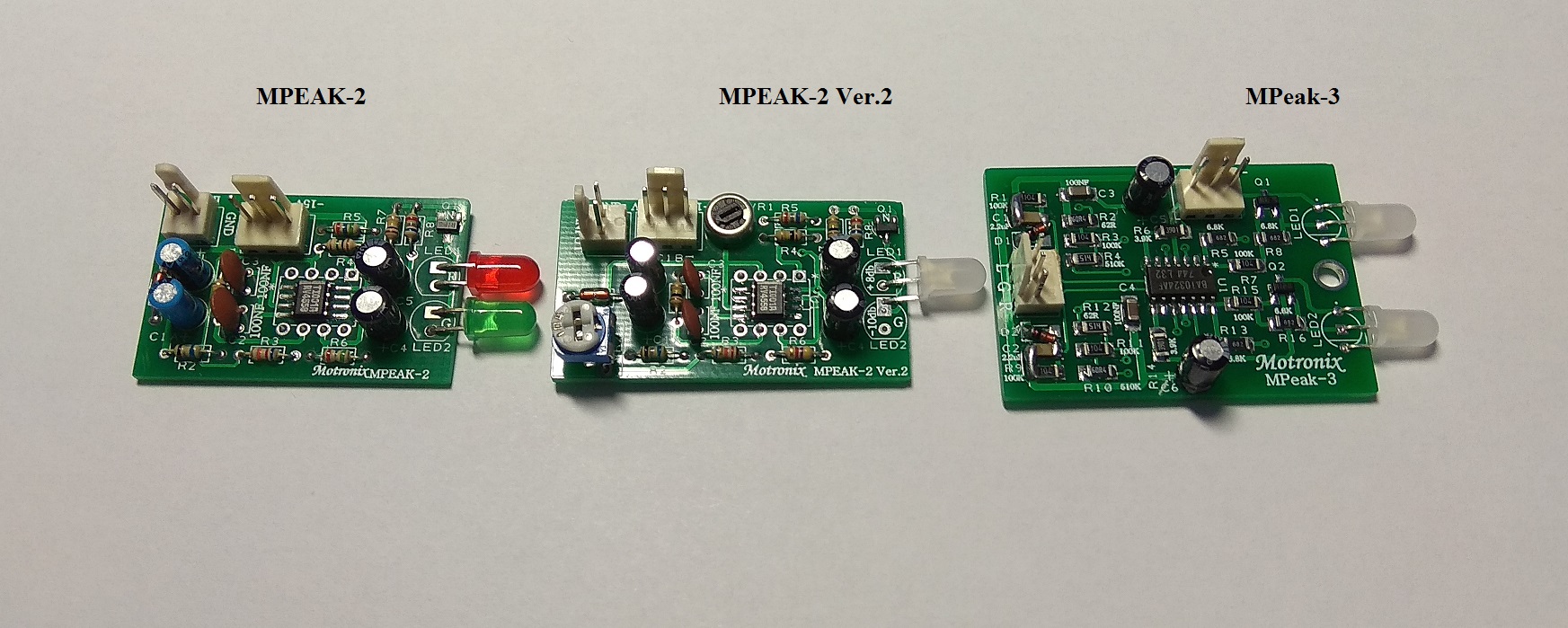

MPEAK-2 Ver.2

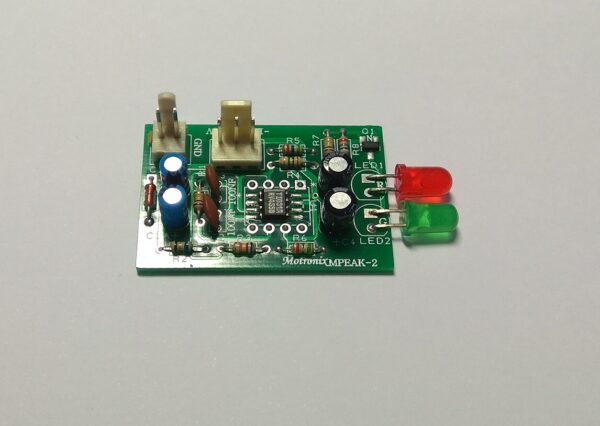

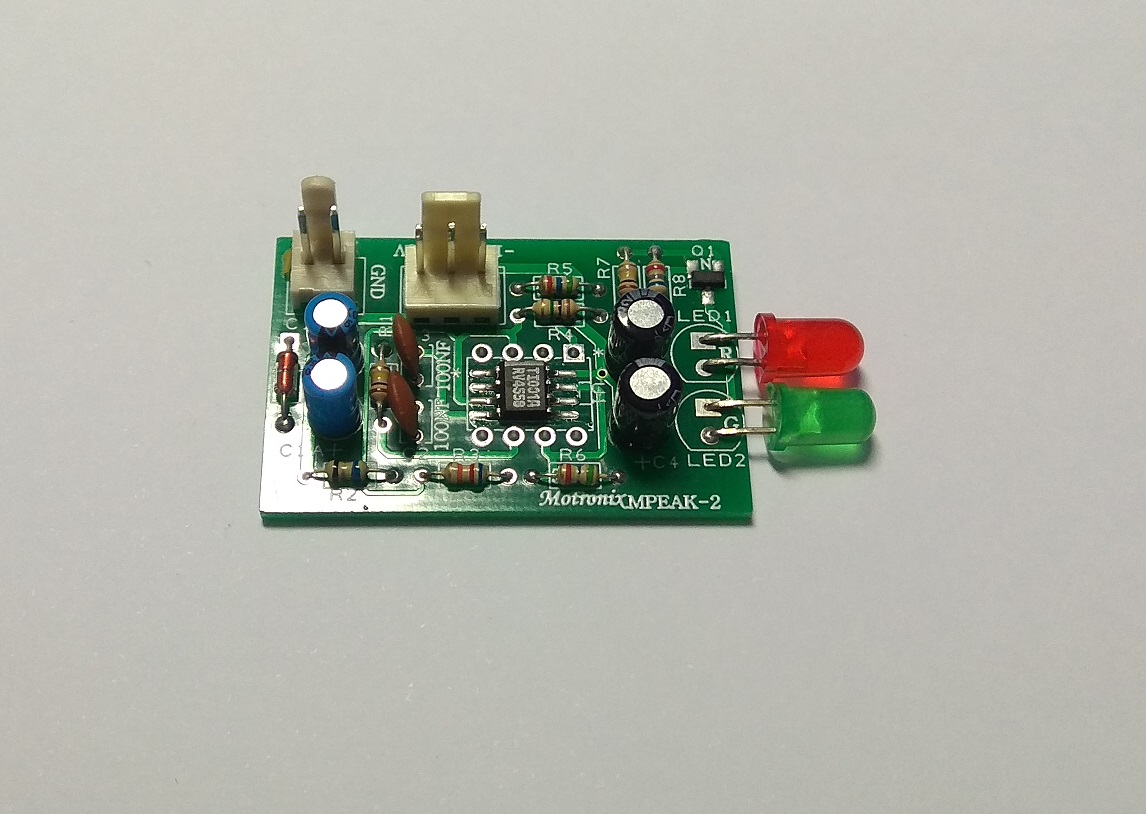

MPEAK-2
1 or 2 CH. Audio Siganl Detector PCB For Pre/Power Amplifiers etc.
Auto color change Green to Red

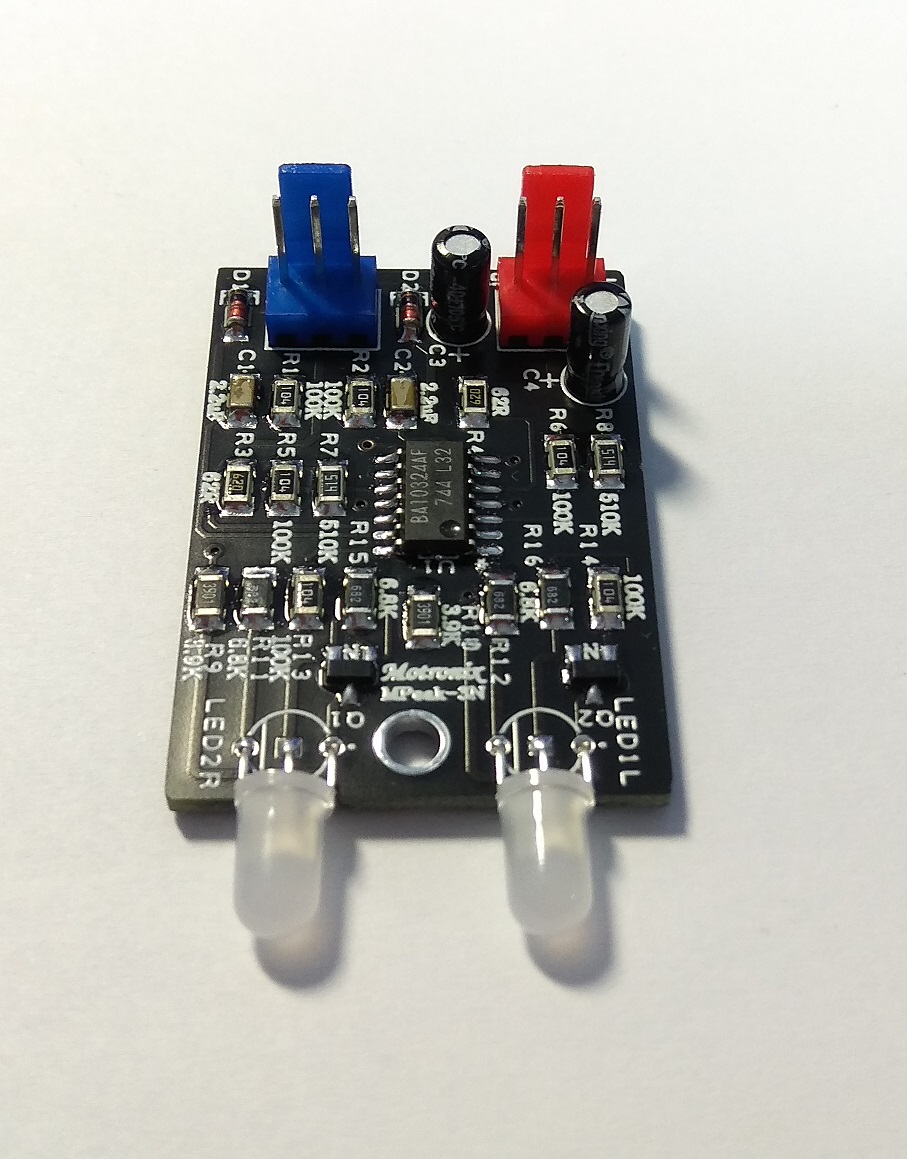

MPeak-3 is 2ch (Stereo) 2 Dual color (We send Randomly) 3mm or 5mm Led indicator Green for Signal Red for over load
MPeak-2 Ver.2 is 1ch (Mono) 1 Dual color (We send Randomly) 3mm or 5mm Led indicator Green for Signal Red for over load
MPeak-2 is 1ch (Mono) (We send Randomly) 3mm or 5mm Led indicator Green for Signal Red for over load
Green LED Start at -10dbu (150mV)
Red LED Start at +6dbu (1.6V)
Working Voltage: Dual +/-9 to +/-15Vdc +V 0 -V (+/-15Vdc Recommended)
PCB Size:

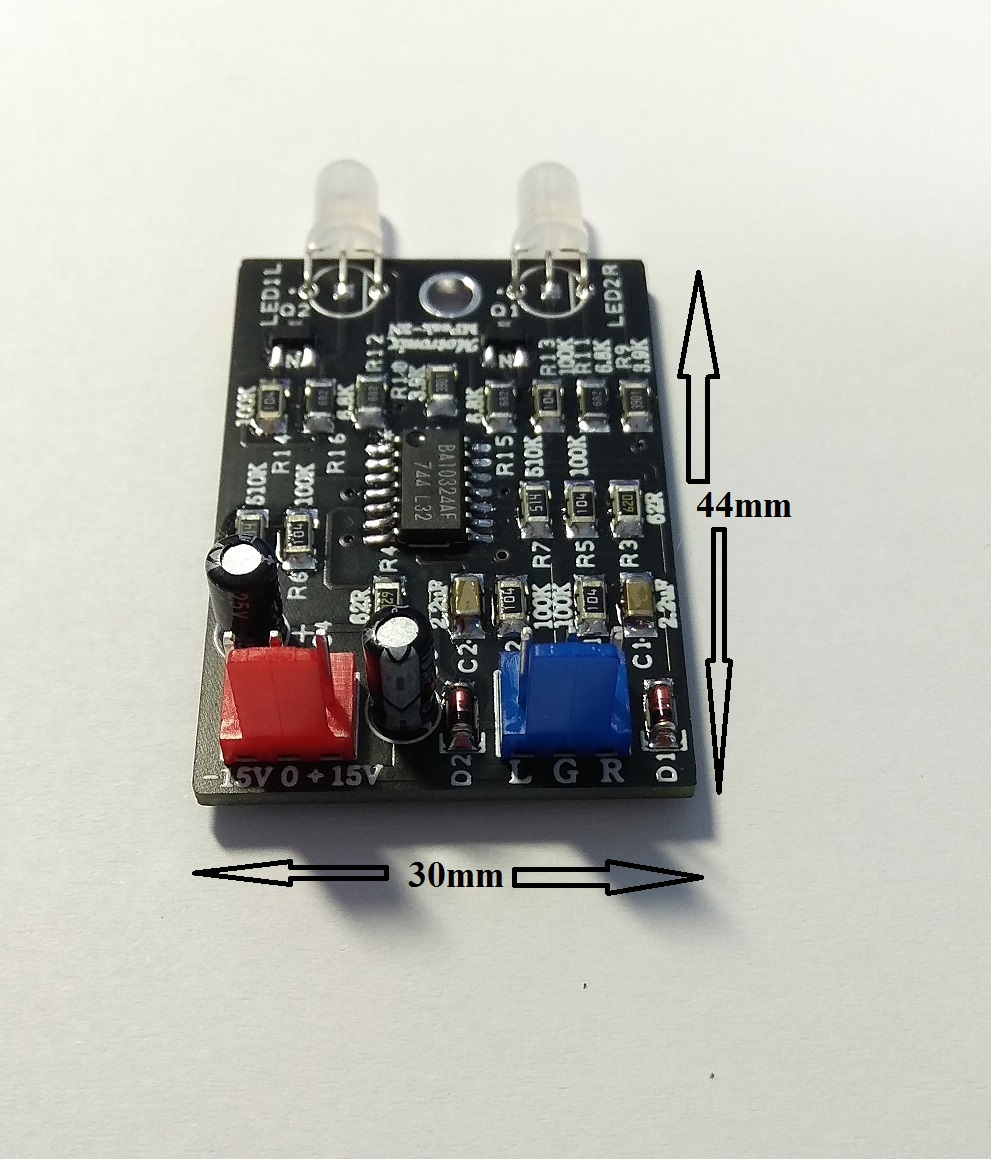

MPeak-3N : 44mm*30mm Green double-sided HAL,FR4 1.6MM
MPEAK-2 Ver.2 : 46mm*26mm Green double-sided HAL,FR4 1.6MM
MPEAK-2 : 39mm*26mm Green double-sided HAL,FR4 1.6MM
Applications: DIY Home / Integrated Amplifier / Pre-Amplifier / Test Equipment
