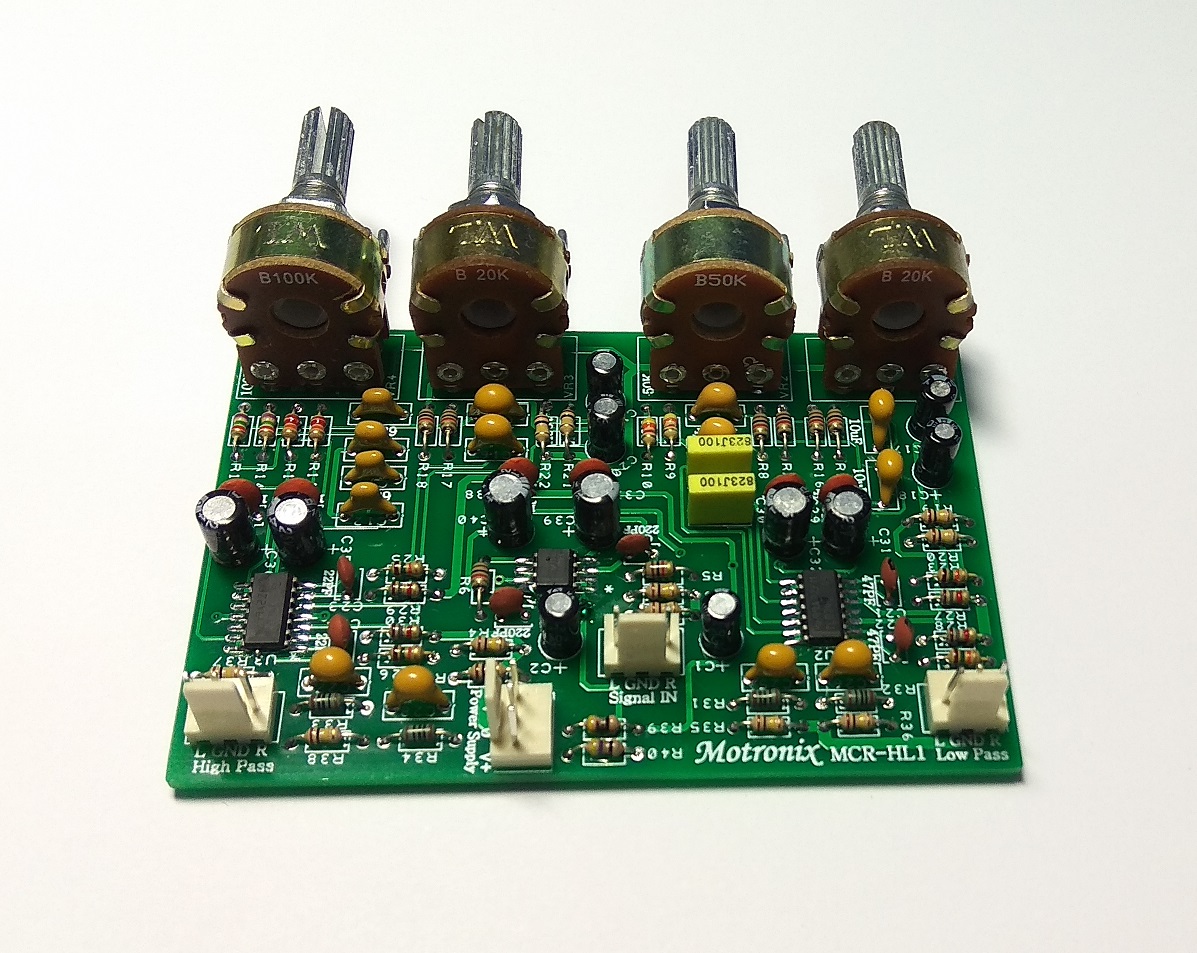

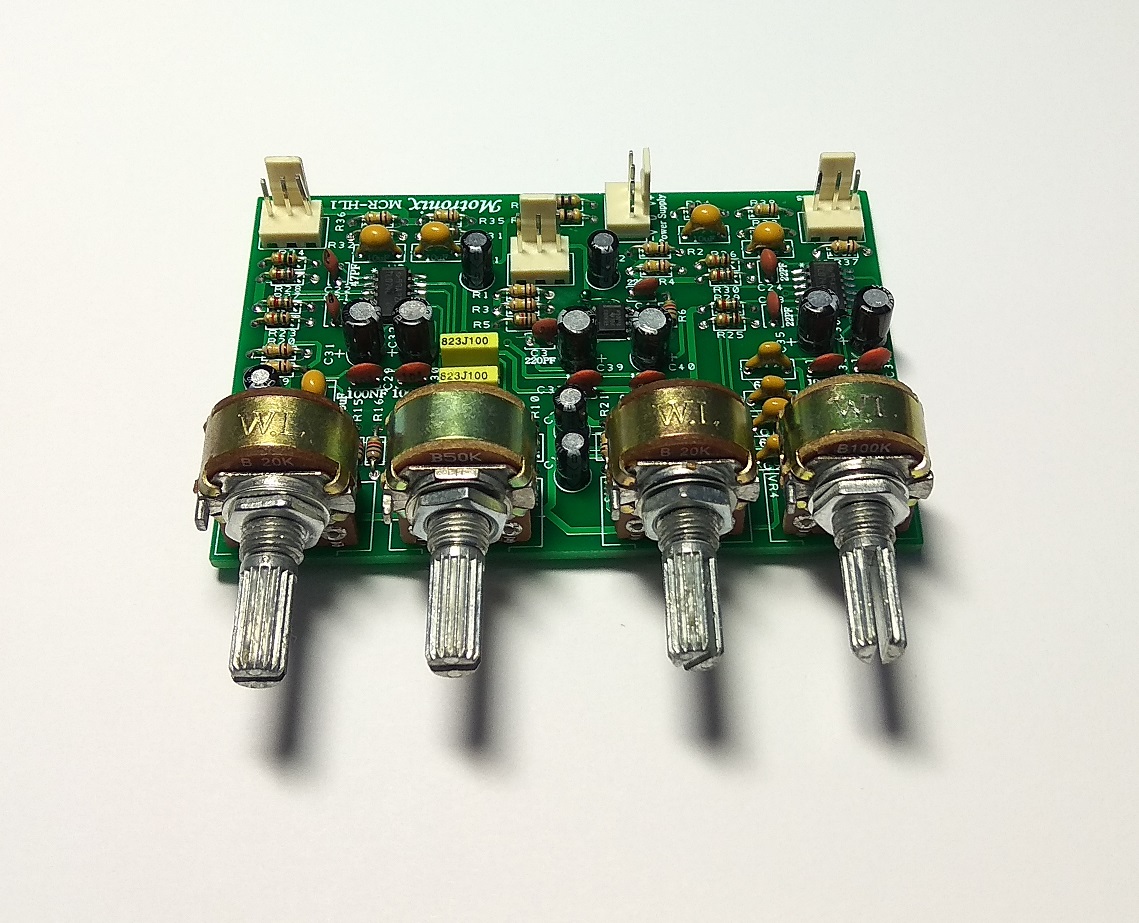

Name: MCR-HL1 Stereo Low and High Pass Variable Active Electronic Crossover
SKU: 2058
Availability: InStock

MCR-HL1 Stereo Low and High Pass Variable Active Electronic Crossover

Availability:

5 in stock (can be backordered)

Description

MCR-HL1

High Quality 2 Way Variable Electronic Crossover

High Quality Low Noise Op Amp

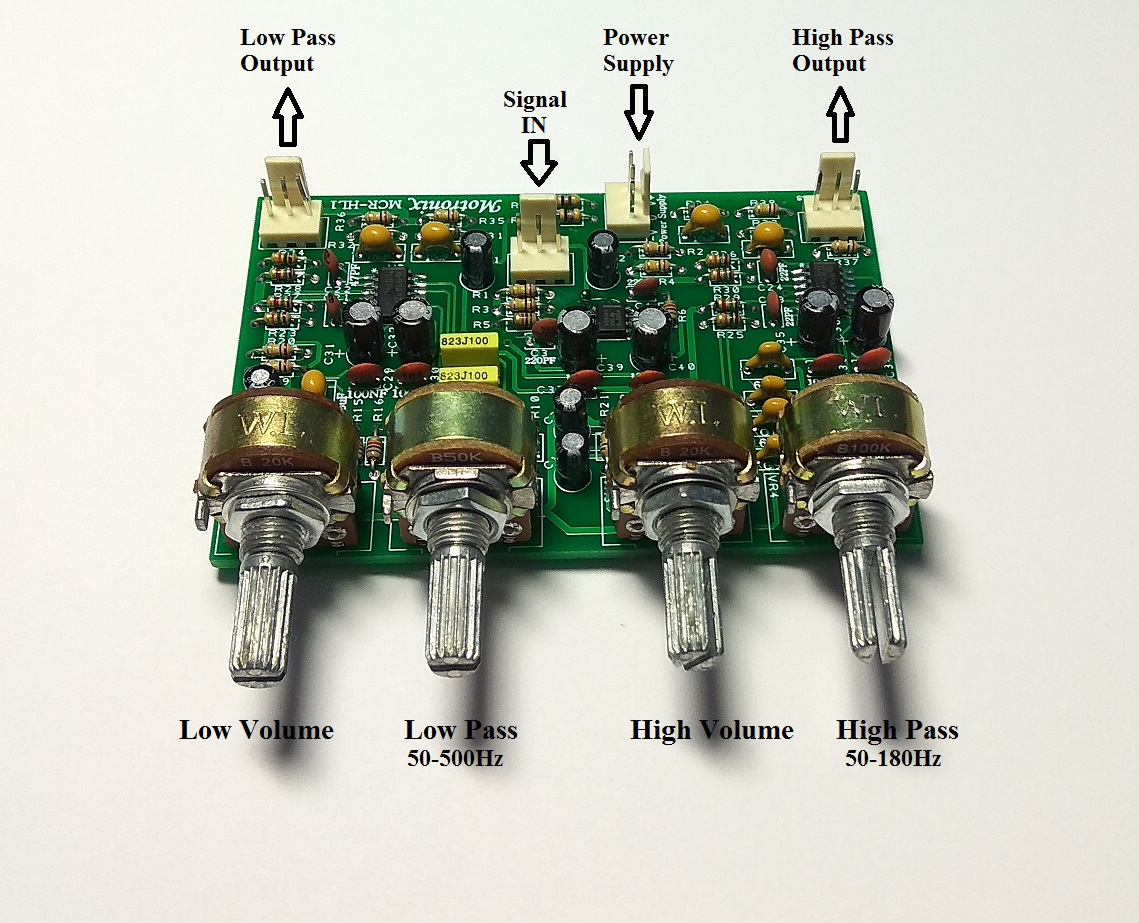

Low Freq. Range 50-500 Hz

High Freq. Range 50-180 Hz

Both outputs with Volume Control

Assembled Board Ready to use!!!

High quality Product and reliability PCB FR4 1.6MM

Buffered Input With HQ. Low Noise OP AMP

Filter & Output Amplifier With HQ Low Noise OP AMP

6db Variable Filters with Low Noise Op-Amp

This item is only PCB with T.H or SMD combined components Assembled

Input & Output Connectors & Pins will supply

Working Voltage : 2X12-15Vdc (Need Regulated P.S)

Signal Output Level: 5V

PCB Size: W57mm*L84mm double-sided HAL,FR4 1.6MM

Potentiometer Gap: 20mm + 25mm + 20mm(Center to Center)

Applications: DIY Home Active System Power Amplifier / Speakers

Additional information

Model	1 in to 4 out, 1in to 4 Out with High pass 80Hz Crossover, 1 in to 1 Out with 80Hz Low Pass Crossover + 3 Out 80 Hz High Pass Crossover
