Description

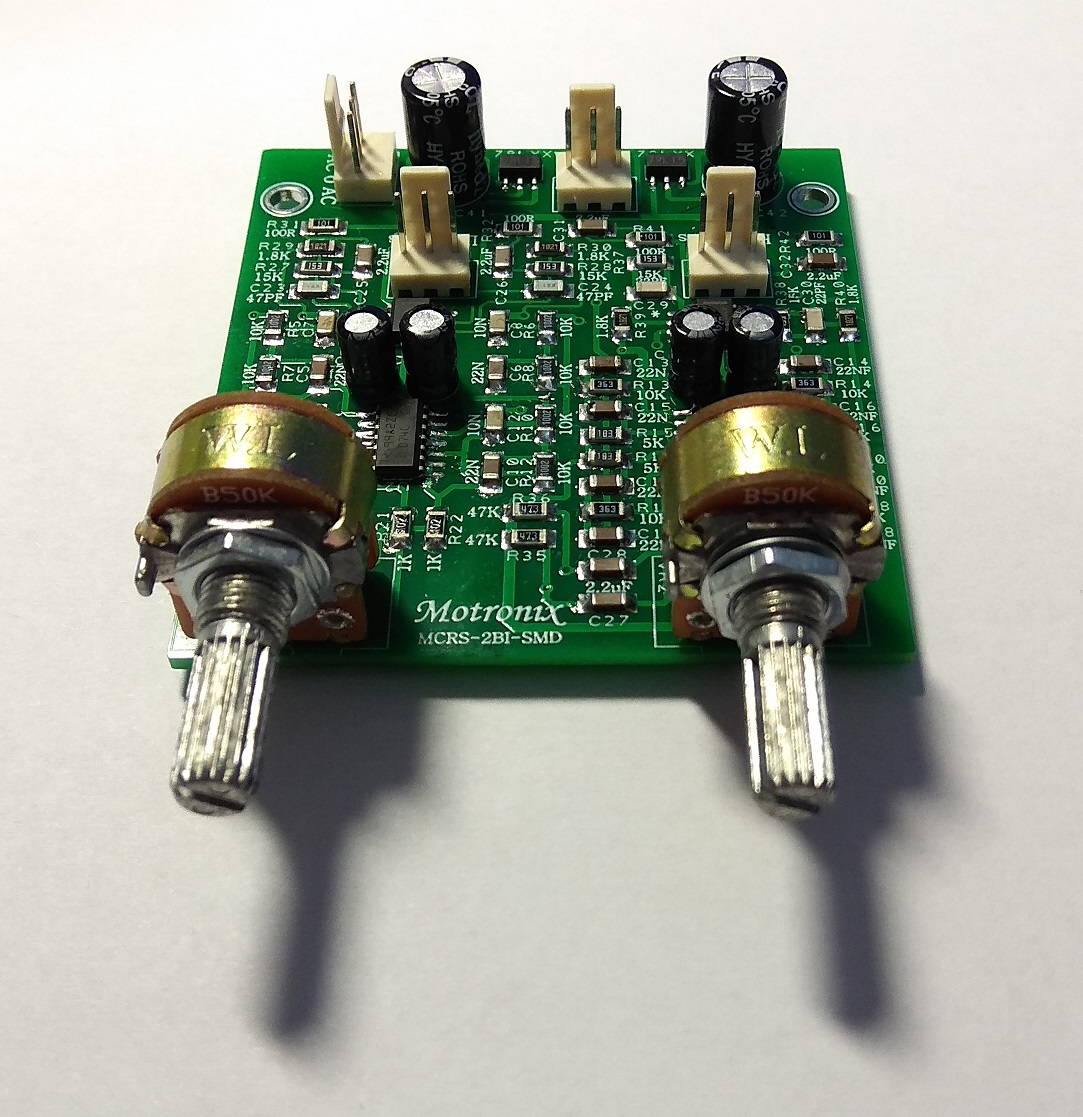

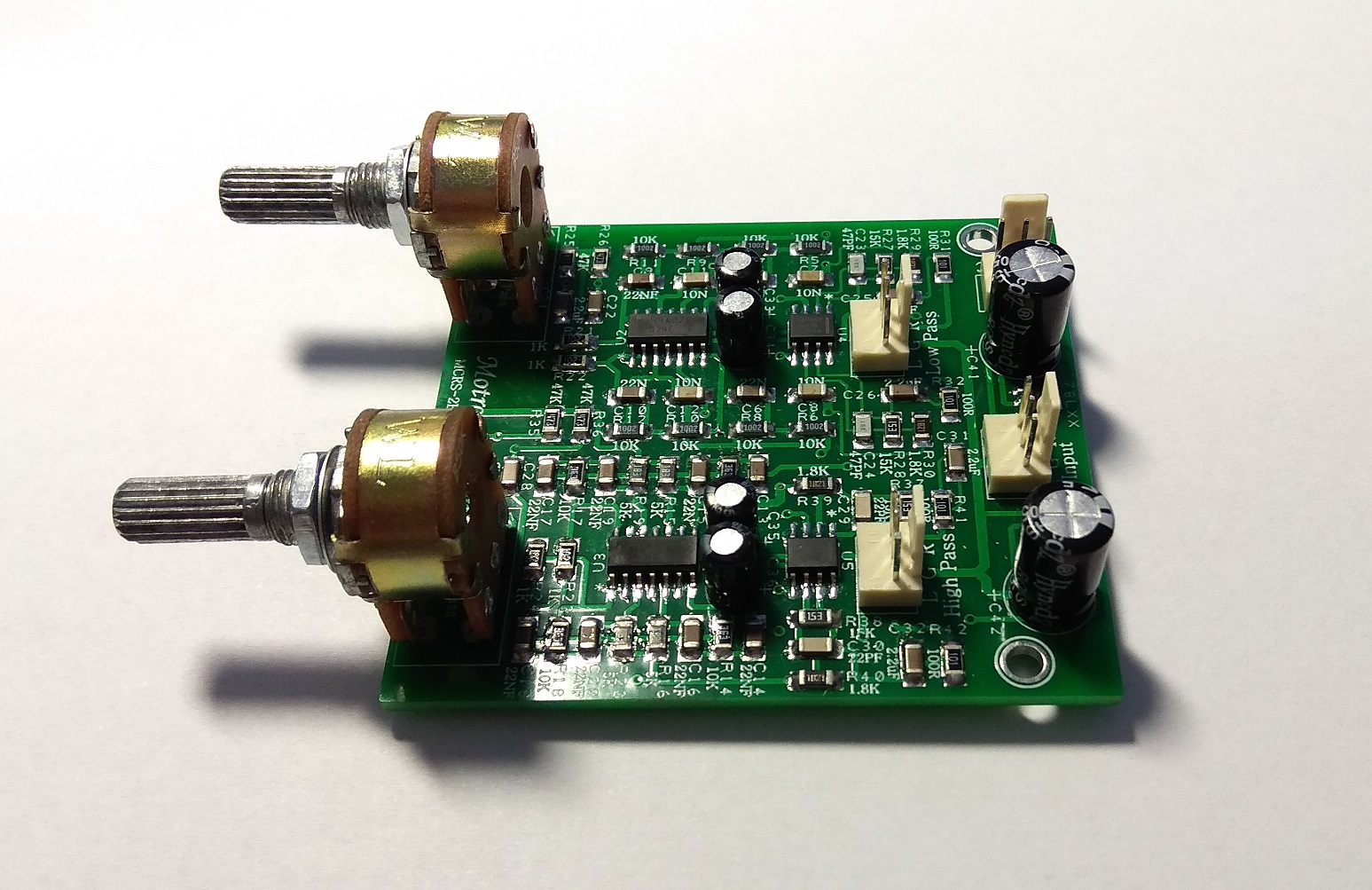

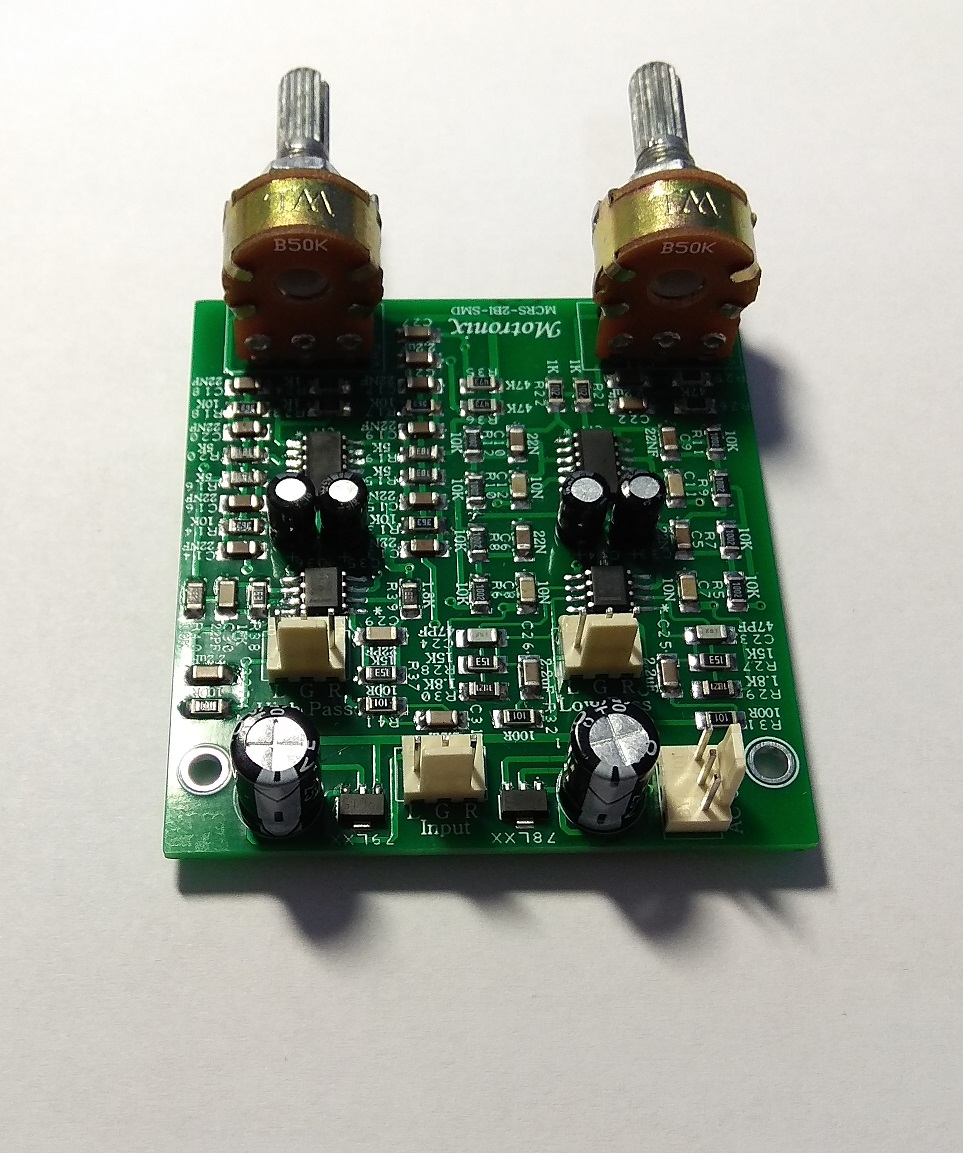

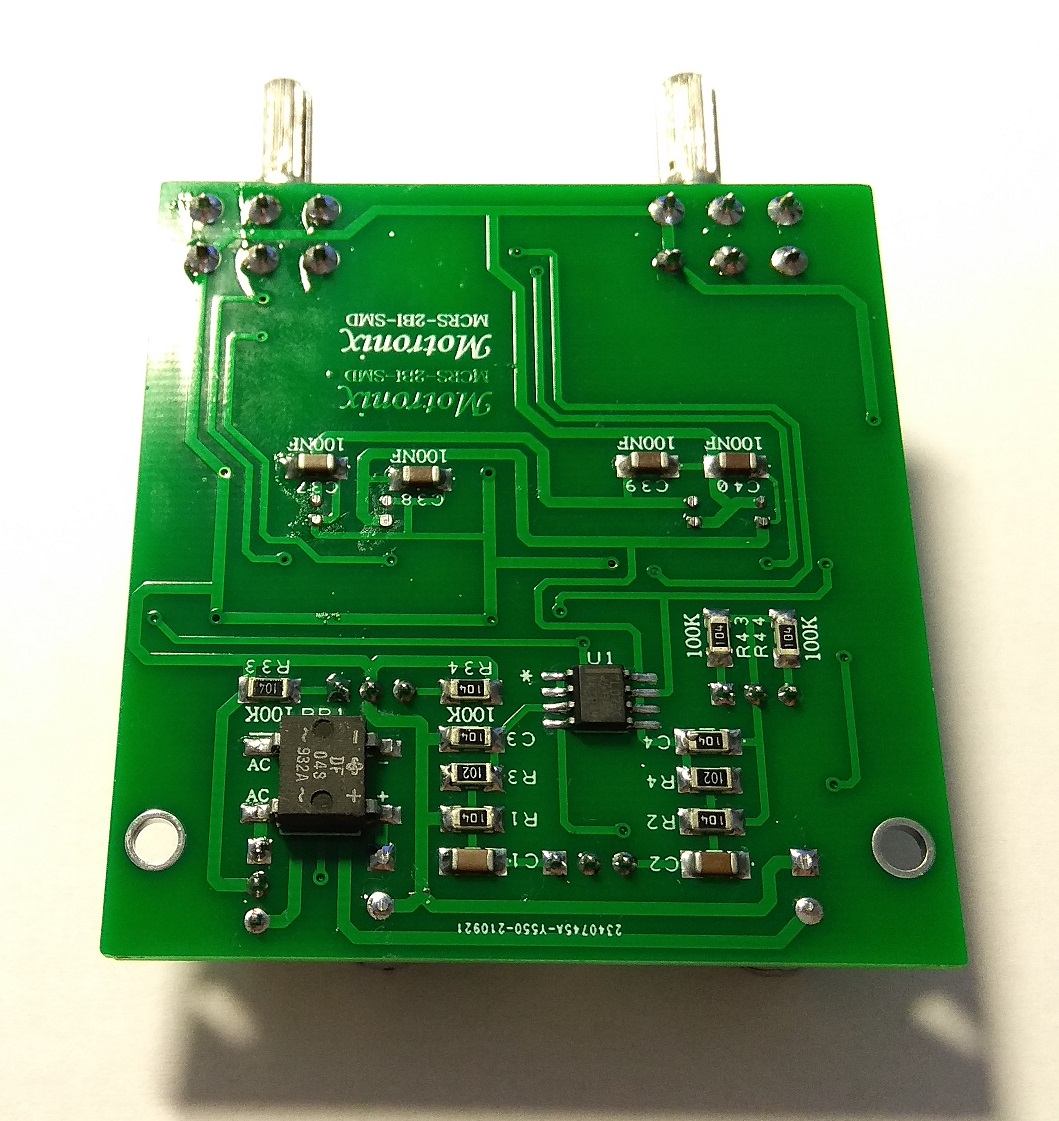

MCRS-2BI-SMD
High Quality Professional 2 Way Electronic Crossover For Active Bi-Amplification.
High Quality Low Noise Op Amp
Low Freq. Range <250 Hz (Can customize by buyer request)
High Freq. Range >250 Hz (Can customize by buyer request)
On Board Voltage regulators
Assembled Board Ready to use!!!
High quality Product and reliability PCB FR4 1.6MM
Stereo Buffered Input With HQ. Low Noise OP AMP
Stereo Amplified Output With HQ Low Noise OP AMP
24 db Filters with Low Noise Op-Amp
This item is only PCB with T.H or SMD combined components Assembled
Input & Output Connectors & Pins will supply
Working Voltage : 2X12-15Vac Transformer (If you want Dc voltage version add note)
Filters Frequency Can customize by buyer request
Standard Crosover Freq.:
Low 250Hz 24db
High 250Hz 24db
Max. Output Level: +22dbu (9.8V @ 1.6V Input Signal)
Output Level at 0dbu Input: +15dbu (4.4V)

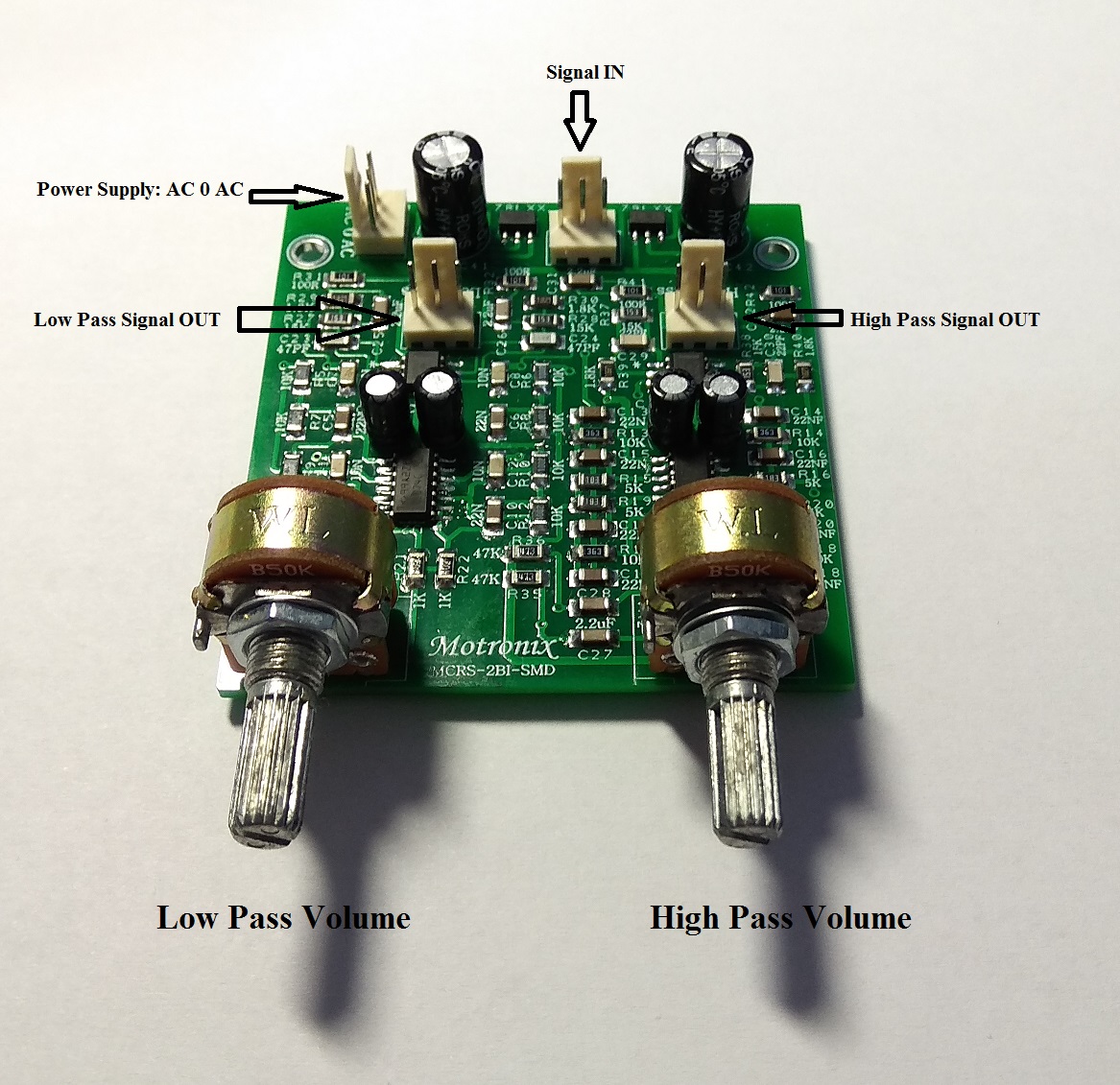

Level Control: Volume for each Output
PCB Size: W62mm*L67mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 40mm (Center to Center)
Applications: DIY Home Active System Power Amplifier / Speakers
