MCRS-3ST
Build your 3 way active sound system
High Quality 3 Way Electronic Crossover For Active System Amplification.
Filter Type: 3rd Order State Variable Filter
Work with both AC or DC Power Supply
Filters Frequency Can customize by buyer request
Standard Freq.
Low Freq. Range for Woofer 360Hz
Mid Freq. Range for Midrange 360-5300Hz
High Freq. Range for Tweeter 5300Hz

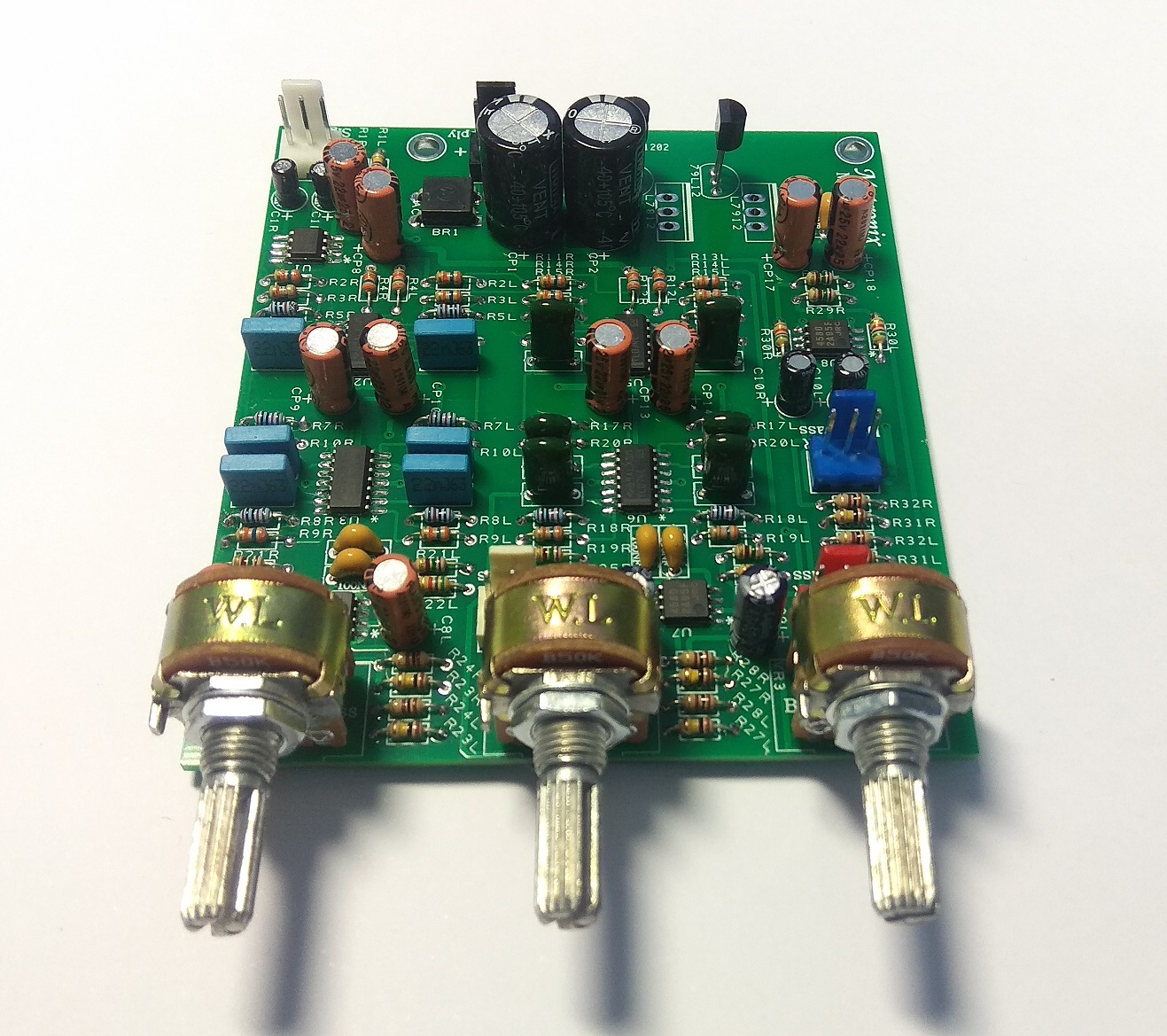

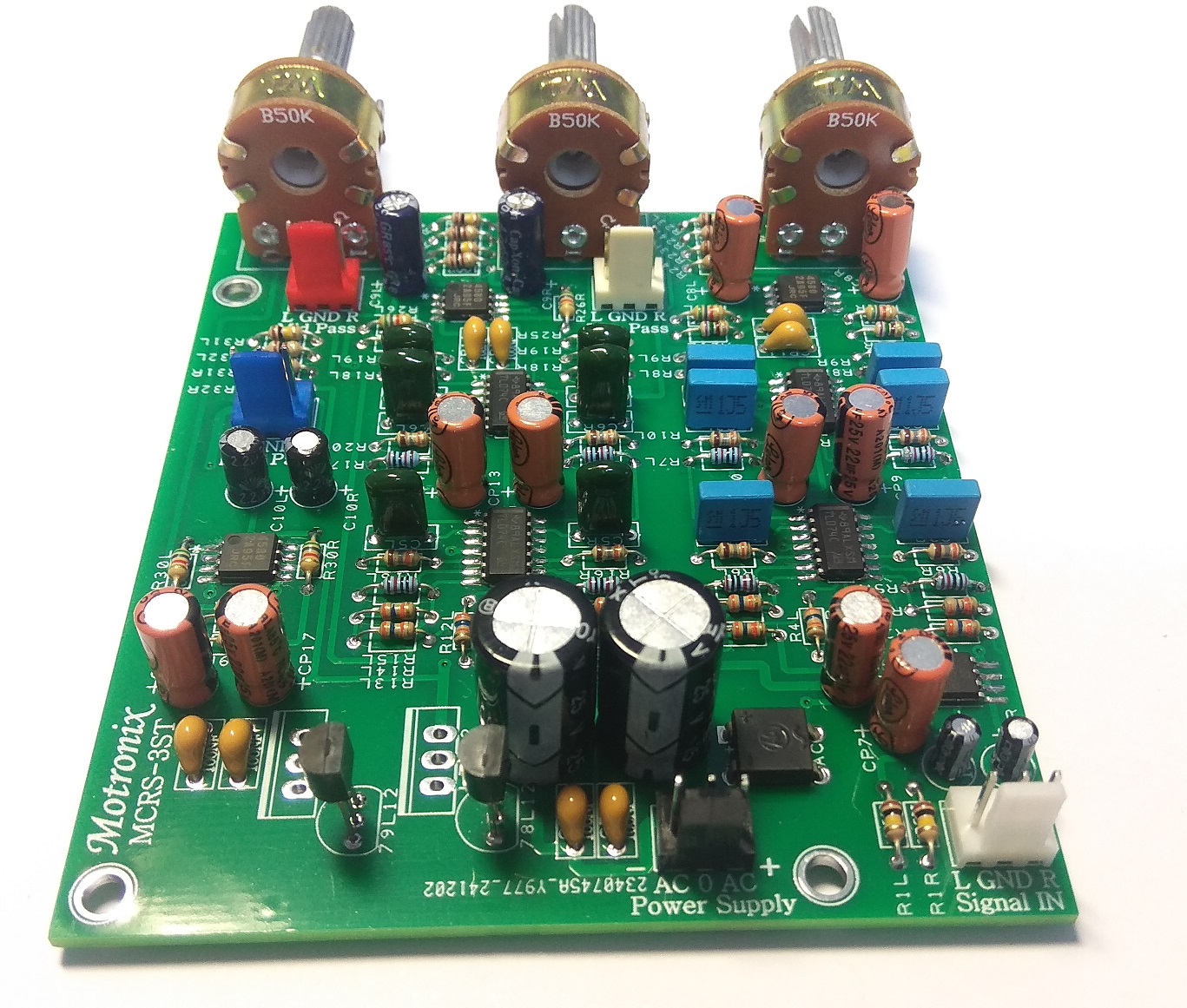

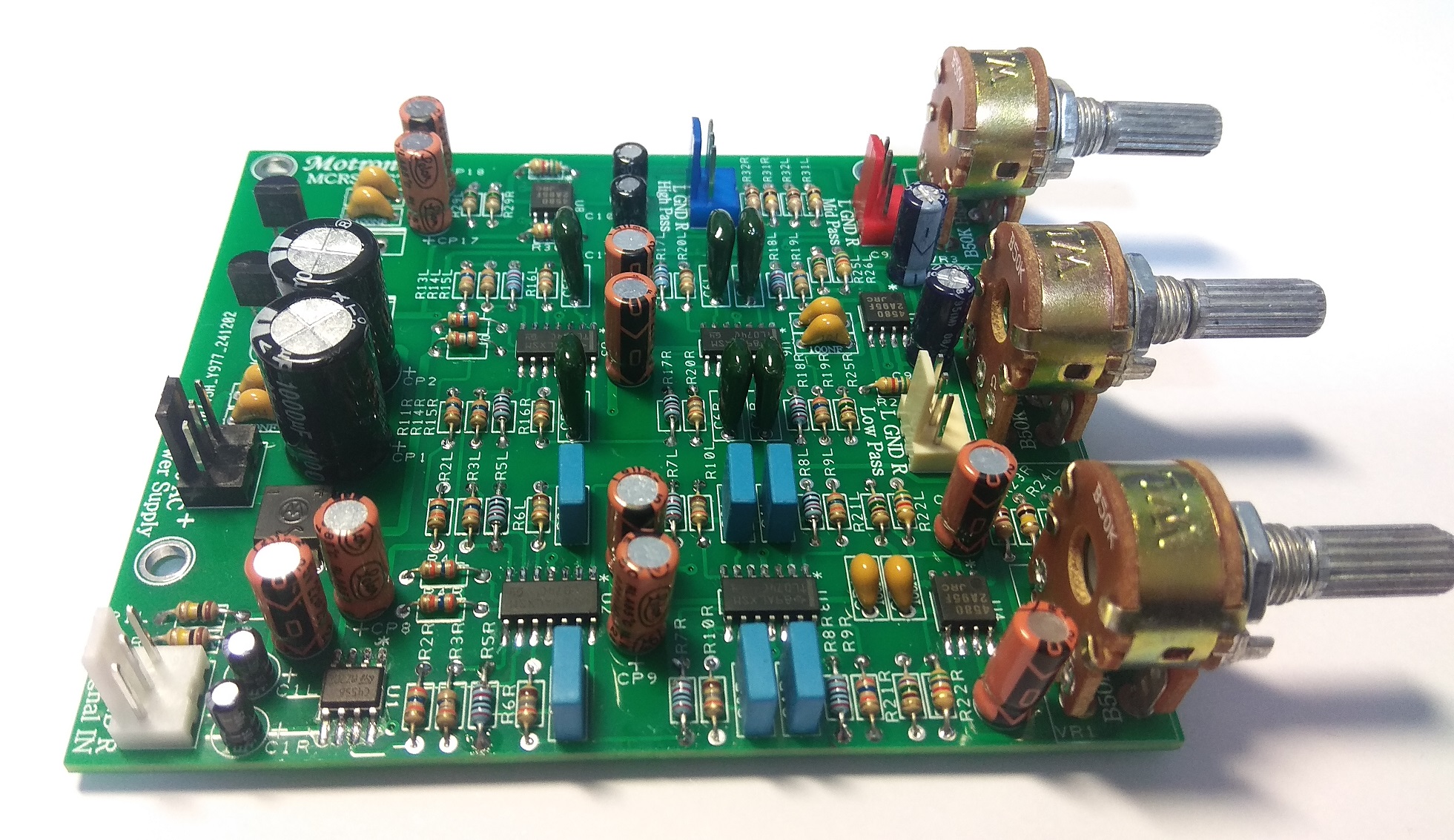

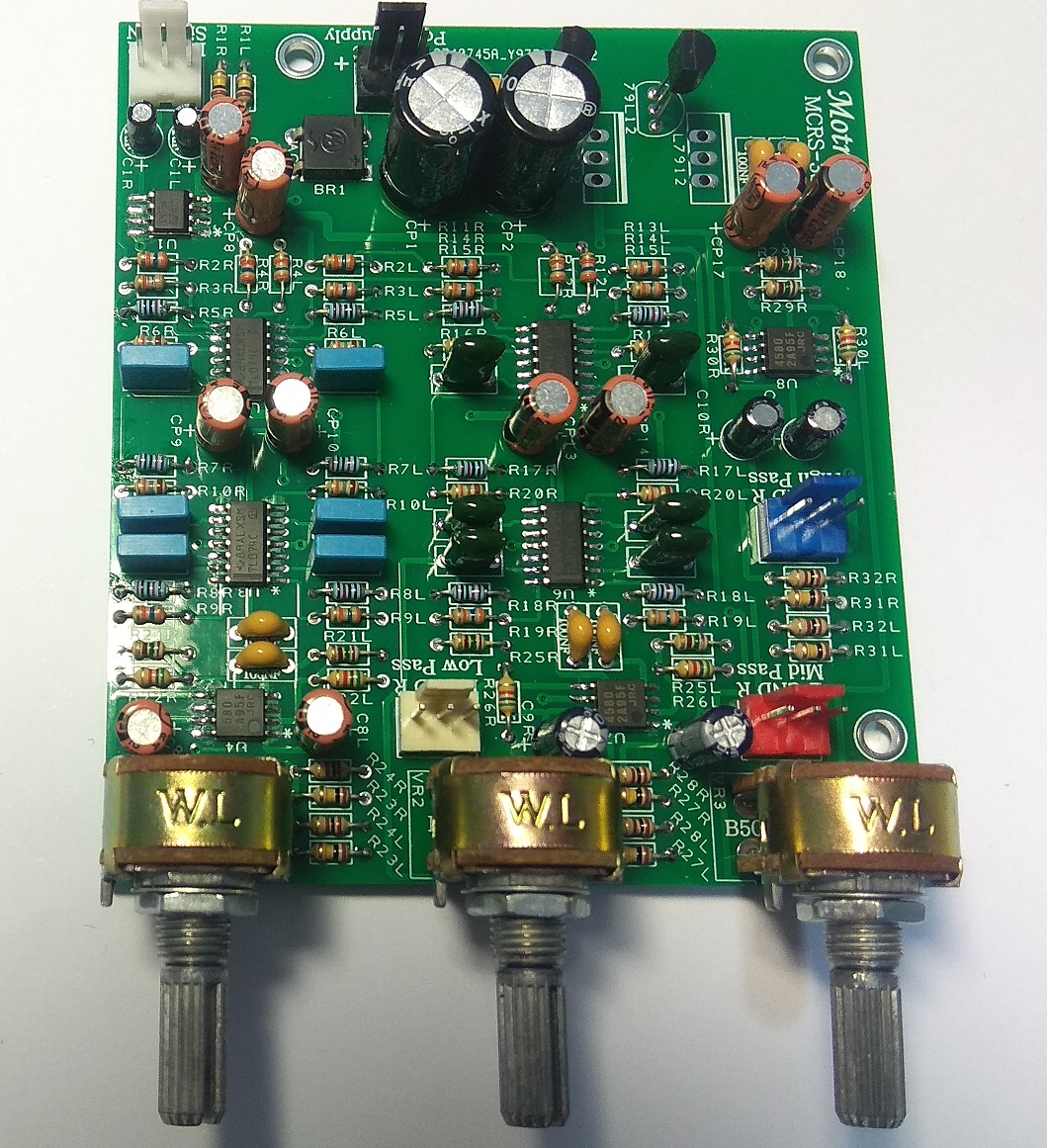

Assembled Board Ready to use!!!
High quality Product and reliability PCB FR4 1.6MM
Stereo Buffered Input With Original Genuine Low Noise OP AMP
Stereo Amplified Output With Original Genuine Low Noise OP AMP
Filters with Original Genuine Low Noise Op-Amp
This item is only PCB with T.H or SMD combined components Assembled
Input & Output Connectors & Pins will supply
Working Voltage :
With AC P.S 2X12Vac (12 0 12) 2x200mA Transformer
With DC P.S 2X15Vac (+15 0 -15)
Current consumption: 2x80mA (+80mA 0 -80mA)

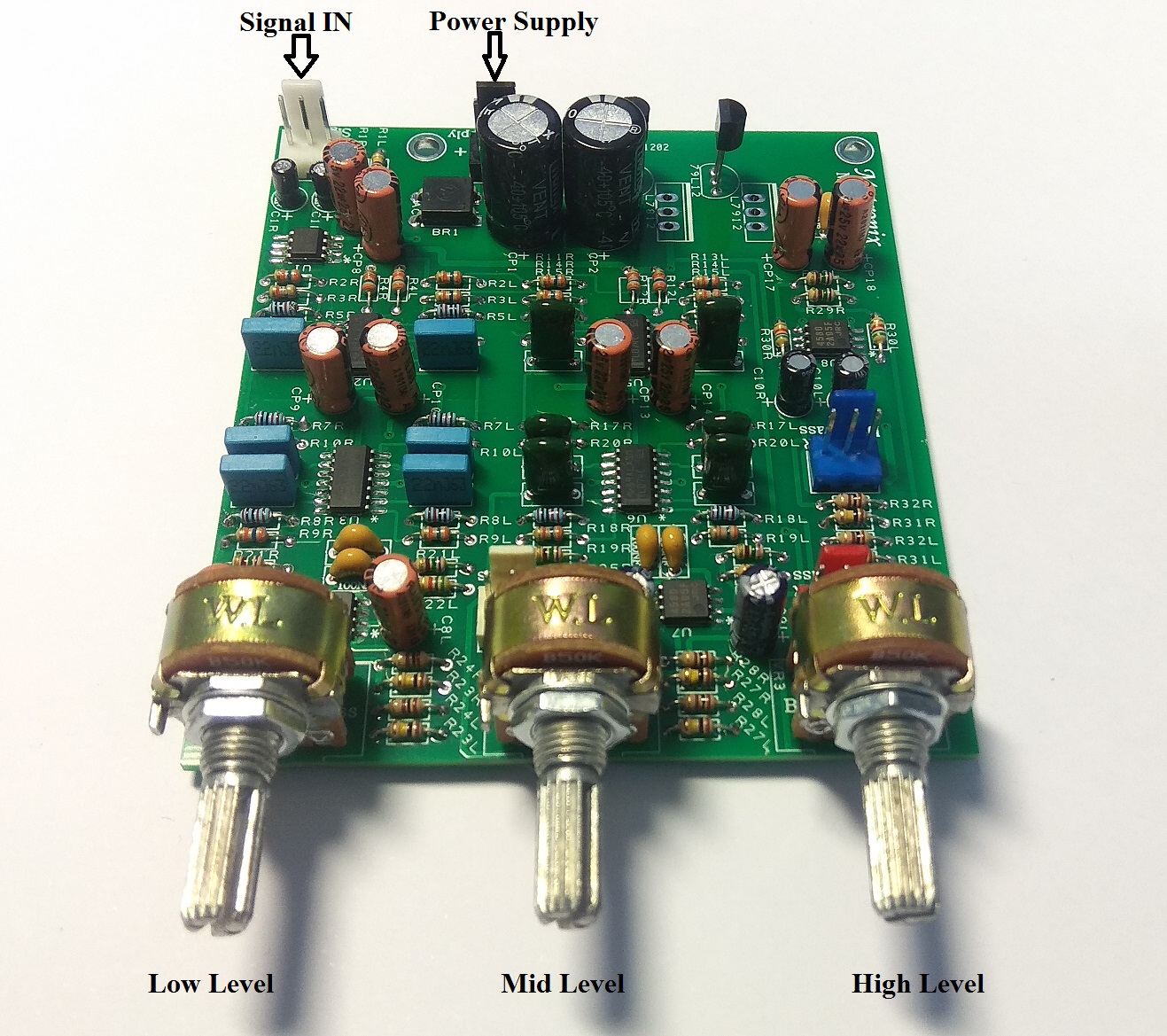

Level Control: Volume for each Output
PCB Size: 81mm*92mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 30mm (Center to Center)
Applications: DIY Home Active System Power Amplifier / Speakers
