Description

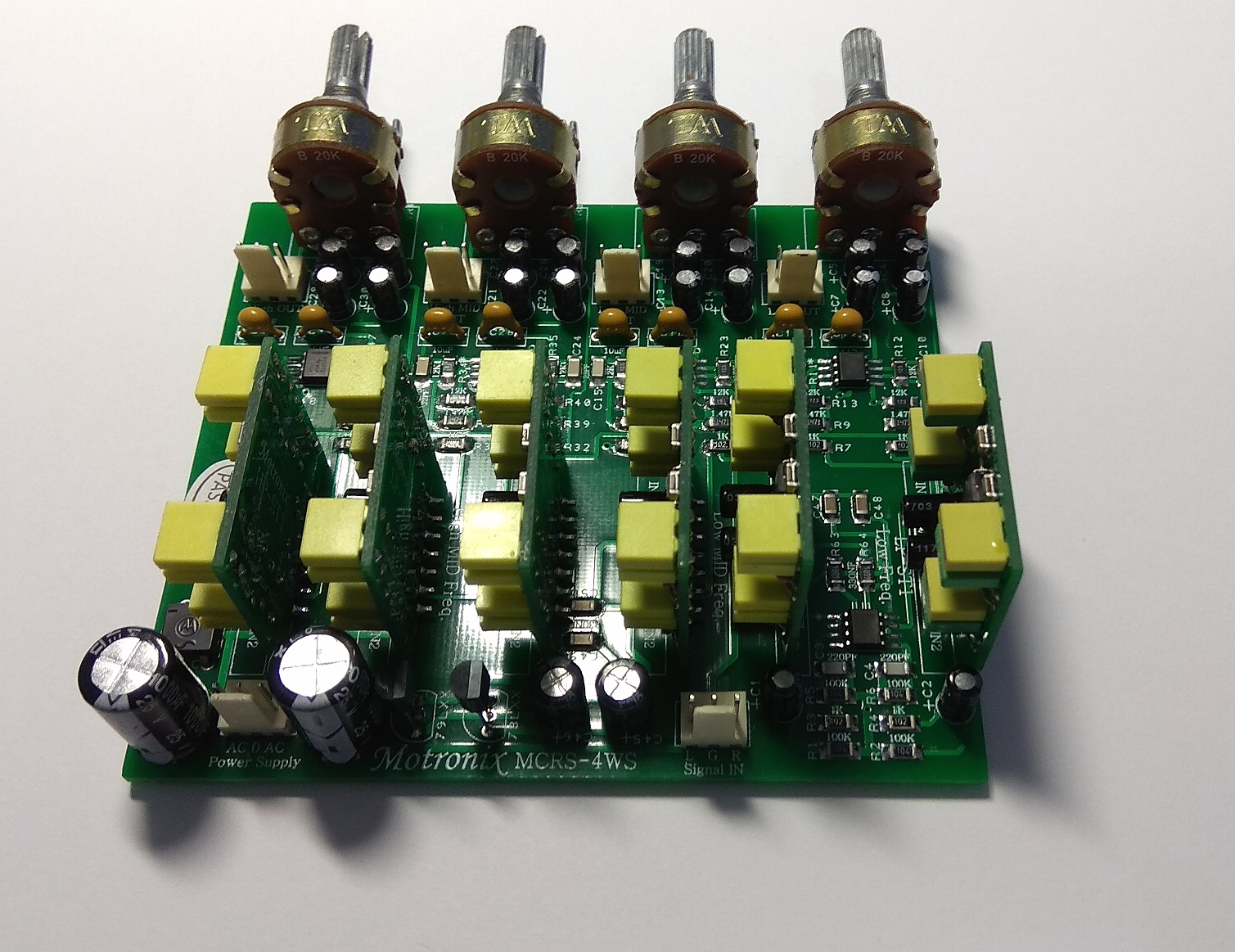

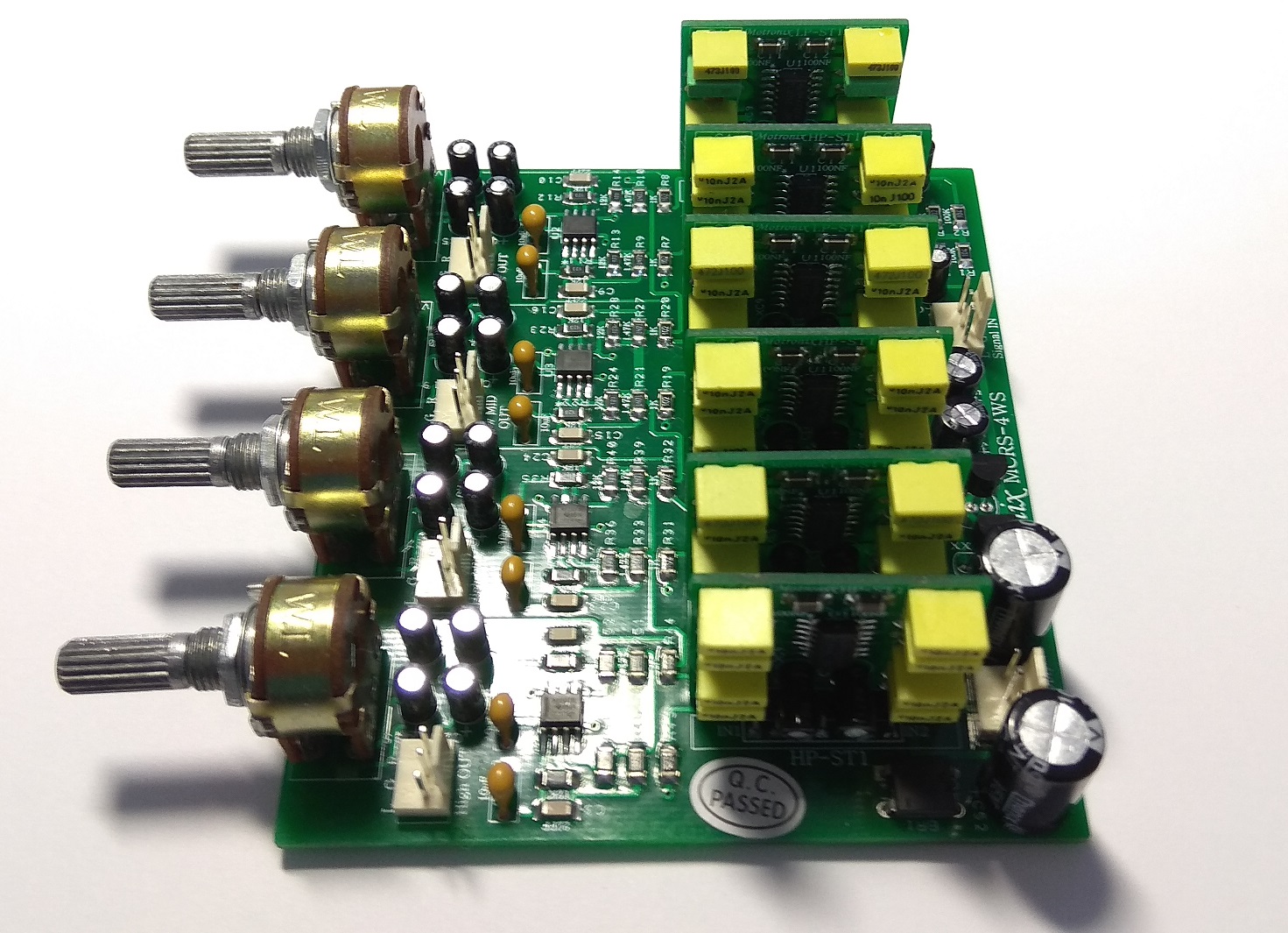

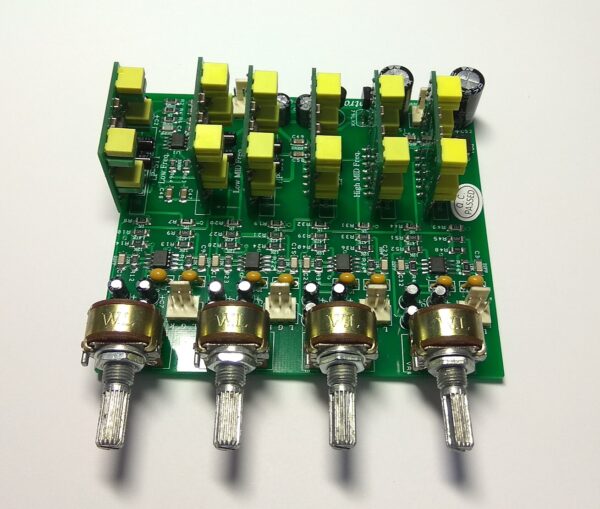

MCRS-4WS
Very High Quality Professional 4 Way Electronic Crossover For Active System Amplification.
The Standard Freq.
Low Freq. Range: >100Hz 24db
Low Mid Freq. Range: 100Hz to 900Hz 24db
High Mid Freq. Range: 900Hz to 7000Hz 24db
High Freq. Range: 7000Hz 24db
Filters Frequency Can customize by buyer request
Assembled Board Ready to use!!!
High quality Product and reliability PCB FR4 1.6MM
Stereo Buffered Input With Original Genuine Low Noise OP AMP
Stereo Amplified Output With Original Genuine Low Noise OP AMP
24 db Filters with Original Genuine Low Noise Op-Amp
This item is only PCB with T.H or SMD combined components Assembled
Input & Output Connectors & Pins will supply
Power Supply : 2X12-15Vac 200mA Max.

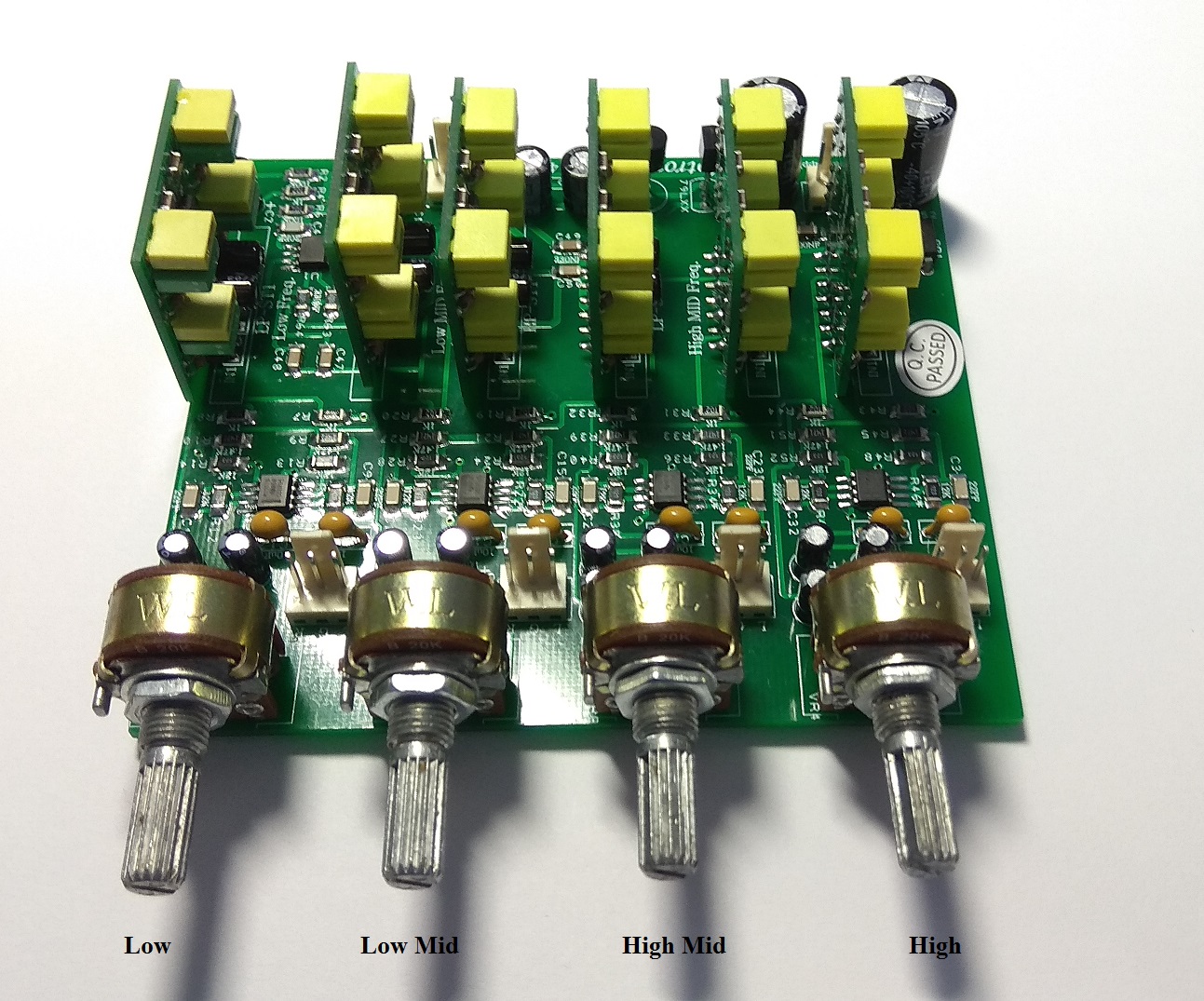

Level Control: Volume for each Output

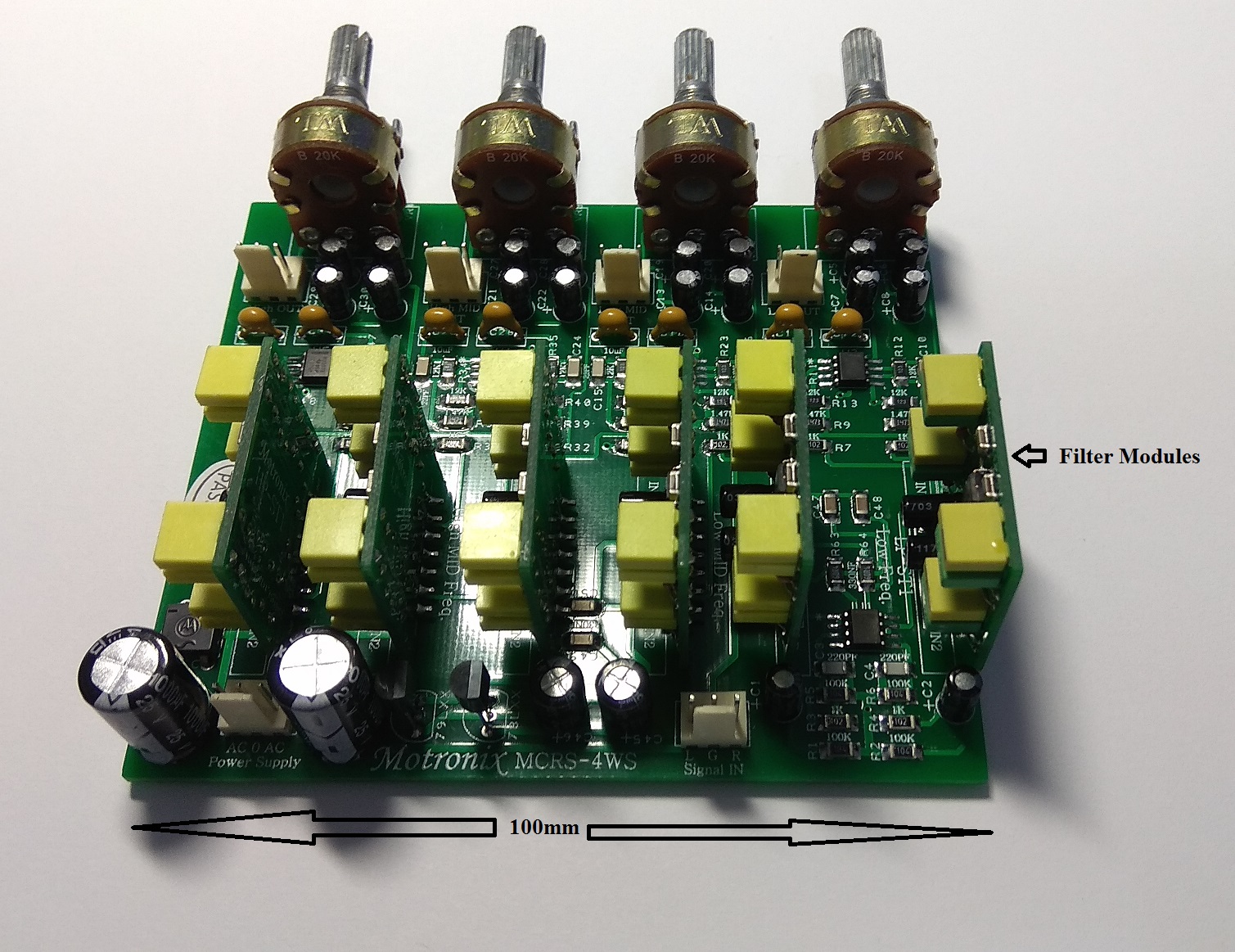

PCB Size: 100mm*88mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 24mm (Center to Center)
You can order Also Low Pass or High Pass modules
LP-ST1 = Low Pass Module
HP-ST1 = High Pass Module
