Description
MHD-2020
Powerful Studio HiFi Headphones Amplifier
For DJ’s, Studio, Live Stage Monitoring, Home
On Board Turn On Delay!
On Board Headphones DC Protection!
On Board Status Operation LED!
Low Noise op amp Power Driver!
Very Stable Design!
HiFi Super Quality Powerful Amplifier for DIY

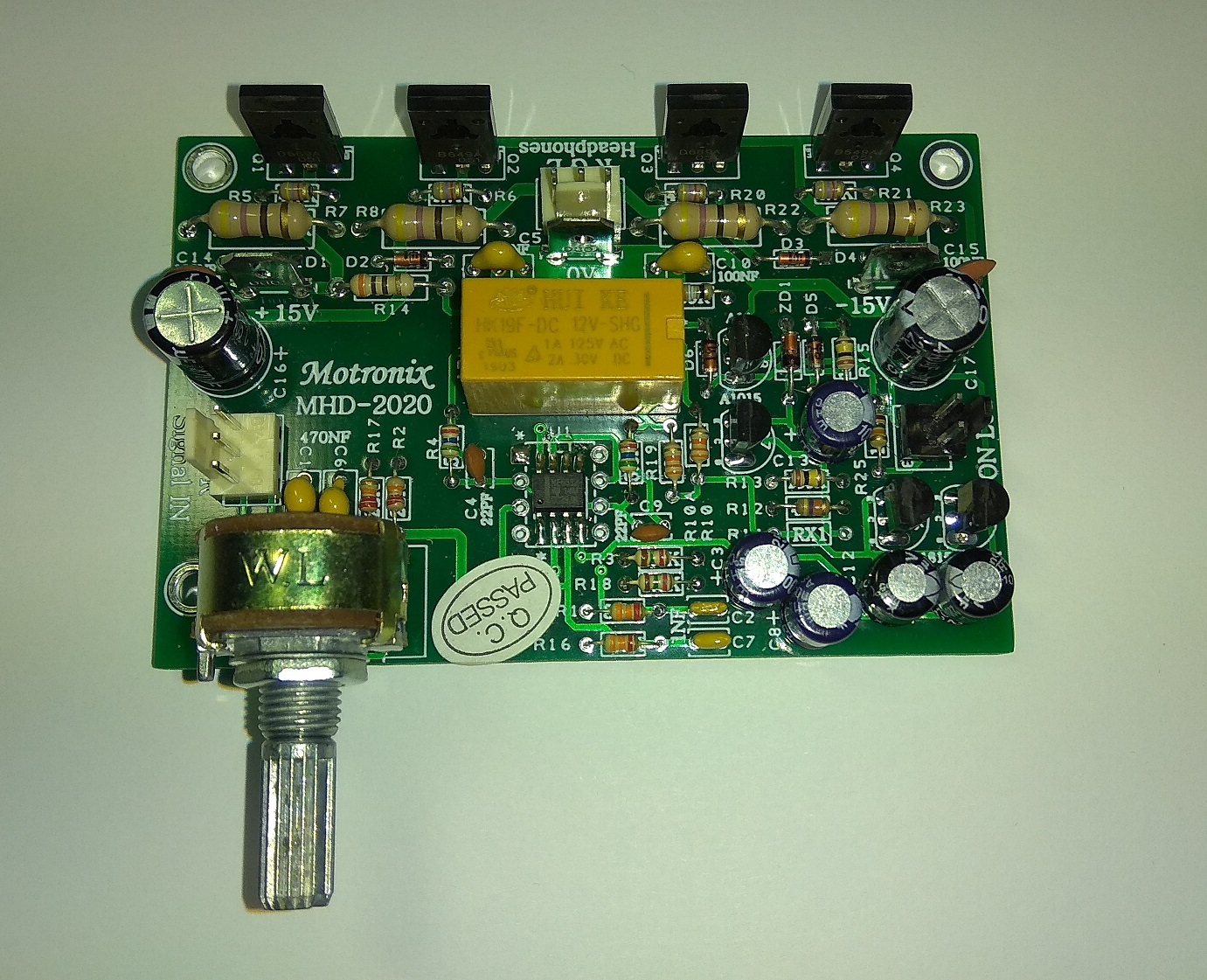

PCB dimensions: 80mm X 53mm
On Board Volume Control
Very Wide Working Voltage: Dual +/-5Vdc to +/-18Vdc
High quality and reliability FR4 1.6MM PCB
Output Stage with Bi-Polar Transistors
Low Noise Power Driver Op-Amp LM833/NE5532/C4558/TL072

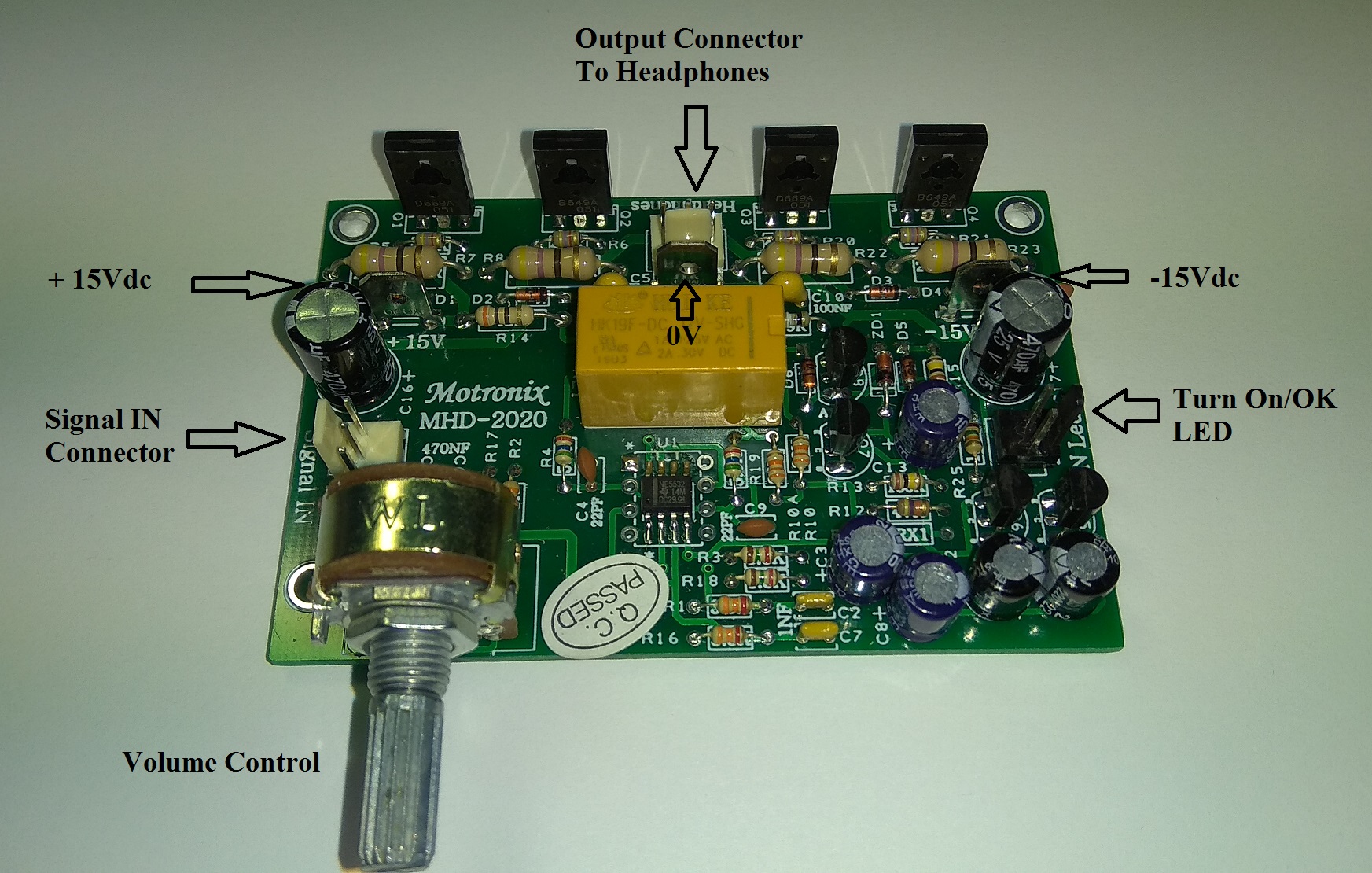

This item is PCB with all components assembled ready to use. only need Connect Power Supply Signal In Signal to H.P
The recommended Voltage for the Best Performance is: 2X15Vdc
