Name: Mini Timer Relay board for general purposes with/without reomte command
SKU: 3152
Availability: InStock

Mini Timer Relay board for general purposes with/without reomte command

SKU: N/A Category: Timers

Description

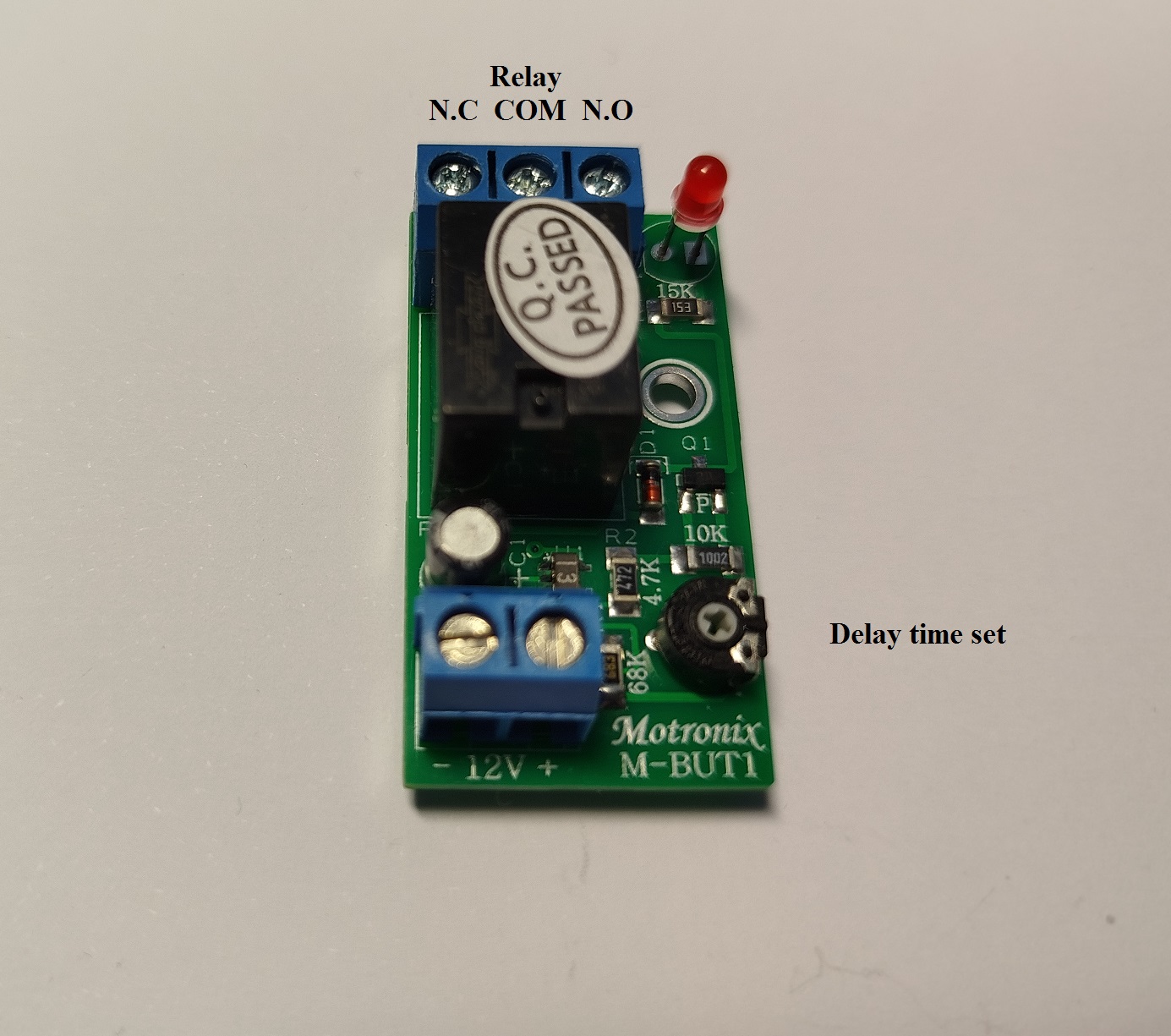

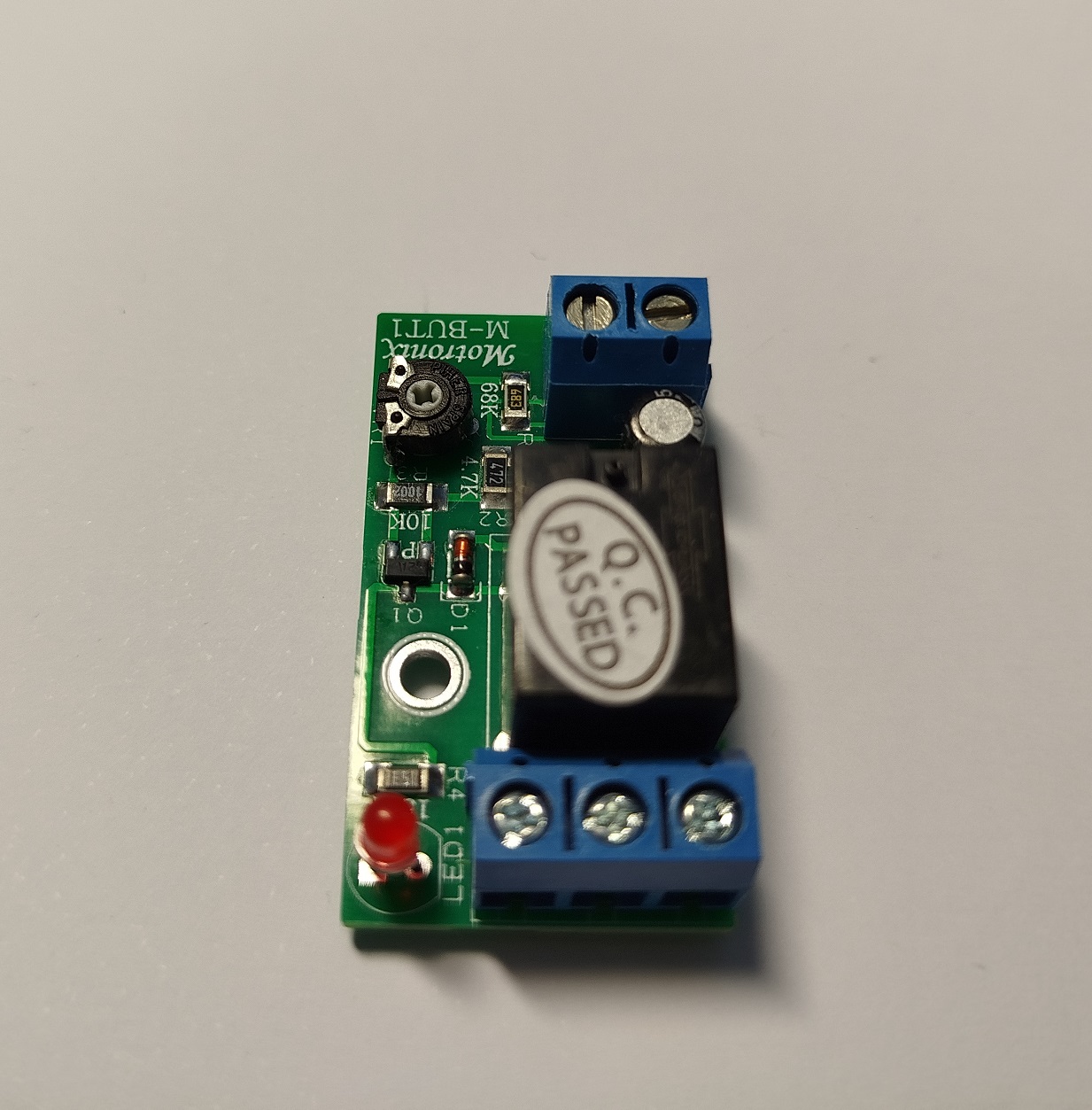

M-BUT1

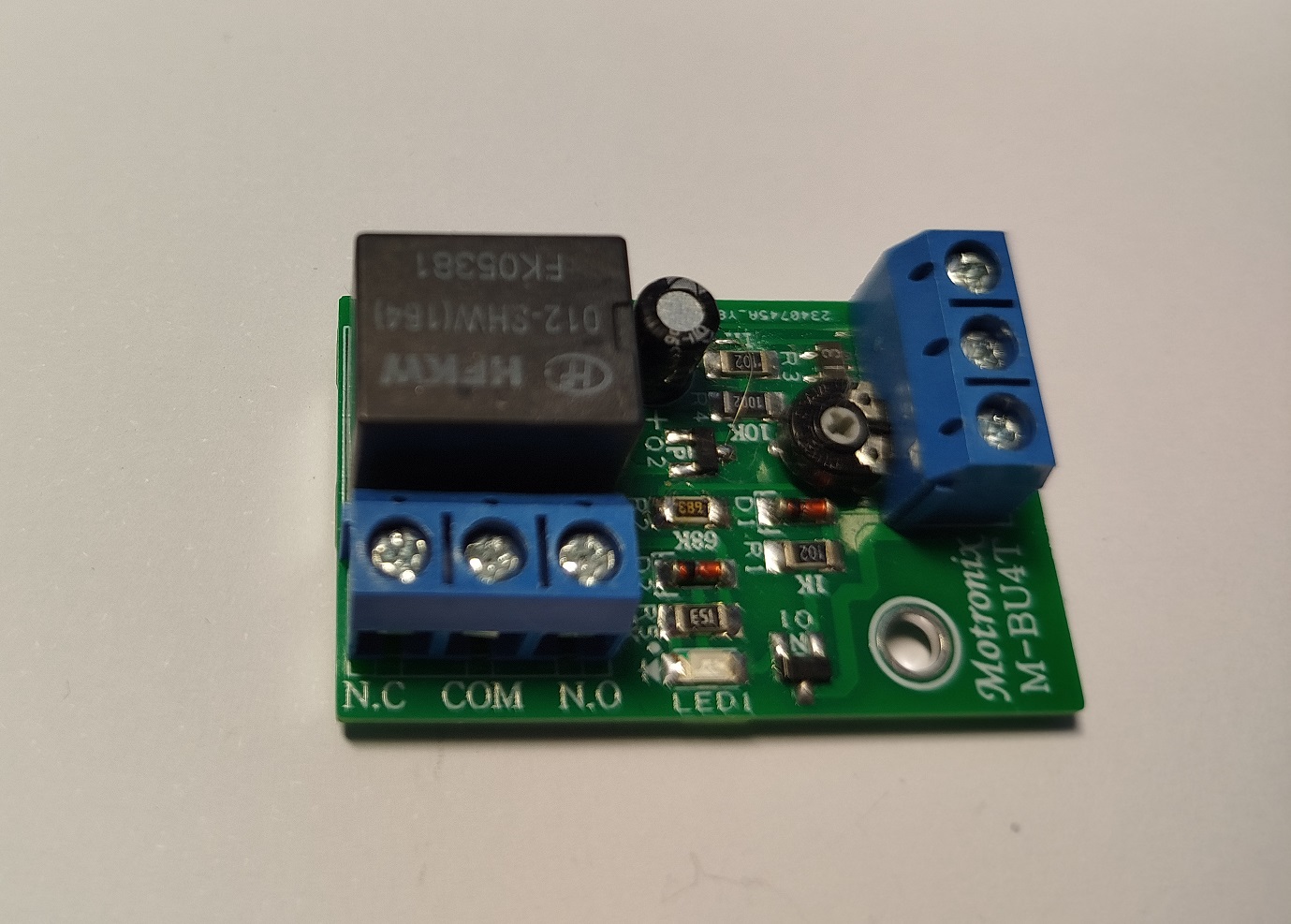

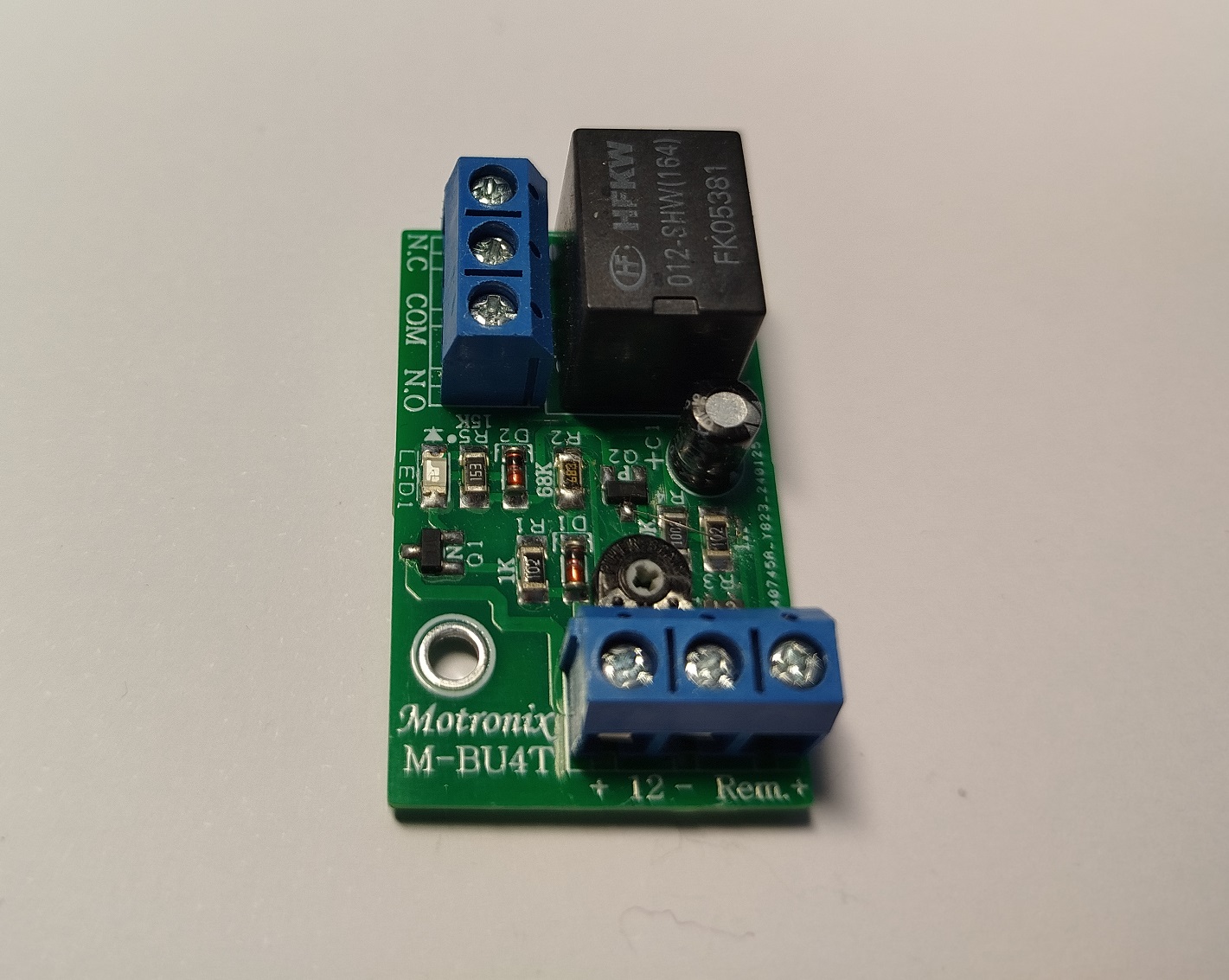

M-BUT4T

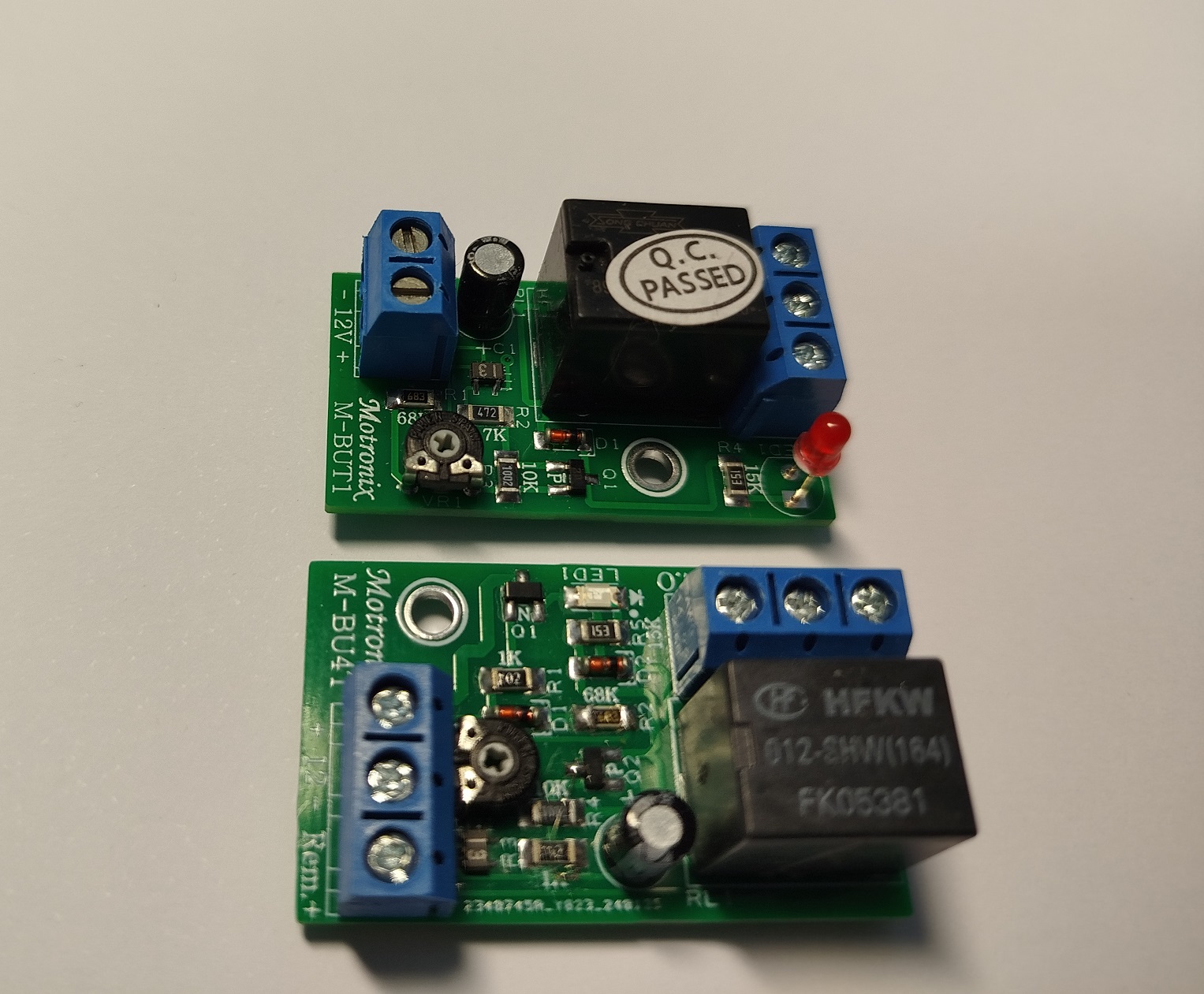

Very small size general purpose timer board

M-BUT1 The relay will go into operation with a delay after connecting the 12V voltage

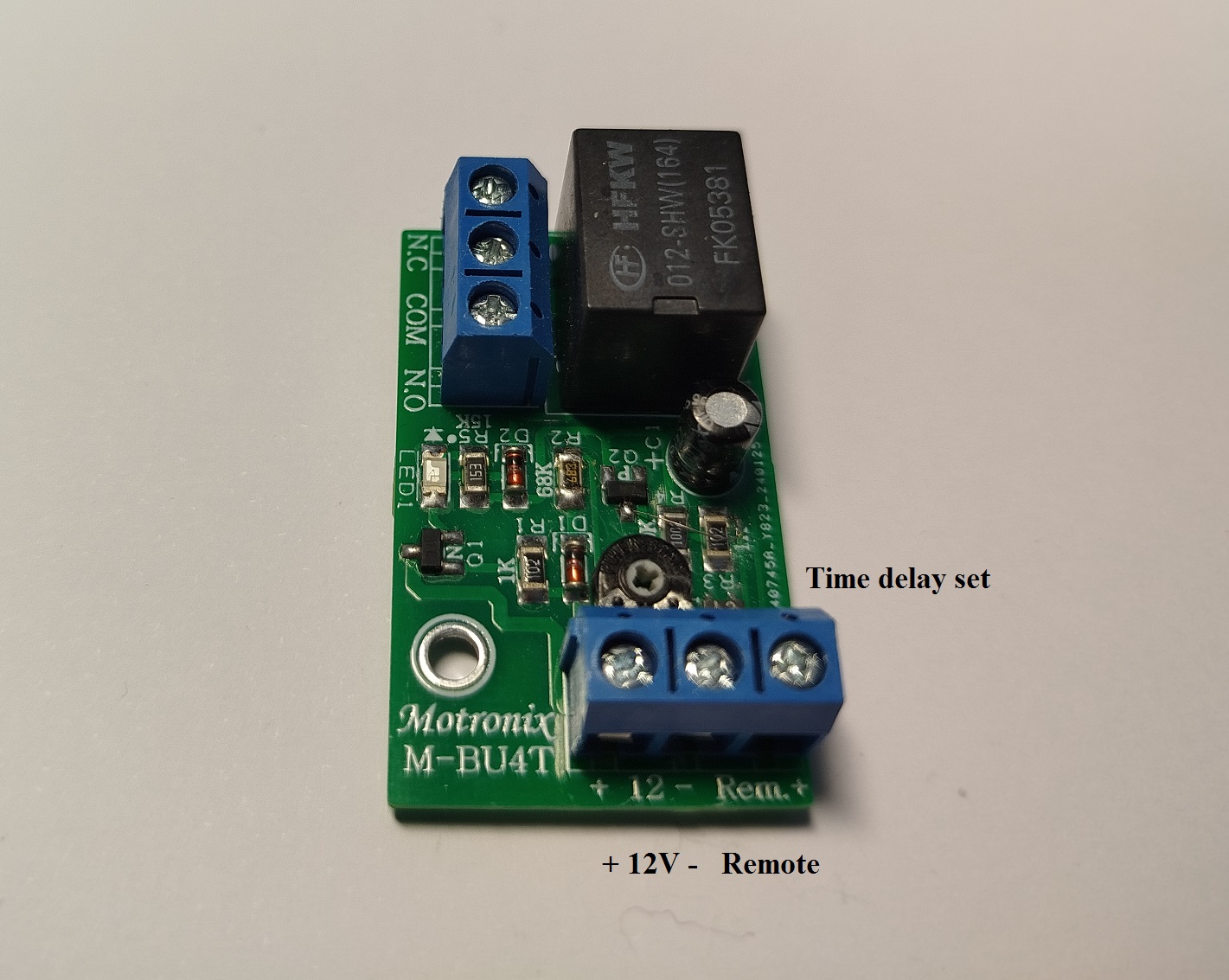

M-BUT4T The relay will go into operation with a delay after connecting Remote 12V

Variable time delay 0.1-25 sec. (aprox)

Power Supply: 12Vdc

M-BUT4T Standby current: 1uA

Relay: 10A NC/NO contacts

PCB Size:

M-BUT-1 43mm*23mm Green double-sided HAL,FR4 1.6MM

M-BUT-4T 44mm*27mm Green double-sided HAL,FR4 1.6MM

Additional information

Model	M-BUT1, M-BUT4T
