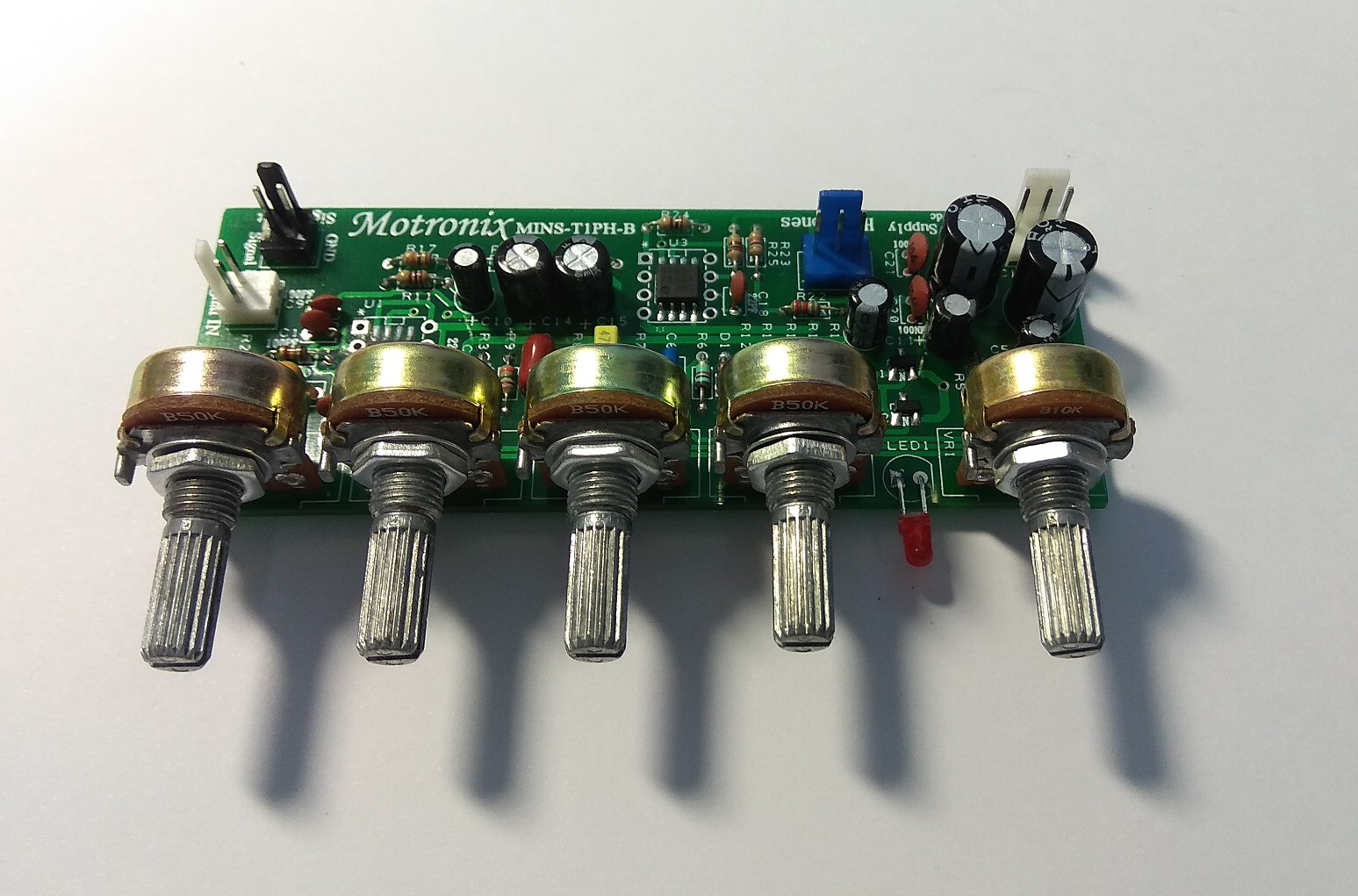

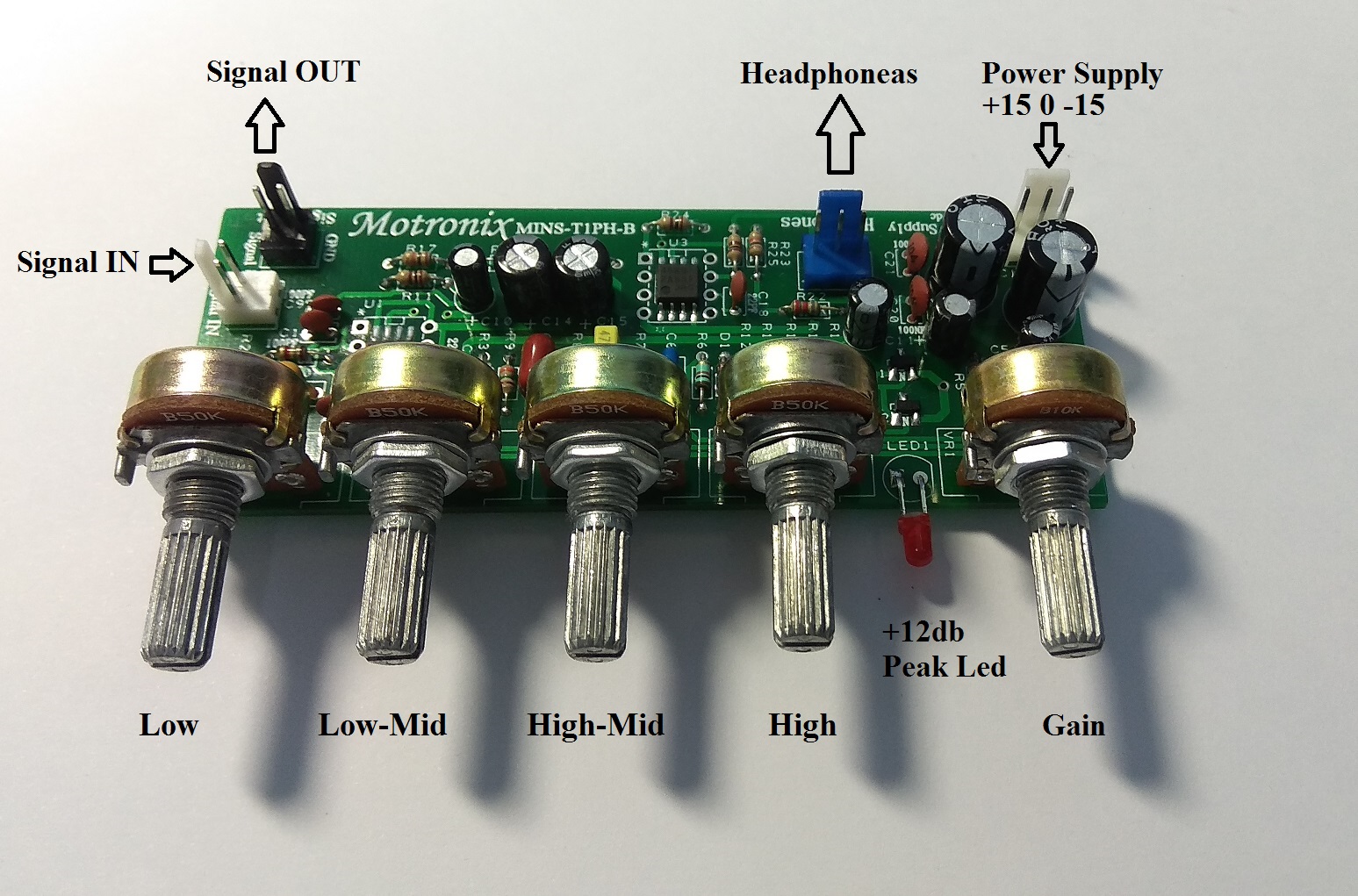

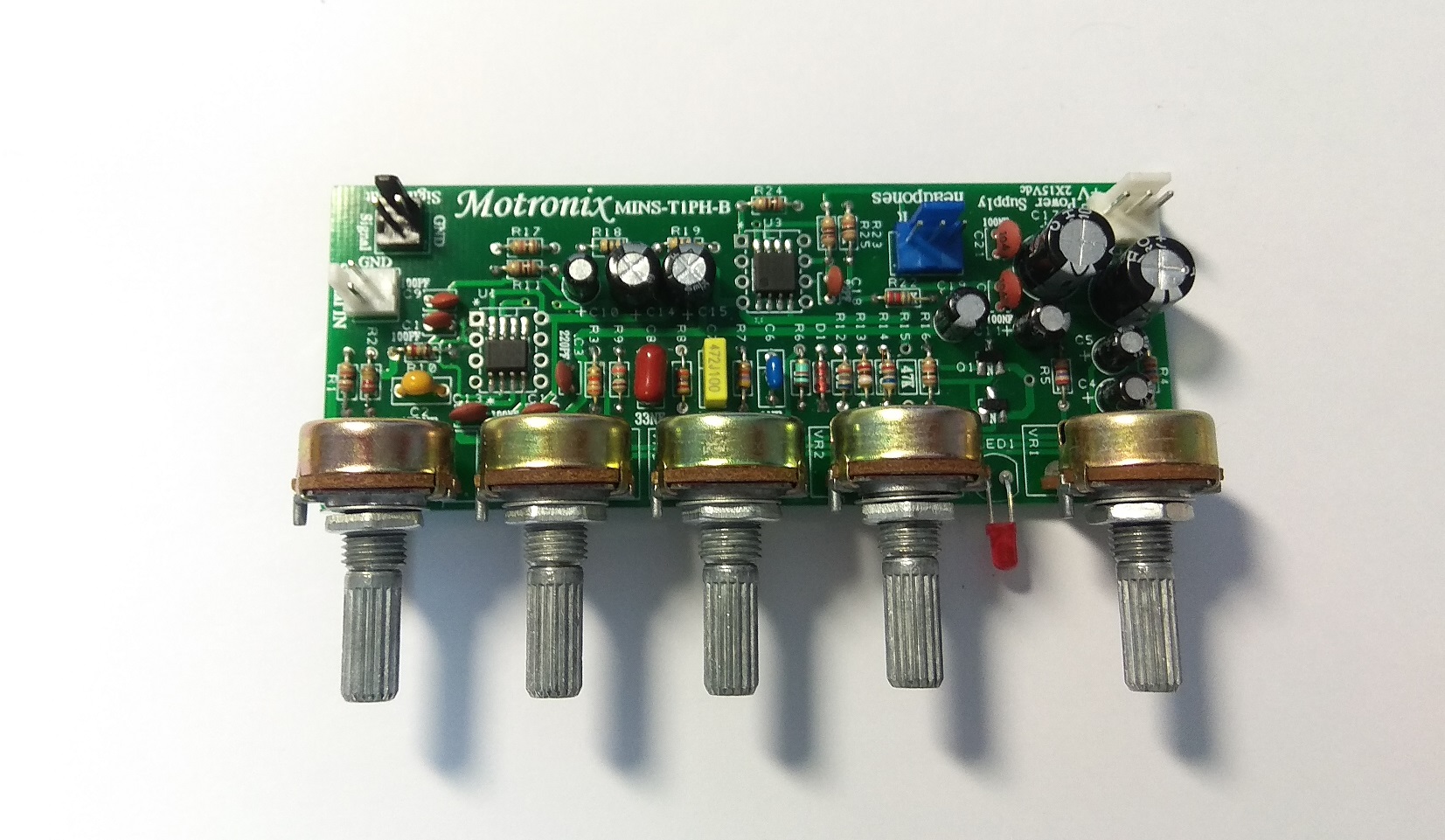

MINS-T1PH-B
High Quality Guitar/Instrument Pre amp with 4 Band Tone Control
+15db Peak Output Signal Led Indicator
Model MINS-T1PH-B With Headphones Amplifier Great solution for practice at home
Very Clean and good Sound Quality
Working Voltage: Dual min.9Vdc to 15Vdc max. (Recomended 2x15Vdc)
Low Noise Op Amp !
We Use ONLY Original Genuine Parts
This item is only PCB with components Assembled
Input & Output PCB Connectors will supply
Minimum Input Signal: 60mv -21db (Gain @ max Tone Flat)
Maximum Input Signal: 600mv -2db (Gain @ max Tone Flat)
Input Resistance: 10Kohm
Output Resistance: 1Kohm
Max output voltage: 6V +18db Gain @ max Tone Flat (with 2x15v power supply)
Tone control:
Low -10db 0 +20db @ 60Hz
Low-Mid -12db 0 +18db @ 300Hz
High-Mid -12db 0 +15db @ 1.5Khz
High -10db 0 +20db @ 9Khz
Working Voltage: Dual 9-15Vdc + 0 – (Recomended 2x15Vdc)
PCB Size: MINS-T1PH: 100mm*39mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 3X19mm + 25mm (Center to Center)
