Description
MINS-T1 SMT2
High Quality Guitar/Instrument Pre amp with 4 Band Tone Control

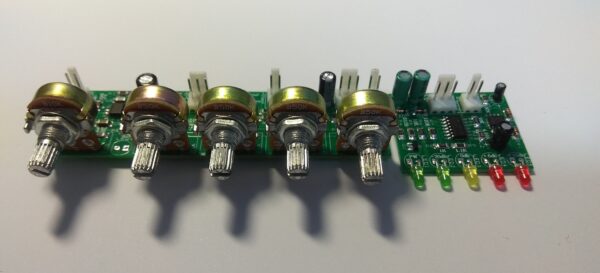

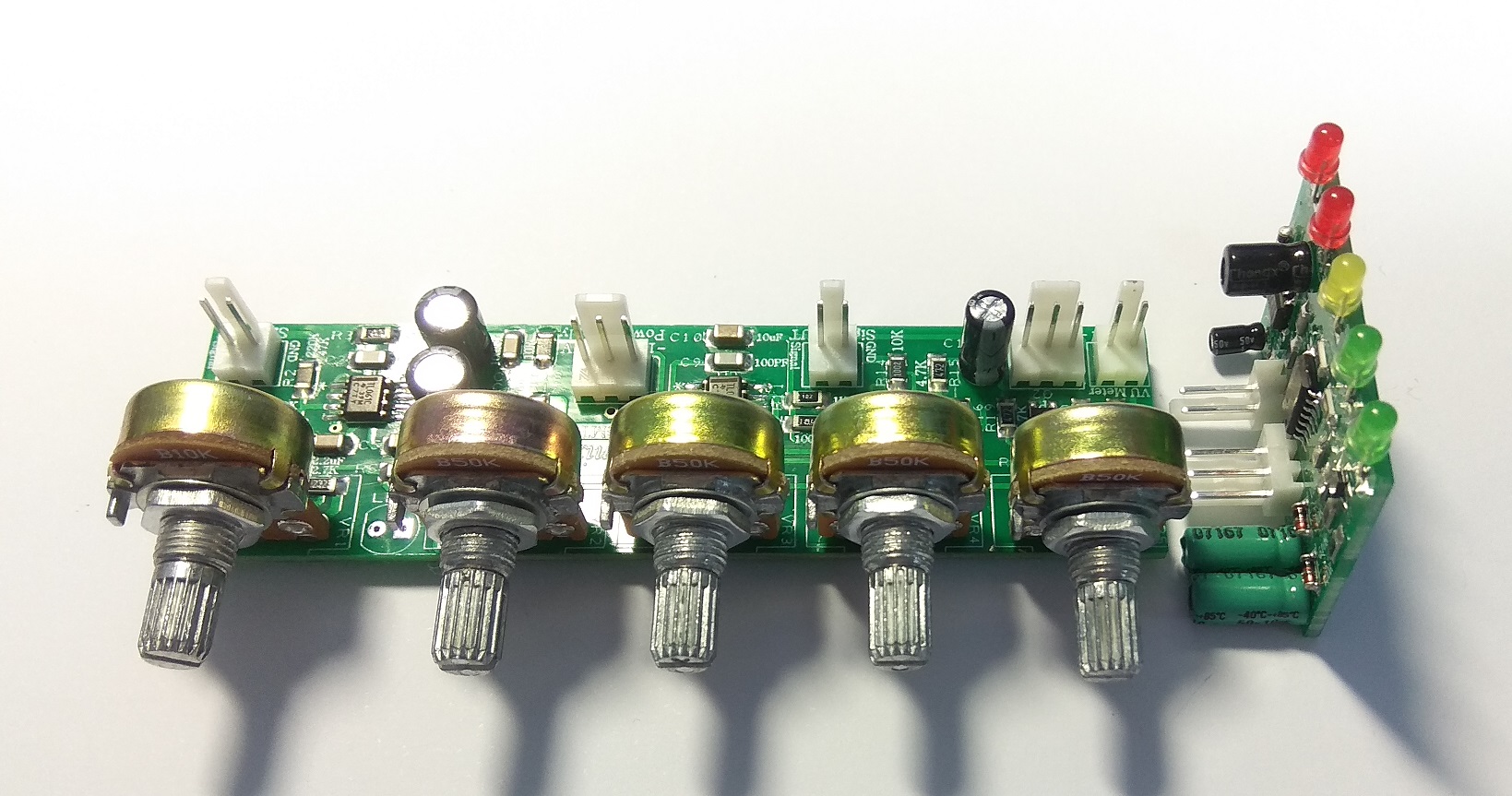

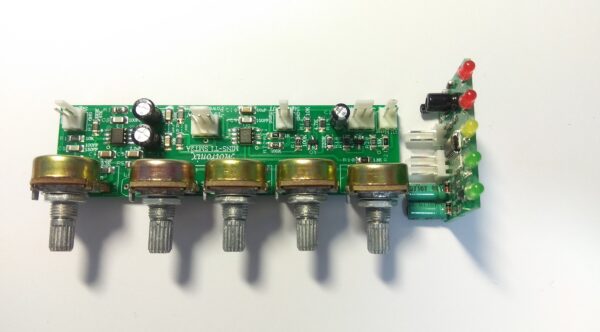

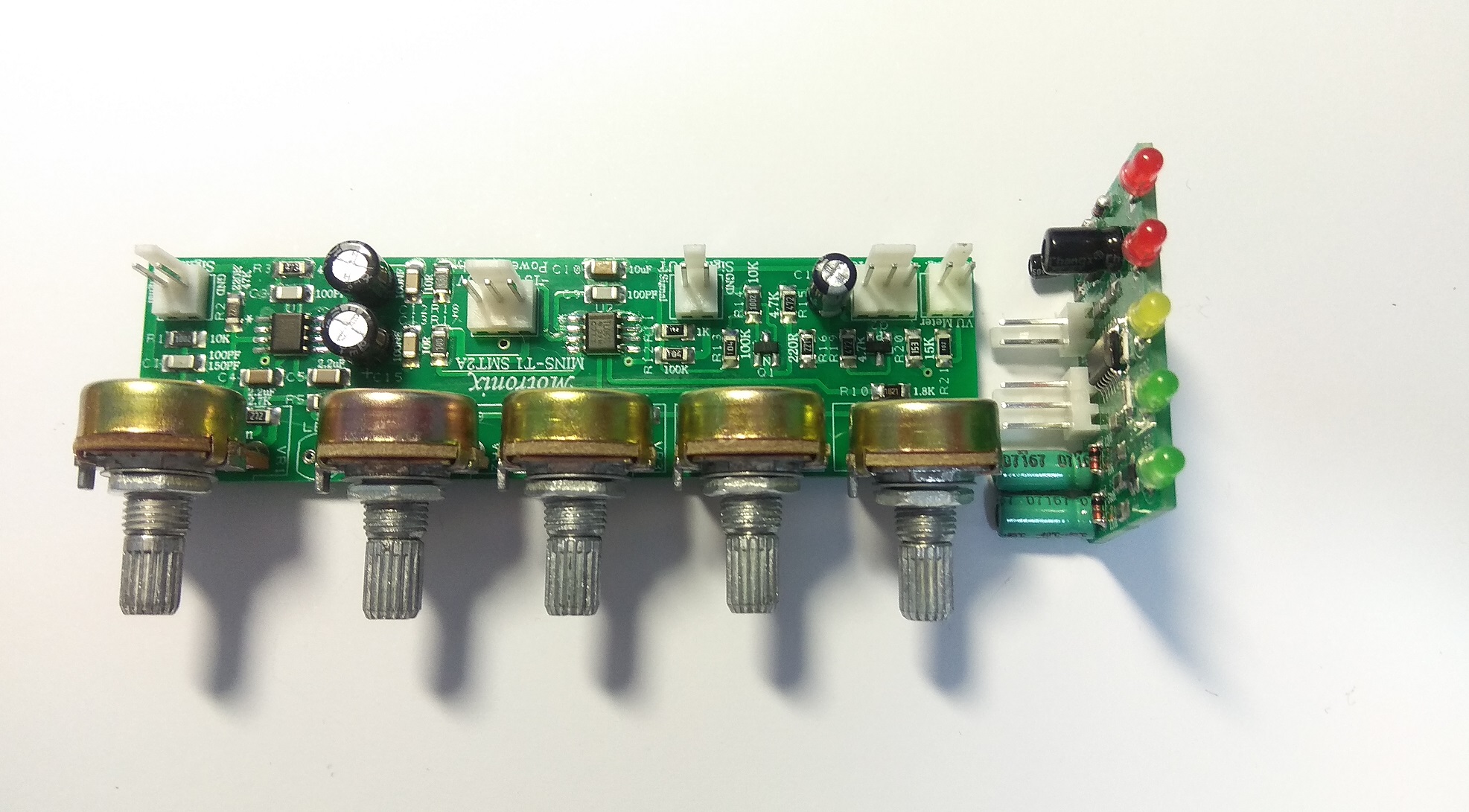

With/Without Led Level Meter

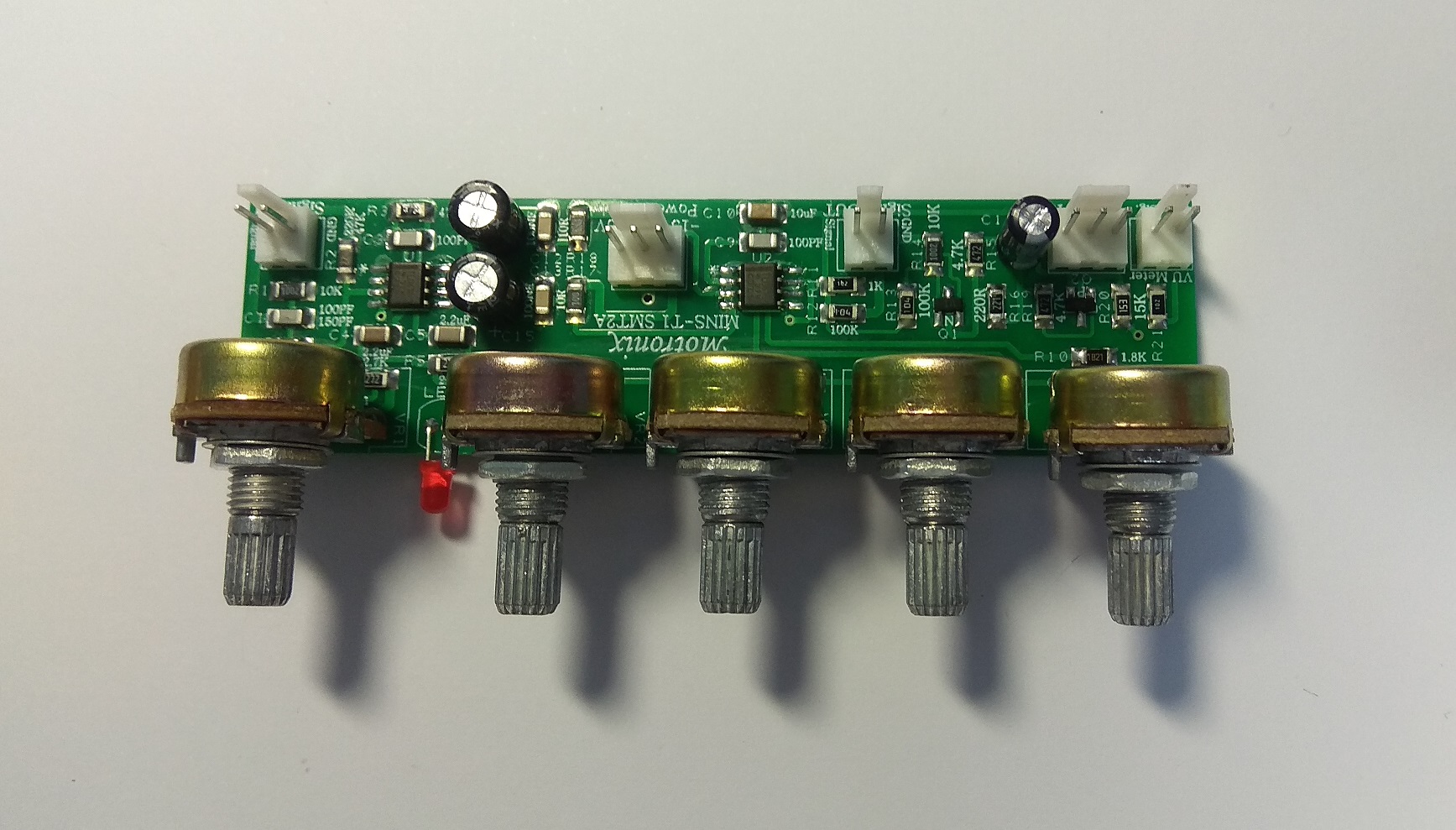

Model without VU Meter with +15db Peak Output Signal Led Indicator
Low Noise Op Amp !
This item is only PCB with components Assembled
Input & Output PCB Connectors will supply
Minimum Input Signal: 60mv -21db (Gain @ max Tone Flat)
Maximum Input Signal: 600mv -2db (Gain @ max Tone Flat)
Input Resistance: 10Kohm
Output Resistance: 1Kohm

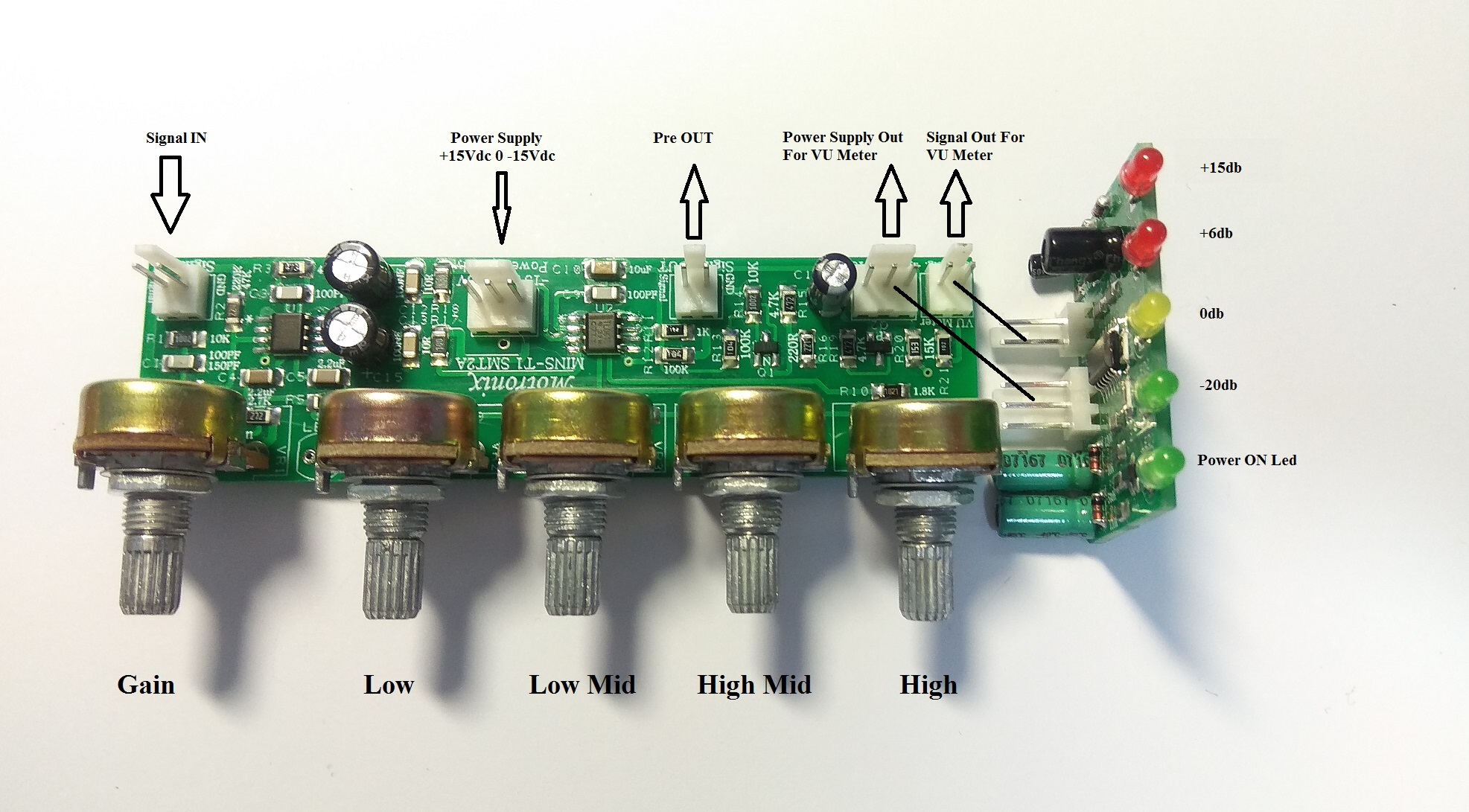

M-VU4D VU Meter Level: -20db 0db +6db +15db (Leds Gap 7mm)
Max output voltage: 6V +18db Gain @ max Tone Flat (with 2x15v power supply)
Tone control:
Low -10db 0 +20db @ 60Hz
Low-Mid -12db 0 +18db @ 300Hz
High-Mid -12db 0 +15db @ 1.5Khz
High -10db 0 +20db @ 10Khz
Working Voltage: Dual 15Vdc (Regulated +15Vdc 0 -15Vdc)
PCB Size:
MINS-T1SMT2: 100mm*28mm double-sided HAL,FR4 1.6MM

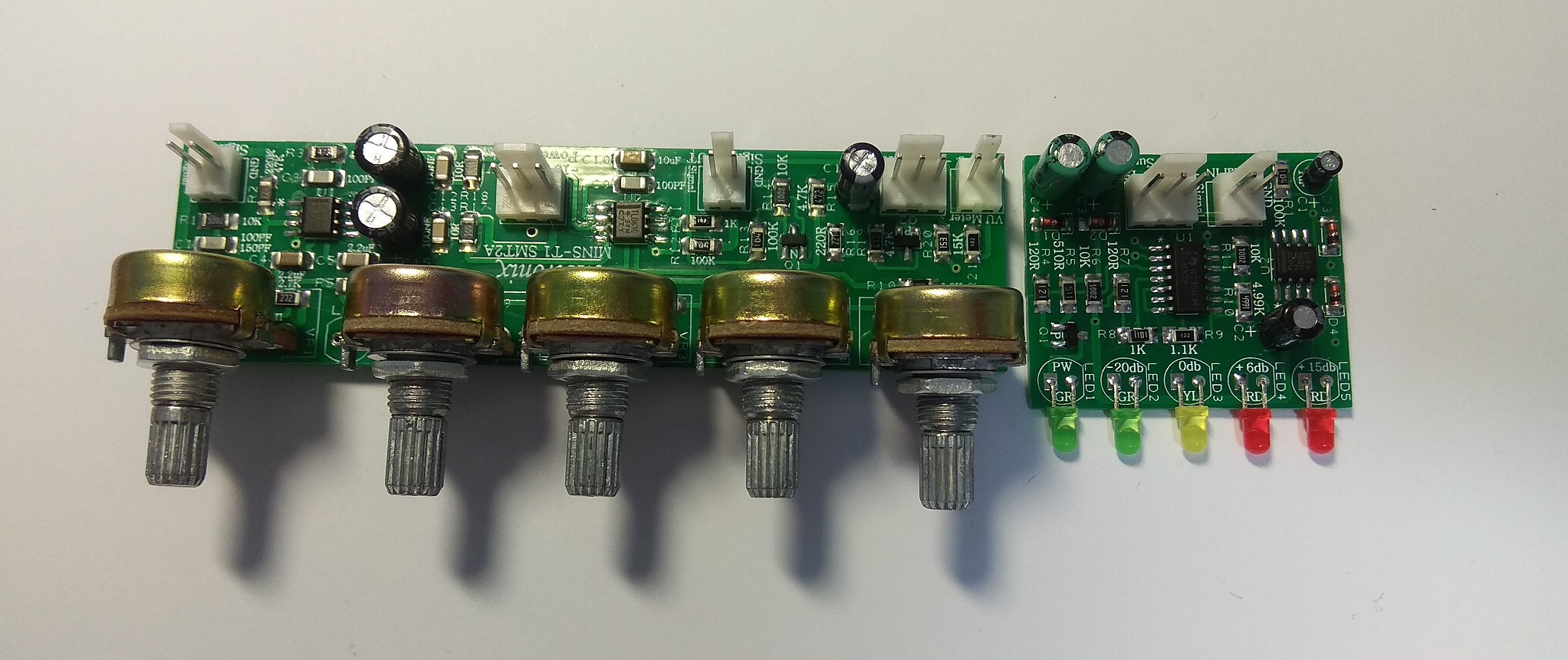

M-VU4D: 38mm*33mm double-sided HAL,FR4 1.6MM

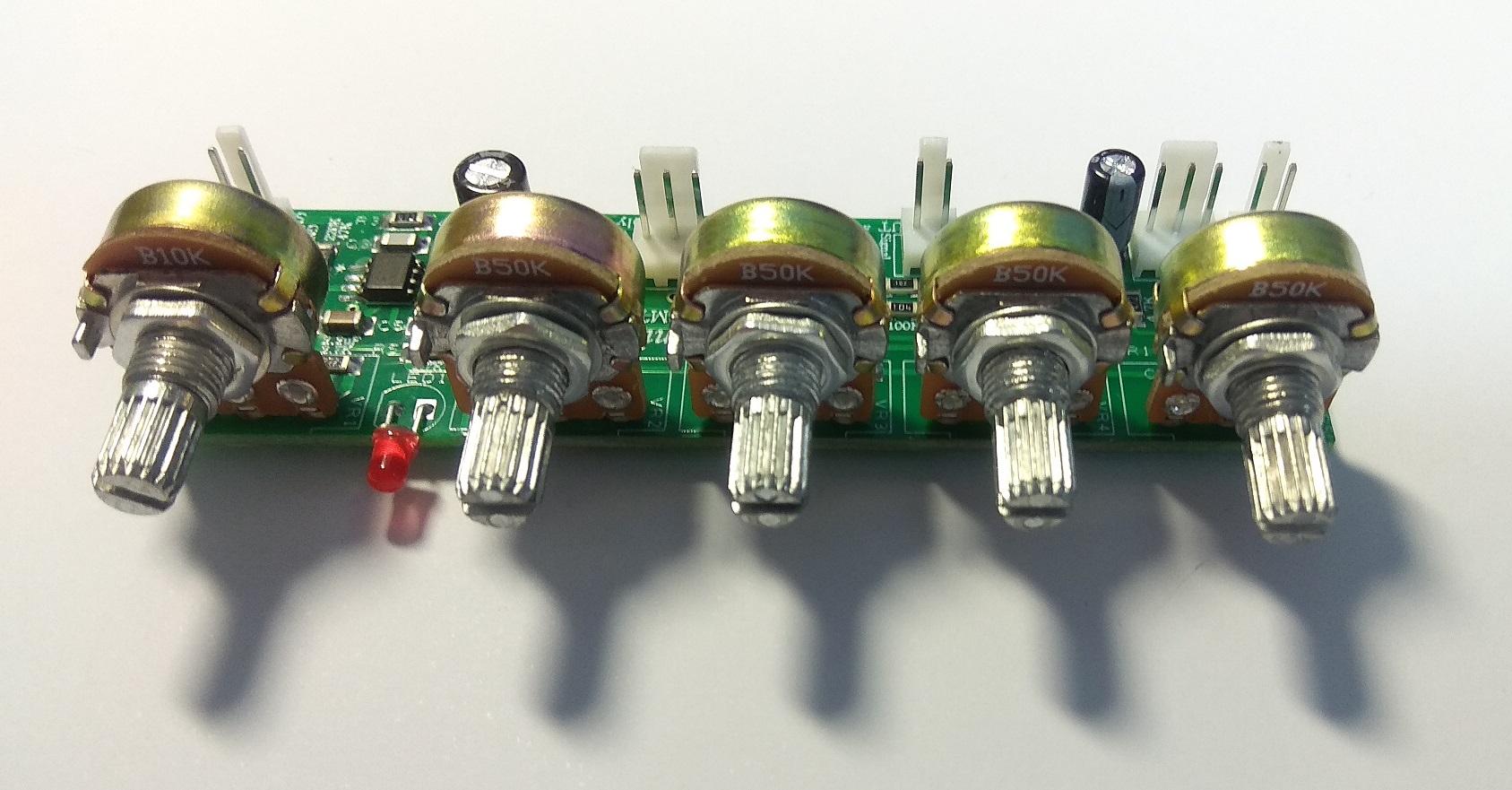

Potentiometer Gap: 3X19mm + 25mm (Center to Center) 15mm Shaft
