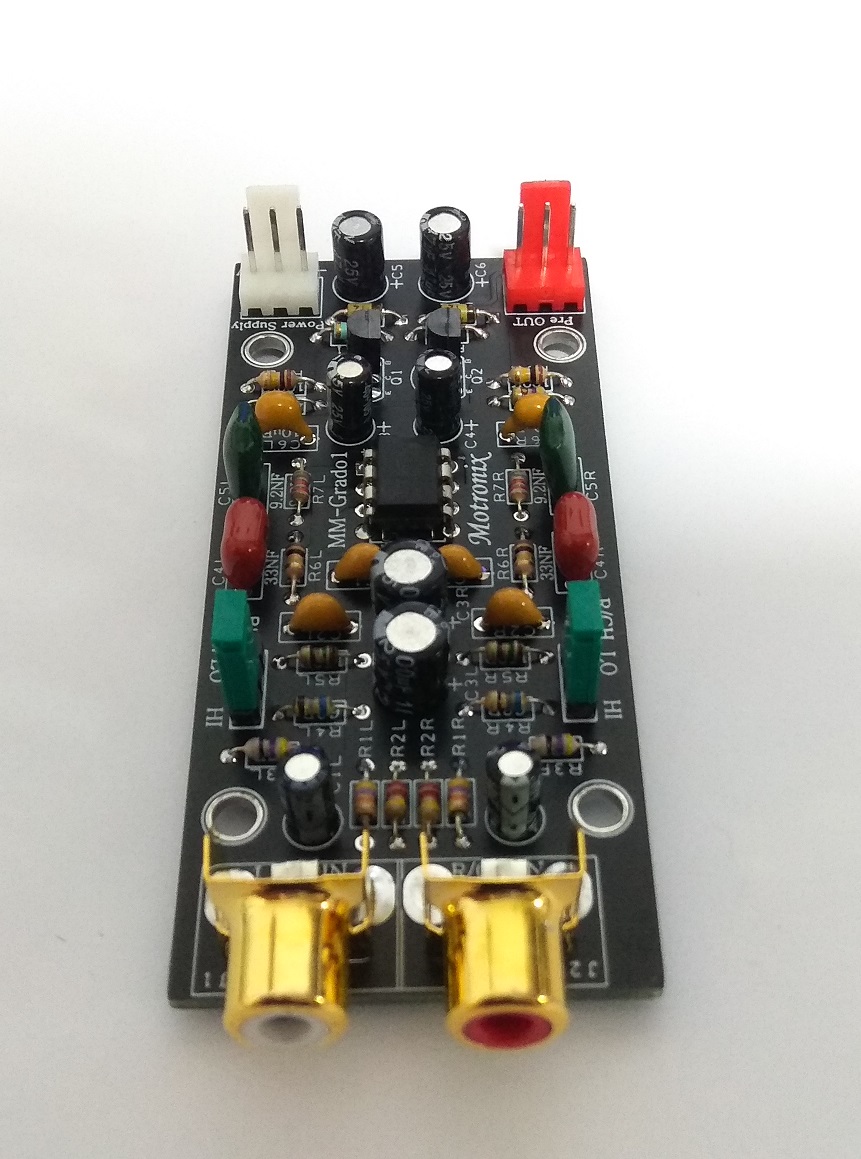

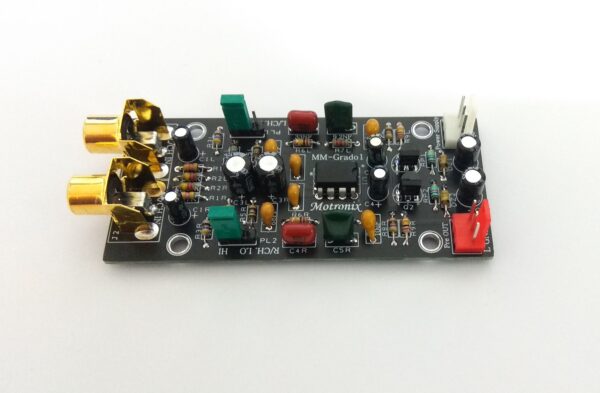

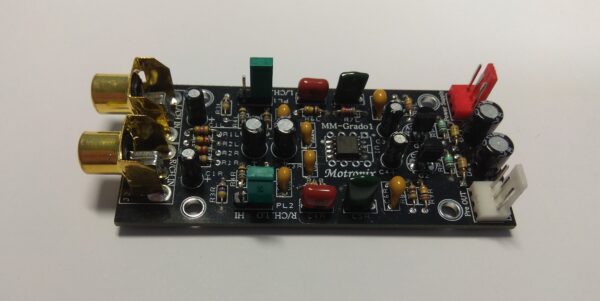

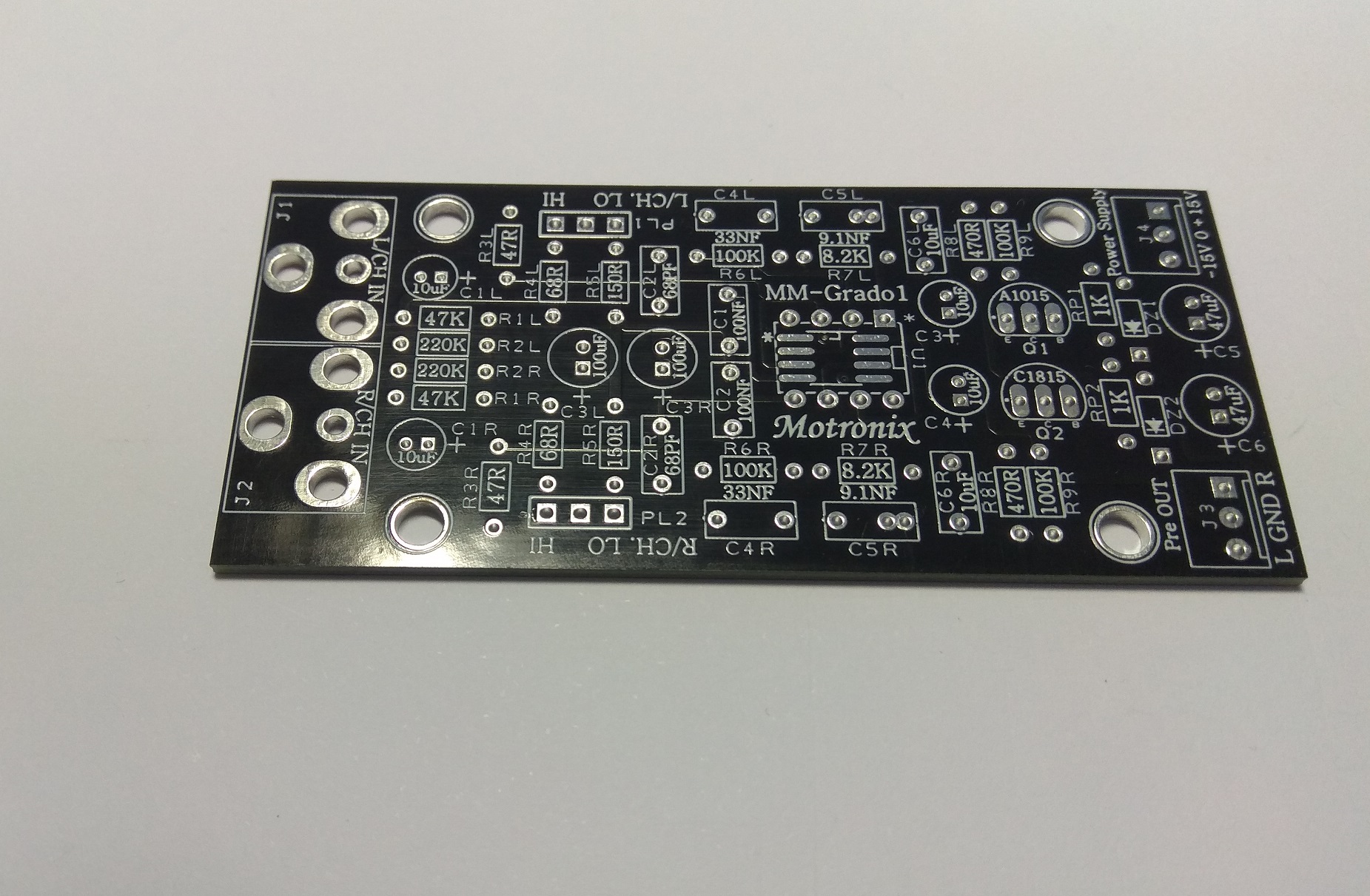

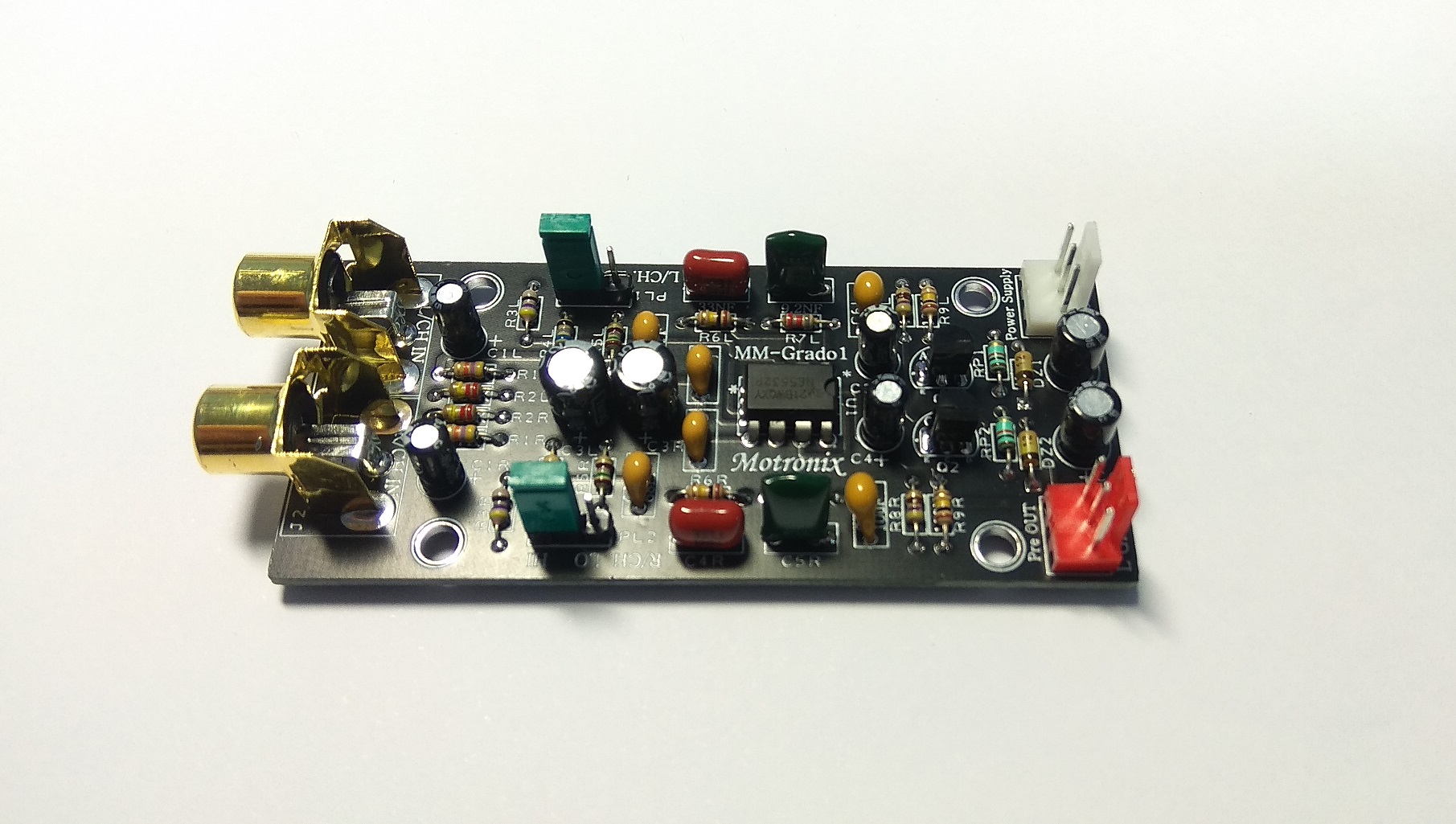

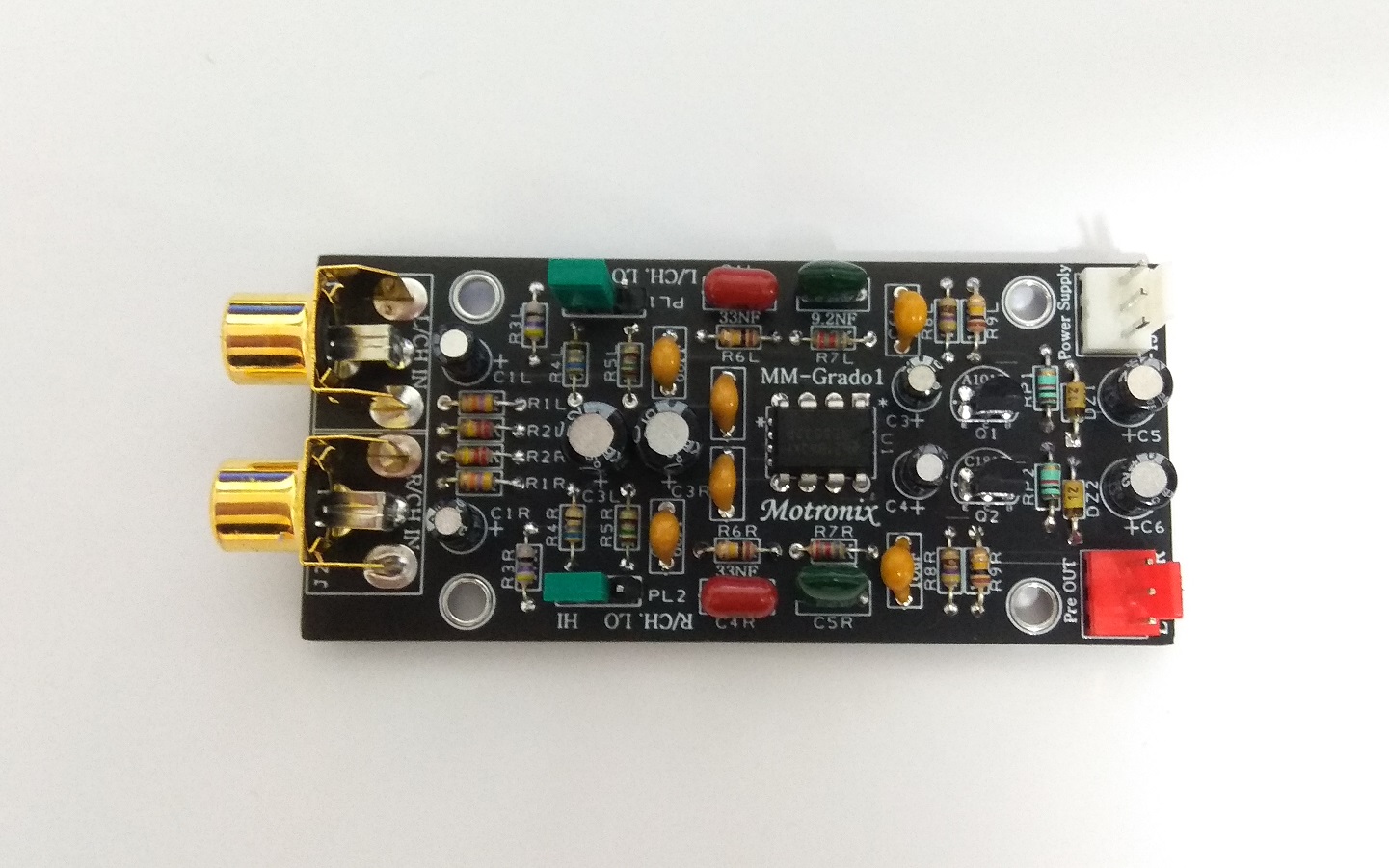

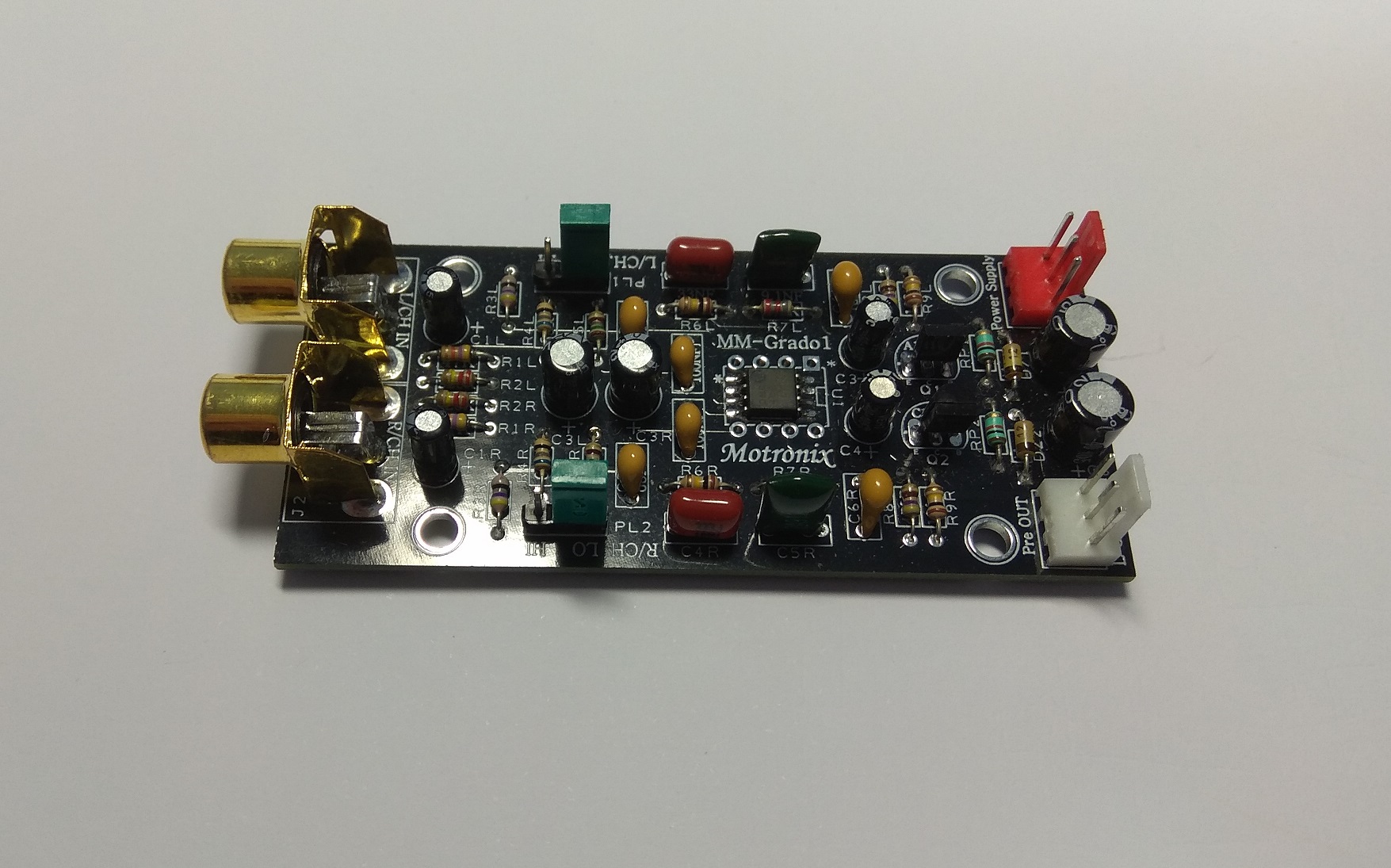

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 2

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 3

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 4

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 5

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 6

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 7

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality - Image 8

MM-Grado1 RIAA MM Phono Pre Amplifier Low Noise & High Quality

Price range: $25.00 through $30.00

Type

Clear

SKU: N/A Categories: Professional Riaa Stage, Pre-Amplifiers

Description

MM-Grado1

Special Design Phono Stage for Grado Phono Cartridge
With High or Low Level Gain
Stereo Riaa Stage with Excellent Audio performance
Matched components
Low Noise Op Amp
Input resistance: 47K ohms
Input sensitivity: Low 3.5mV / High 1mV
Output Signal Voltage:
Low: 250mV/-10dBu @ 1Khz
High: 180mV/-12dBu @ 1Khz
Output resistance: 470 ohms
RIAA equalisation accuracy: 0.1dB

Molex Female Connector and pins included
Power Supply: Dual DC – +15Vdc 0 -15Vdc (Can be 15-24Vdc)
PCB Size: **80mm*32mm Black double-sided HAL,FR4 1.6MM**

Additional information

Type	MM-Grado1 Assembled, MM-Grado1 PCB+Parts KIT
