Description
FC-28

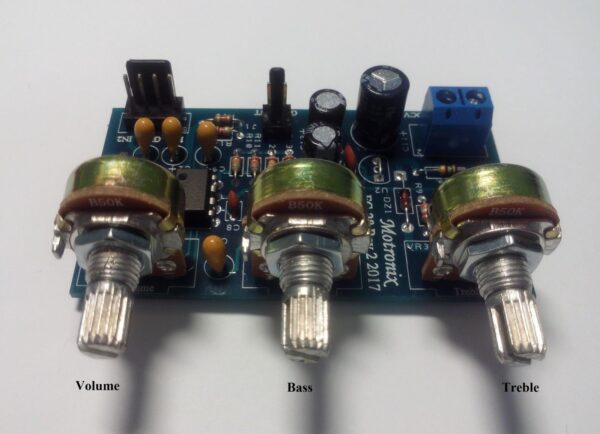

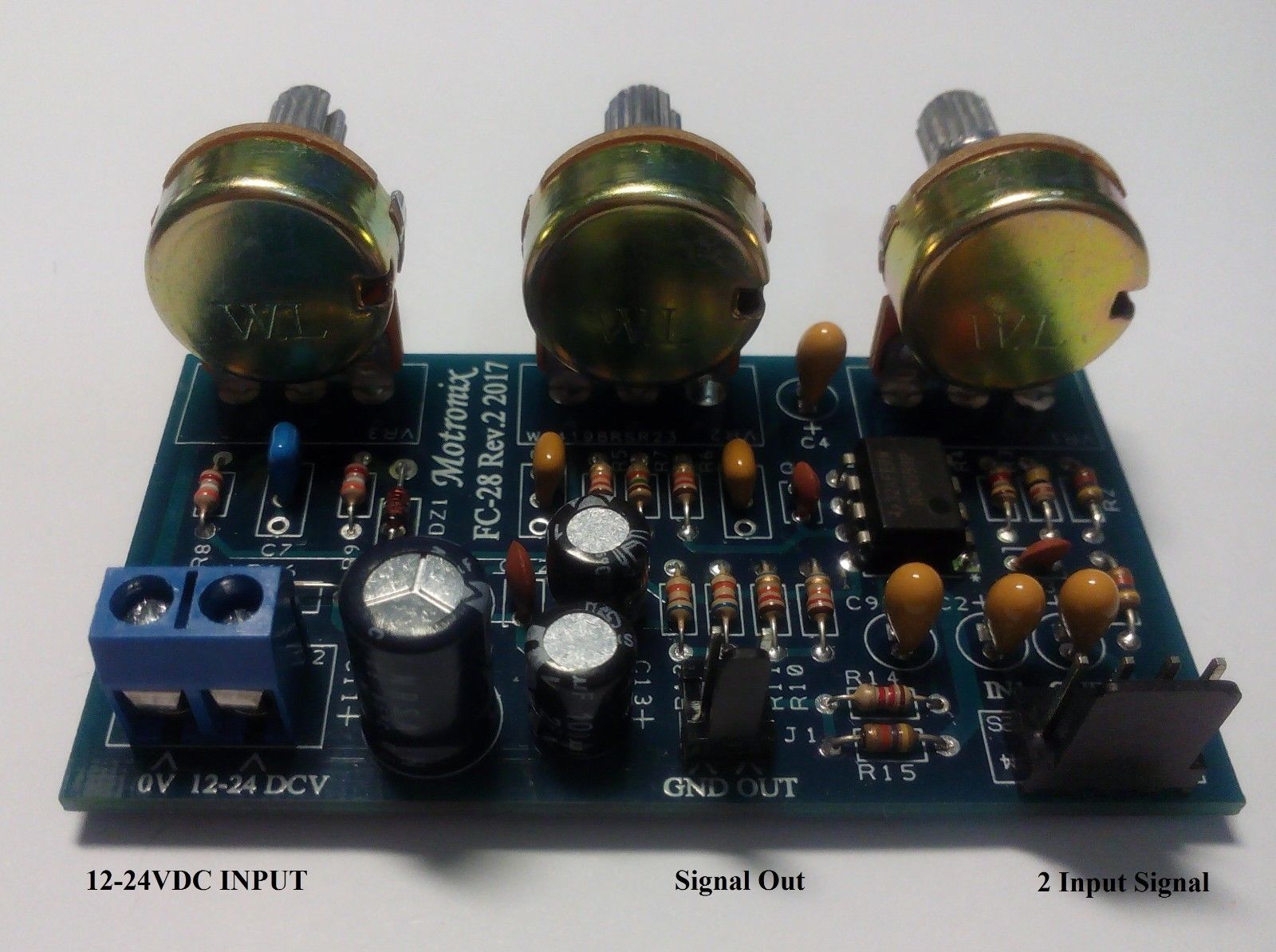

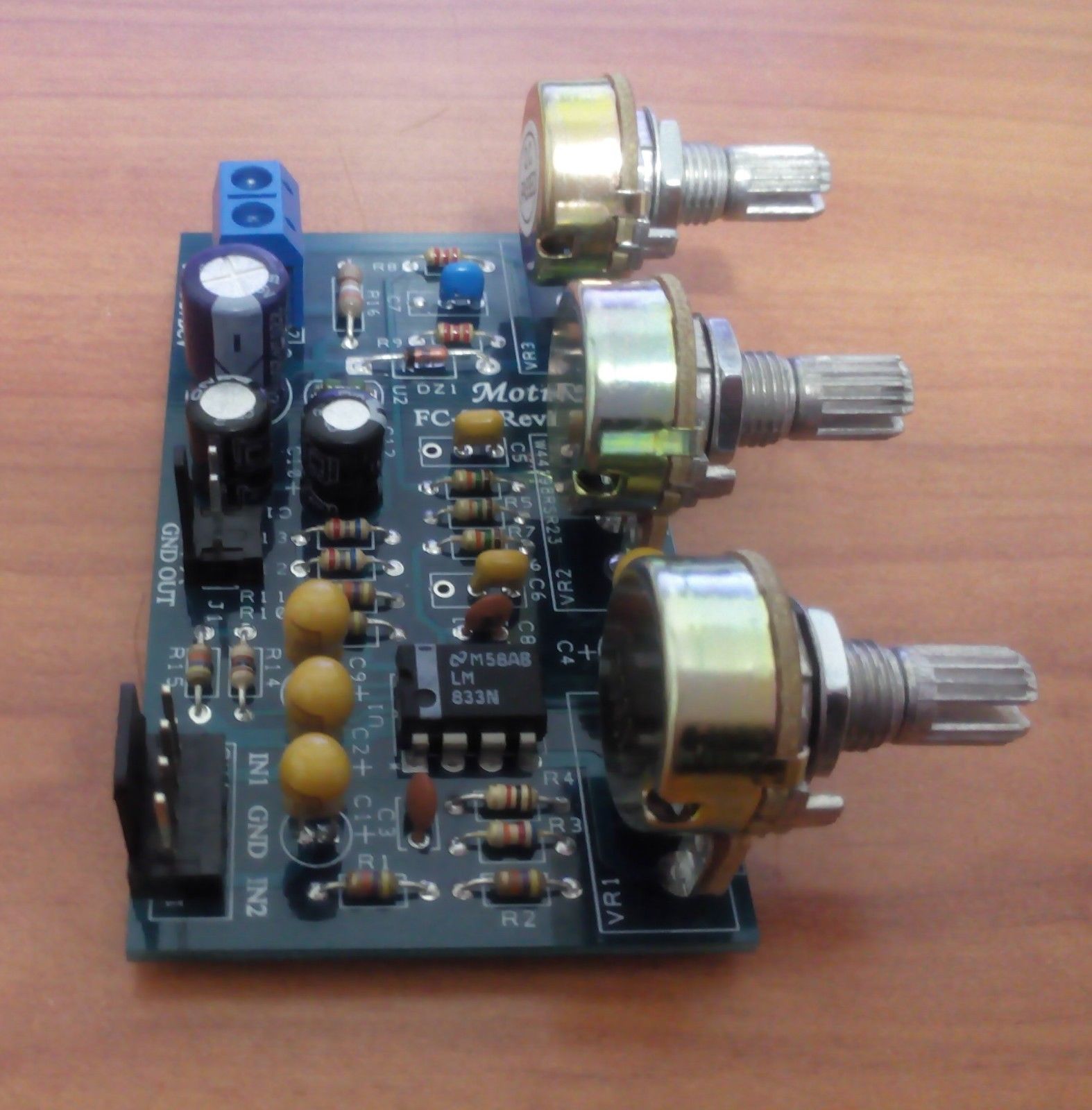

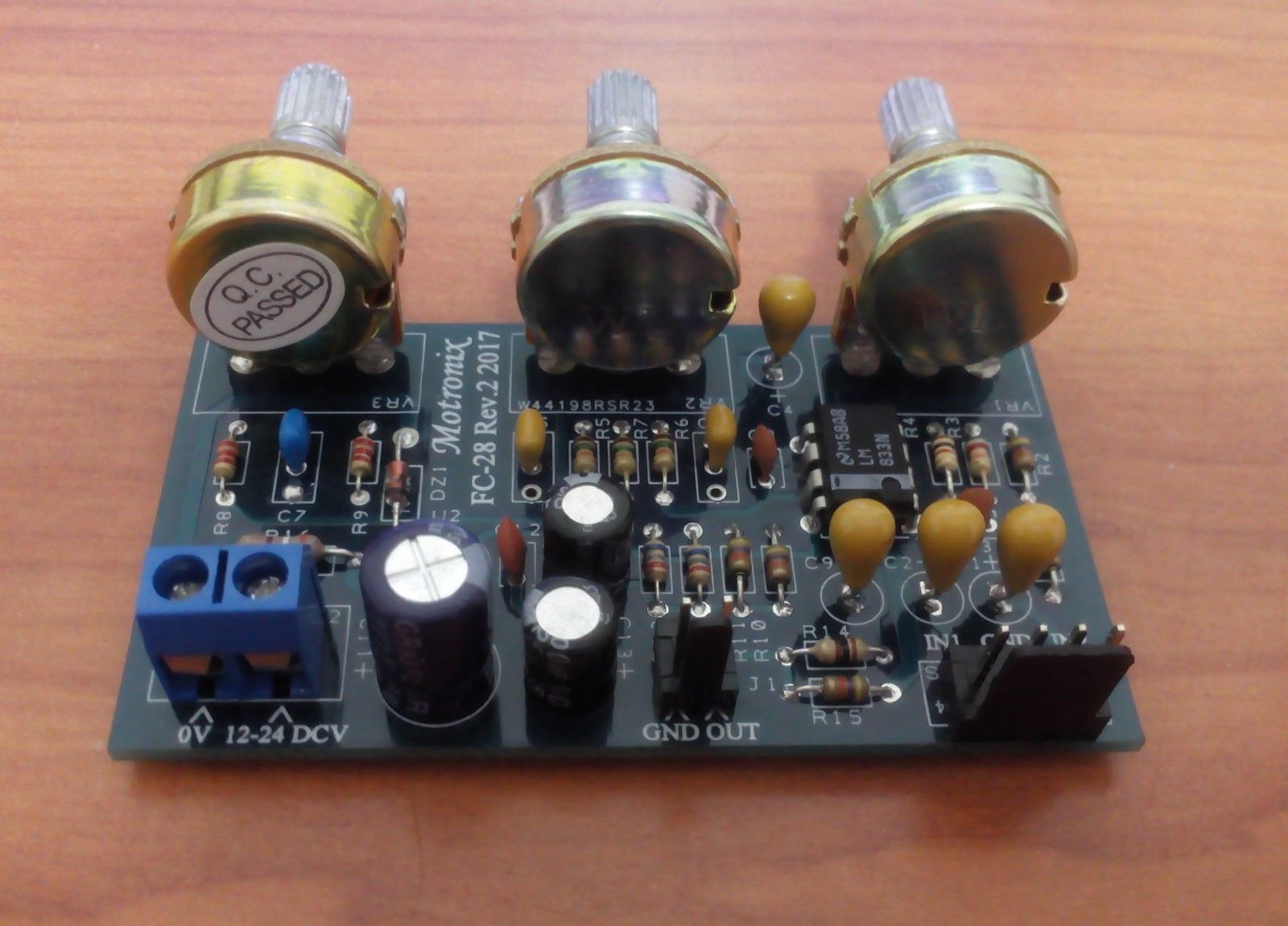

Assembled Board Mono HIFI Tone Control Pre Amplifier Board. Vol. Bass Treble +/- 15db Single Voltage 12-24VDC
BLUE Double sided High quality and reliability FR4 1.6MM
MONO HIFI Pre Amplifier
This item is only PCB with High Quality components Assembled and Can customise for different needs
With Low Noise OP AMP
Input sensitivity for Line/Aux [can be changed FOR MICROPHONE by replaced Input resistor]
Tone control: Bass 60HZ +/- 15db Treble 12KHZ +/- 15db
Working Voltage: Single 12-24 VDC [Not Dual Voltage] Recommended 18VDC
PCB Size: 69mm*31mm double-sided HAL,FR4 1.6MM
Potentiometer Gap: 25mm
Applications: DIY Home/Car Power Amplifier, Home/Car Subwoofer Amplifier
