MOP-TST2 Single/Dual/Quad Operational Amplifier Test/Compares Module PCB

$35.00

Add to Wishlist

Availability:

4 in stock

Category: Audio Accessories

Description

Description

MOP-TST2

Essential product in any electronics lab

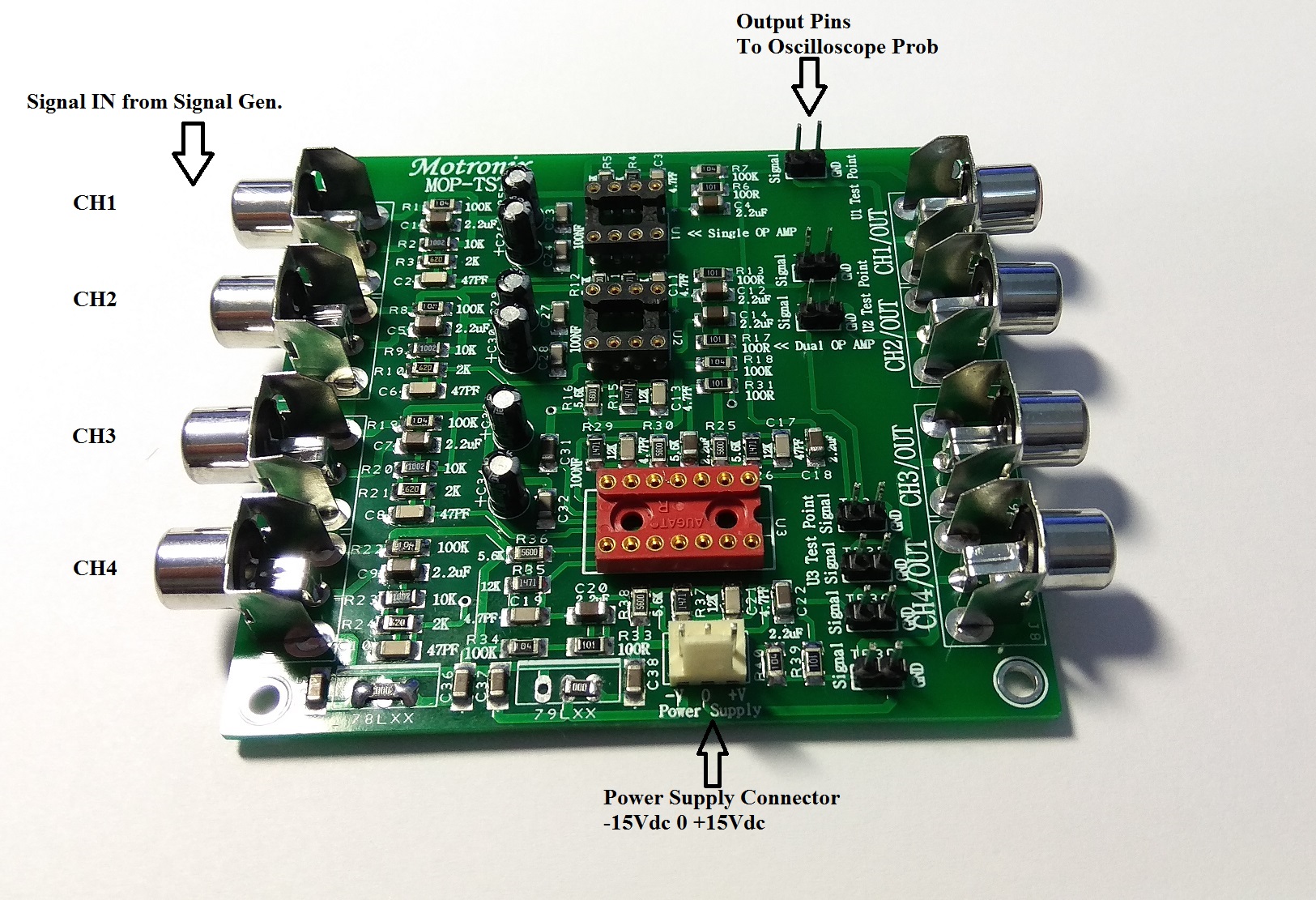

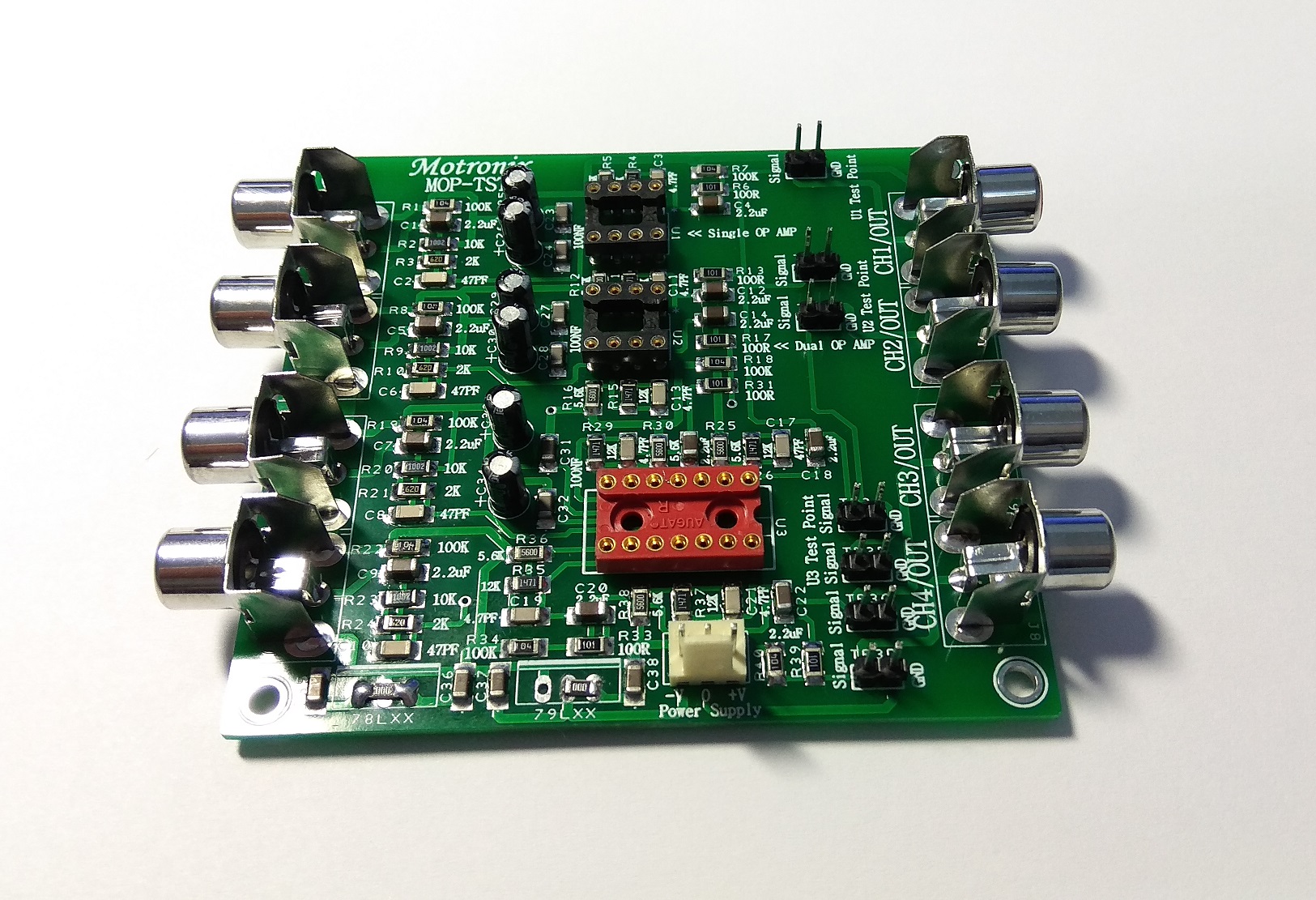

With this PCB Module you can test Single or Dual or Quad Operational Amplifiers

Now you can Compares Performance of Real Original OP AMP and find the Fake/Copy Chinese Parts

What it can do and how:

Test the Amplification (Connect Audio Signal or Signal Generator)

Test all parameters with Oscilloscope Like bandwidth etc.

RCA Input / Output Connector Make the process very easy

Test Procedure Single or Dual or Quad (not together)

On Board Gold Plate Genuine 8,14 Pin Augat IC Sockets

Working Voltage :

Dual DC Power Supply +17v 0 -17v dc (MAX +20v 0 -20v)

PCB Size:

**84mm*77mm double-sided HAL,FR4 1.6MM**

Applications: OP AMP TEST
