Description
MRIAA-IC12V

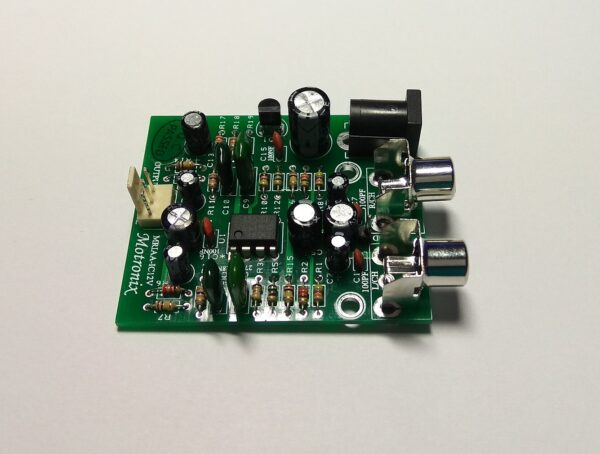

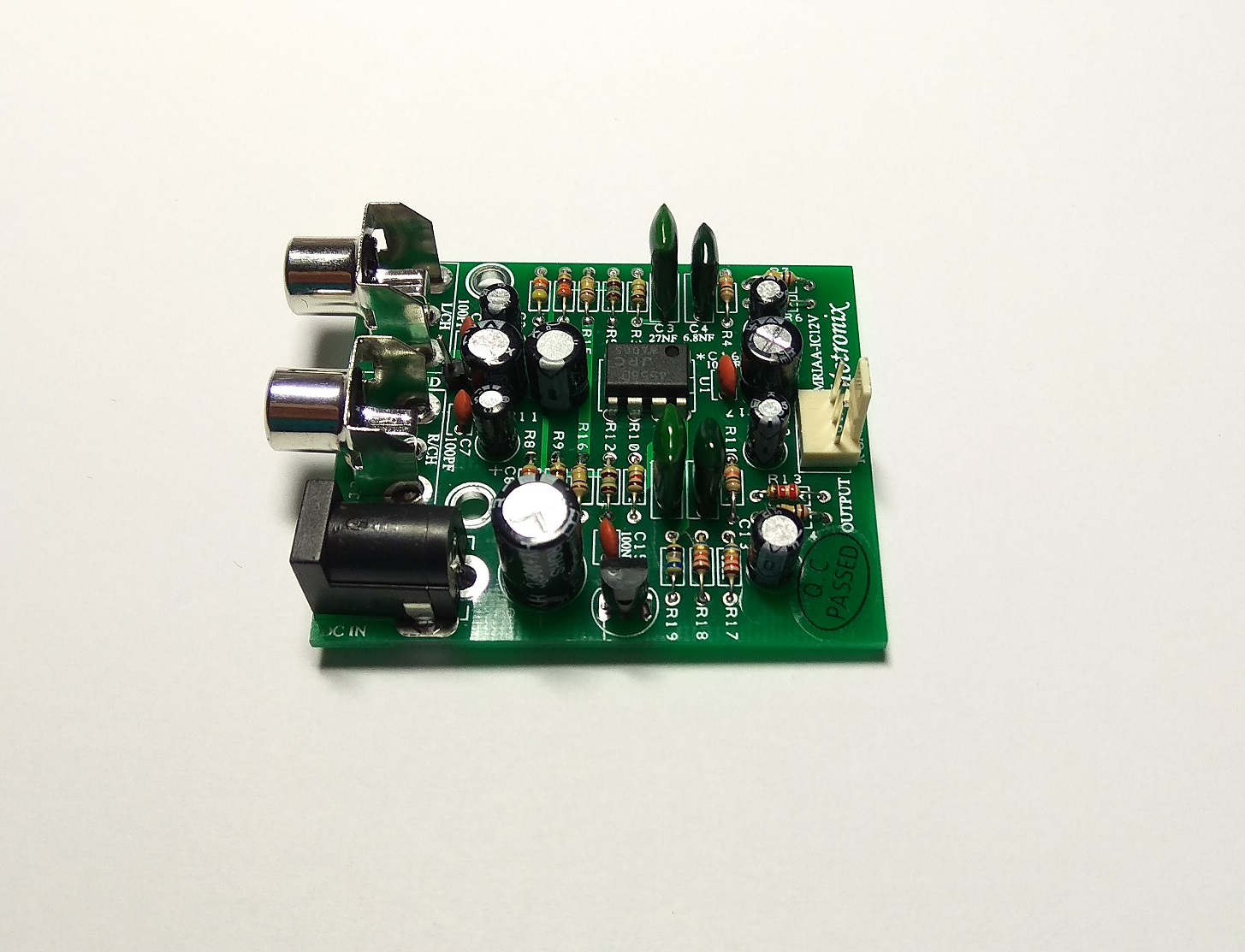

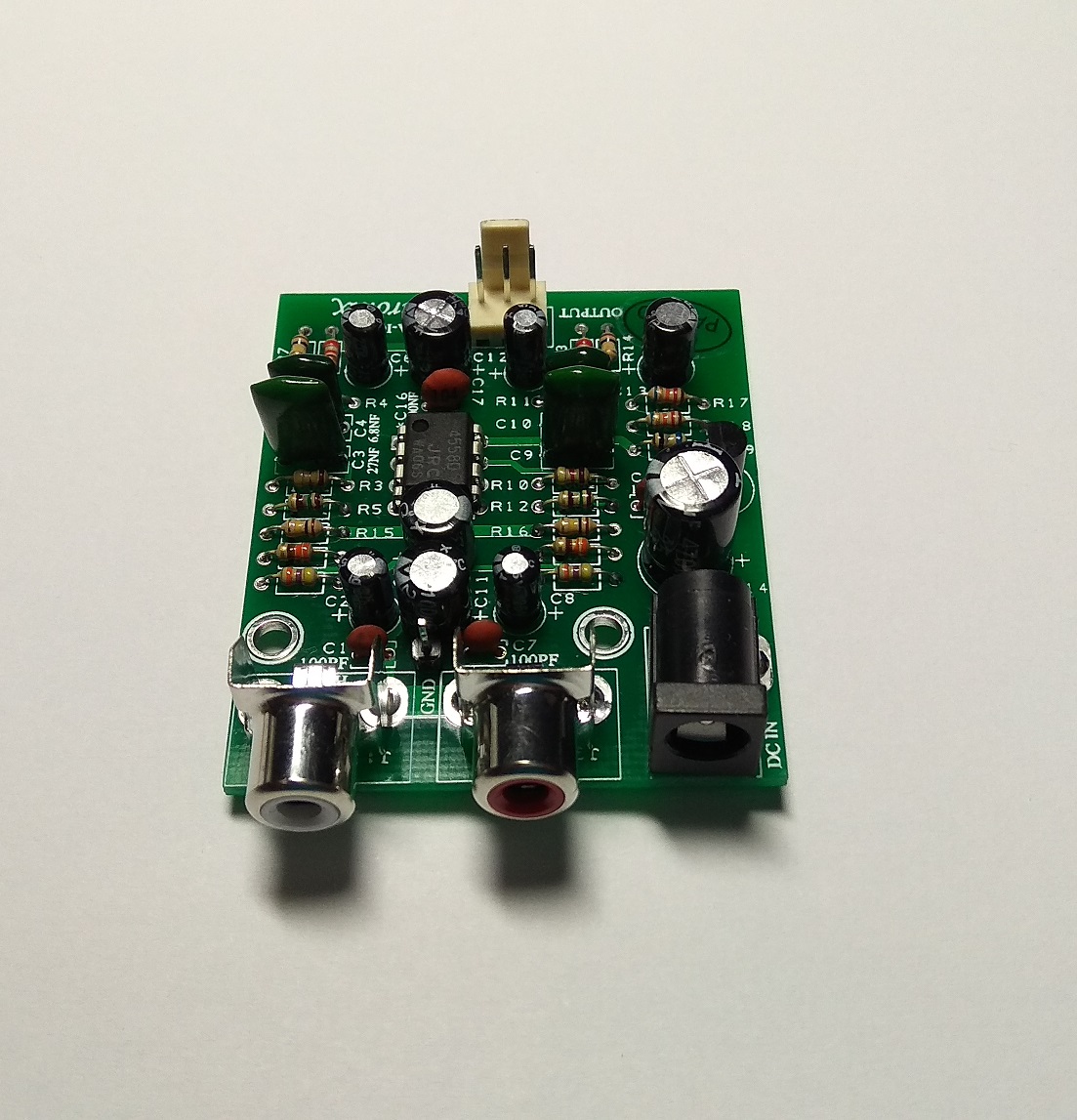

Assembled Board HIFI RIAA Low Noise IC Stereo MM Phono Preamp Board Powered By Single 12-24Vdc
High quality and reliability FR4 1.6MM
High quality components
Stereo High Performance RIAA HIFI Pre Amplifier
The Good Old Sound Quality
MRIAA-IC12V Model Working with single 12-24Vdc Power supply (Recomended 15Vdc)
Low Noise IC Amplification
We Use ONLY Original Genuine Parts
On board Voltage Regulator
On board Phono GND pin Connector
This item is only PCB with components Assembled
Output Connectors will supply
Input sensitivity: 2.5mv (7mv max.) @ 1Khz
Freq. Response: 20-20000 Hz
Input Impedance: 47Kohm
Working Voltage:
MRIAA-IC12V : Single 12-24 Vdc (Recommended 16Vdc)
PCB Size:
MRIAA-IC12V = 55mm*47mm double-sided HAL,FR4 1.6MM
