Description
MRIAA-MZ1200
RIAA Professional Stage Low Noise MM Phono Pre Amplifier For DIY Audio
High quality and reliability FR4 1.6MM
High quality components
Stereo High Performance RIAA HIFI Pre Amplifier
Can place in equipment that don’t have Phono Preamp
Very Easy Installation procedure!
Working with Dual 12-15VDC Power supply
Pure Analog Sound With Low Noise Amplification IC
We Use ONLY Original Genuine Parts
On board Voltage Regulator Zener Diode

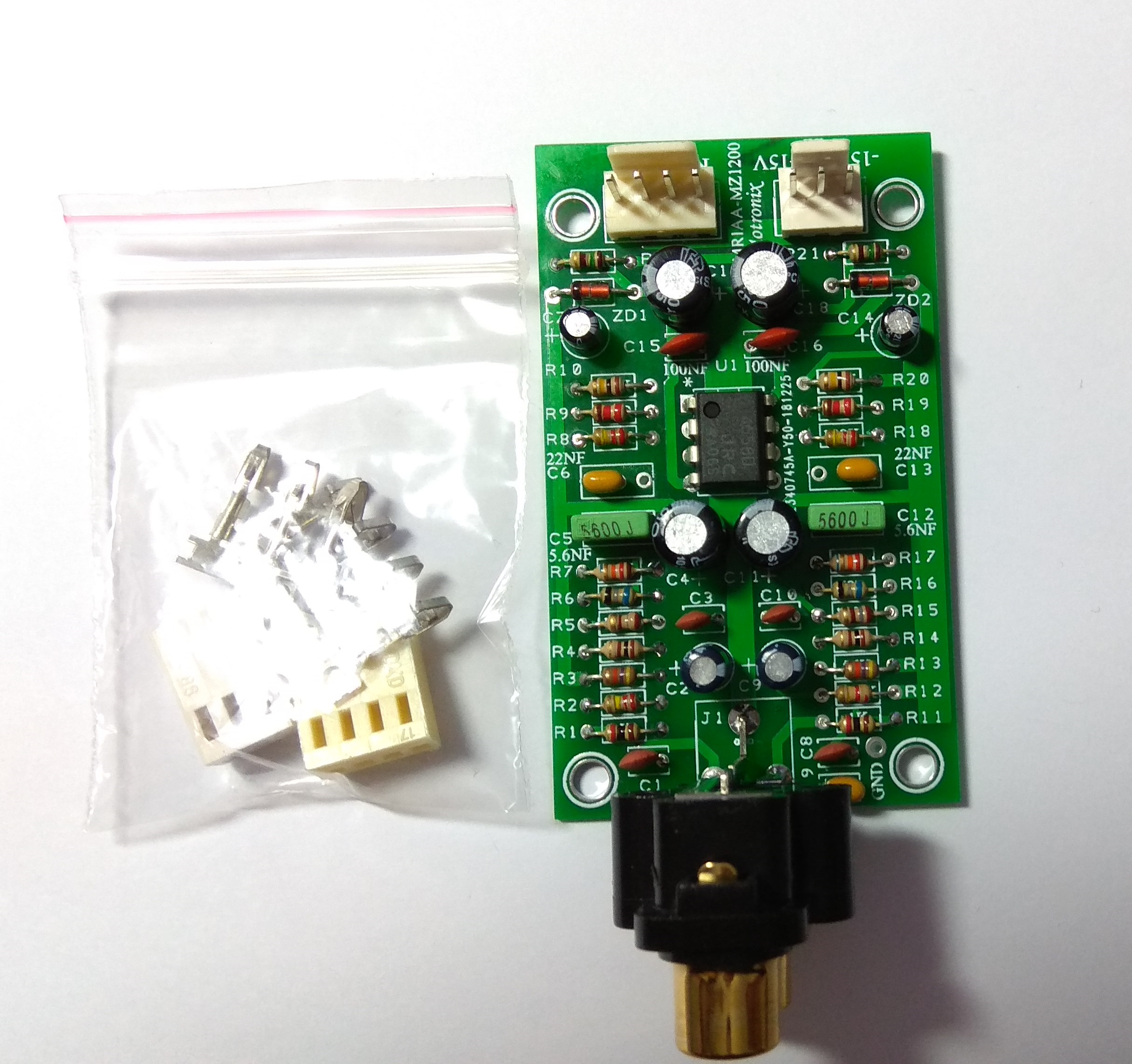

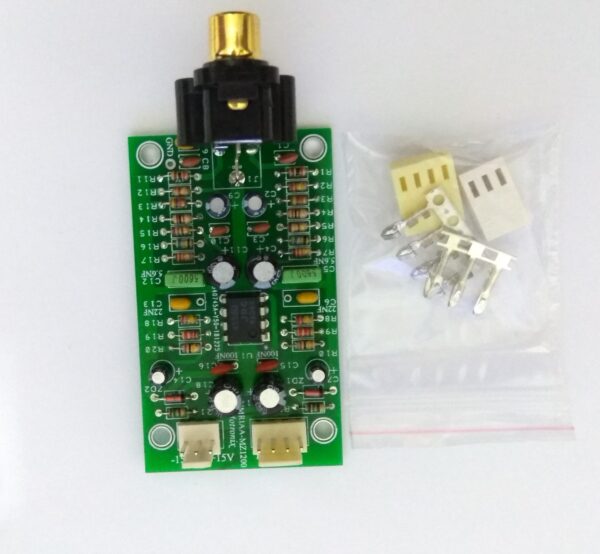

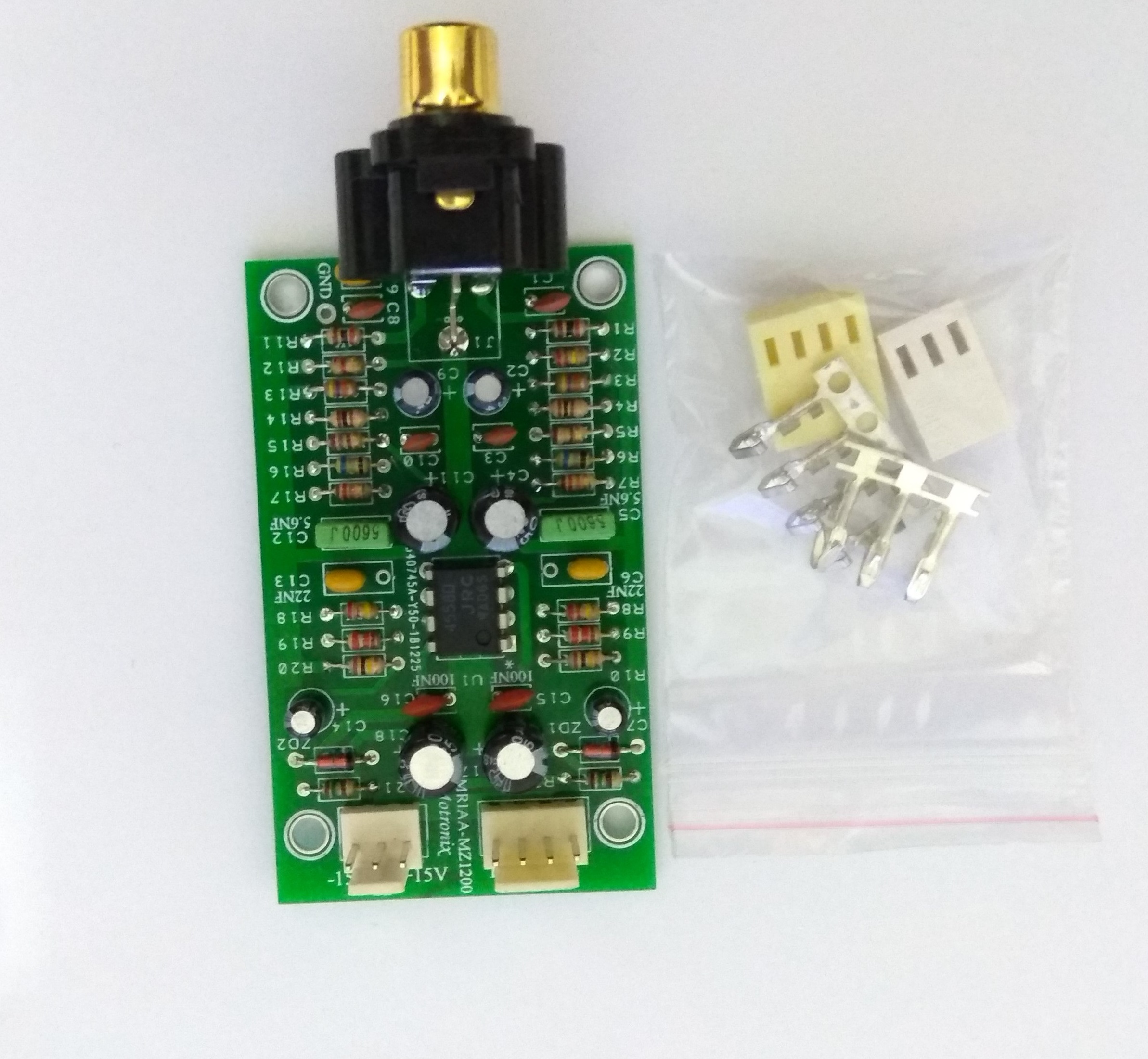

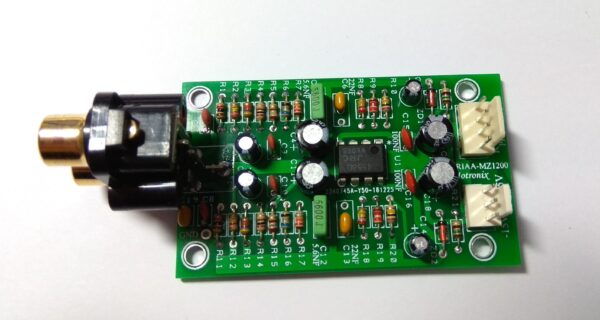

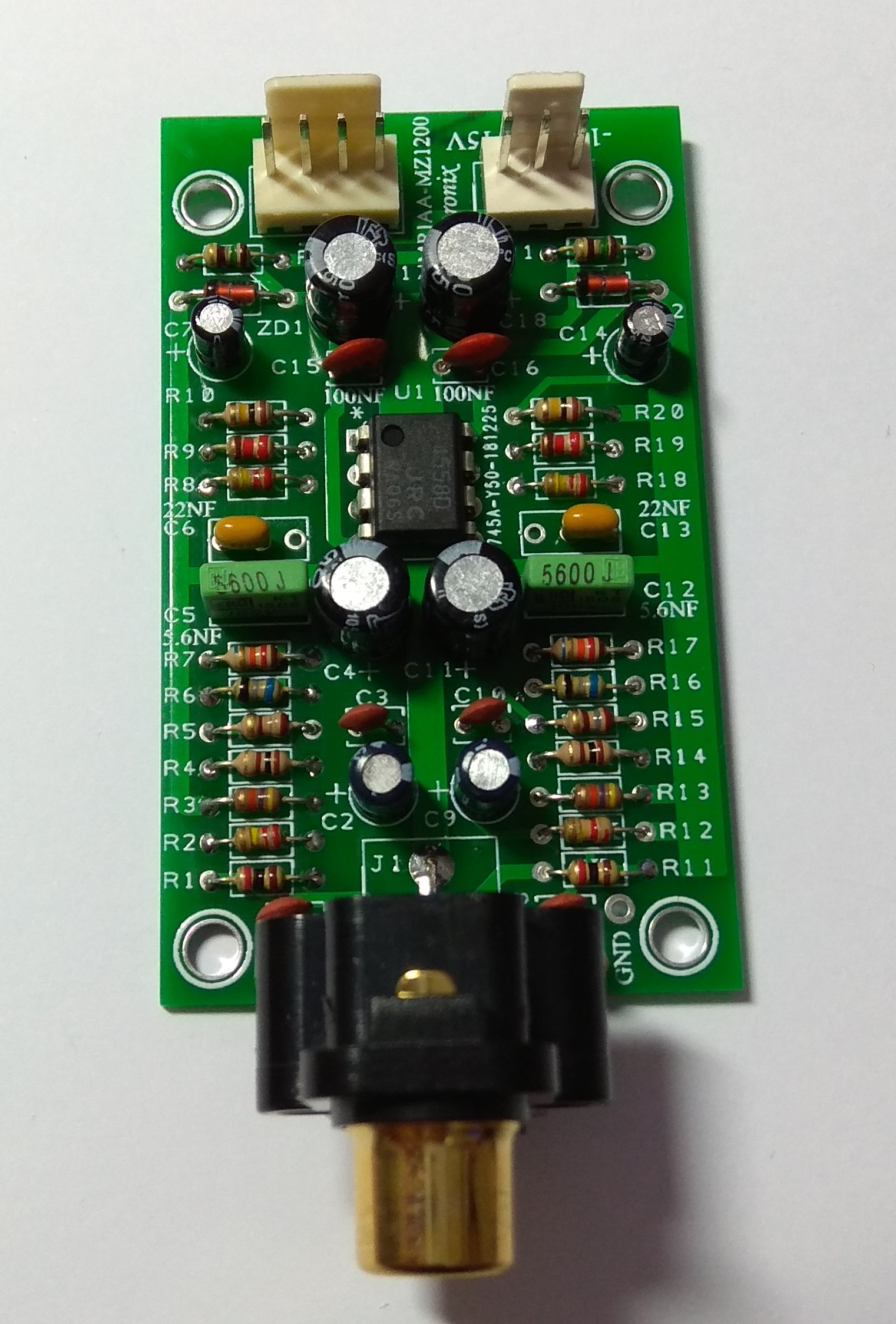

This item is only PCB with components Assembled
Output Connectors will supply
Input sensitivity: 2.5mv (7mv max.)
Input Impedance: 47Kohm
Working Voltage: Dual 12-15 VDC (Recomended +/- 15V)
PCB Size: 64mm*38mm double-sided HAL,FR4 1.6MM
Applications: DIY Home Amplifier
