Name: MSS-2 Subsonic High Pass Active Filter 3rd order 18db Model WV Single 9-15 or 15-30Vdc
SKU: 2333
Availability: InStock

MSS-2 Subsonic High Pass Active Filter 3rd order 18db Model WV Single 9-15 or 15-30Vdc

Price range: $7.00 through $8.00

Description

MSS-2

18db High Quality Stereo Subsonic Filter

Standard Freq. 15,20,25Hz (Can Be Changed by buyer request)

3rd Order High Pass Filter Avoid very low vibrations and frequencies caused by turntables/vinels

Excellent Performance

2 Order Option:

1.Board that work with Single 9-15Vdc

2.Board that work with Single 15-30Vdc

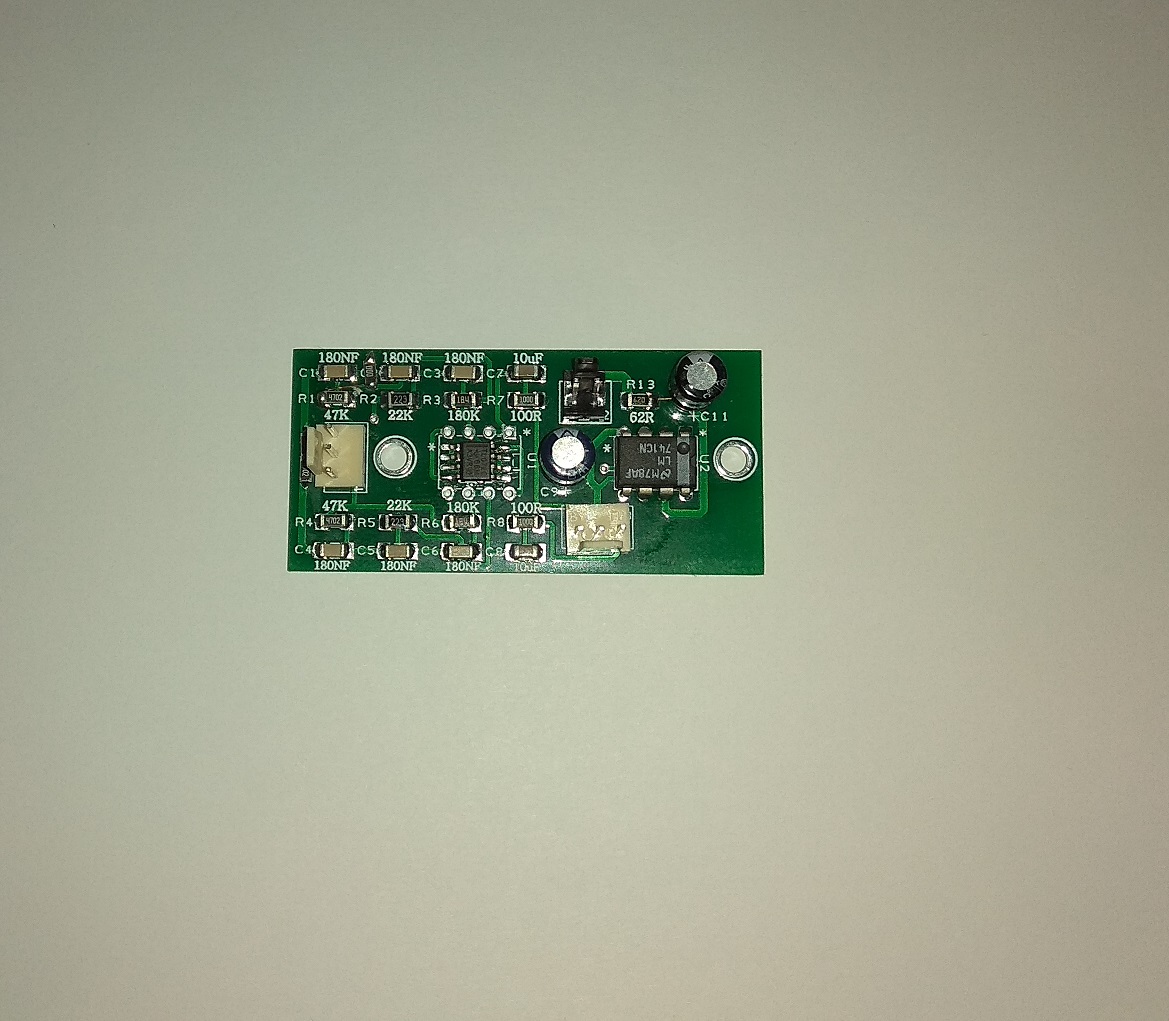

High quality and reliability PCB FR4 1.6MM

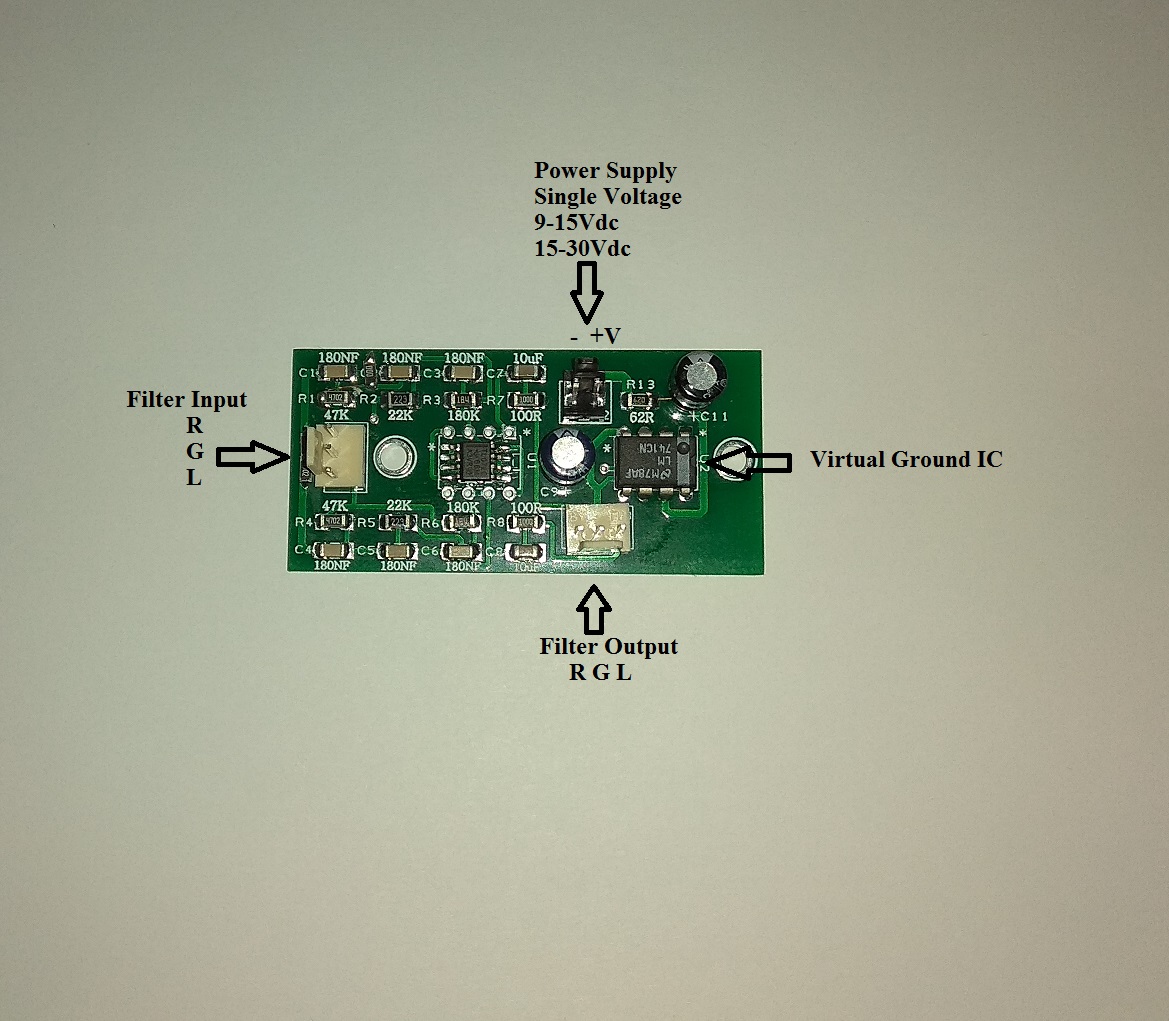

Input/Output & Power Supply Connectors will supply

Working Voltage : 9-15Vdc or 15-30Vdc

Gain Level 0db (1:1 Ratio)

Filter: 15/20/25Hz 18db/octave 3rd order High Pass Filter

PCB Size:

MSS-2 59mm*28mm double-sided HAL,FR4 1.6MM

Additional information

Model	MSS-2 9-15V 15Hz, MSS-2 9-15V 20Hz, MSS-2 9-15V 25Hz, MSS-2 15-30V 15Hz, MSS-2 15-30V 20Hz, MSS-2 15-30V 25Hz
