Name: MSS-3B/CTS Subsonic High Quality Stereo 24db 4th order 15/20/25/30 Hz Active Filter
SKU: 2350
Availability: InStock

MSS-3B/CTS Subsonic High Quality Stereo 24db 4th order 15/20/25/30 Hz Active Filter

Description

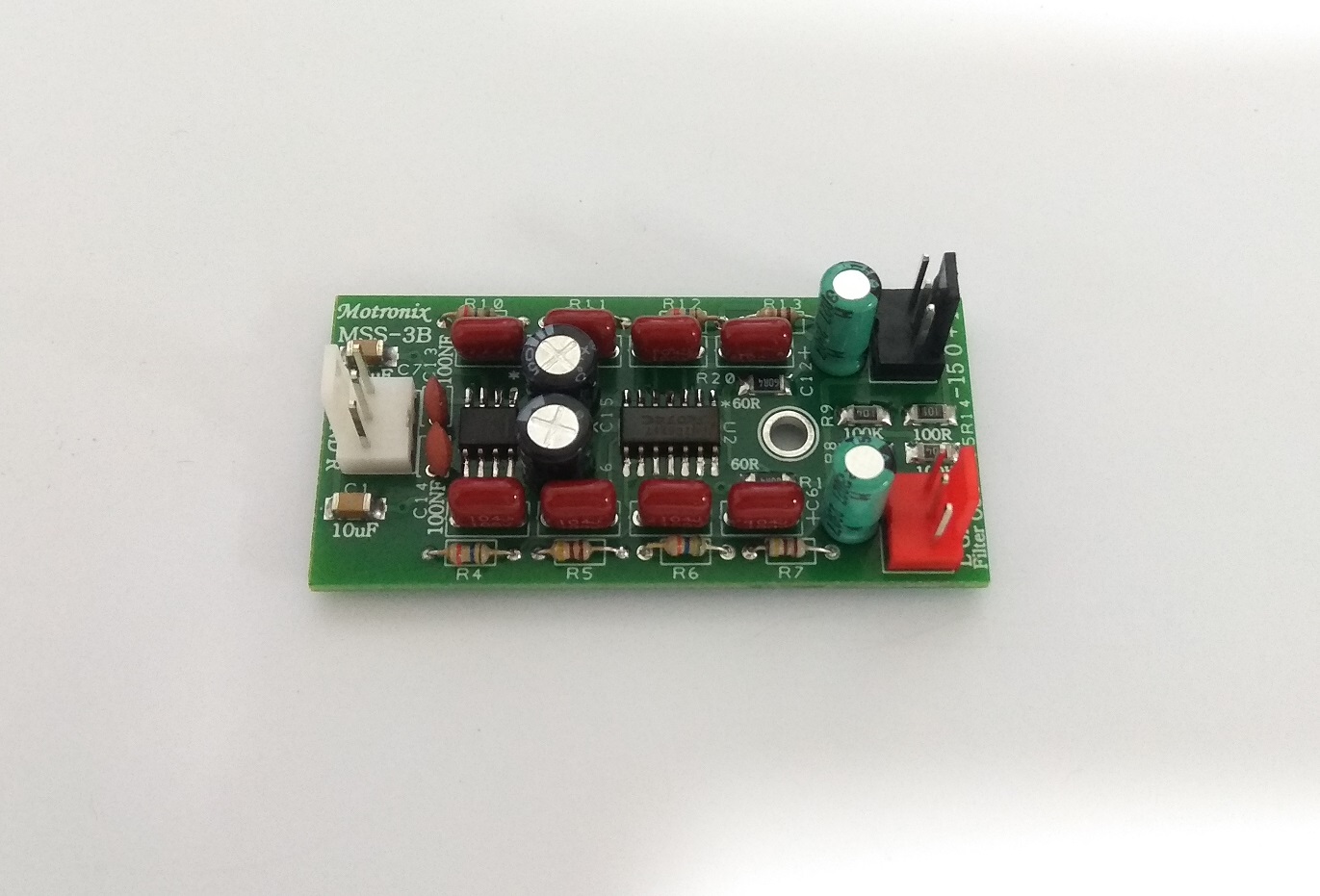

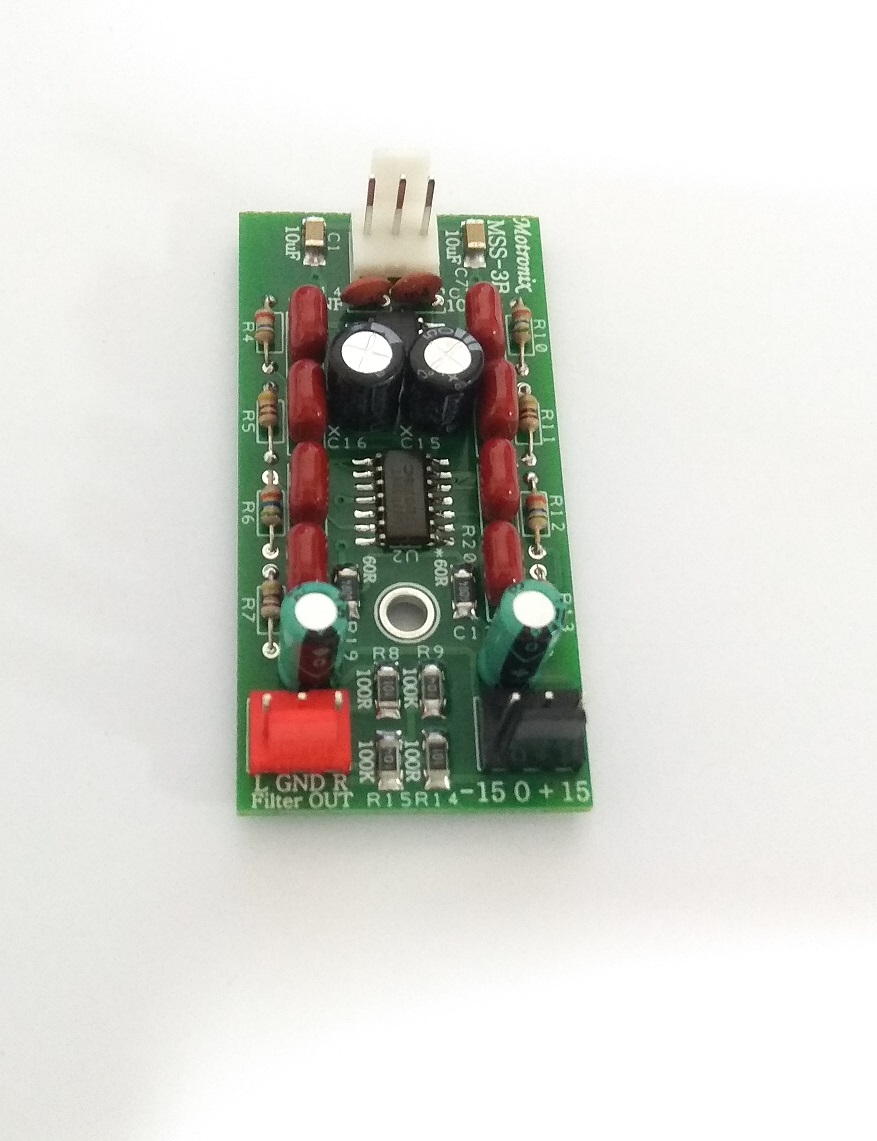

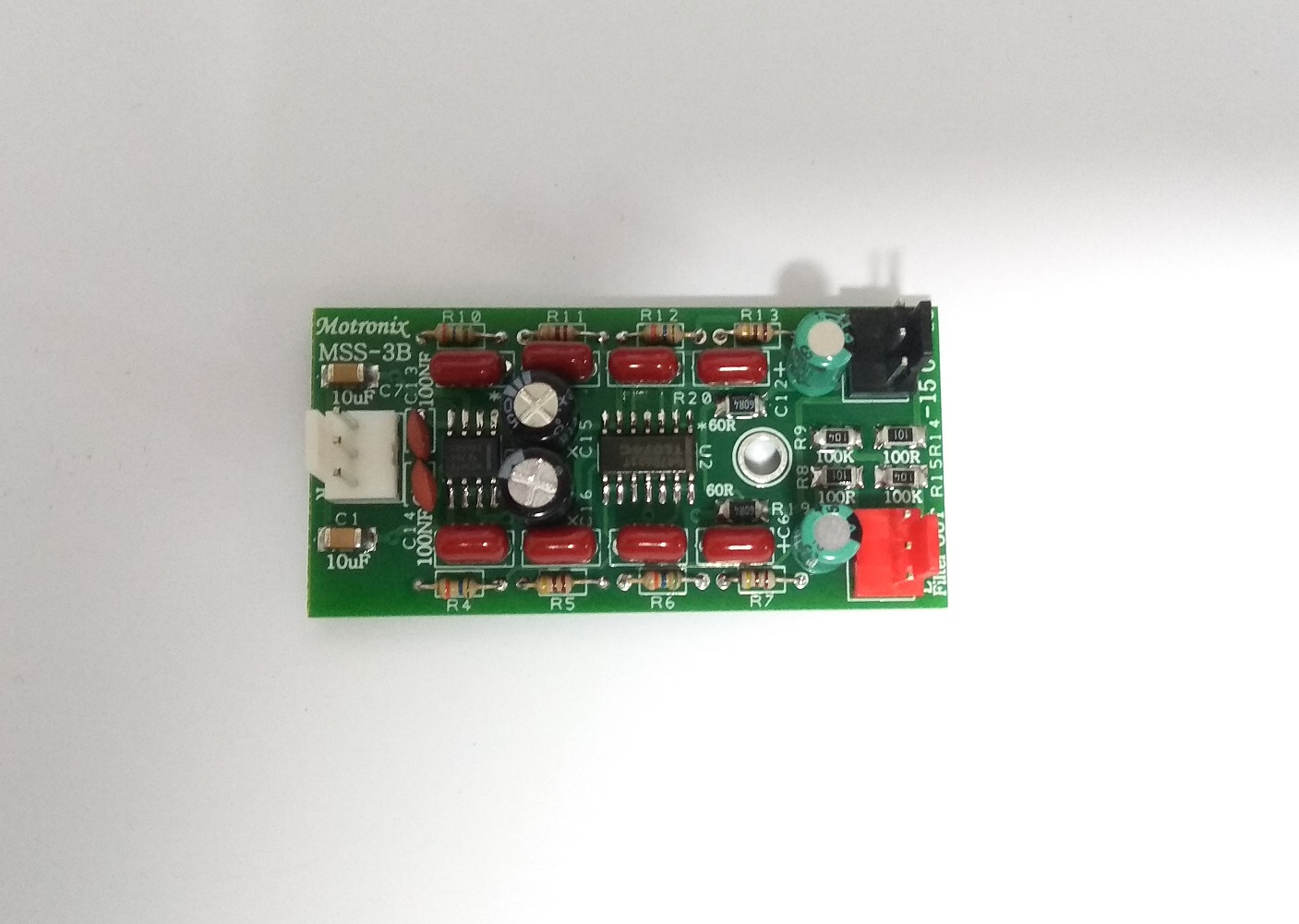

MSS-3B/CTS

24db High Quality Stereo 4th order 15/20/25/30 Hz Active Filter

High Pass Filter Avoid very low vibrations and frequencies caused by turntables/vinels

Low Noise Bufferd Input Stage OP-AMP

Low Noise Filter OP-AMP

Optional Freq. can be order 15Hz/20Hz/25Hz/30Hz/Special Request

Excellent Performance

High quality and reliability PCB FR4 1.6MM

Input/Output & Power Supply Connectors will supply

Working Voltage : Dual min. 9-18Vdc max (Recomended +15Vdc 0 -15Vdc)

Gain Level 0db (1:1)

Filter: 24db/octave 4th order

PCB Size:

MSS-3/CTS 66mm*38mm double-sided HAL,FR4 1.6MM

Additional information

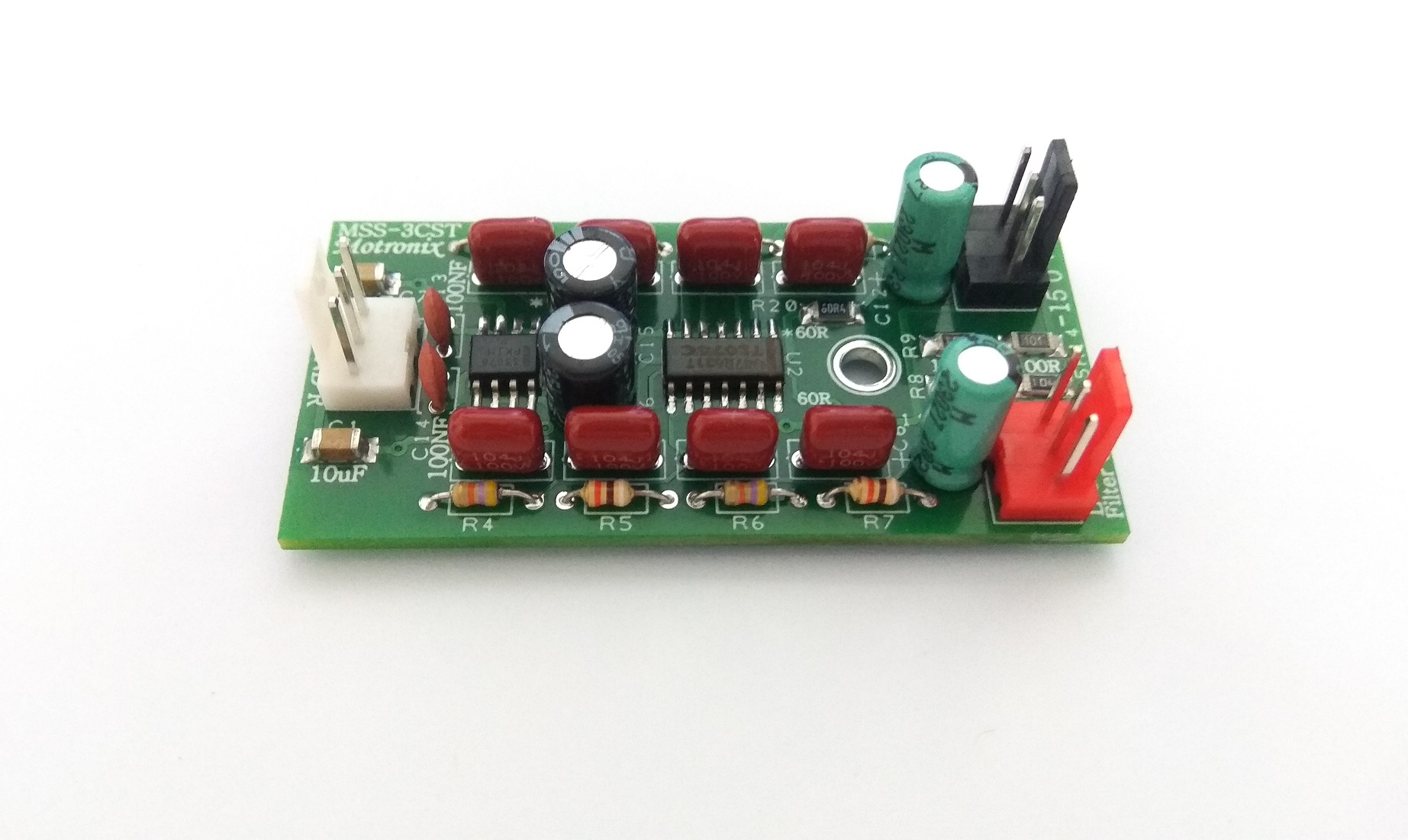

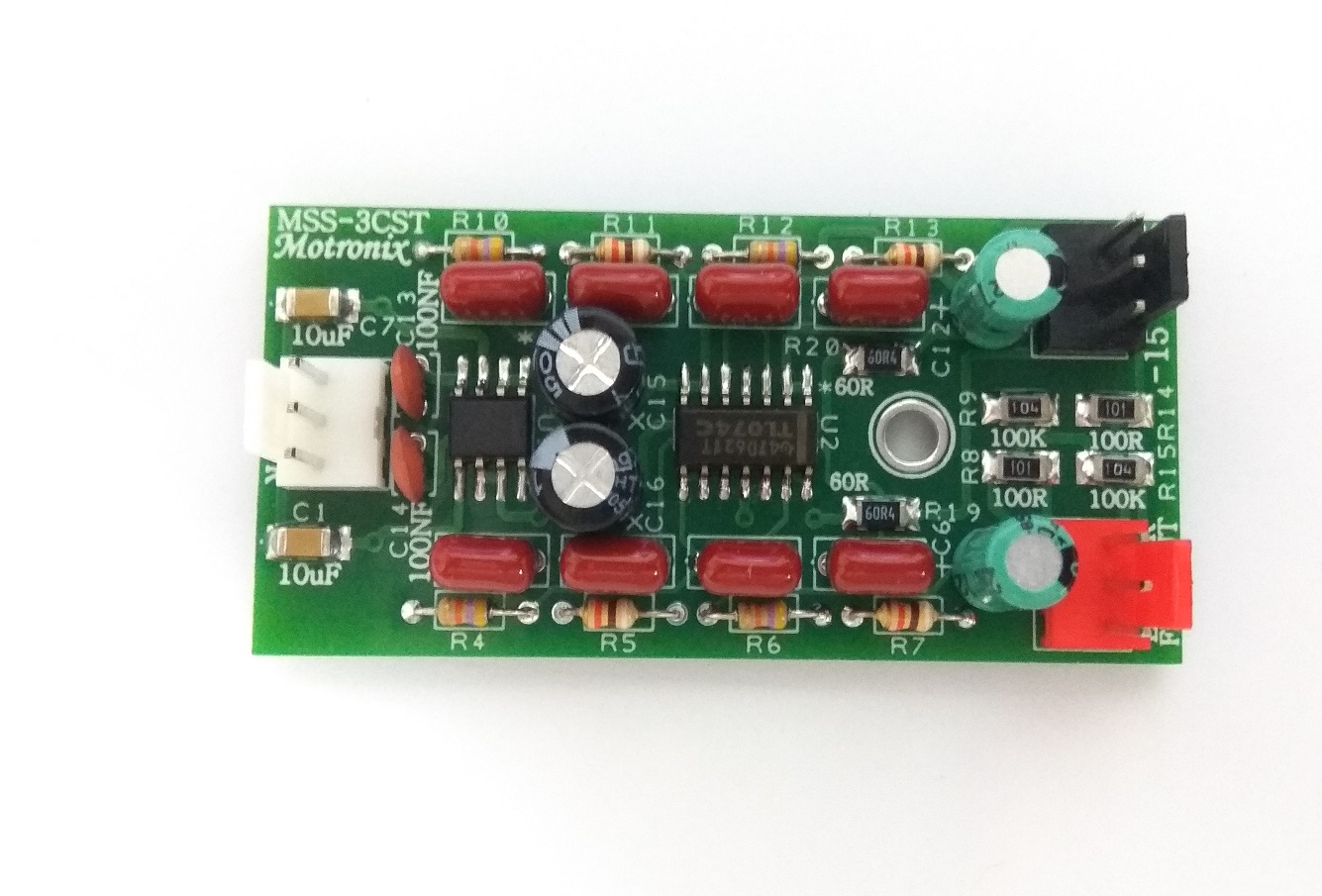

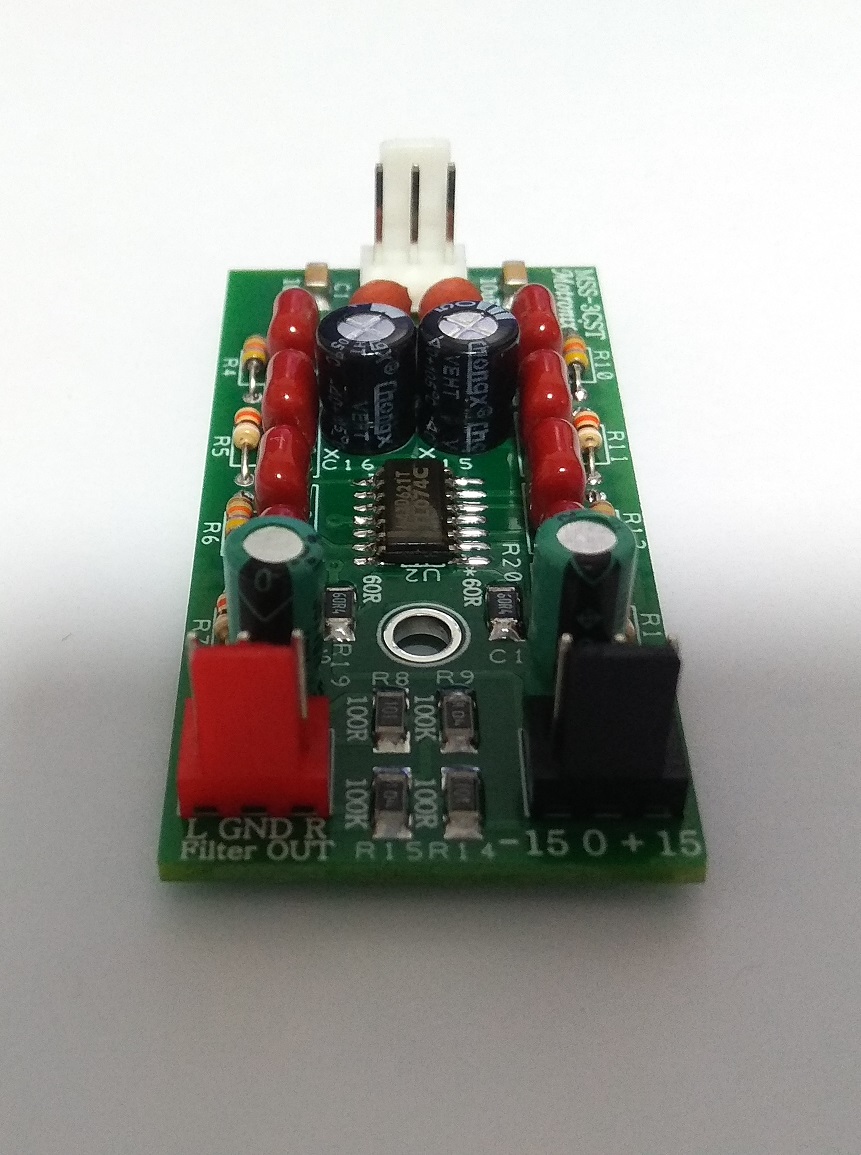

Model	MSS-3B 15Hz, MSS-3B 20Hz, MSS-3B 25Hz, MSS-3B 30Hz, MSS-3CTS Special Request
