MT-2 Mono/Stereo Volume Bass Treble Tone Control Pre Amp. Work with Single12-24Vdc

$7.00$16.00

SKU: N/A Categories: ,

Description

MT-2 Single12-24Vdc DIY

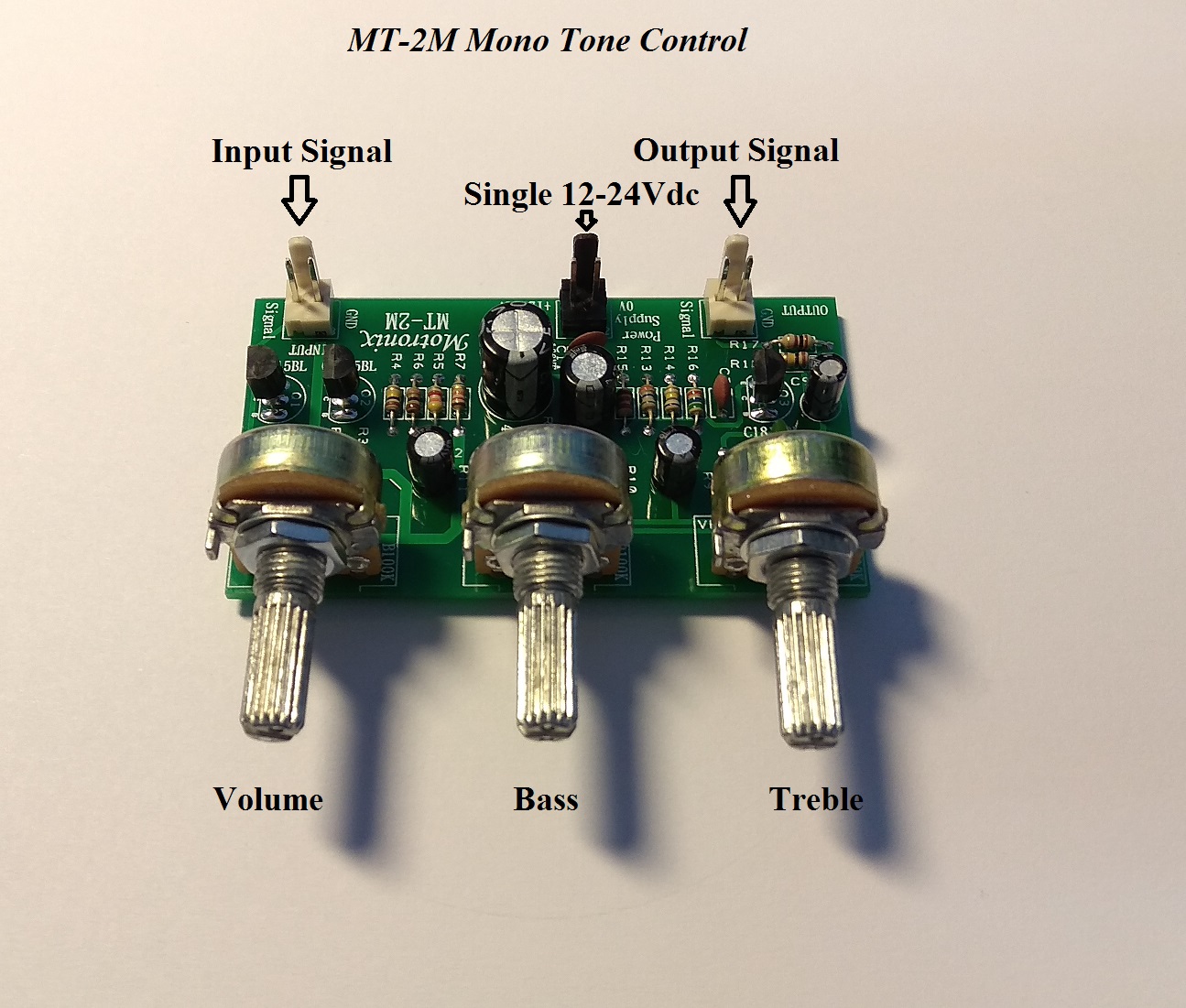

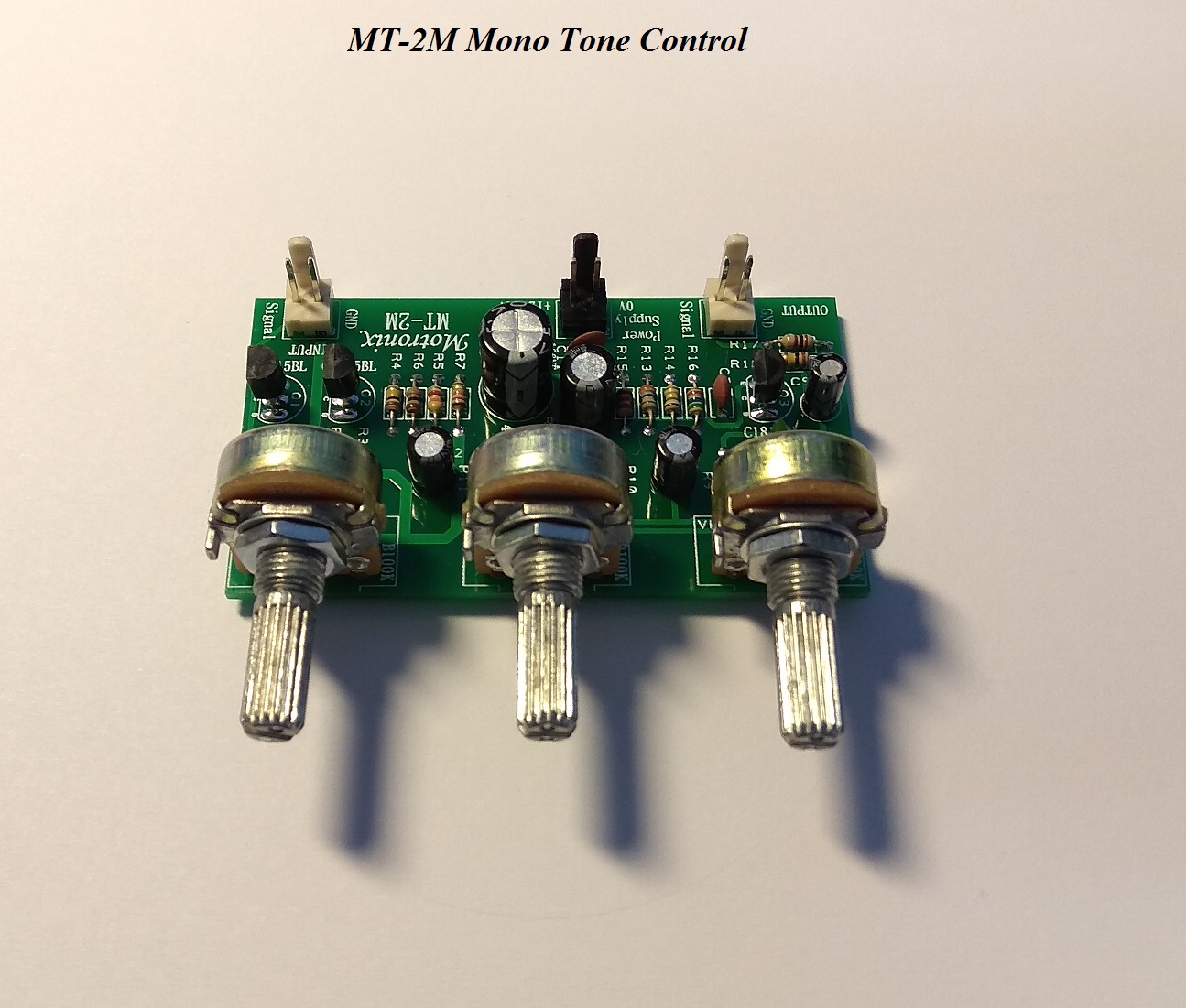

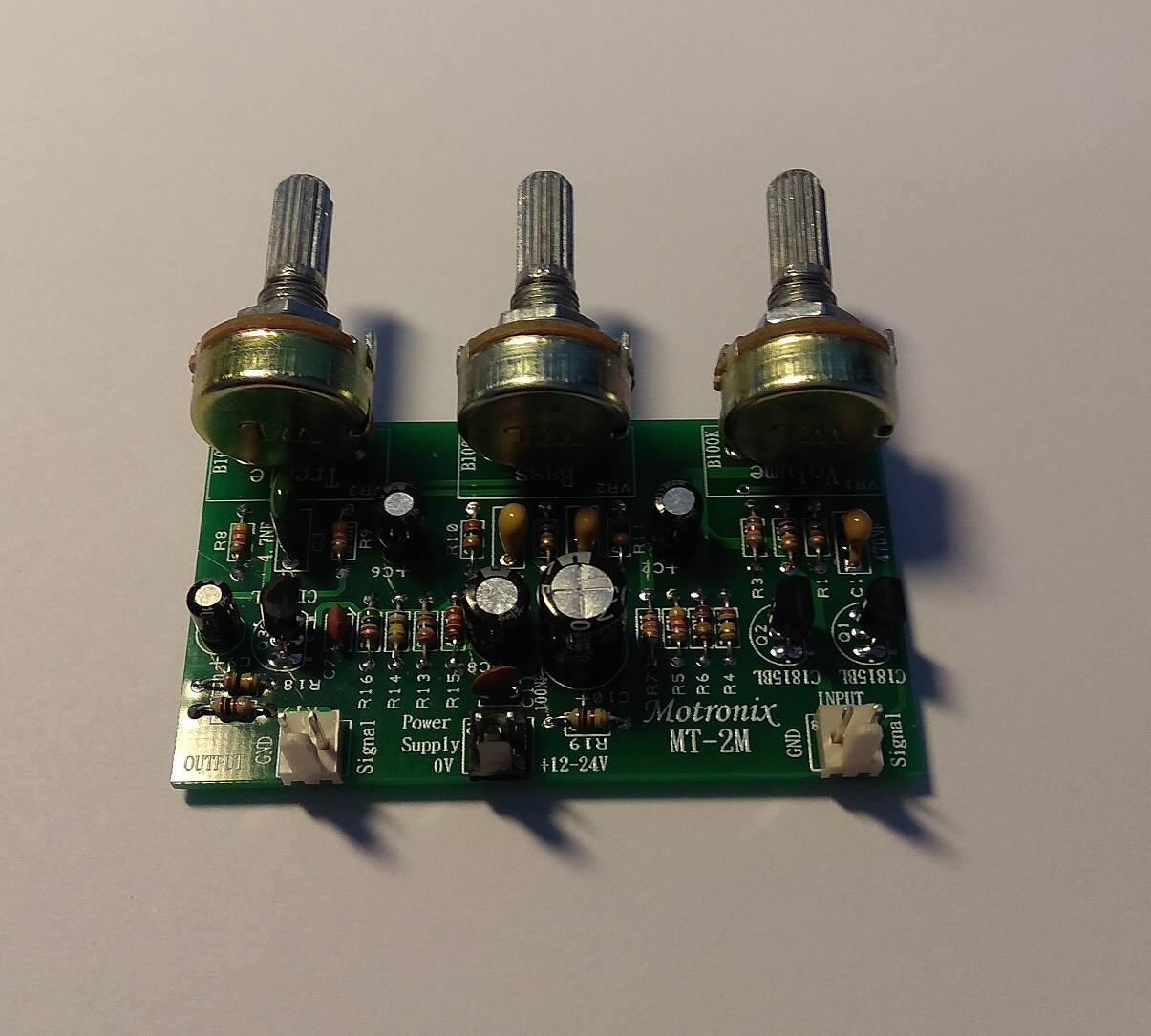

MT-2M Mono HIFI Pre Amplifier+Tone Control With Volume,Bass,Treble

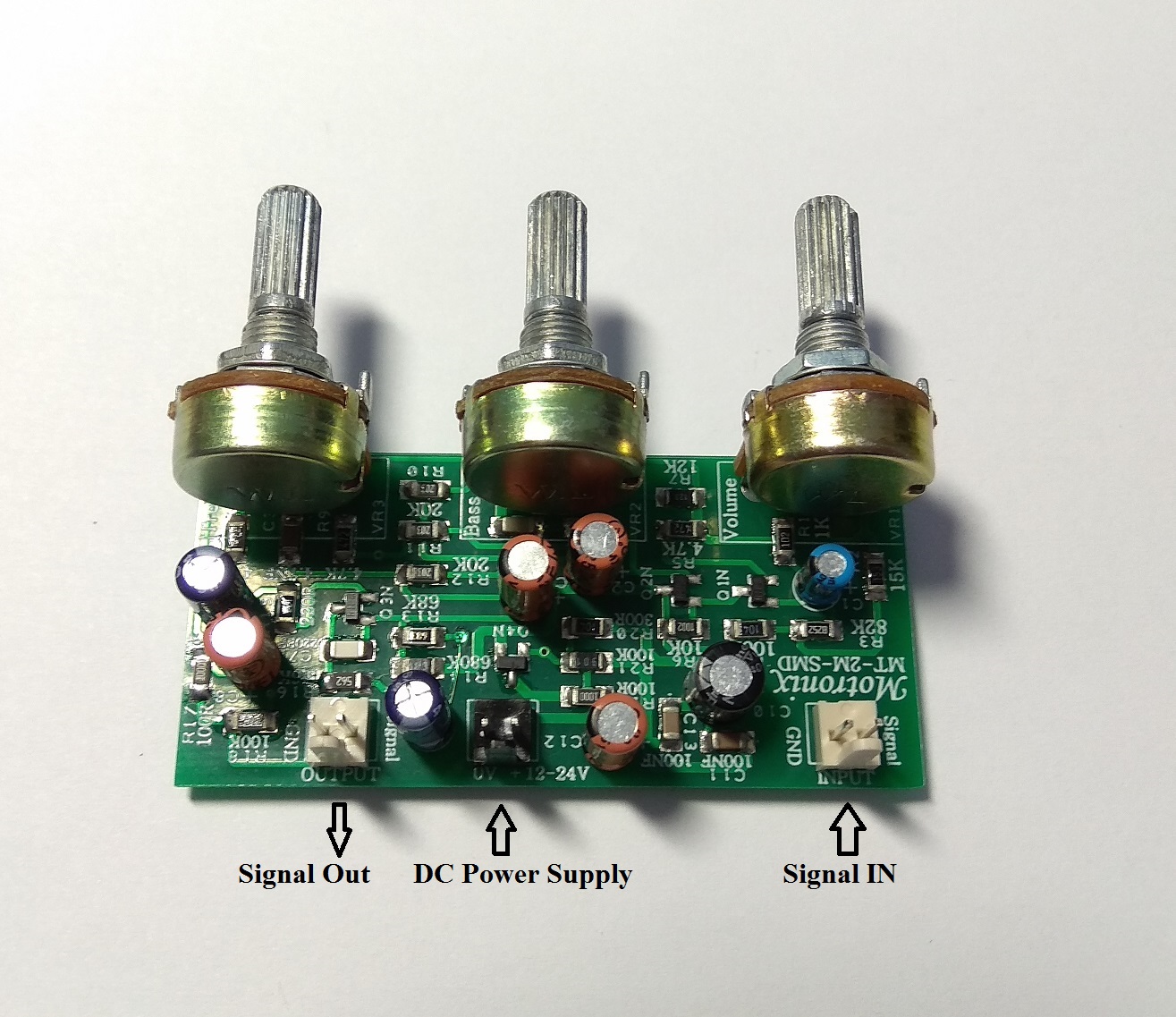

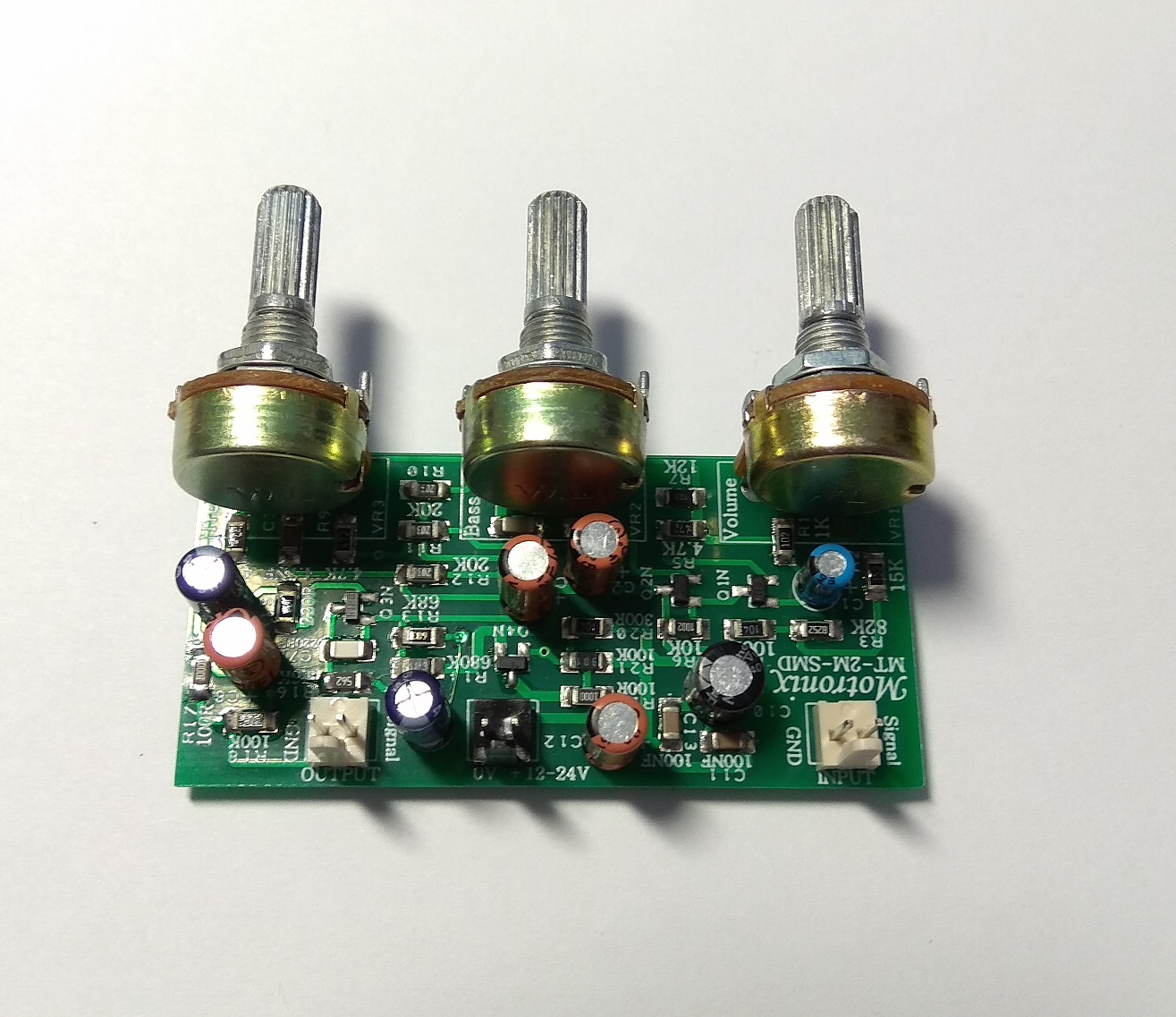

MT-2M-SMD Mono HIFI Pre Amplifier+Tone Control With Volume,Bass,Treble (Small Size Item)

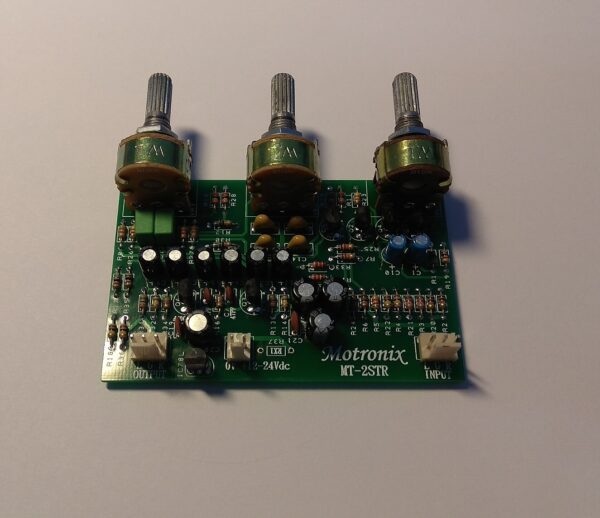

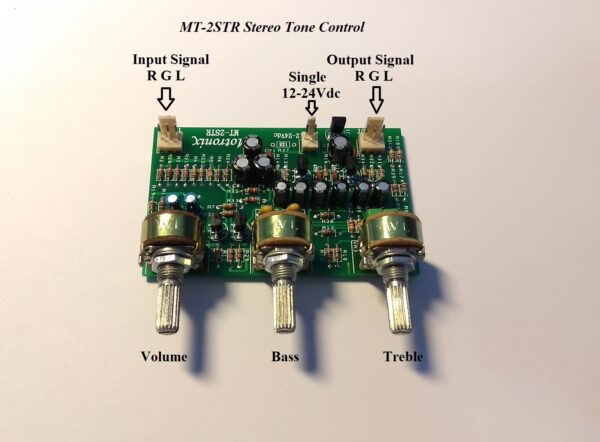

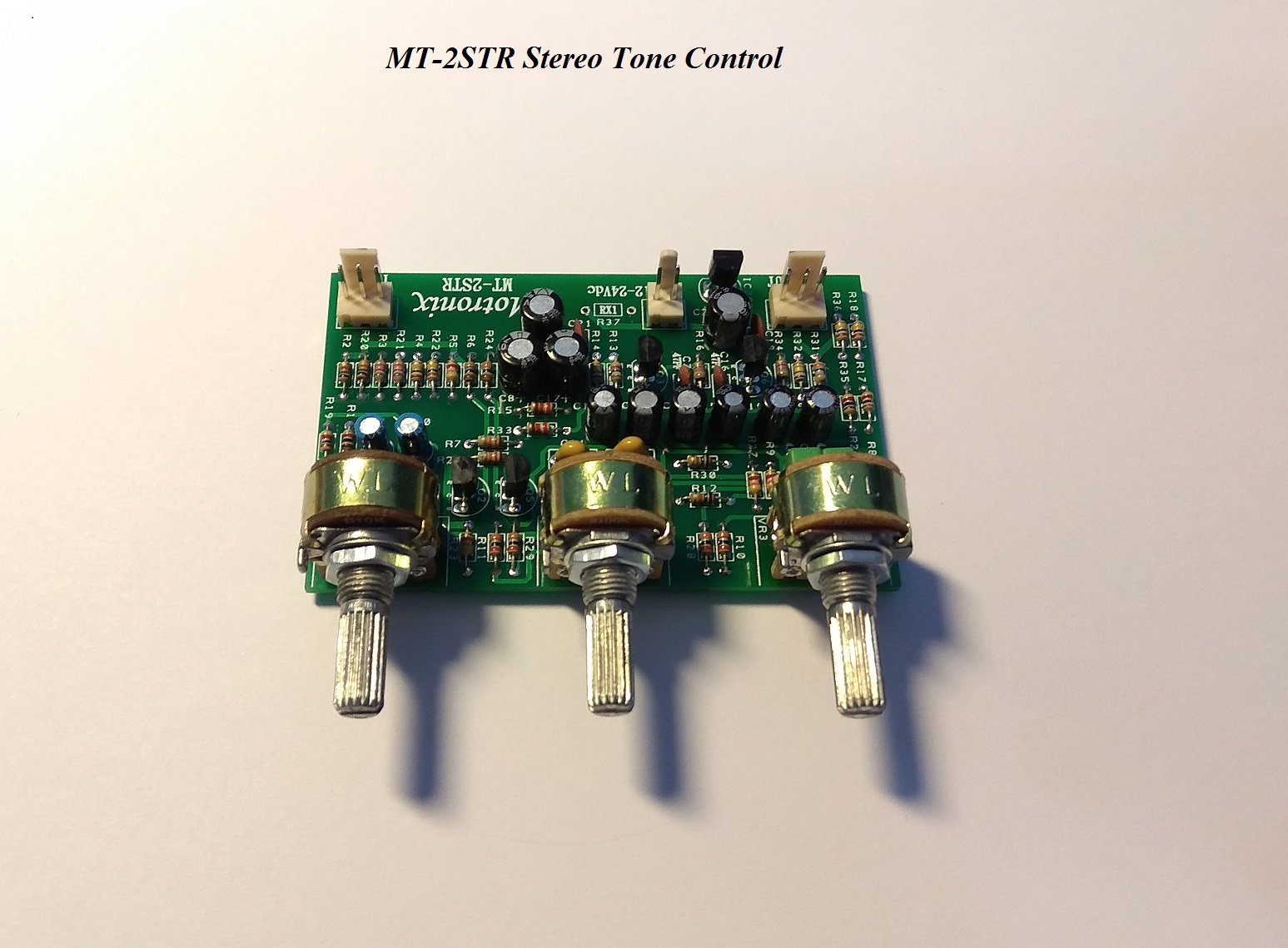

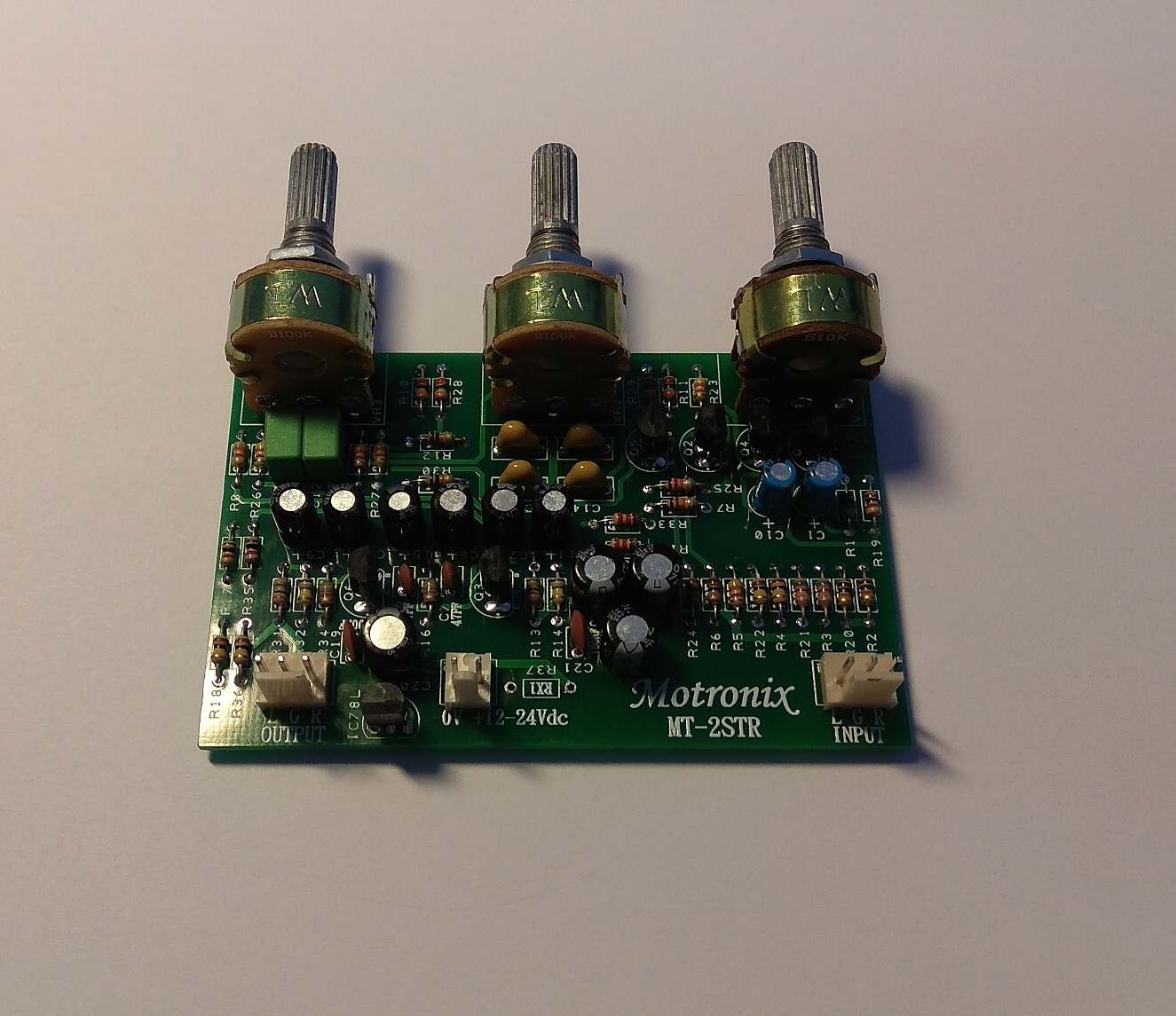

MT-2STR Stereo HIFI Pre Amplifier+Tone Control With Volume,Bass,Treble
excellent performance of audio signal with great low noise transistors
amazing sound like the good old 70’s 80’s receivers
Both Models Work with single 12-24Vdc Power Supply
Sale as:ย
KIT Diy you need to put all parts and solder it orย Assembled Board
Input & Output PCB Connectors will supply
Input sensitivity: min. 250mV (for 0db Out)
Input Impedance: 100Kohm
Output Impedance: 1Kohm
Max output voltage: 1.5Vrms at 10kohm load (Tone at Flat)
Freq. Response: 20Hz-35Khz (-3db)
Tone control:ย
Bass +/- 12db at 45Hz
Trebleย +/- 15db at10Khz
Working Voltage: Single 12-24 Vdc
PCB Size:ย

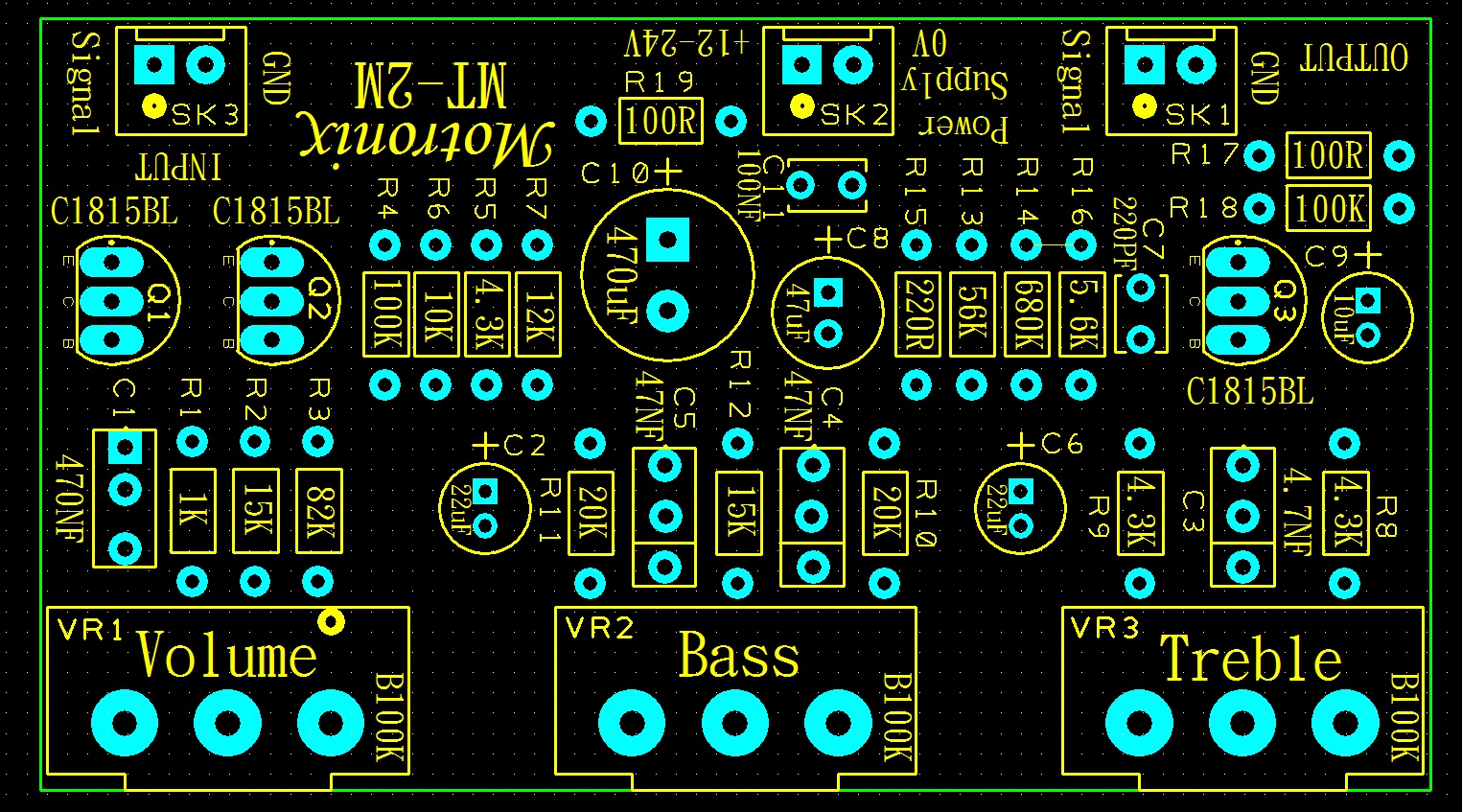

MT-2M: 69mm*38mm double-sided HAL,FR4 1.6MM

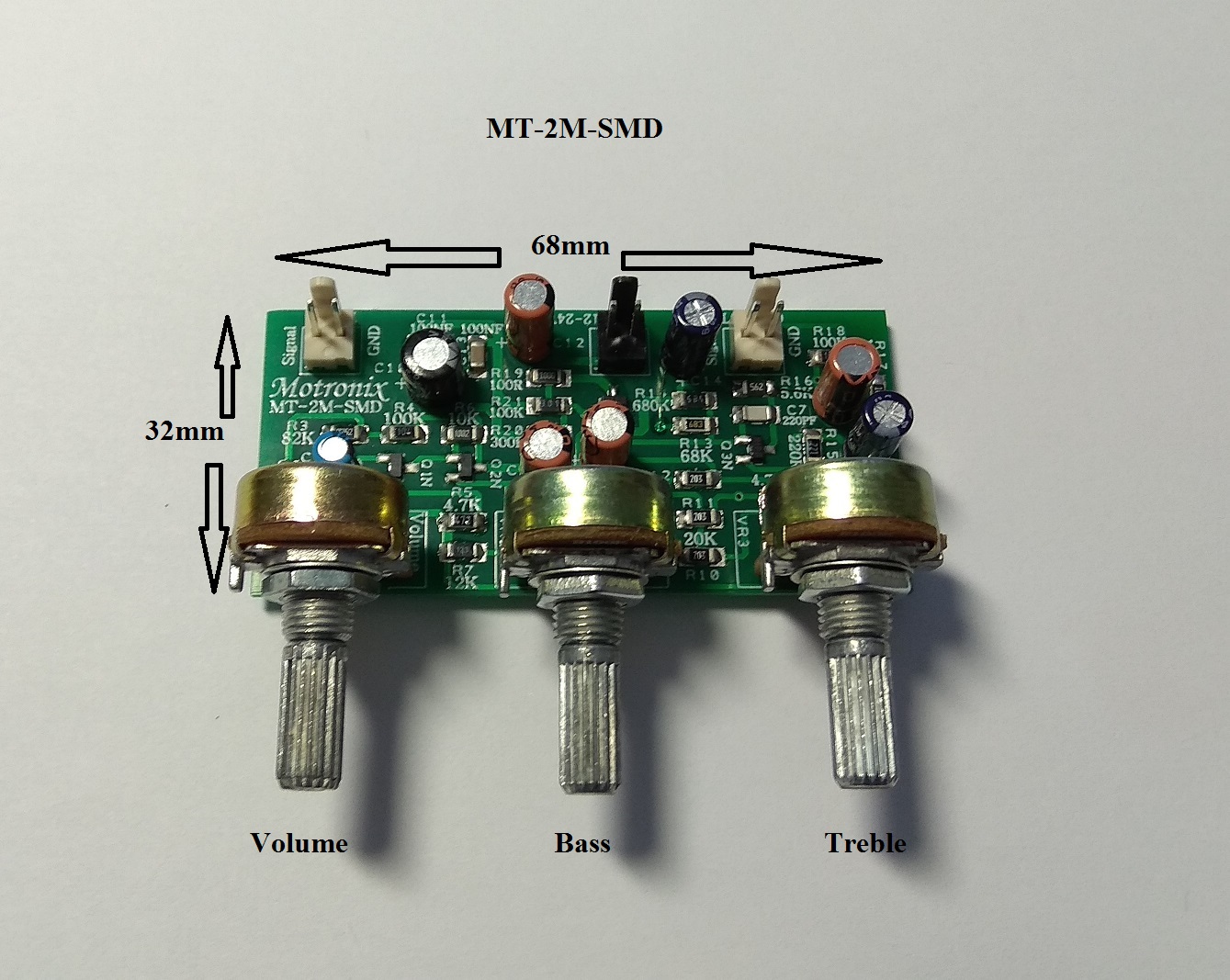

MT-2M-SMD: 68mm*32mm double-sided HAL,FR4 1.6MM
MT-2STR: 80mm*51mm double-sided HAL,FR4 1.6MM
PCB Color:ย Green
Potentiometer Gap:ย
MT-2M/SMD: 25mm (Center to Center)
MT-2STR: 30mm (Center to Center)
Applications:ย DIY Home Pre Amplifiers / Integrated / Power Amplifier

Additional information

Type

MT-2M Mono Assembled Board, MT-2M Mono PCB+PARTS, MT-2M-SMD, MT-2STR Stereo Assembled Board, MT-2STR Stereo PCB+PARTS
