MT-3 Stereo HIFI Pre Amplifier Tone Control With Volume,Balance,Bass,Mid,Treble

$20.00

Add to Wishlist

PCB Color

Clear

SKU: N/A Categories: Tone Control, Pre-Amplifiers

Description

Description

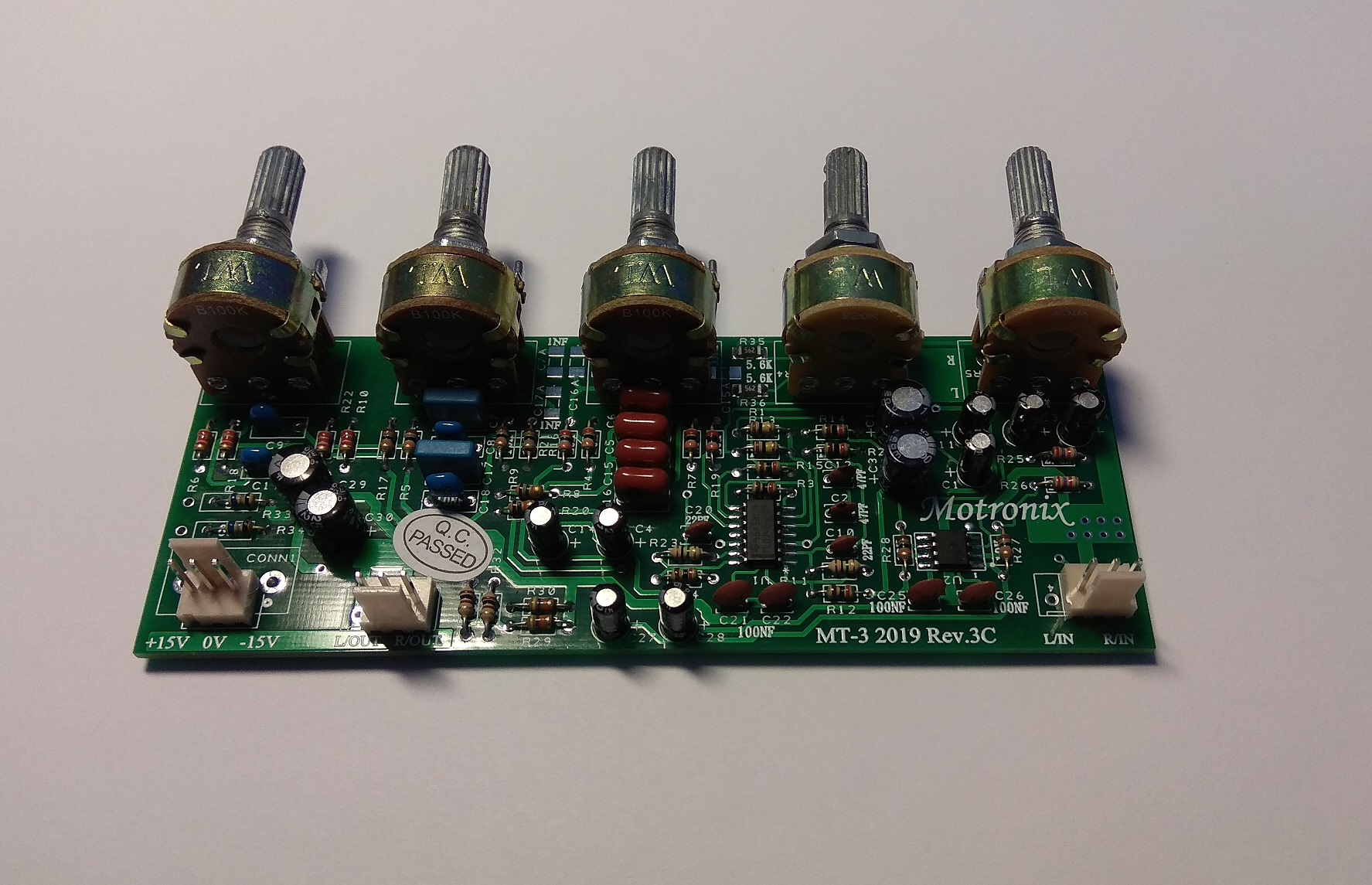

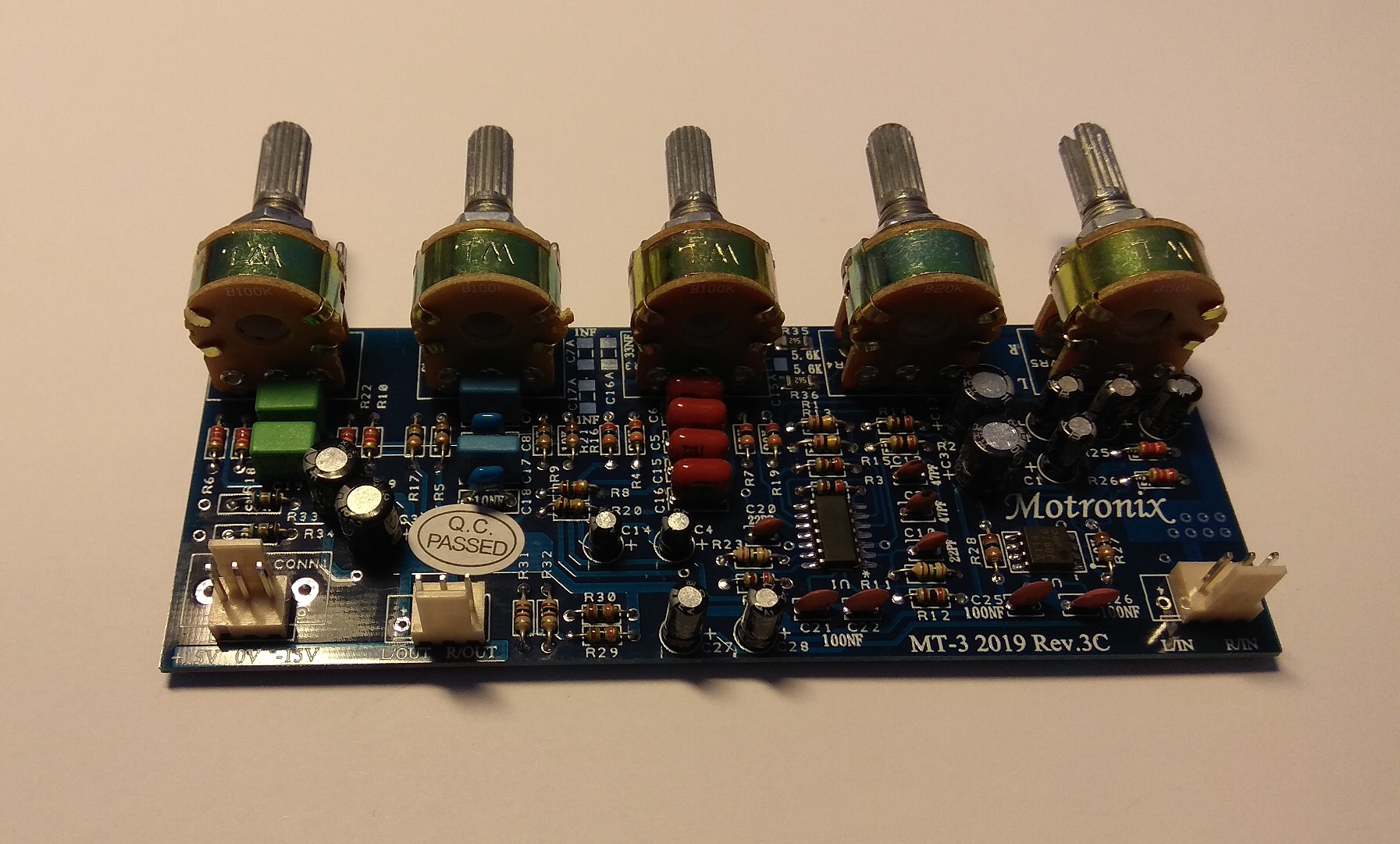

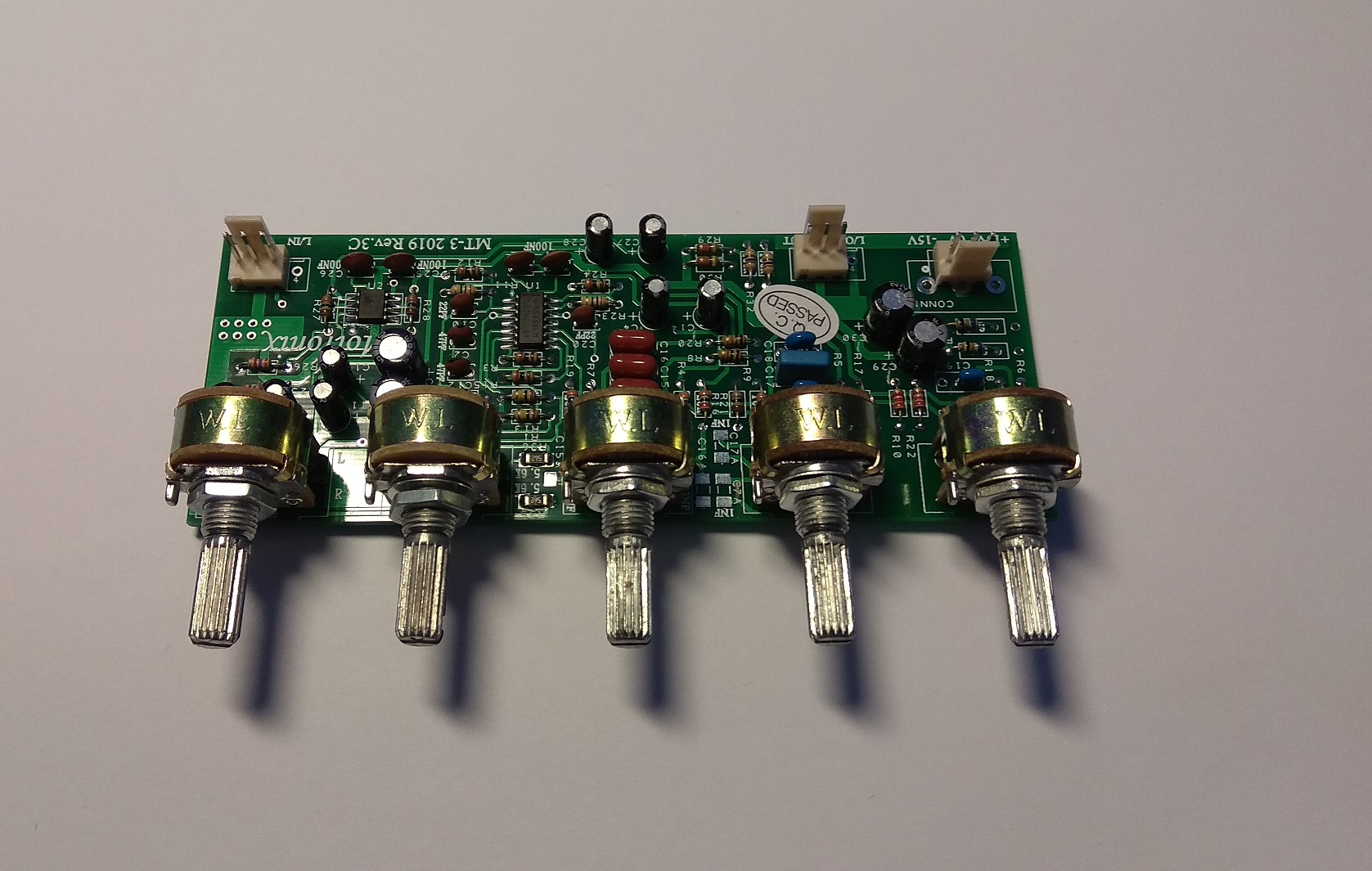

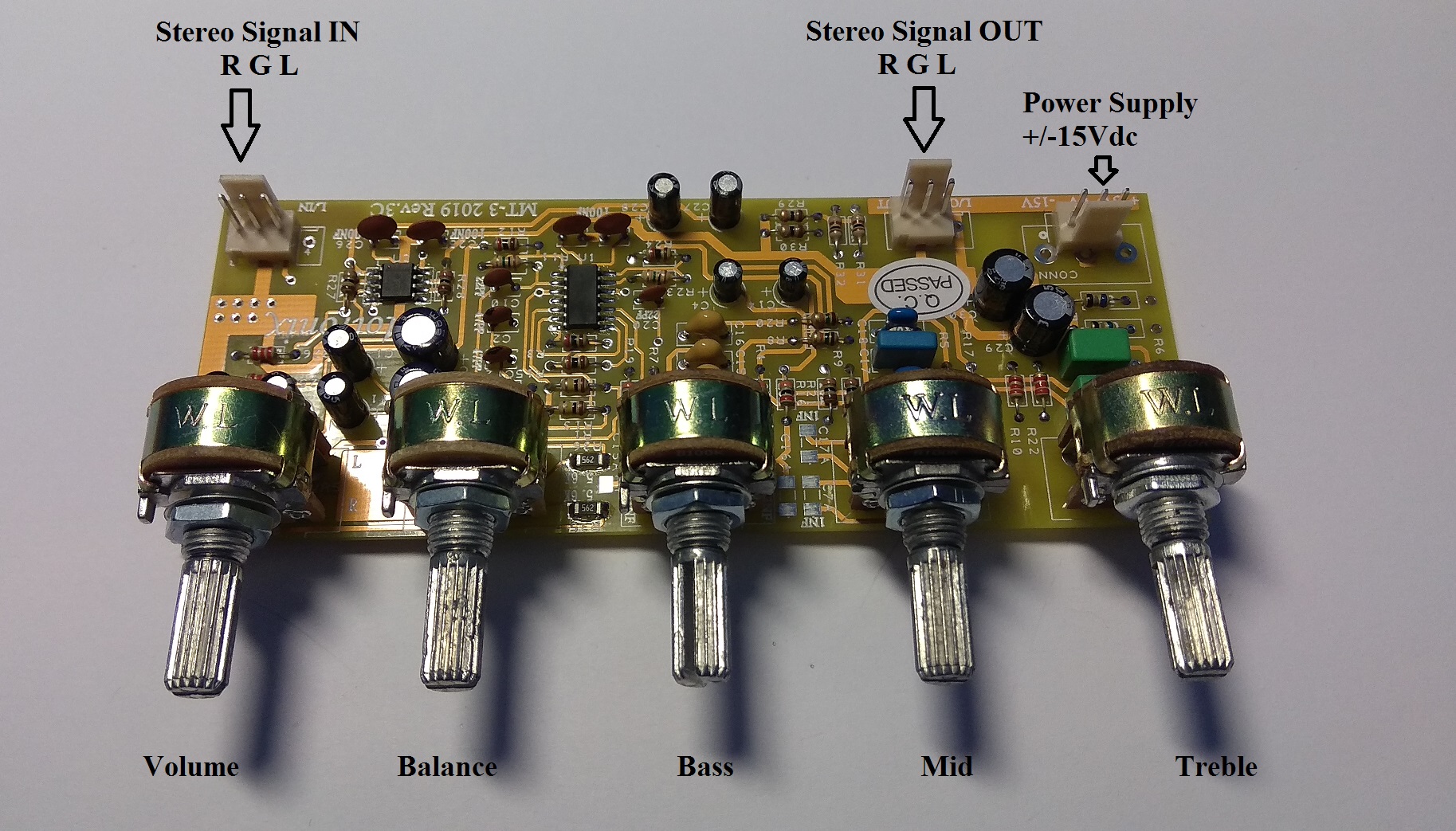

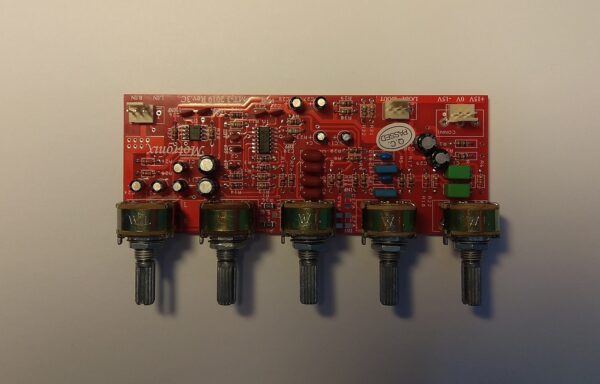

MT-3 Rev.3C

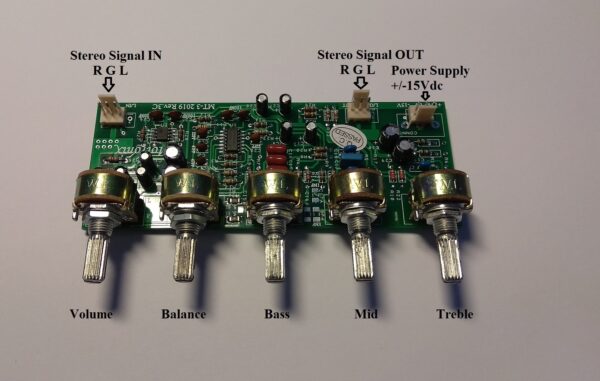

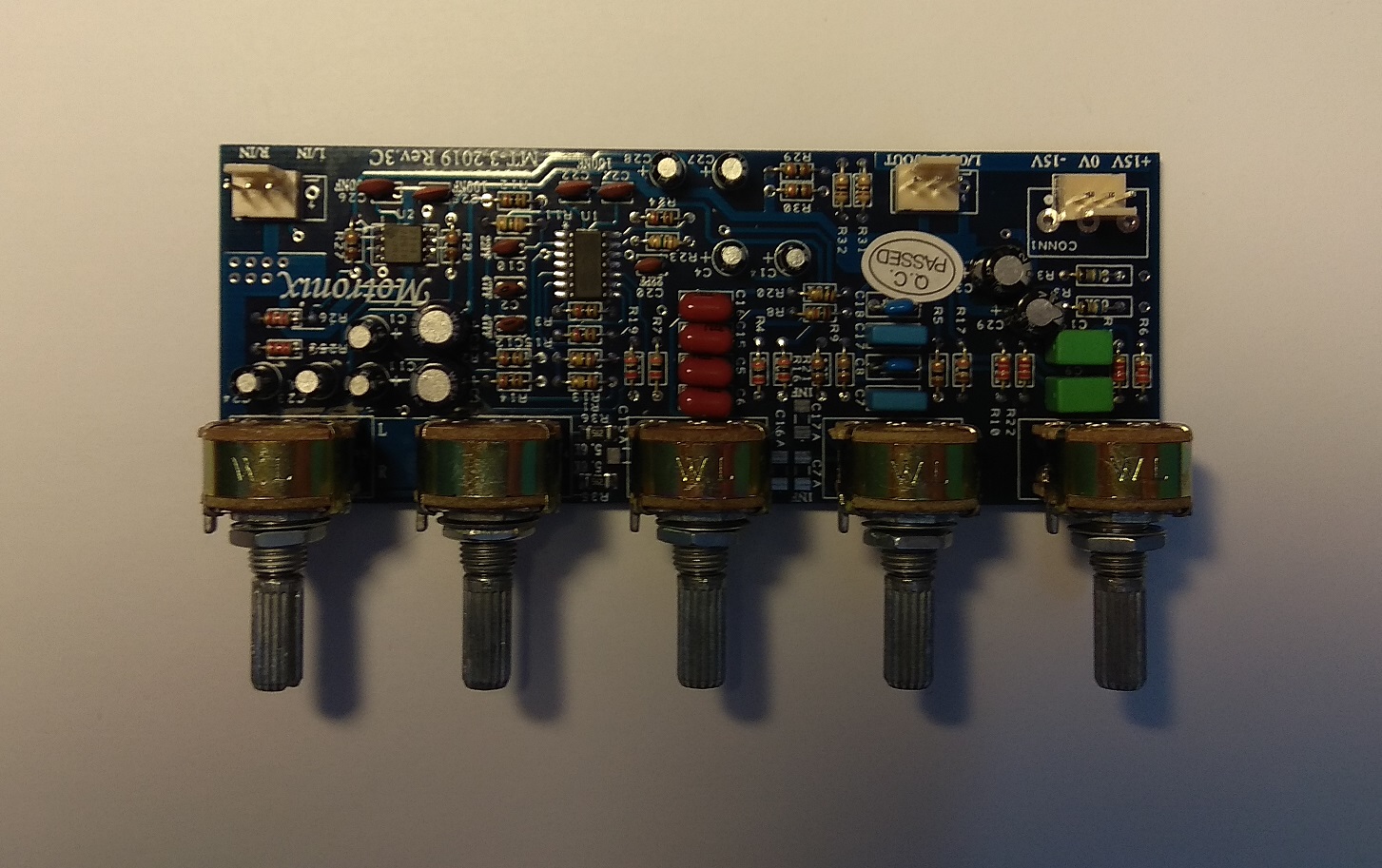

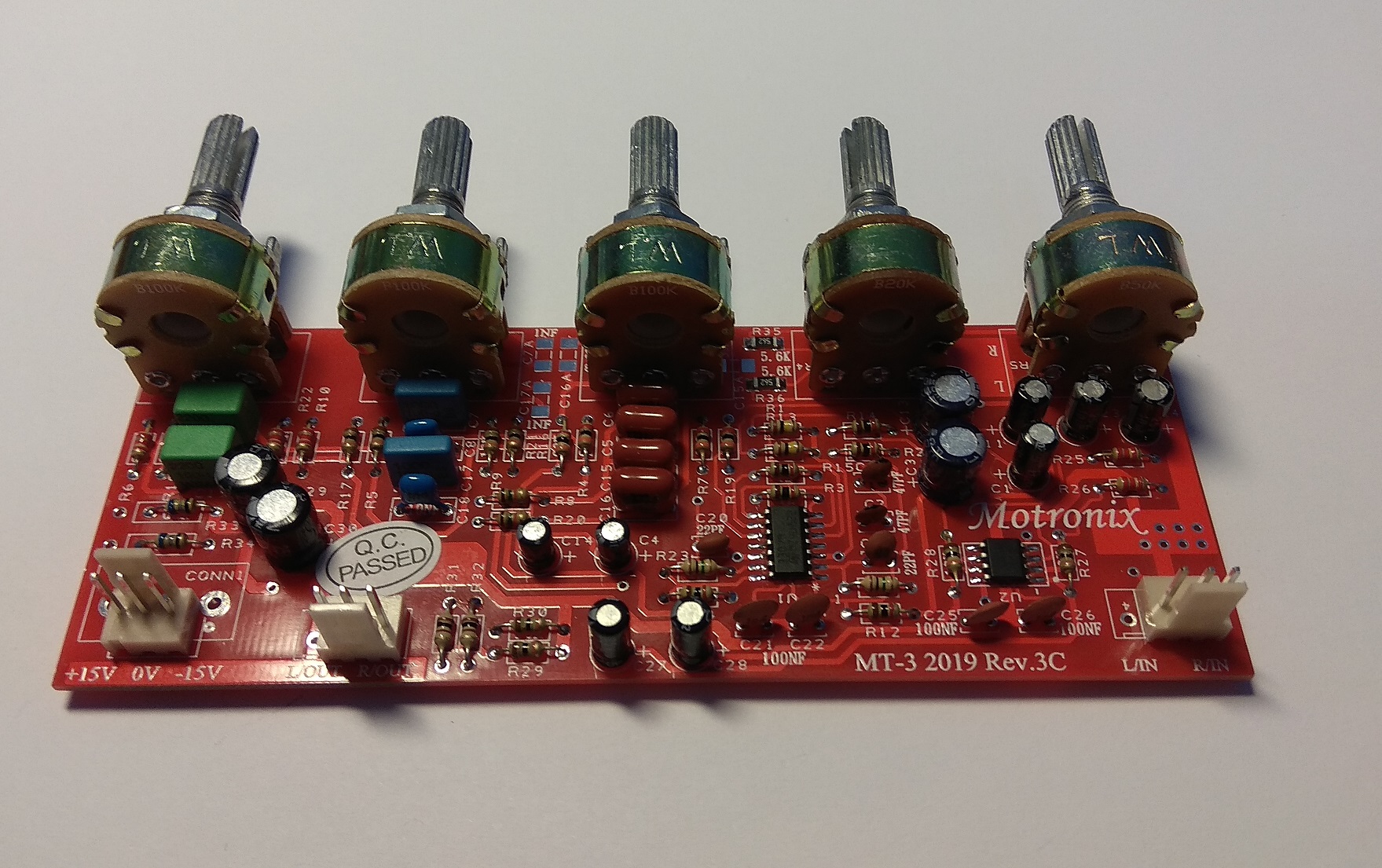

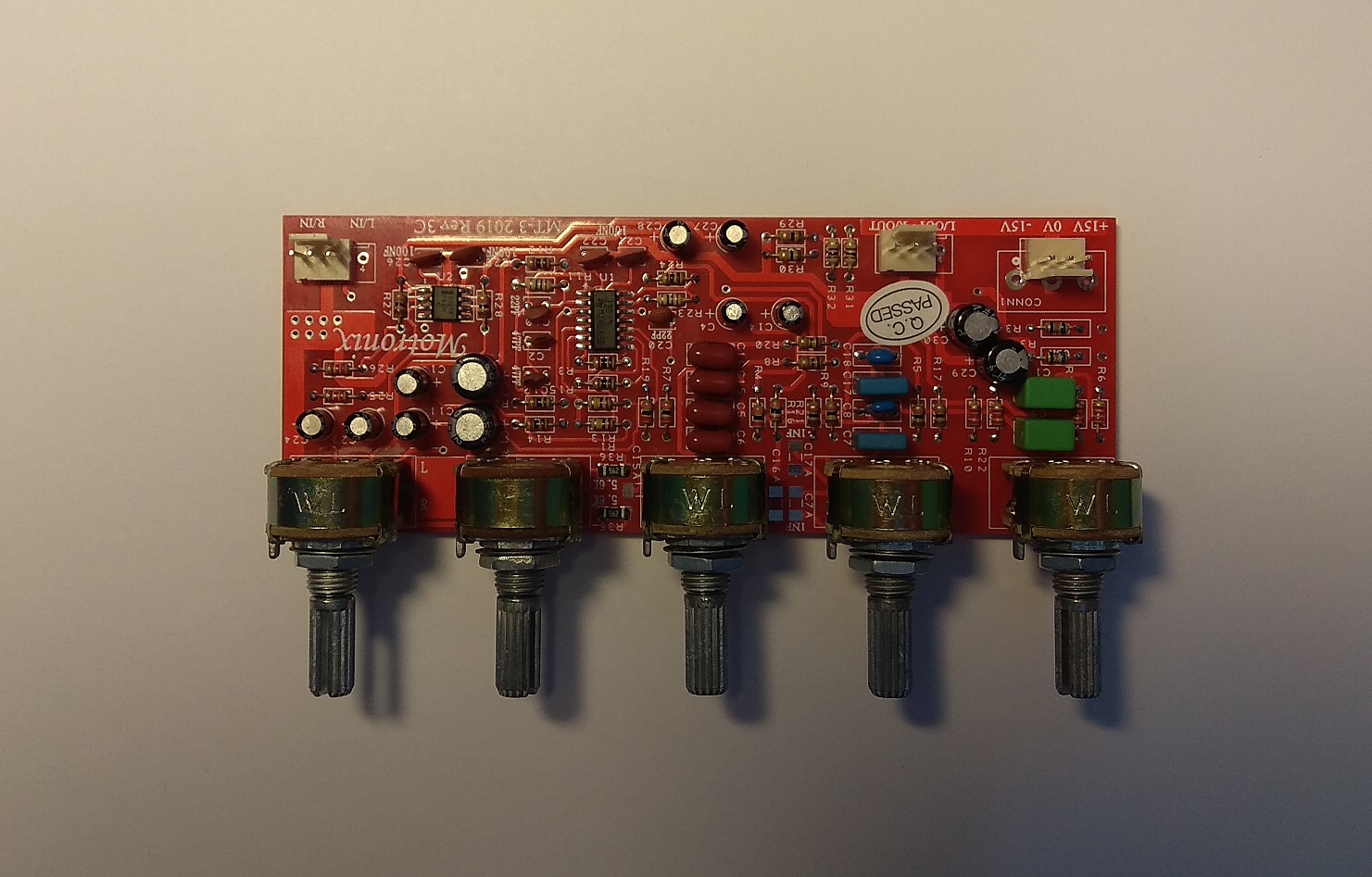

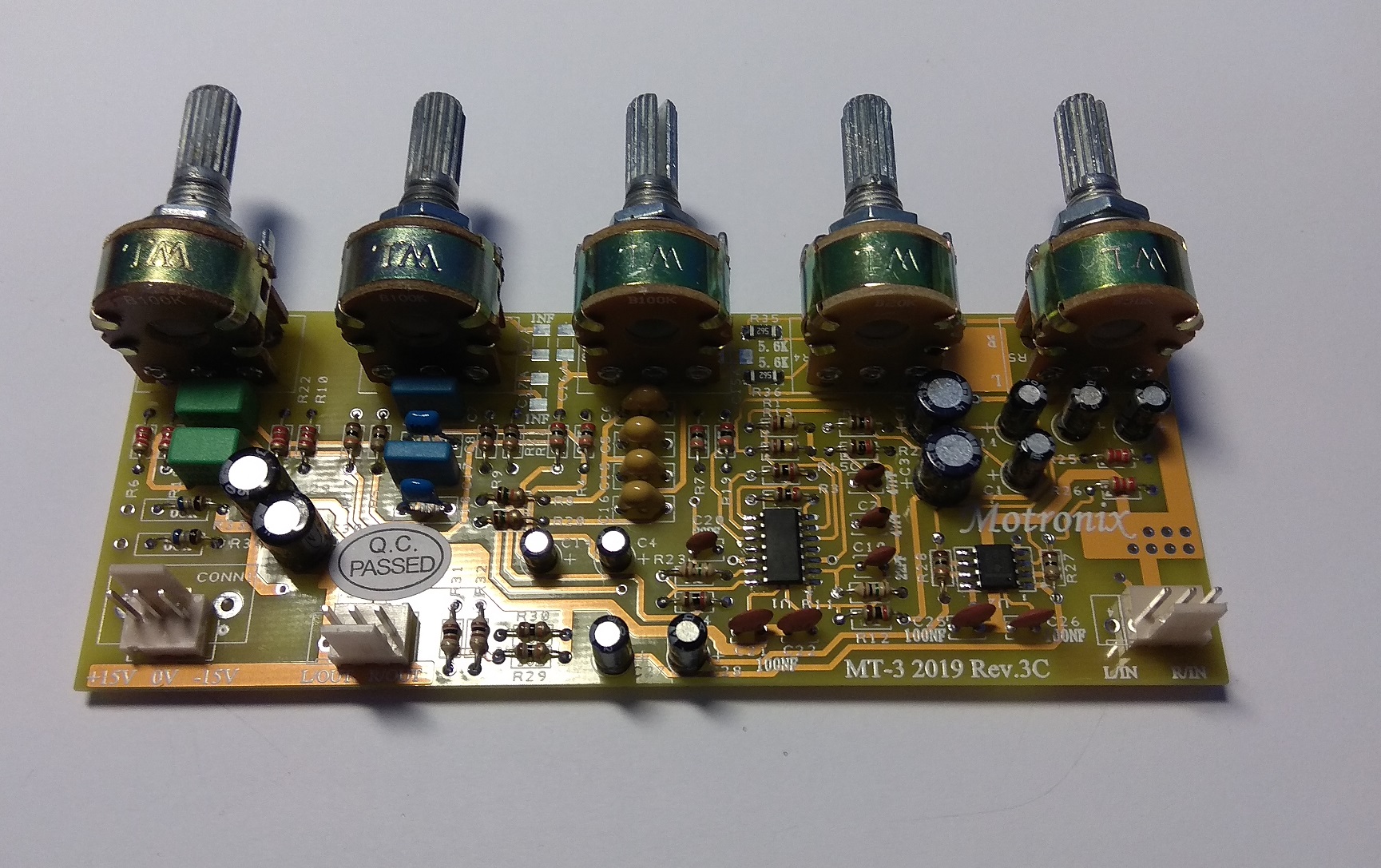

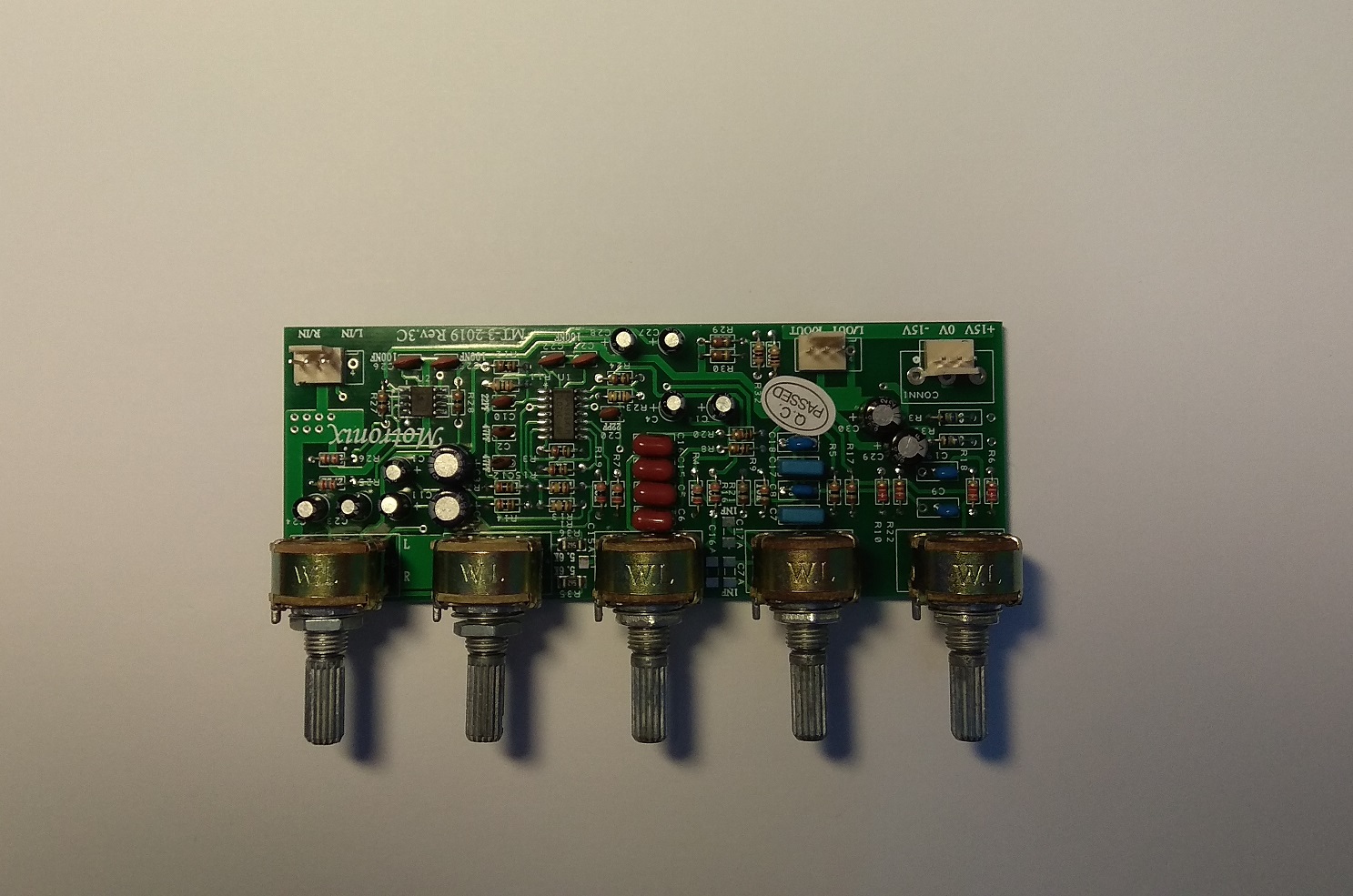

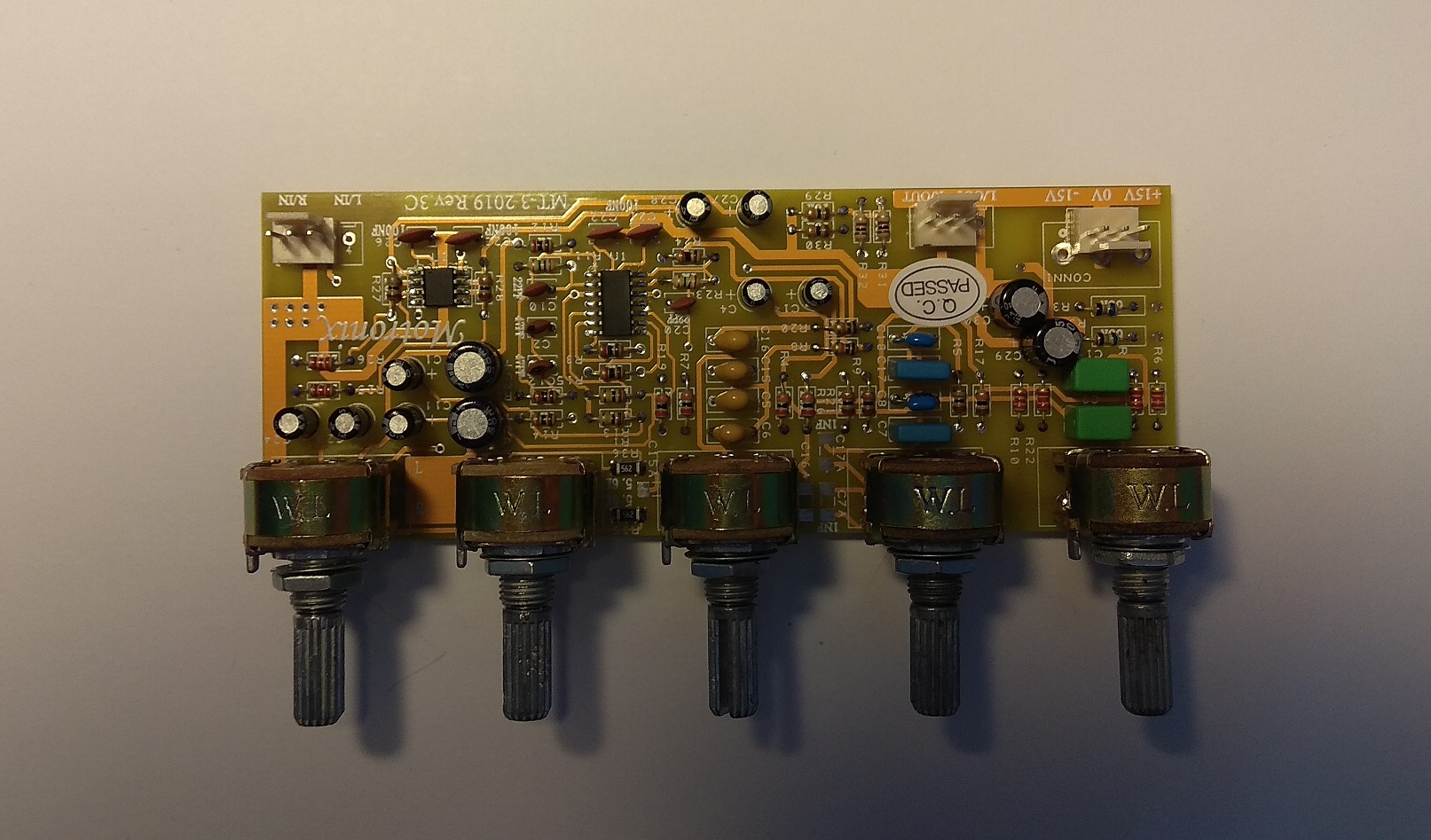

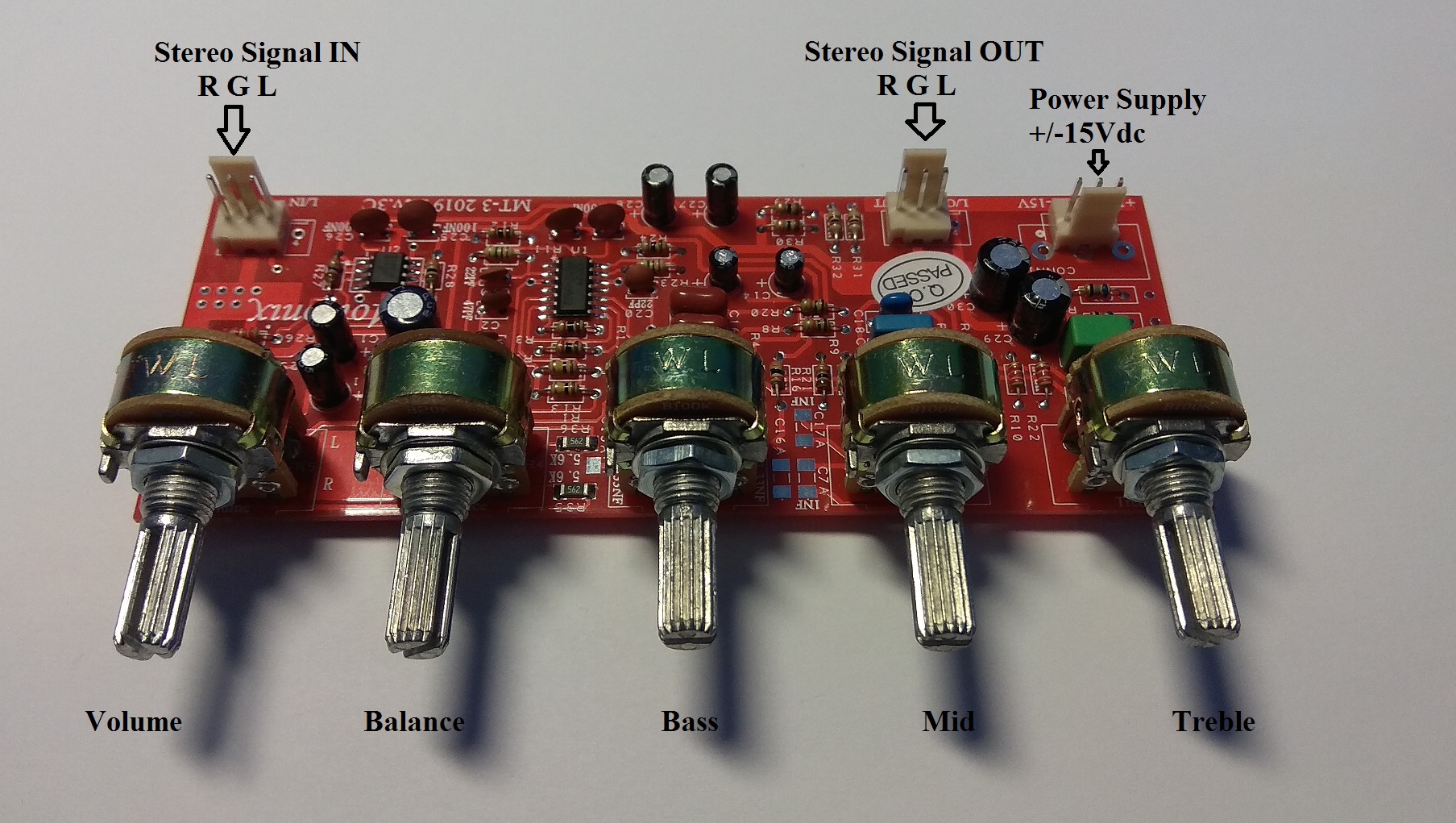

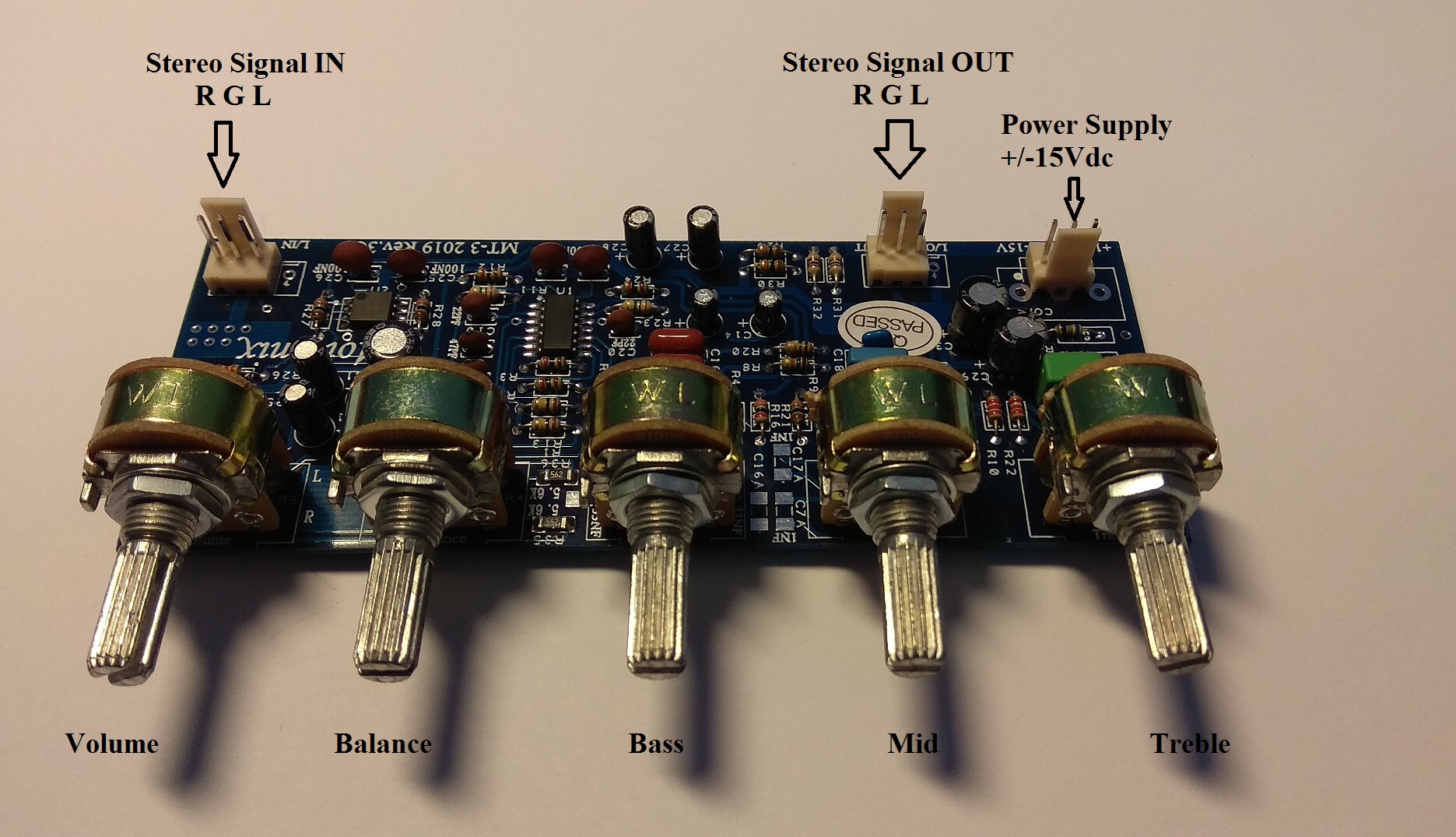

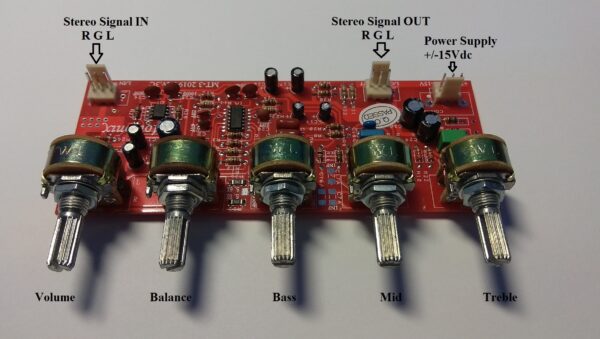

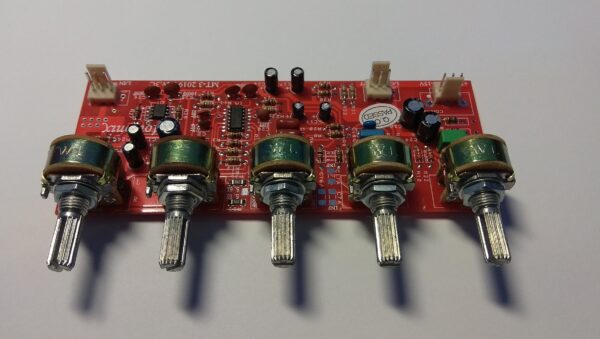

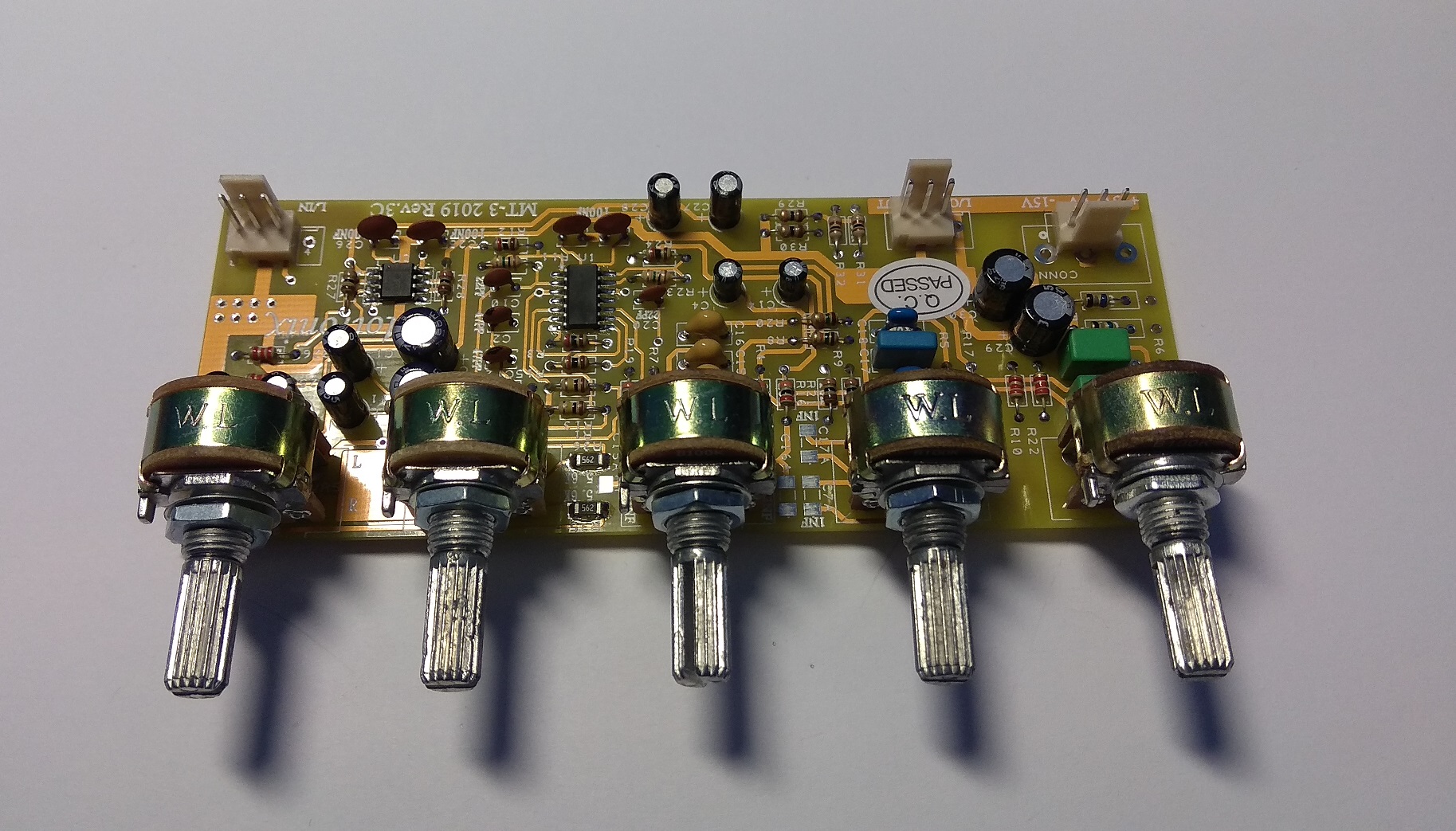

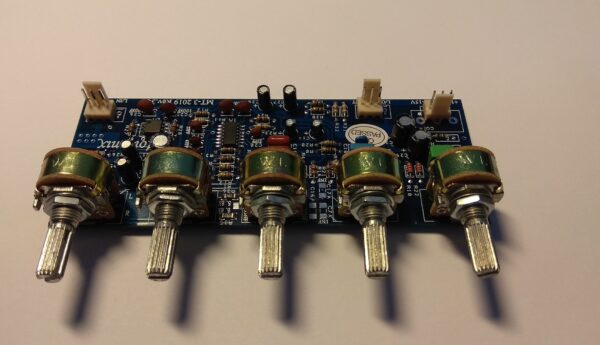

Assembled Board Stereo HIFI Pre Amplifier/Tone Control With Volume,Balance,Bass,Mid,Treble Board

The Perfect Analog Stereo High Performance Tone Control Amplifier

Very Clean and Good Sound Quality

Best Active Tone Control !!!

Low Noise Input Tone & Output Op Amps !

This item is only PCB with components Assembled

Input & Output PCB Connectors will supply

Input sensitivity: 250mv – 5V

Input Impedance: 100Kohm

Output Impedance: 10Kohm

Max output voltage: 8V rms @ 10kohm load

Tone control:

Bass +/- 15db @ 60Hz

Mid +/- 10db @ 2Khz

Treble +/- 15db @ 12Khz

Working Voltage: Dual 12-18 VDC (+/- 12V-18V DC)

**PCB Size: 120mm*46mm double-sided HAL,FR4 1.6MM**

Potentiometer Gap: 25mm (Center to Center)

Applications: DIY Home/Car Power Amplifier
