Description
MT-3EQ-N

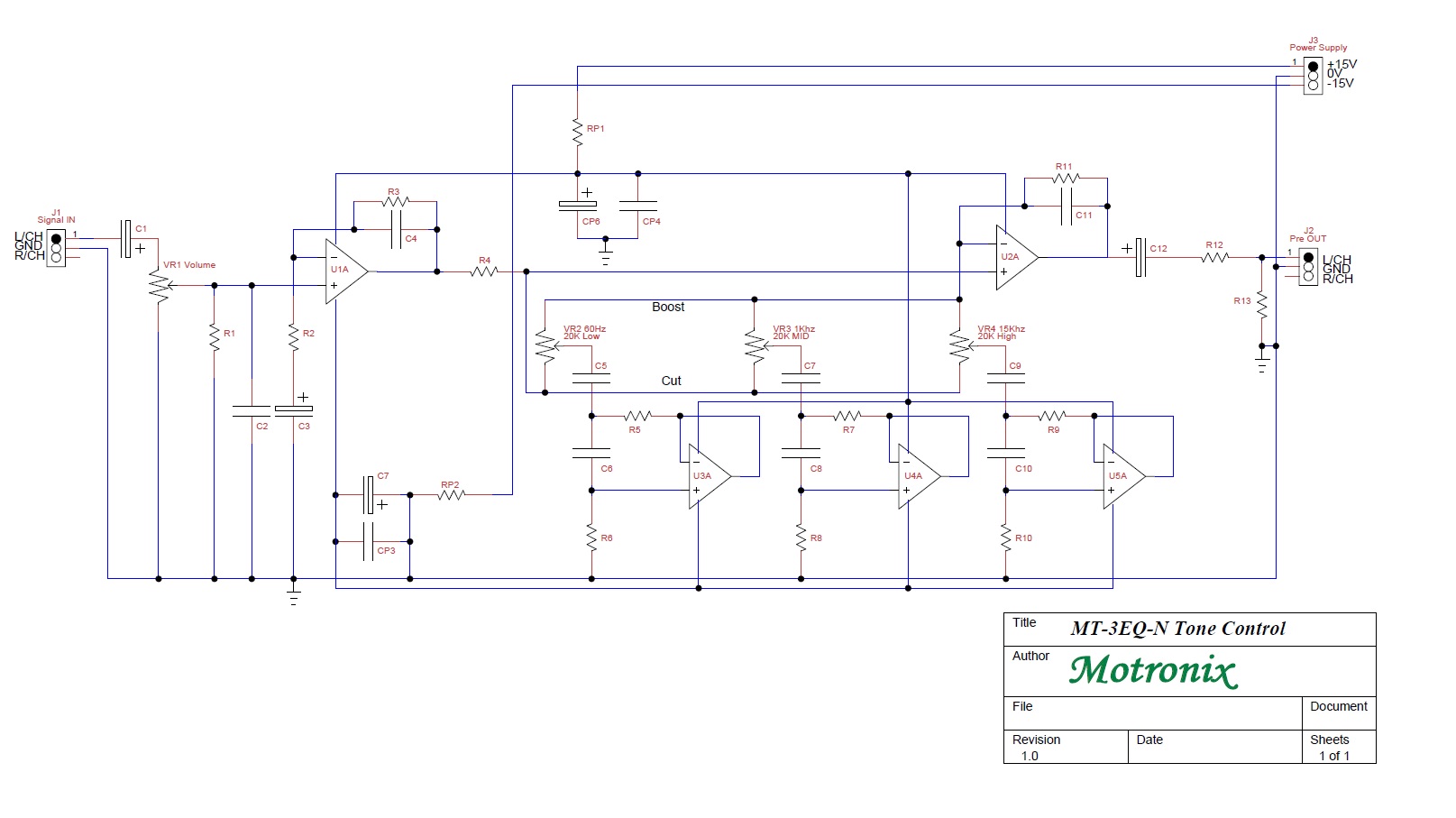

Stereo Tone Control Pre Amplifier with Volume and Precision Bass,Mid,Treble
Very Wide & Clean Good Sound Quality
Low Noise and THD Original Genuine
Input & Tone Stage Op Amp!

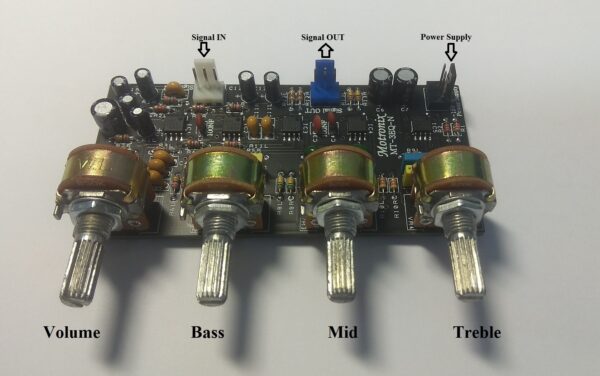

Input & Output PCB Connectors will supply
Input sensitivity: 250mv – 5Vmax.
Input Impedance: 47Kohm
Output Impedance: 100 ohm
Max output voltage: 8V rms @ 10kohm load
Tone control:
Bass +/- 12db @ 60Hz (Freq. can customize by request)
Mid +/- 12db @ 800Hz (Freq. can customize by request)
Treble +/- 12db @ 15Khz (Freq. can customize by request)
Working Voltage: Dual 9-18 Vdc Recommended +15Vdc 0 -15Vdc

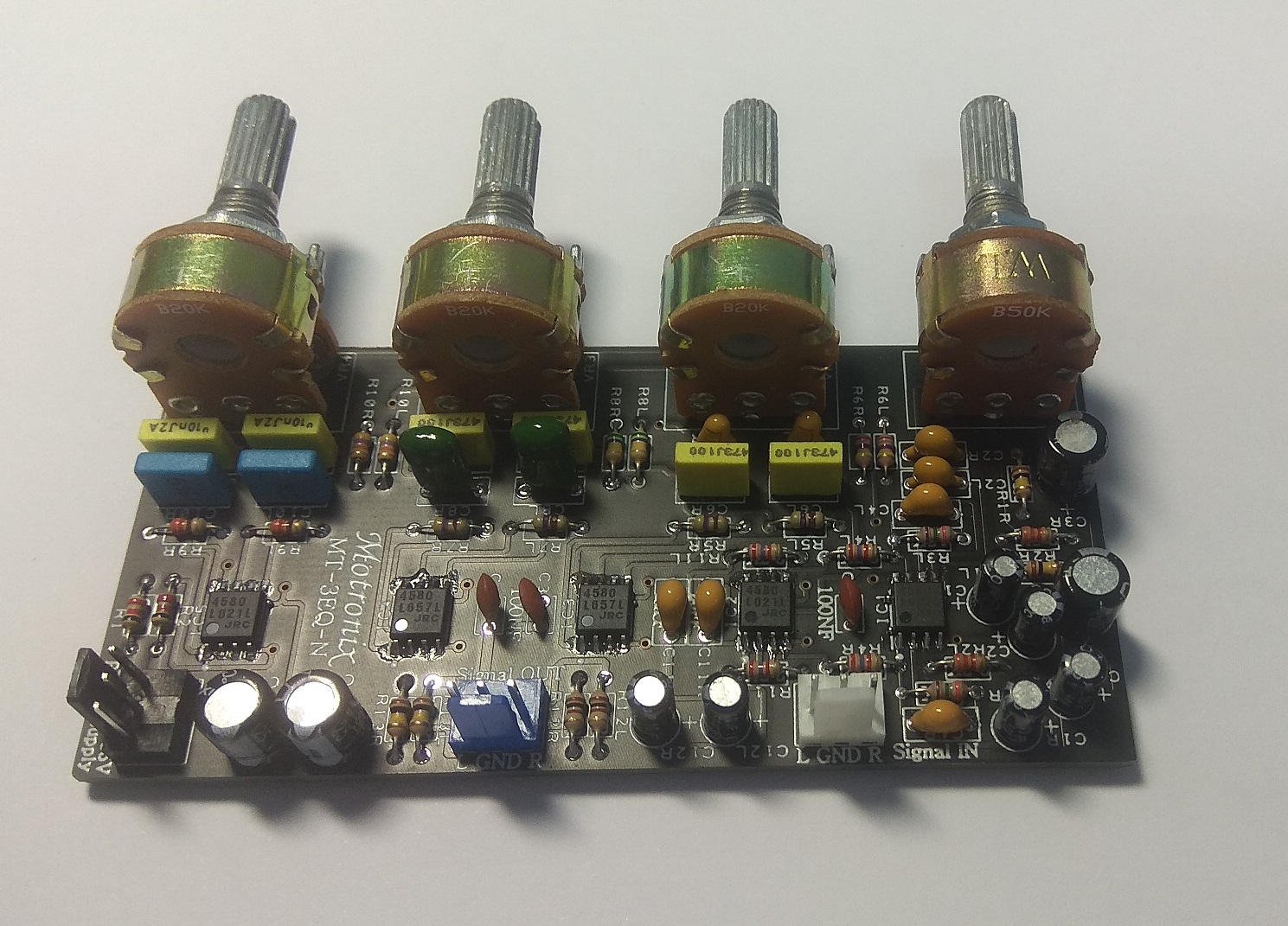

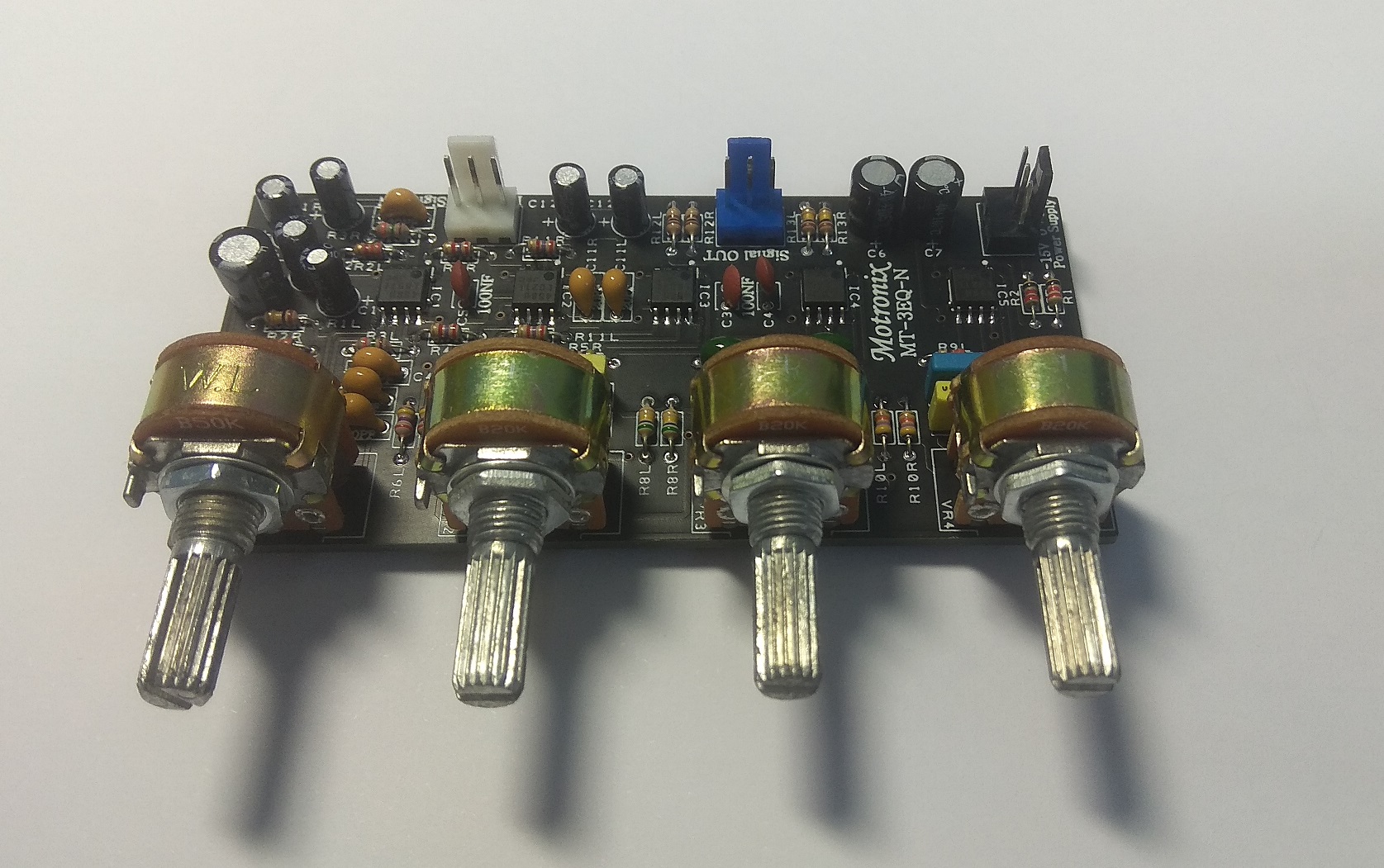

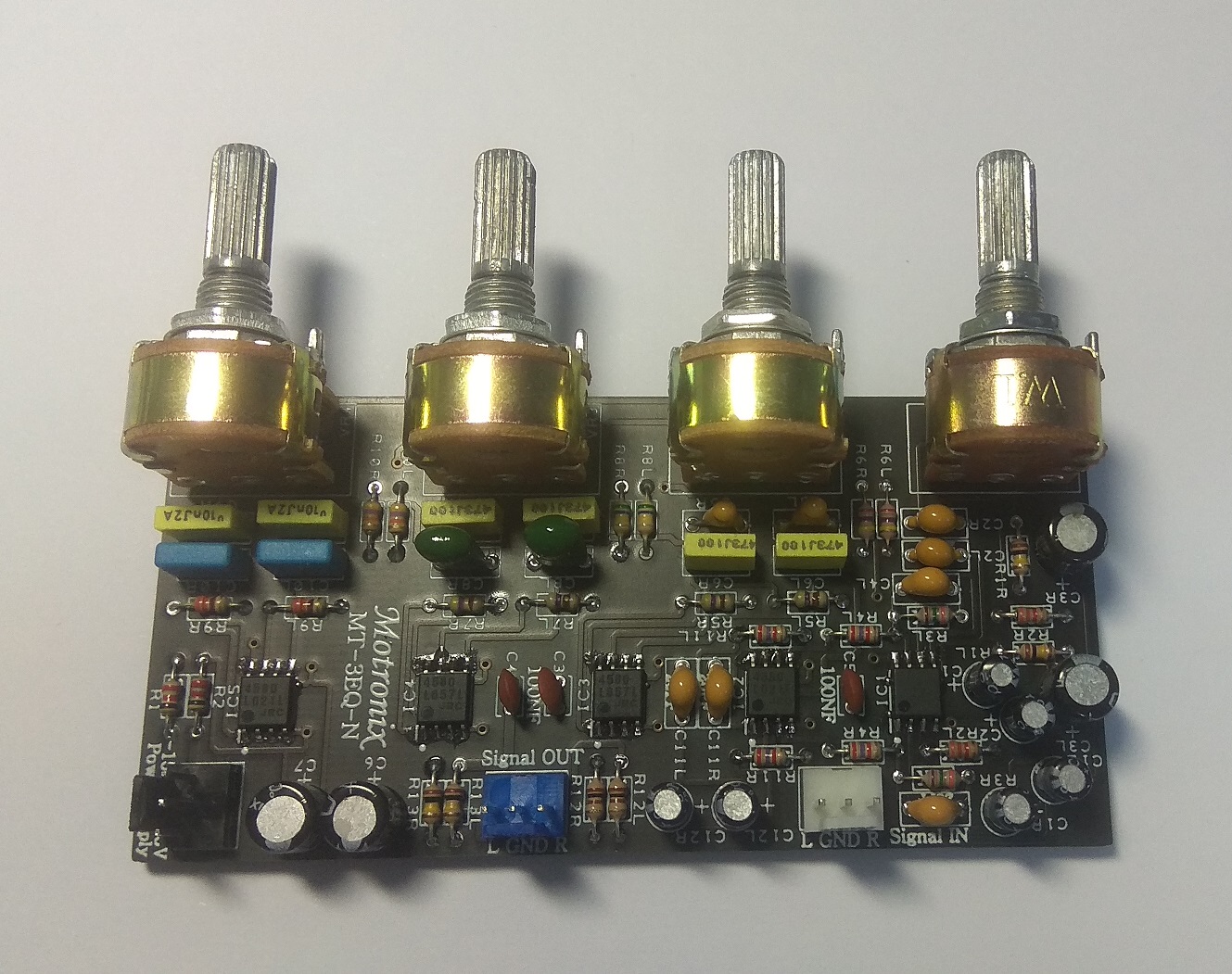

PCB Size: MT-3EQ-N 94mm*46mm Black double-sided HAL,FR4 1.6MM
Potentiometer Gap: 25mm (Center to Center)
Applications: DIY Home Amplifiers,Integrated Amplifiers,Pre Amplifiers
